D0088 SPEC
The specification defines the performance characteristics of a 65W
Continual, Single Output level switching power supply for PD3.0:5V/3A
9V/3A 12V/3A 15V/3A 20V/3.25A；PPS:3.3V-21V/3A .
The Quick charger has designed highly reliable and meet international safety
and radiation requirements.

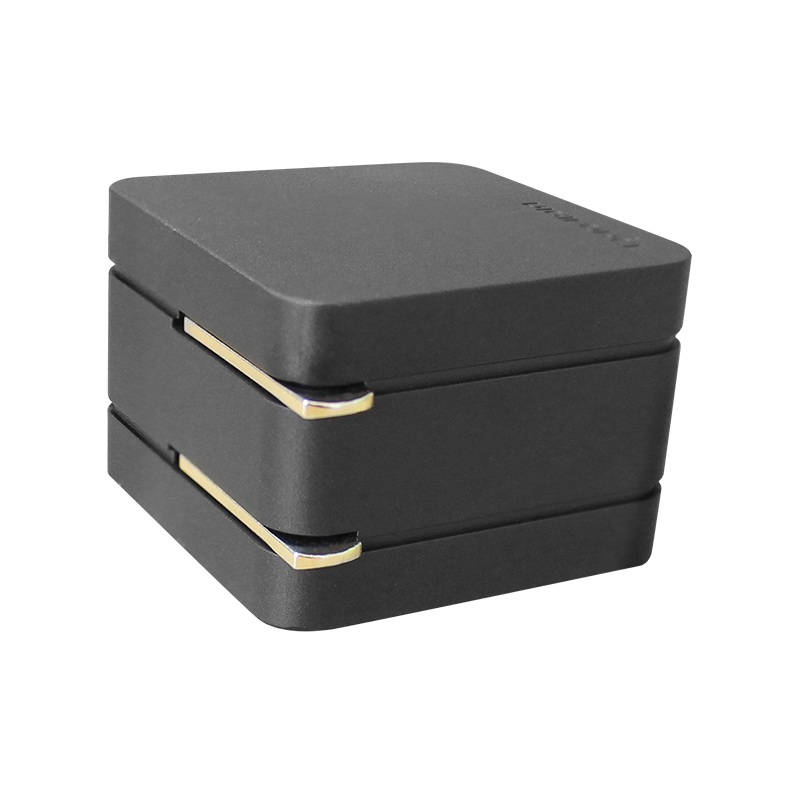

Size:
40mm*40mm*28mm
Input:
100~240Vac; 50/60Hz; Max input power: 82W
Out put:
Max 65W
5V/3.0A /4.70V 5.0V 5.30V/ 200mVp-p 17.3-18.7W
Output Load/ 3.0A - 3.80A
9V/3.0A / 8.55V 9.0V 9.45V 200mVp-p 29.8-30.9W
Output Load/ 3.0A - 3.80A
12V/3.0A / 11.4V 12.0V 12.6V 200mVp-p 39.5-40.6W
Output Load/ 3.0A - 3.80A
15V/3.0A /14.25V 15.0V 15.75V 250mVp-p 49.5-50.8W
Output Load//3.0A - 3.80A
20V/3.25A /19.0V 20.0V 21.0V 250mVp-p 70.51-74.5W
Standard:
GB4943-2011，GB9254-1998，GB17625.1-2003
Environment:
Operating temperature: 0℃ to 25℃.
Operating humidity: 5% to 90% rh. ( relative humidity).
Storage temperature: -20℃ to 70℃.
Storage humidity: 5% to 95% rh. ( relative humidity) .
