产品介绍

OS windows 10/11 home/pro/iot
CPU intel I3-1215U/I5-1235U/I7-1255U optional standard one is I5-1235U
RAM/ROM 16GB/512GB 8GB/256GB optional, 16GB/512GB, 32GB/ 1TB optional
LCD 10.1 inch1920*1200； max 500 nits sunshine readable, 1000nits brightness optional
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 5M/13M MIPI CONNECTOR
Power and battery 6000mAh, 7.6V lithium battery charging 4.5H, play video 7.7H
DC4.0*1.7mm, 12V 3A DC in put

--------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5G SUPPORT WIFI 6
BLUETOOTH 5.0 version
NFC 13.56 MHz, distance 5cm or above

--------------------------------------------------------------------------------------------------------------------------------------
SPEAKER 1.5 watt
Sensor "1. light sensor
2. acceleration/gravity
"
size 275*178*18mm
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language

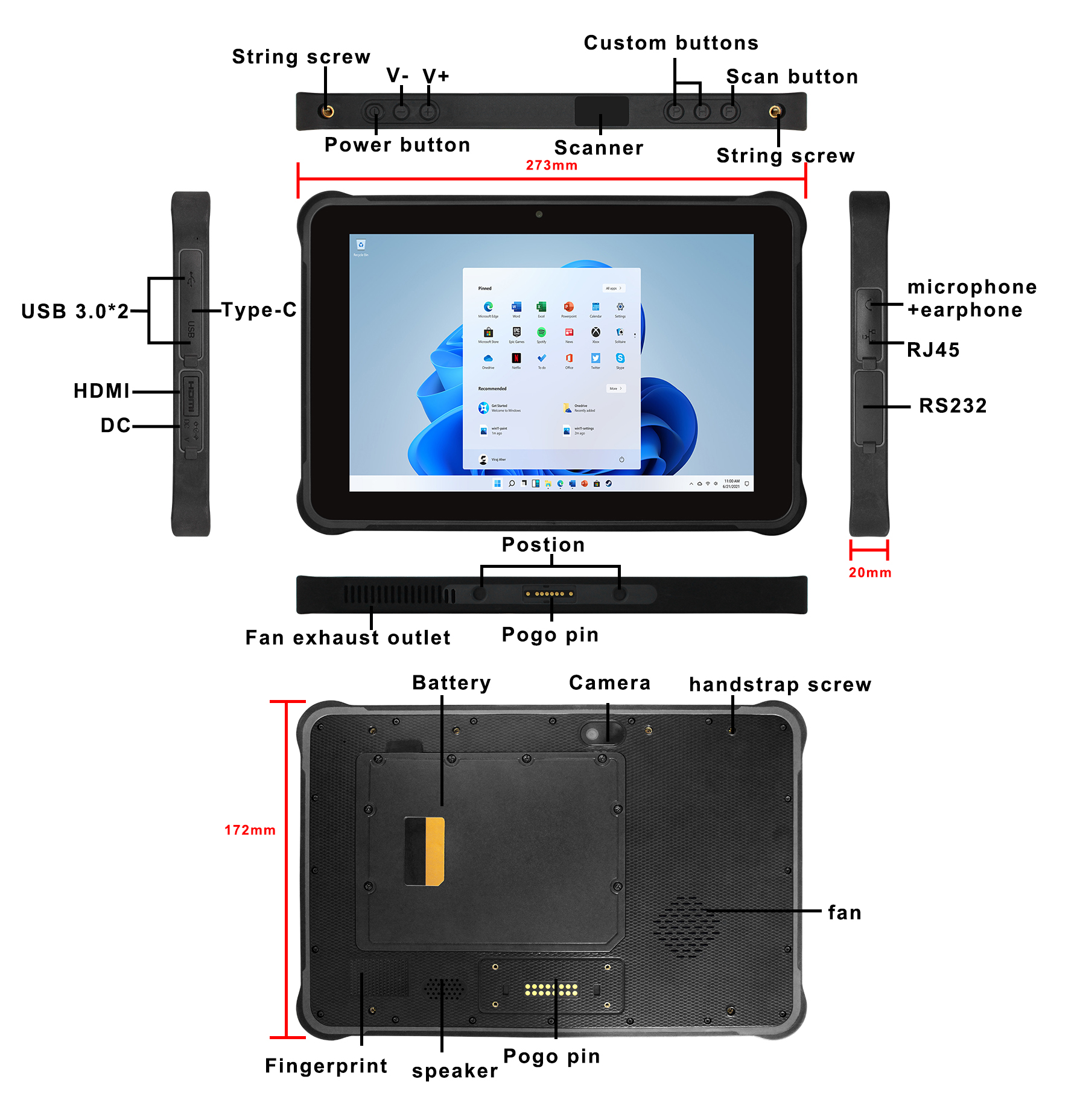

"interface
in/out port" "1. USB 3.0 *2, TYPE-C
2. RJ45*1
3. bottom pogopin*1, USB and serial
4. back pogopin*1
5. DC*1 4.0*1.7
6. microphone+earphone
7. HDMI
8. RS232*1
9. SSD TF card"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H

--------------------------------------------------------------------------------------------------------------------------------------
2D barcode module honeywell N3680 optional
UHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
accessories "1. USB cable
2. charger
3. handstrap
4. car holder optional
5. docking station optional
6. car charger optional
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
