Type
|
Features
|
Spec
|
Optional
|
|
Product
|
Device
|

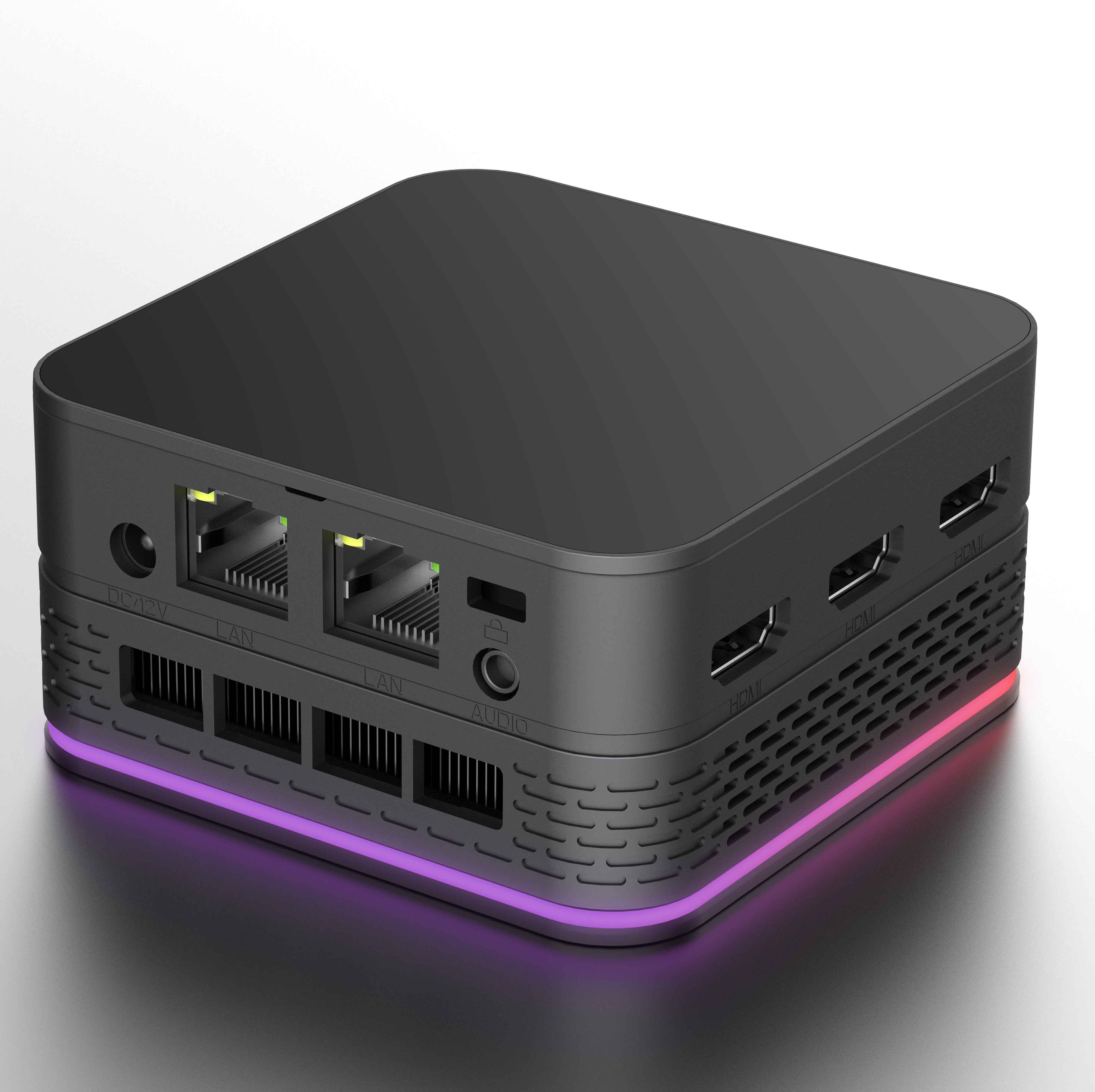

MINI
PC
|
|
|
Special
|
Handheld
miniature PC
|
Optional
|
|
Device size
|
89.4mm
x 89.4mm x 43.5mm
|
|
|
Case Material
|
Plastic
|
|
|
Weight
|
Net
Weight 203.7g
|
|
|
Hard configuration
|
|
Type
|
features
|
Description
|
Optional
|
|
CPU
|
Platform
|
Intel Jasper Lake
N5105
|
|
|
Speed
|
2.0GHz
|
|
|
Max frquency
|
2.9GHz
|
|
|
power disspation
|
10W（N5105)
|
|
|
Memory
|
Type
|
LPDDR4X Onboard
|
|
|
Storage
|
8GB
|
|
|
Storage
|
EMMC
|
No
|
|
|
SSD
|
M.2
2242 NGFF/NVMe，Max 2TB
|
Optional
|
|
2.5 ''HDD/SSD
|
No
|
|
|
TF card
|
No
|
|
|
RTC
|
BIOS
support
|
Real-time
clock,timing boot
|
|
|
Auto power on
|
BIOS
support
|
Yes
|
|
|
TPM
|
CPU
interation
|
SupportTPM
2.0
|
|
|
Display
|
Video
output
|
Supports
three screens
|
|
|
LED
|
status
indicator
|
White
light - Swith on
|
|
|
Network
|
|
Type
|
Features
|
Description
|
Optional
|
|
WIFI
|
Type
|
intel
7265/ 3165/ RTL8821CE On Board
|
Optional
|
|
Agreement
|
IEEE
802.11 a, b/g, n, ac
|
|
|
Bluetooth
|
Type
|
intel
7265/ 3165/ RTL8821CE On Board
|
Optional
|
|
Agreement
|
Support
Bluetooth 4.2
|
|
|
3G
|
build-in
|
No
|
|
|
4G
|
build-in
|
No
|
|
|
Ethernet
|
LAN
|
10M/100M/1000M
Self-adaption
|
|
|
Ports
|
|
|
|
|
Type
|
Features
|
Description
|
Optional
|
|
USB
|
USB2.0
|
No
|
|
|
USB
|
USB3.0
|
USB3.1
Type-A*3
|
|
|
TF
|
expand
external memory
|
No
|
|
|
HDMI
|
Audio/Video
output
|
HDMI
2.0 Type A*3
|
|
|
VGA
|
Video
output
|
No
|
|
|
RJ45
|
Gbe
|
RJ45
x3
|
|
|
type_c
|
data
transfer
|
No
|
|
|
POWER
|
power
|
x1
|
|
|
DC IN
|
DC
IN
|
5.5/2.1mm
DC Jack x1
|
|
|
Audio-in/out
|
Audio-in/out
|
3.5mm
Phone Jack x1 （Two-in-one interface）
|
|
|
Antenna1
|
FPC
|
WiFi
2.4+BT x1
|
|
|
Antenna2
|
FPC
|
WIFI
5.0
|
|
|
Software configuration
|
|
Type
|
Features
|
Description
|
Optional
|
|
OS
|
OS
version
|
Win11
Home/Win11 pro/Win11 IOT/ Ubuntu
|
|
|
Applied environment
|
|
Type
|
Features
|
Description
|
Optional
|
|
Environment
|
operating
temperature
|
0~40℃
|
|
|
storage temperature
|
-20~60℃
|
|
|
humidity
|
90%
@ 40 °C (without condensation)
|
|
|
Accessories
|
|
Type
|
Features
|
Description
|
Optional
|
|
Adapter
|
Plug
type
|
input100~240V
50/60Hz,output 12V/2.5A , DC 5.5*2.1mm
|
|
|
IR remote control
|
No
|
|
|
VESA
|
Yes
|
|
