Product Introduction
Product feature：
1.support Windows 10 OS；
2.Support all sizes of standard of USB3.0；3.Support NXP NFC(13.56M）；
4.Support Ublox GPS High precision positioning；dual frequency WIFI;
5.support 2D Scan；
6.support Electronic compass，gyroscope，Hall sensor；
7.Rugged IP65 protection level；
8.support 5000mAh removeable battery；
9.support high strength Glass Touch Panel,handwriting input；
10.support RJ45 internet access；
11.Support keyboard；
Type
Details
Standard
Configuration
Optional configuration
Product
Form
Product Form

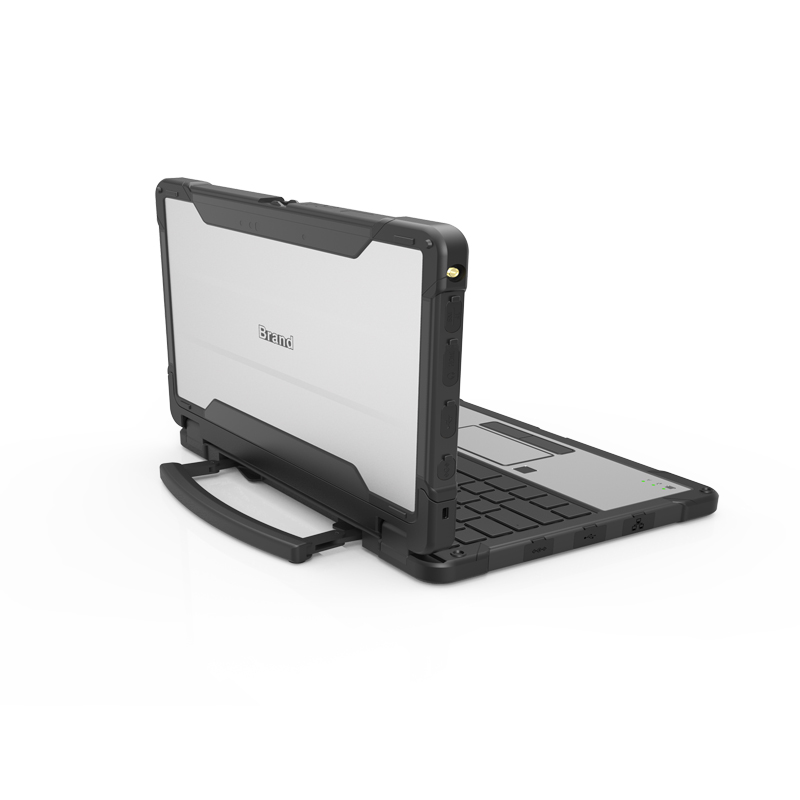

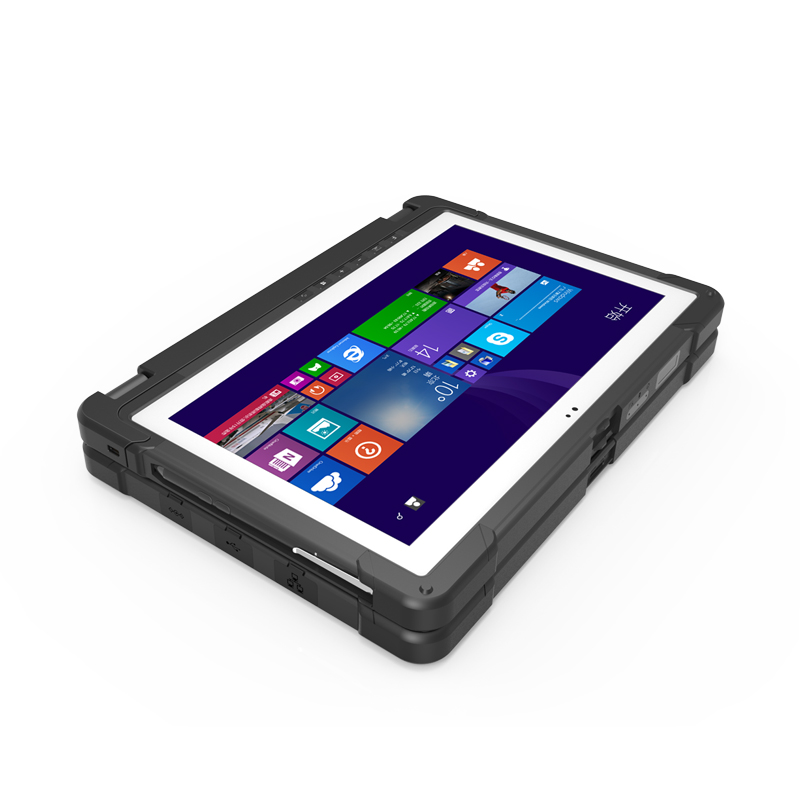

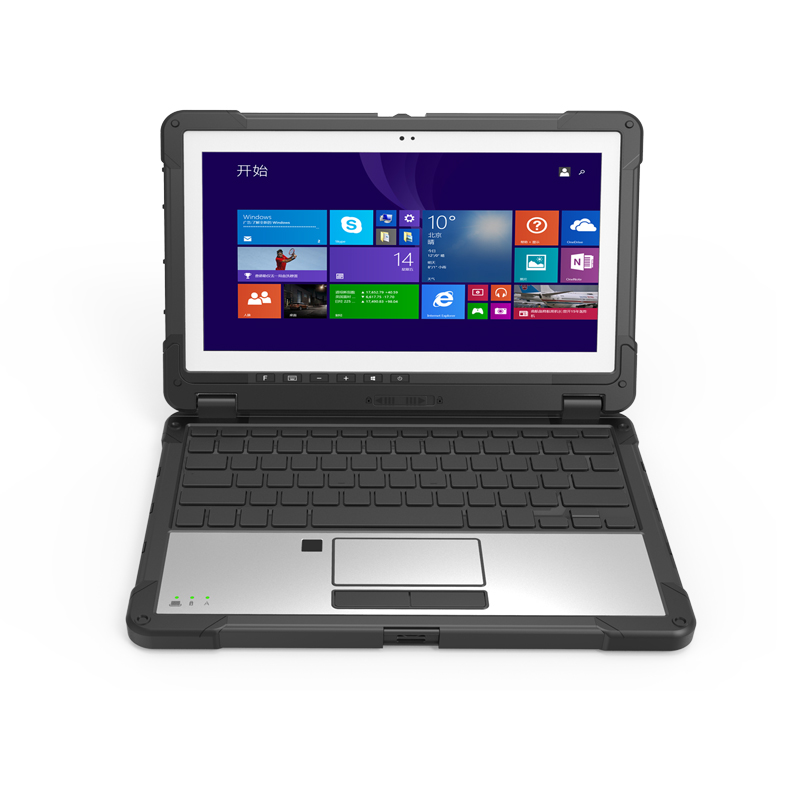

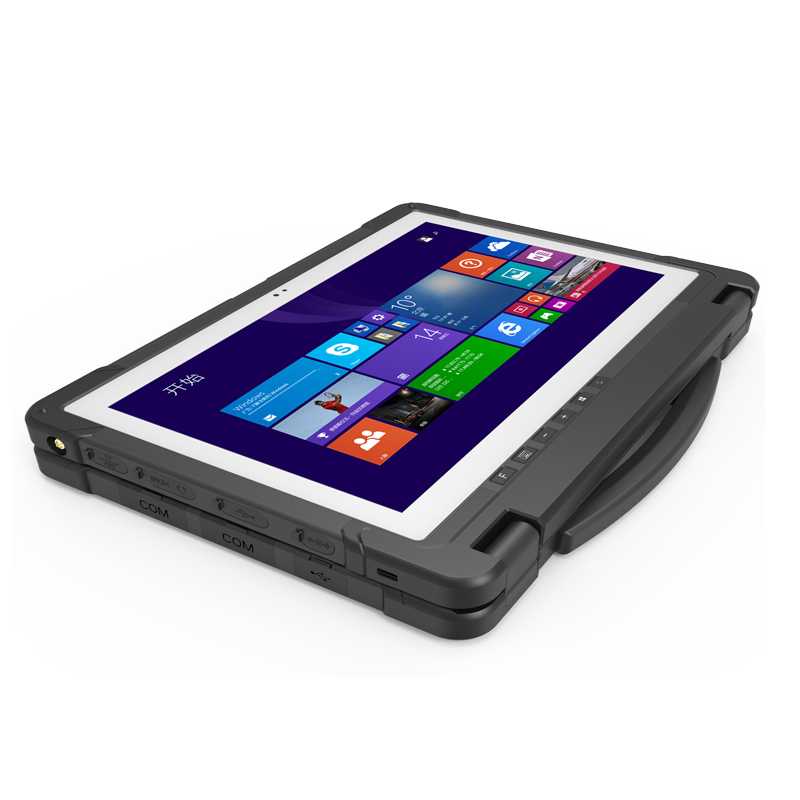

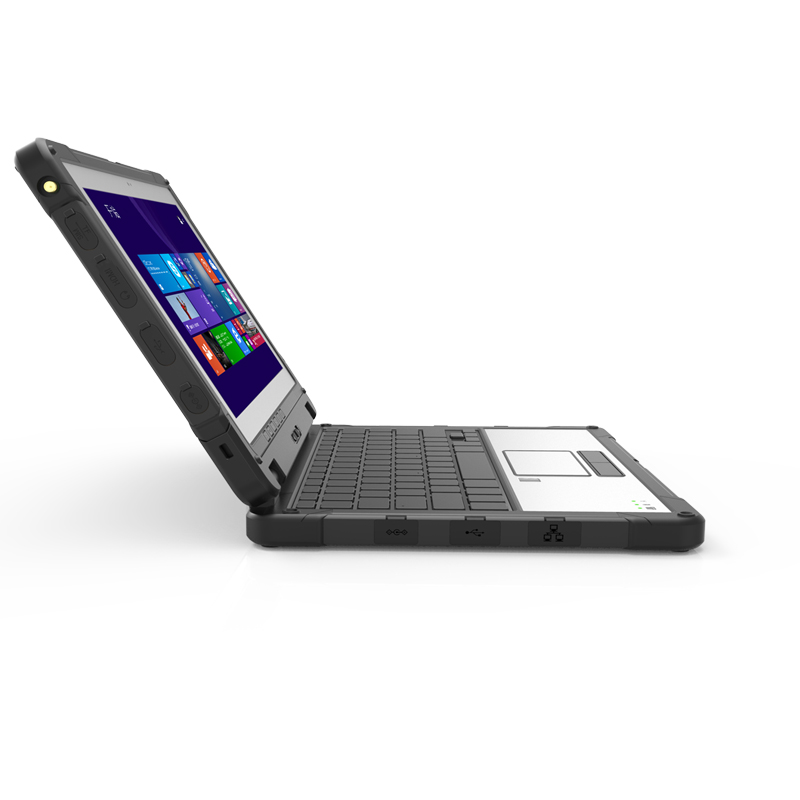

11.6
inch 2in1 reinforce notebook
NA
Dimension
305*205*16.5
mm (host)
NA
Weight
Bare
machine 3140g
NA
Device
Color
Silver+black
NA
LCD
Screen Size
11.6“ 16:9
NA
Resolution
1920(H)×1080(V)
NA
Brightness
350cd/㎡
Optional SLR sun
visible film
TP
Touch panel
，G+G，Corelle
gorilla, hardness over 7H, scratch resistant，TP thickness：1.1mm，COF，support
windows ink
Optional SLR sun
visible film
Camera
Front
Front
2.0MP
NA
Rear
Rear
8.0MP (USB)
NA
Speaker
Built-in
Embedded
8Ω/0.8W waterproofBOX horn x1
NA
Built-in
Sensitivity:-42db,
output impedance2.2kΩ
NA
Mic
Built-in
NA
Microsoft
pen,windows ink
keyboard
Built-in
78
key IP65 waterproof keyboard
NA
Battery(host
)
type
Li_polyment,battery
loadable
NA
capacity
5000mHA/7.4V
NA
Duration
of flight
6
hours (default 50% volume, default 200 lumens brightness, play 1080p HD
video)
NA
Battery(keyboard)
Type
Built
in polymer lithium ion battery
NA
Capacity
6300mHA/7.4V
NA
Duration
of flight
5
hours (default 50% volume, default 200 lumens brightness, play 1080p HD
video)
NA
System Hardware Configuration
Type
Details
Descriptions
Optional
configuration
CPU
Type
Intel®skylake
Core™ m3-7Y30
NA
Speed
4M
Cache, 2.60 GHz
NA
GPU
Type
Intel®
HD Graphics 515
NA
RAM
DDR3L
8GB
4GB
SSD
NGFF SSD
128GB
256G/512G
Compass
Built-in
Compass
NA
gyroscope
Built-in
gyroscope
NA
Honeywellswitch
hall
hall
NA
G_sensor
Built-in
g-sensor
NA
Internet Connections
Type
Details
Description
Optional
configuration
WIFI
WIFI module
WIFI
802.11(a/b/g/n/ac) frequency 2.4G+5.8G
double frequency WIFI
NA
Bluetooth
Built-in
BT4.2 (BLE) class1 transmission distance：10m
NA
3G
Built-in
FIBOCOM_H380-GL frequency range：GSM/GPRS/EDGE
Band(850&900&1800&1900 MHZ), WCDMA
Band(850&900&1900&2100MHz)，HSDPA 21Mbps，HSUPA 5.76 Mbps
NA
4G
Built-in
NA
ME936 LTE
M.2
LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
WCDMA/HSDPA/HSUPA/HSPA+ :850MHZ/900MHZ/1700 MHZ(AWS)/1900MHZ/2100MHZ
GPRS/EDGE:850MHZ/900MHZ/1800MHZ/1900MHZ
GPS/GLONASS:L1
GPS
Built-in
U-blox
NEO-7,support :GLONASS,QZSS,GPS;acquisition sensitivity:-160 dBm；Cold start
time：<30 second，Hot start time：<28 second，frequency：0.25 Hz … 10 MHz
(configurable)
1.Select Beidou
2.The keyboard can be equipped with GPS module, which is used to connect
the GPS antenna to the vehicle
Data collection
Type
Details
Description
Optional
configuration
Two-dimension code
selection
NA
Honeywell
N3680 DXVA
Optical resolution: 5MIL
Scan speed:50 times/s
supportcode:PDF417, MicroPDF417, Data Matrix,
Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR
Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Fingerprint
selection
NA
070-Hello
(FPC1020 sensor, capacitive press type)
FPC1020(sensor，Compression
type of capacitance)
Fingerprint acquisition area：10mm x10mm üResolution：192x192pixel/508DPI

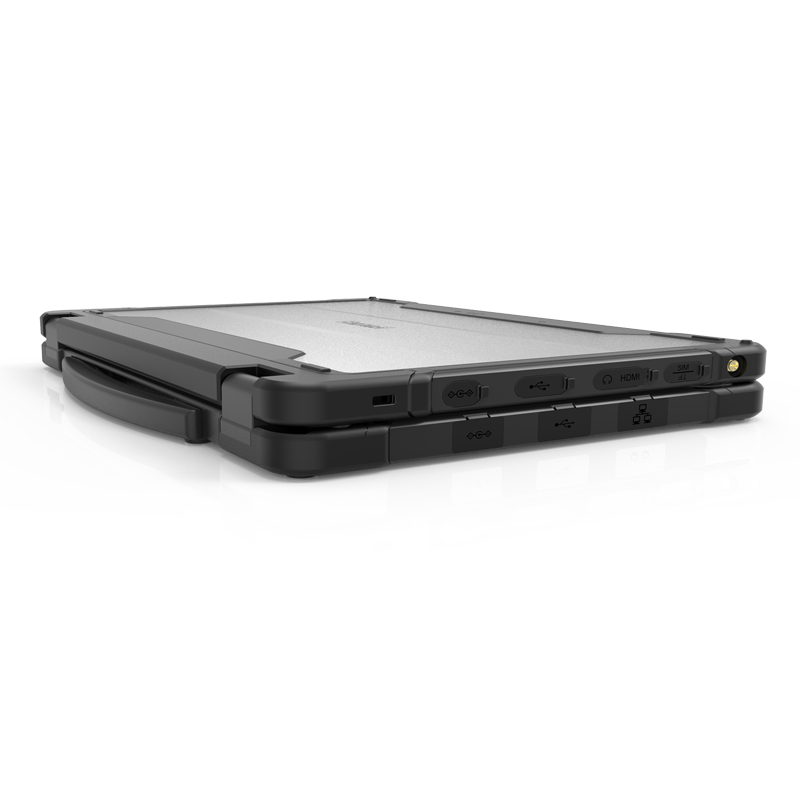

Interface
Type
Details
Description
Optional
configuration
USB3.0
USB3.0
USB3.0*1 host
NA
Earphone Jack
Earphone Jack
∮3.5mm standard earphone interface x1 host
NA
HDMI C
HDMI C
HDMI C x1 host
NA
TF Card
TF Card
support SDHC/SDXC x1
max：64G host
NA
SIM Card
SIM Card
SIM
card x1 host
NA
DC interface(host)
DC interface
DC
12V 4A power interface x1 host
NA
GPS antenna
interface SMA
antenna interfaceSMA
GPS_SMA
x1 keyborad
NA
Serial port
interface
serial port
DB9 (RS232,RS485) ×2 keyborad
NA
RJ45 interface
ethernet
10/100Mbps
self-adaption ×1 keyborad
NA
USB2.0
USB2.0
USB2.0*2 keyborad
NA
DC
interface(keyboard)
DC interface
DC
12V 4A power interface x1
NA
Air socket
Air socket
NA
Air socket x1
Key
Type
Details
Description
Optional
configuration
power
Power key
x1
NA
volume
volume+_
Volume subtraction x2
NA
Windows home
Windows home
Windows home x1
NA
system keyboard
system keyboard
System soft keyboard x1
NA
F KEY
barcode scan key
Barcode
scanning (back of machine)
NA
Standard Accessories
Type
Details
Description
Optional
configuration
Power adaptor
Standard
AC100V ~ 240V、50Hz/60Hz
outputting DC 12V/4A CE
certification
American
European
Software Configuration
Type
Details
Description
Optional
configuration
Operation system
Operation system
version
windows 10 HOME 64bit
default language: English
windows 10 IOT
64bit
Windows10 Pro /64bit
Windows 10 enterprise
64bit /64bit
Product Certificate
Type
Details
Description
Optional
configuration
Certificates
System
IP65
IP65
report: Waterproof test: IP-x5, dustproof test: IP-6X
a.ozzle bore: 6.3mm; B. water flow: 12.5 + 0.625L/min;
c.Water pressure: according to the regulation of water flow regulation;
d. the main part of the main flow: a circle about 40mm in diameter from the
nozzle 2.5m;
e.Shell surface water per square metre: About 1min; F. test time: at least
3min;
g.Nozzle to shell surface distance: 2.5 ~ 3m.
After test, the sample is not flooded
NA
CE
NB
Y
NA
MIL-STD-810G
Y
NA
Reliability
Type
Details
Description
Optional
configuration
Product
reliability
Fall height
80cm
composite wooden floor boot status
Work
temperature
‘-10
°C to 50 °C
Storage
temperature
’-30
°C to 70 °C
Humidity
Humidity:
95% Non-Condensing
