Product Introduction
Model: ST11
1. 10.1 inch android 7.0 rugged tablet
2. RAM/ROM 3GB/32GB rugged tablet
3. screen is 1200*1920 rugged tablet
4. 4G LTE/WIFI/GPS/BT rugged tablet
5. hot swap battery rugged tablet

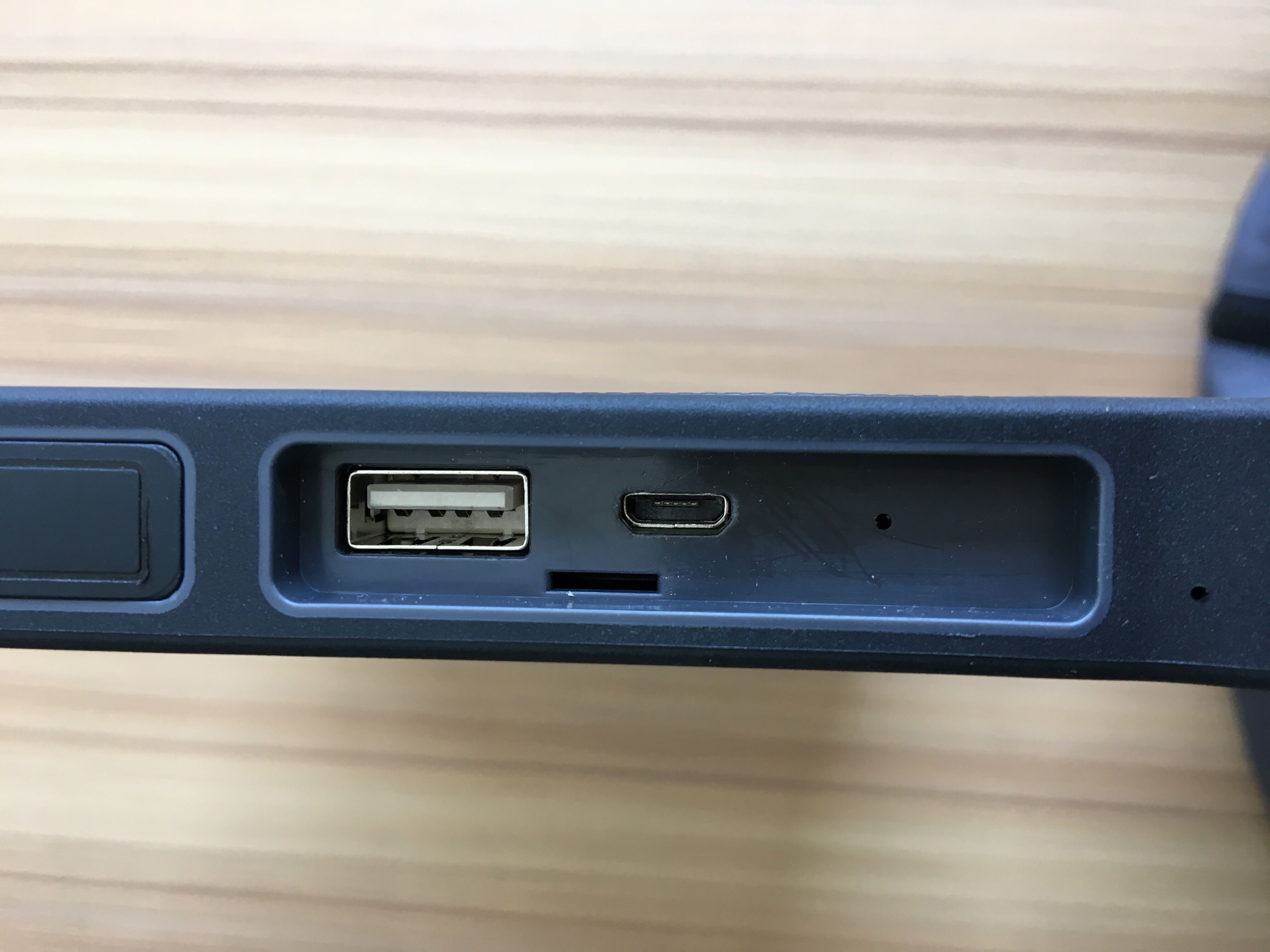

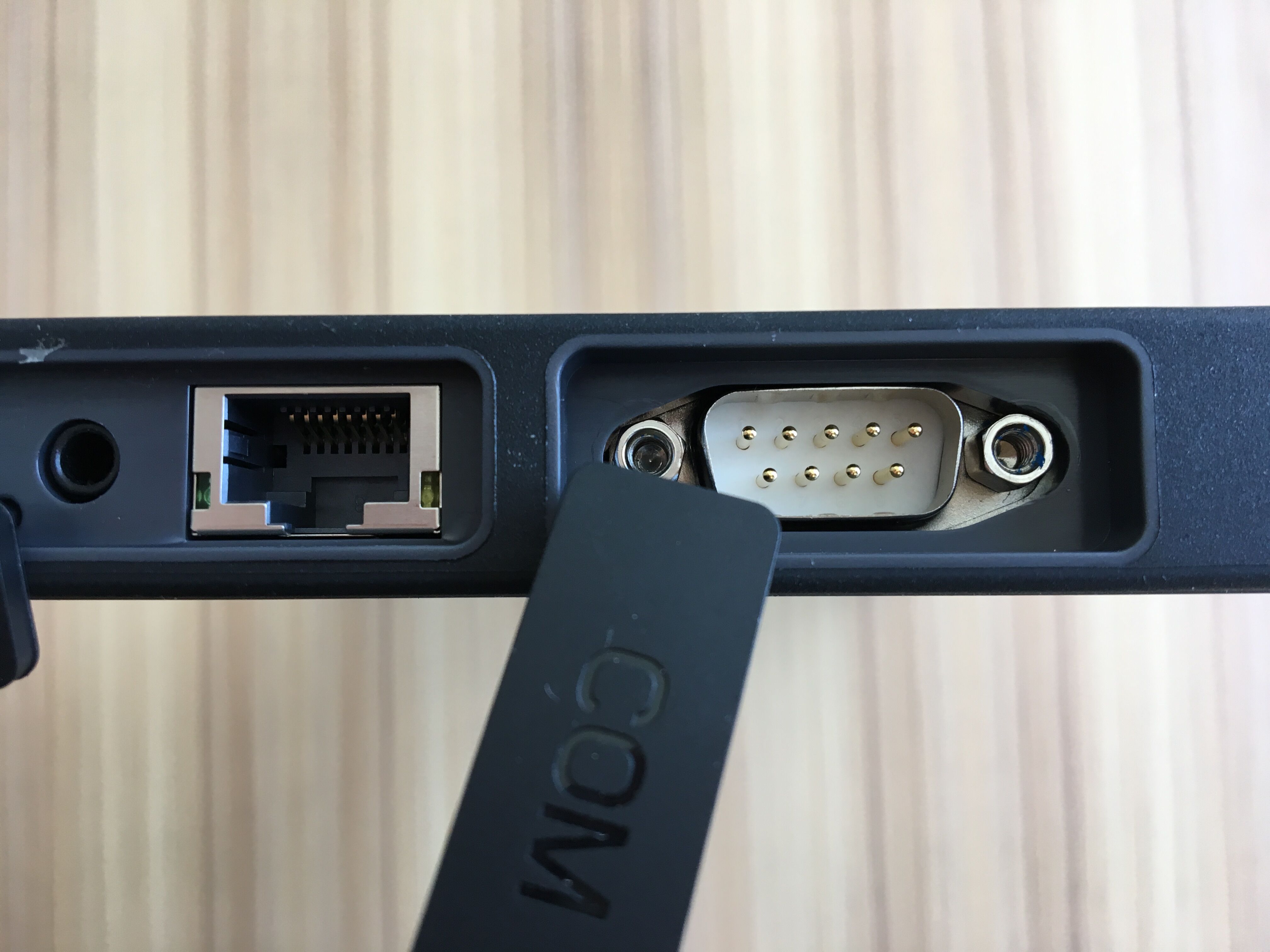

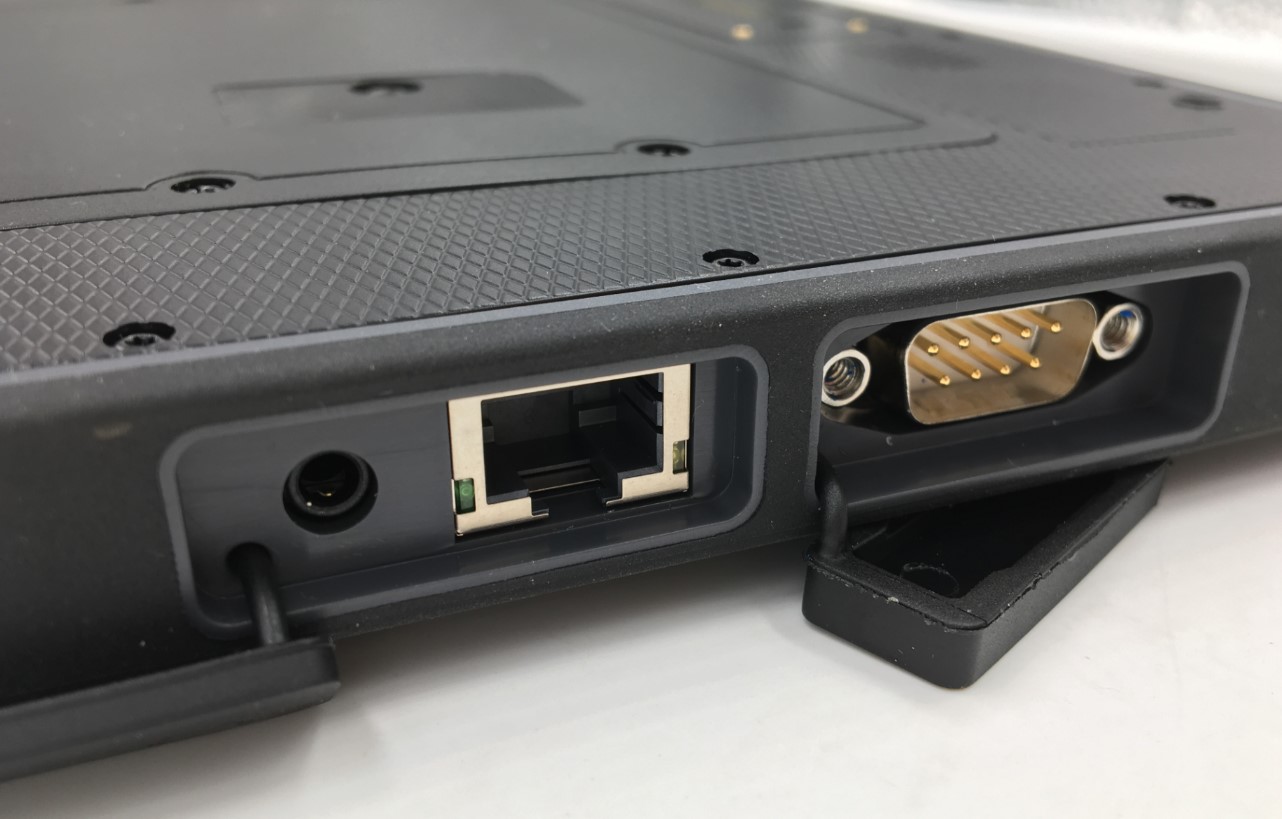

6. support RJ45, RS232, USB 2.0, Micro USB rugged tablet

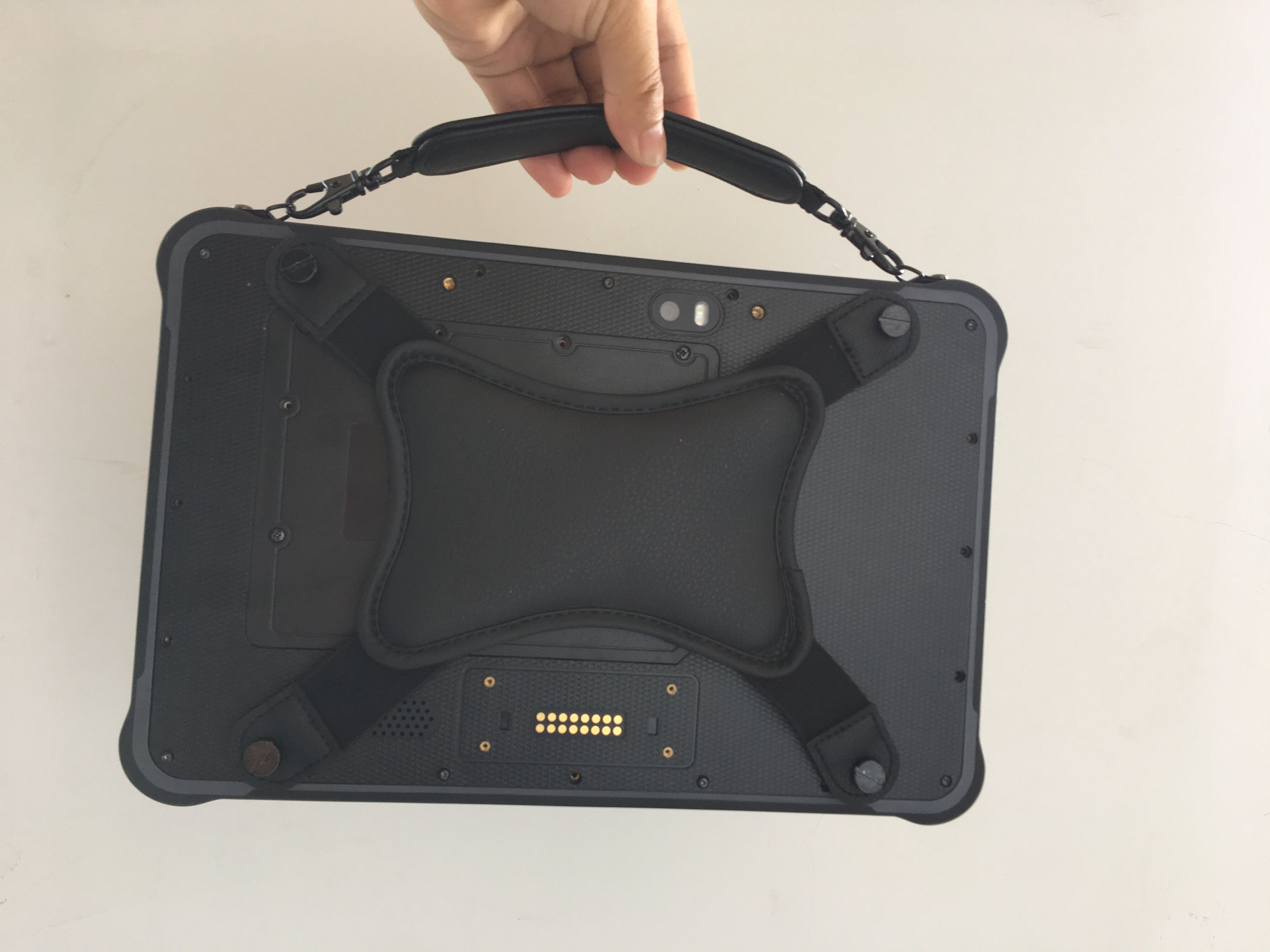

7. back pogo pin for extend, bottom pogopin for docking station rugged tablet

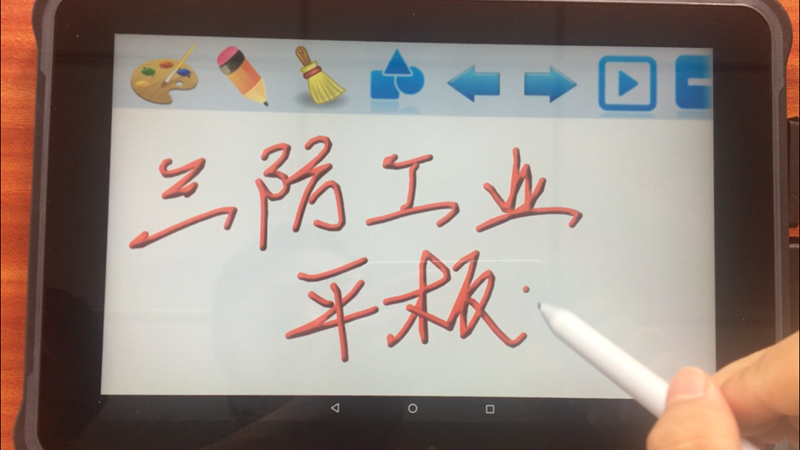

8.Support original handwriting stylus (optional) rugged tablet
****Standard color is black, other colors MOQ: 200 pcs
| OS | android 7.0 | ||
| CPU | MT6735 | ||
| RAM/ROM | 3GB/32GB | ||
| LCD | 10.1 inch1920*1200； | 500 nits sunshine readable | |
| Touch screen |
10
point touch support tylus support thin glove touch |
||

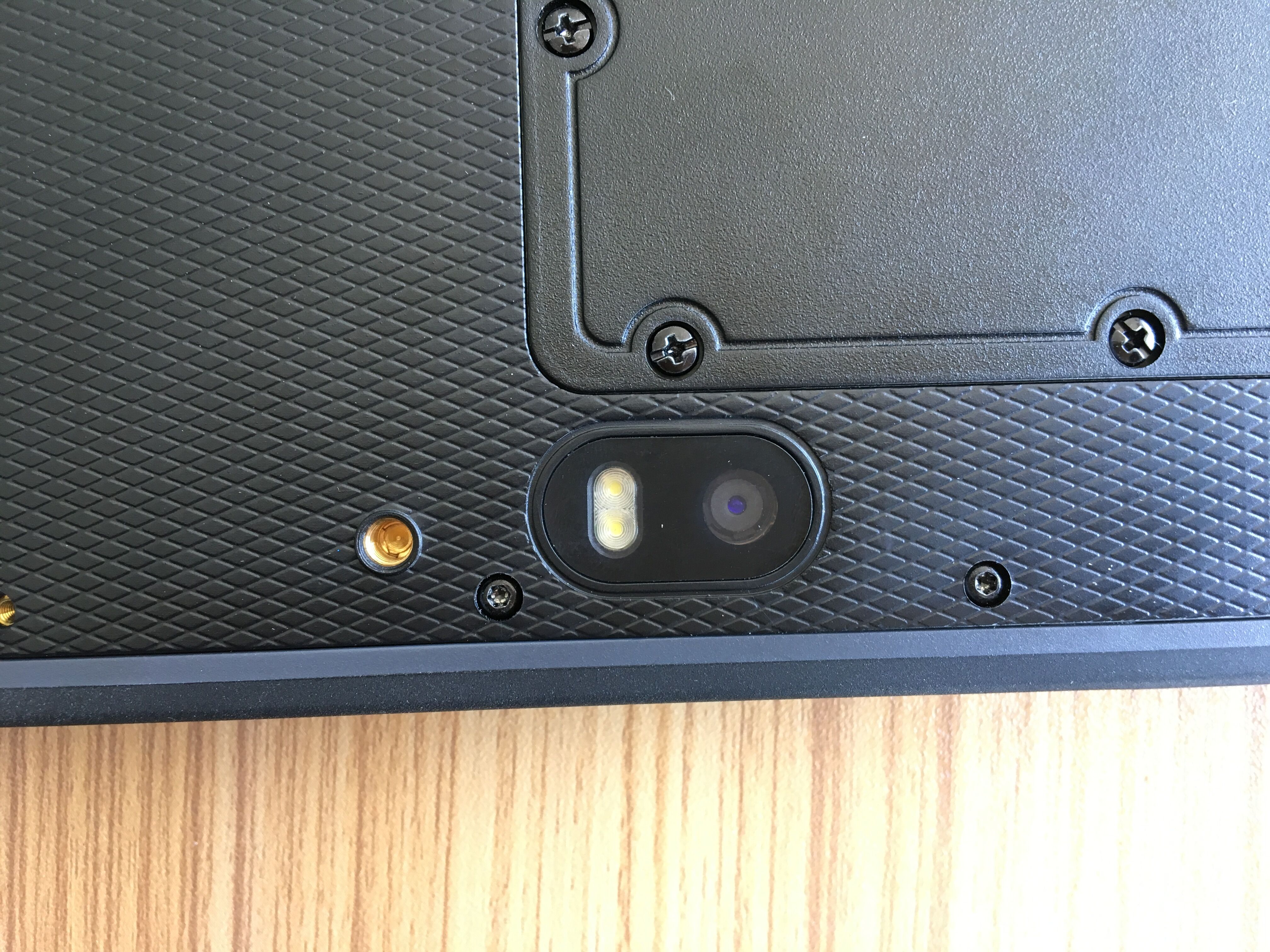

| Camera | 5M/13M, flash | 5M/13M, flash | |
| Power and battery |
battery
total capacity 10500mAh play video 8 hours, working 10 hours charging 4 hours. |
8400mAh,hotswap,
2100mAh backup power 3.8V 3A imput, support hotswap play video 8 hours, working 10 hours charging 4 hours. |
|

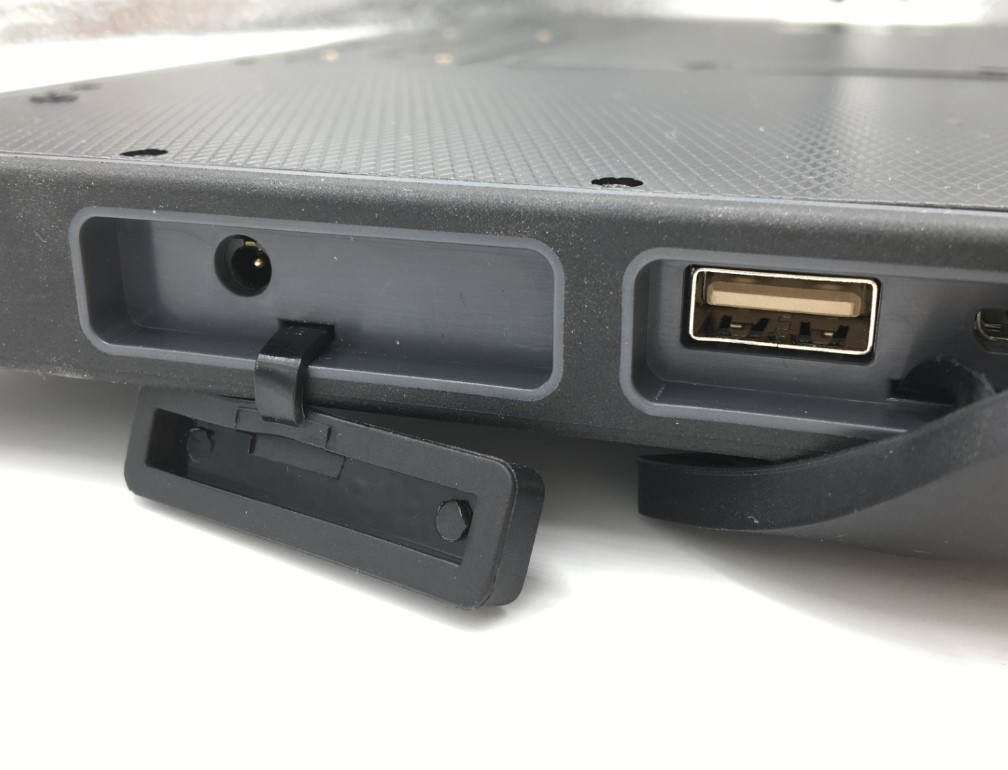

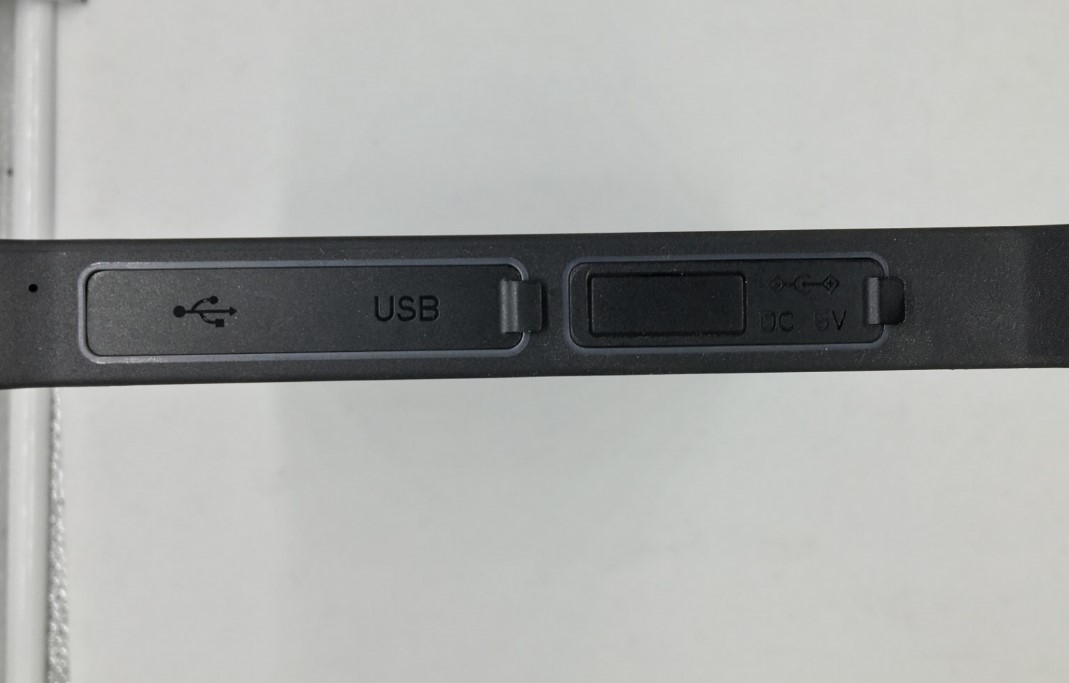

| 3.5*1.35mm, 5V 3A DC in put | Magnetic charger | ||
| WWAN | 4G LTE, 3G WCDMA, GSM |
4G
Fre: FDD: B1,B2, B3,B5, B7, B8, B12， B20 TDD: B38,B39,B40,B41 B34 WCDMA:B1, B8 TD-SCDMA: B34, B39 GSM/GPRS/EDGE |
|
| GPS | baidou,GPS, glonass | ||
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | ||
| BLUETOOTH | 4.0 version | ||
| NFC | 13.56 MHz, distance 5cm or above | ||
| SPEAKER | 1.5 watt | ||
| Sensor |
1.
light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor |
||
| size | 275*178*18mm | ||
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG | |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | ||
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | ||
| language | multi language | ||
|

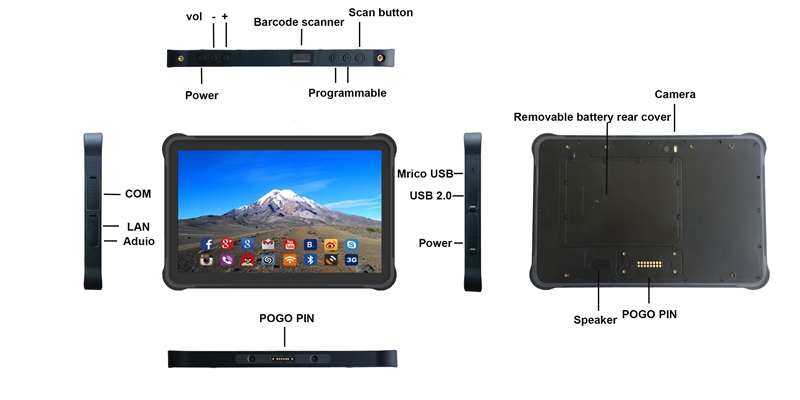

interface in/out port |
1.
normal USB*1 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. mini HDMI 9.RS232*1 |
||

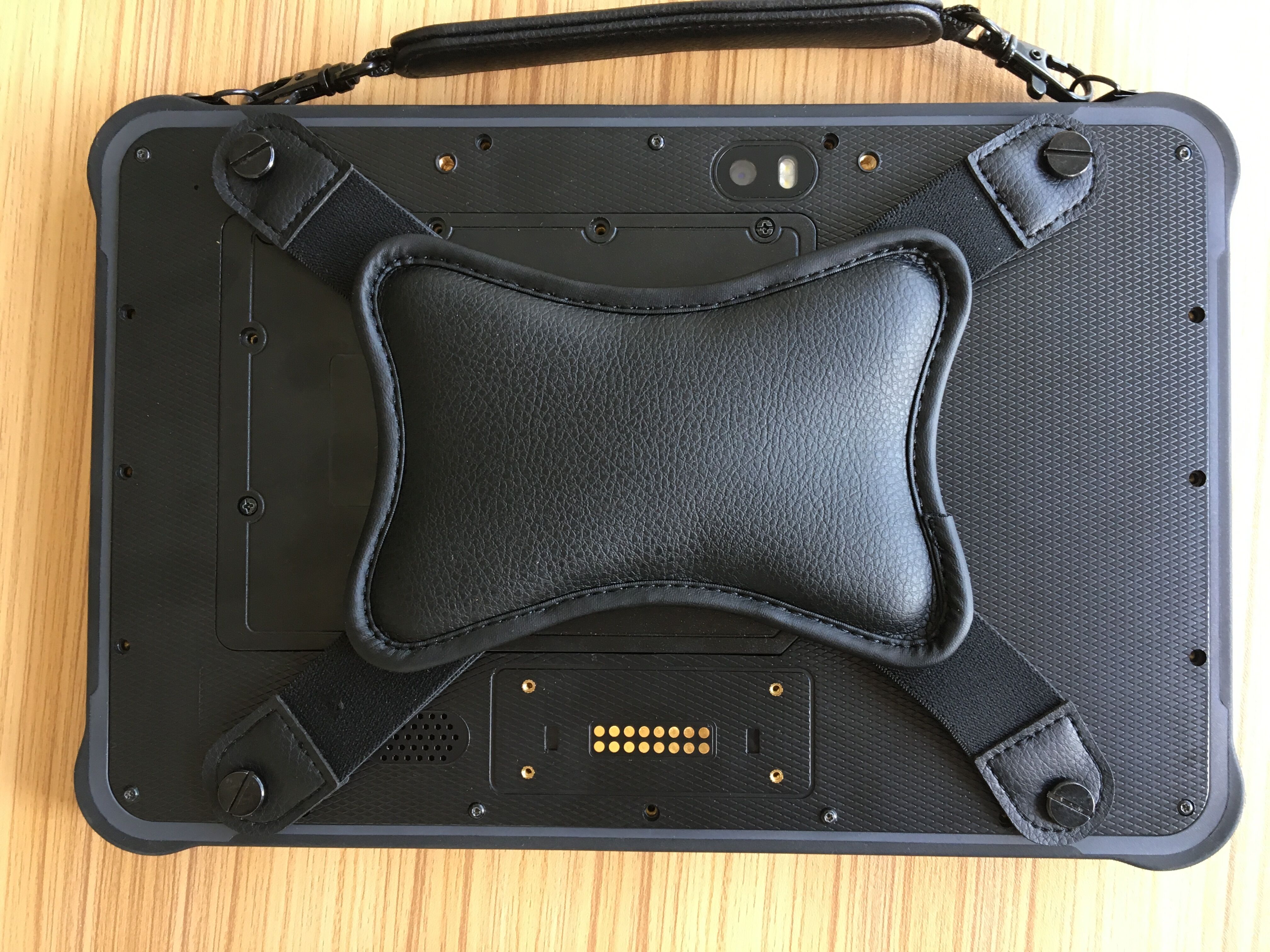

| Pogopin definition |
1.16pin
back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， ) VESA hole 75*75mm or 90*90mm |
||
| casing material | ABS/PC/Rubber TPU/aluminum | ||
| button | V+ -, Power, P, F, H | ||
| 2D barcode module | honeywell N3680 | ||
| fingerprint module | LD-8800-M | ||
| accessories |
1.
USB cable 2. charger 3. handstrap 4. car holder 5. docking station 6. car charger 7. white box, no logo |
||
| proof rate |
1.
water proof IP65 2. Drapping proof 1.2 meter |
||
| Certification |
1.
810G 2. CE,FCC |
||
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
