Product Introduction
ITEM DESCRIPTION detail
OS windows 11 home/pro/iot，
CPU I5-1235U/i7-1255u
RAM/ROM 8GB/256GB, 16GB/512GB 4GB/64GB， 4GB/128GB optional
LCD 13.3 inch1920*1080； max 350 nits
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 5M/13M
Power and battery 8000mAh, 7.6V lithium battery
DC4.0*1.7mm, 12V 3A DC in put, or type-C
------------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G WIFI 6 Optional
BLUETOOTH 5.0 version
NFC 13.56 MHz, distance 5cm or above
SPEAKER 1.5 watt*2
Sensor "1. light sensor
2. acceleration/gravity
"
------------------------------------------------------------------------------------------------------------------------------------------
size
weight 1.1kg
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language

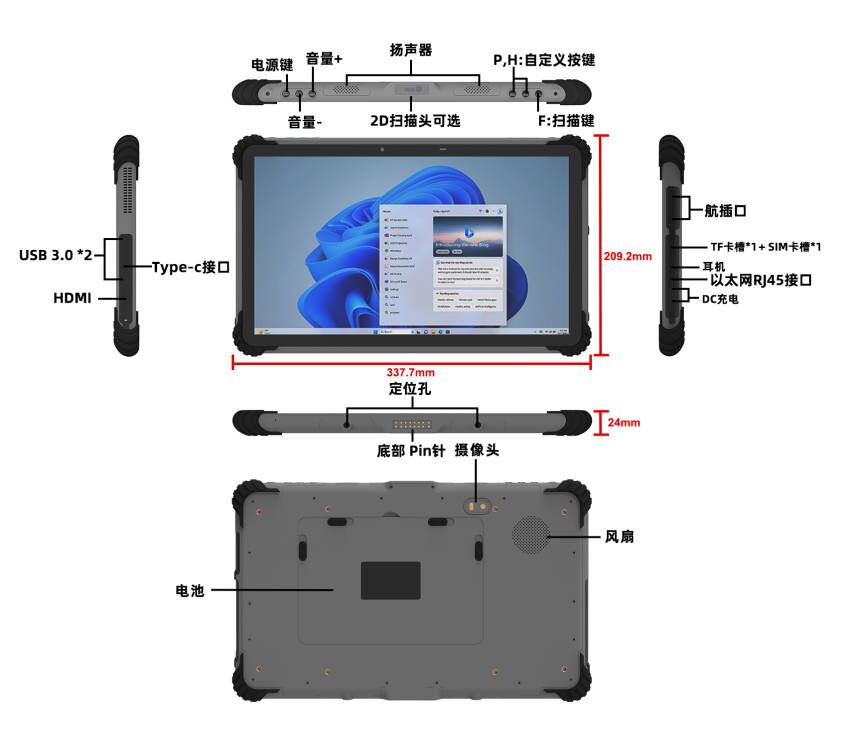

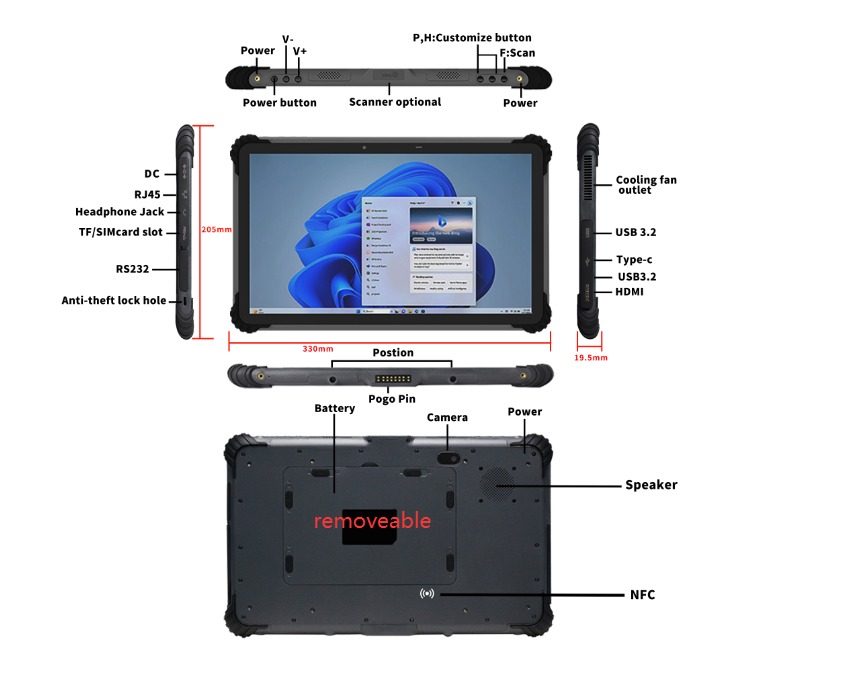

"interface
in/out port" "1.USB 3.0 *2， Type-c*1
2. RJ45*1
3. bottom pogopin*1, USB and serial
4. back pogopin*1
5. DC*1 3.5*1.35
6. microphone+earphone
7. HDMI
8. Aviation port*2"
Pogopin definition 1. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H
------------------------------------------------------------------------------------------------------------------------------------------
2D barcode module honeywell N4680 optional
UHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
accessories "1. USB cable
2. charger

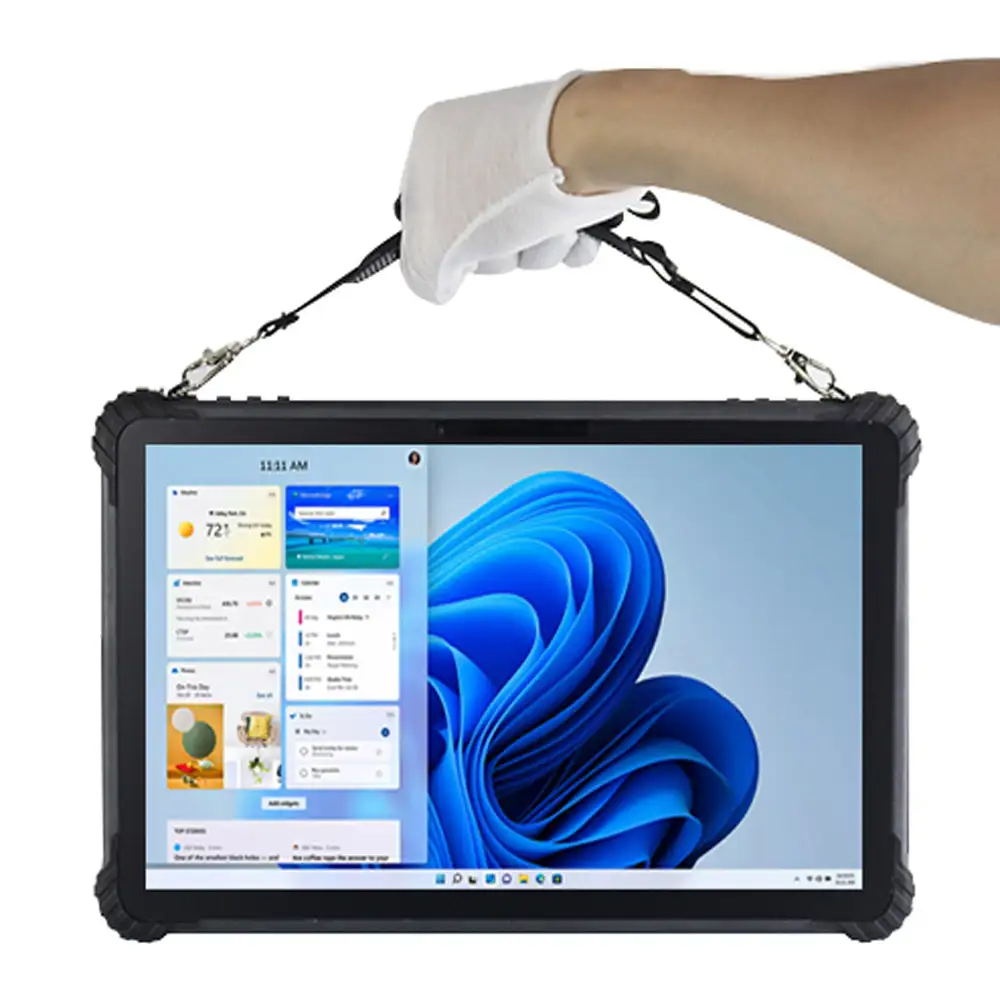

3. handstrap
4. car holder

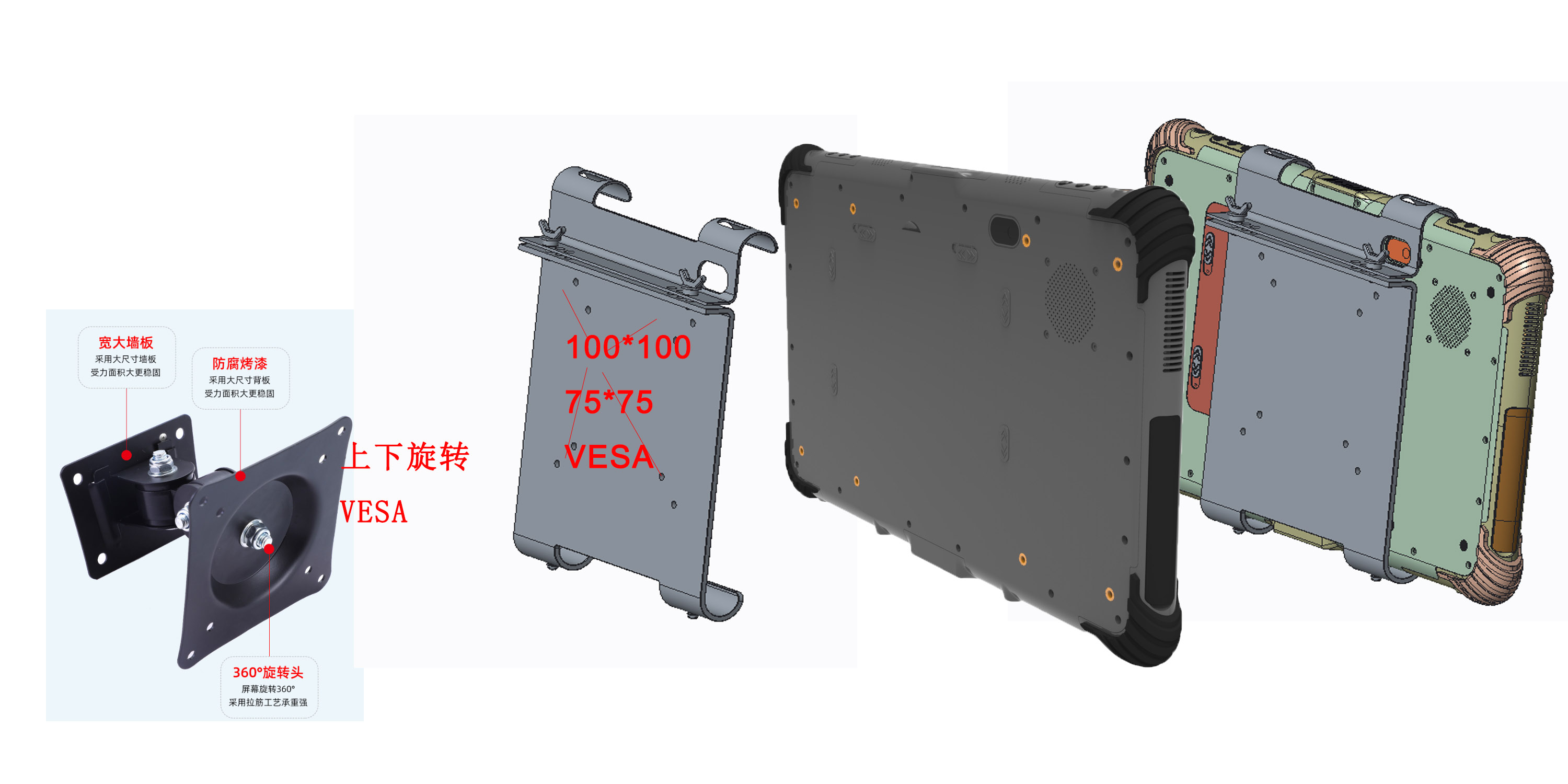

5. docking station
6. car charger
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
