Product Introduction

Product introduction

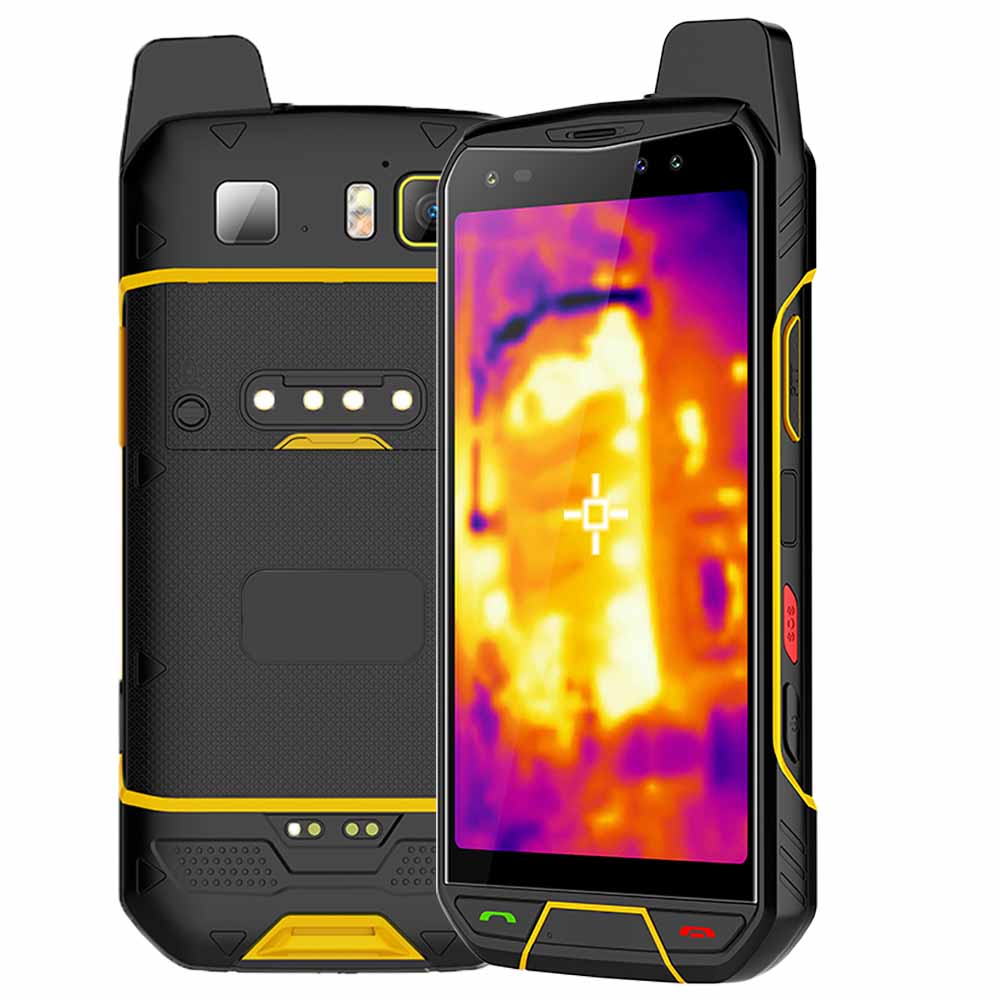

Infrared thermal imaging phone to a portable intelligent infrared thermal imaging detection tools, micro thermal infrared imaging detector and three phone perfect integration, can be customized in different industries of the infrared thermal imaging detection business software, carry by testing personnel to the site, through the touch screen operation detection software, rapidly meet the target of infrared thermal imaging detection, filming, and through the WIFI network to upload data remote management platform, data management, real-time analysis and early warning.

Widely used in electric power, medical, petrochemical, industrial manufacturing and other industries, effectively solve the traditional infrared thermal imaging detection tools, inconvenient to carry, single function, complex operation, low detection efficiency, can not wireless upload data and other deficiencies.

product feature

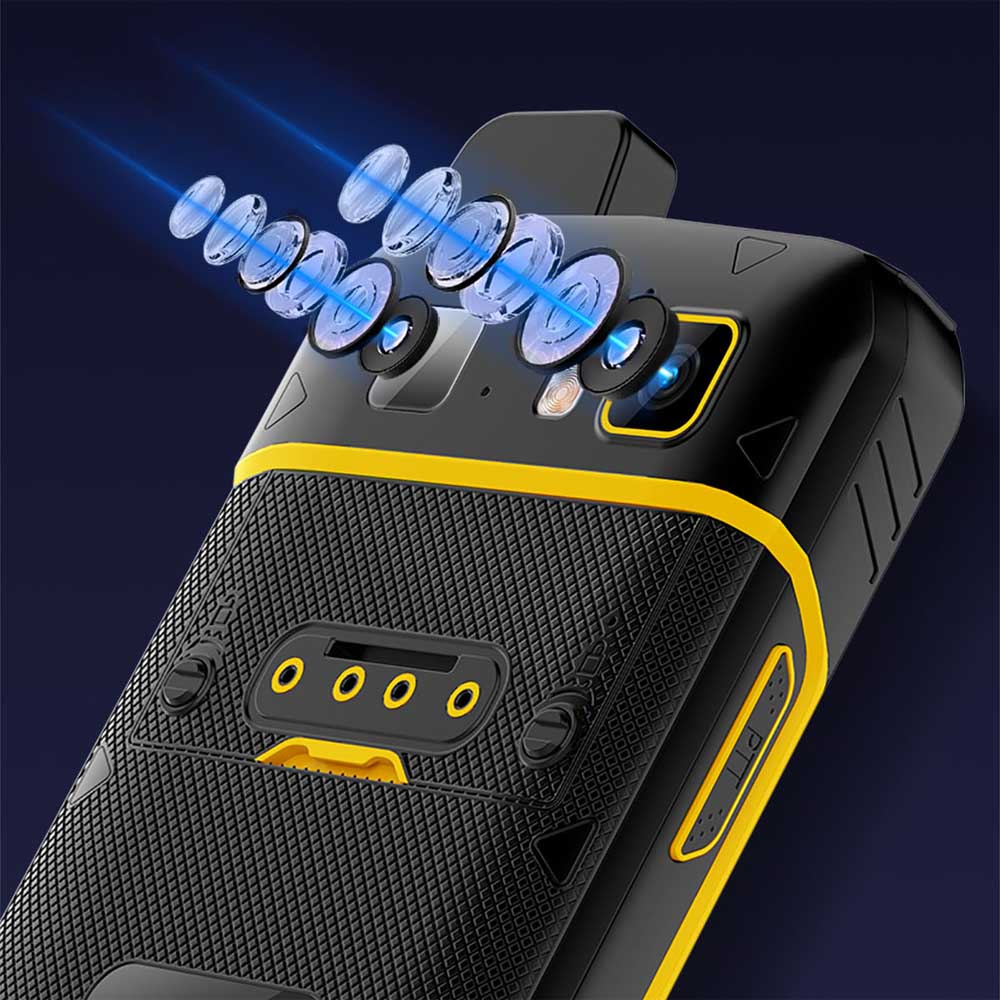

1) the miniature infrared thermal imaging detector is built into the sanfang mobile phone, which is small in size, light in weight, and convenient to carry out outside and carry for long time.

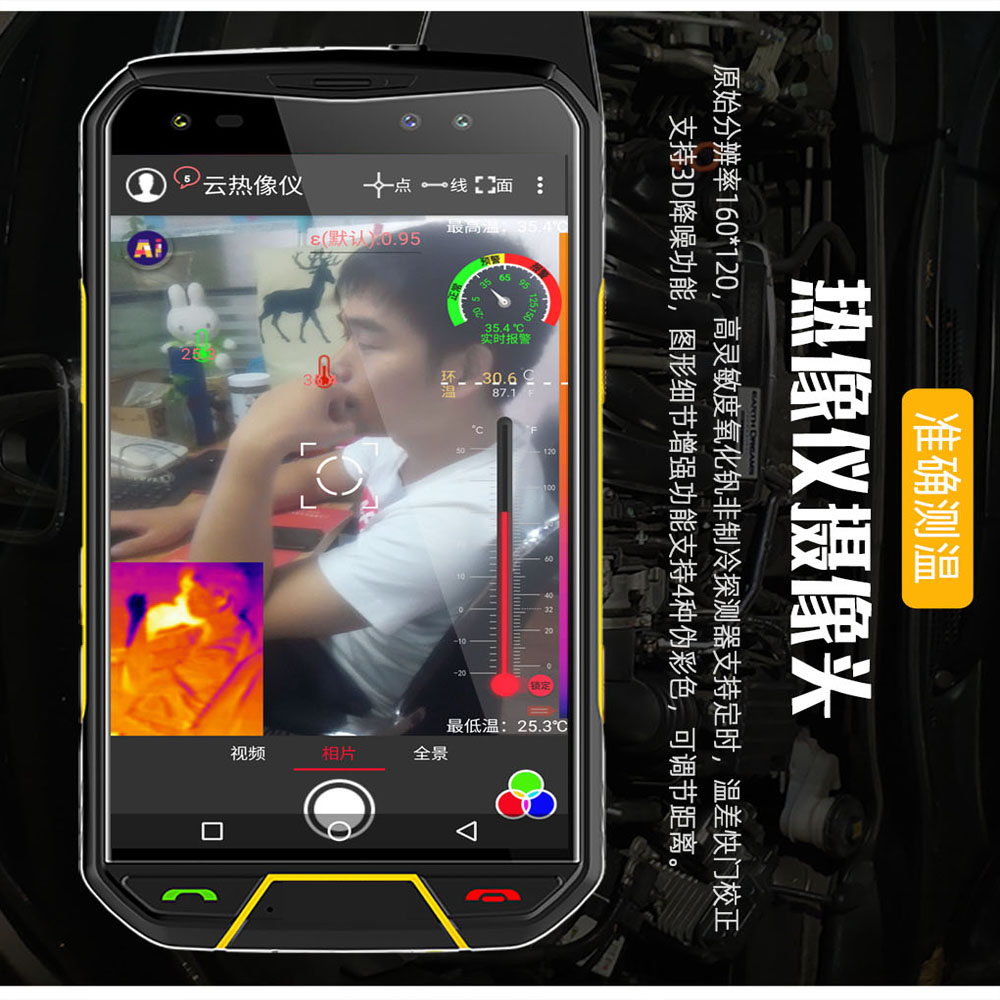

2) all functions can be operated through the 5.5-inch multi-touch large screen, which is fast and simple, with high detection efficiency.

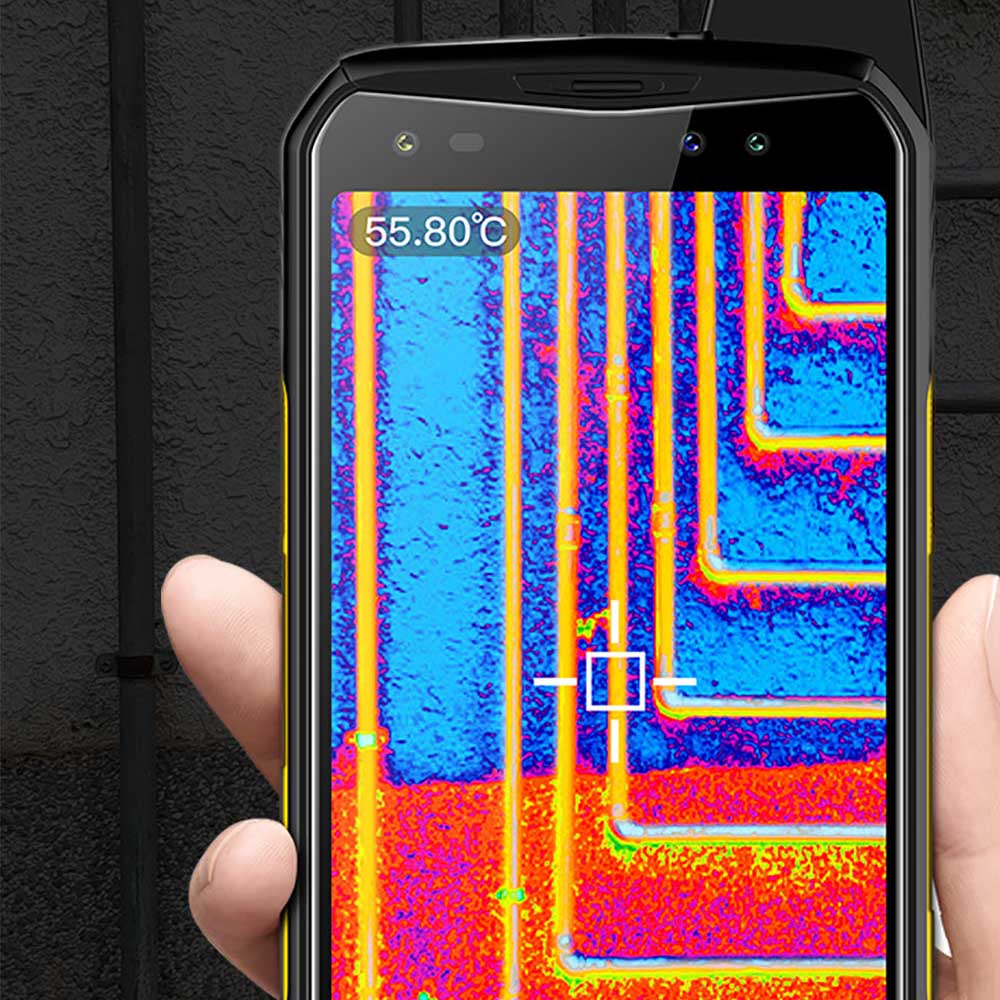

3) 5.5-inch hd color FHD screen image display, image clear.

4) the detection data can be uploaded to the remote management platform in real time through the wifi wireless network for data management, real-time analysis and real-time warning, so as to realize fault and hidden trouble timely treatment.

5) low power consumption design, 6000mAh super battery life, to meet the needs of users for long time detection

6) the product three-proof design can achieve higher anti-fall ability and effectively protect the equipment from accidental fall.

Product parameters


project

information

Infrared detector configuration

Infrared resolution

160x120/80*60

The infrared frame frequency

9fps

 aperture f

1.1

Infrared pixel spacing

12um

Infrared camera

57° x 44.3°

wavelength coverage

8 - 14 μm

Thermal sensitivity NETD

<50mk

Basic configuration of mobile phone

size

216*138 *20mm



LCD

screen size

5.5 FHD

screen resolution

1080*1920

battery

mold

polymer li-ion battery

Volume

6000mAh

CPU

MTK6757

RAM

DDR3

6G D

ROM Flash

Flash

128GB

WIFI

WIFI module

support

SIM card

dual SIM card

TF card Micro SD*1

USB port

Extend external storage

USB OTG

data transmission

power adapter

Standard

9V/2A

USB cable

Standard

Connect PC data cable

OS

Android 8.0

support GMS certification
