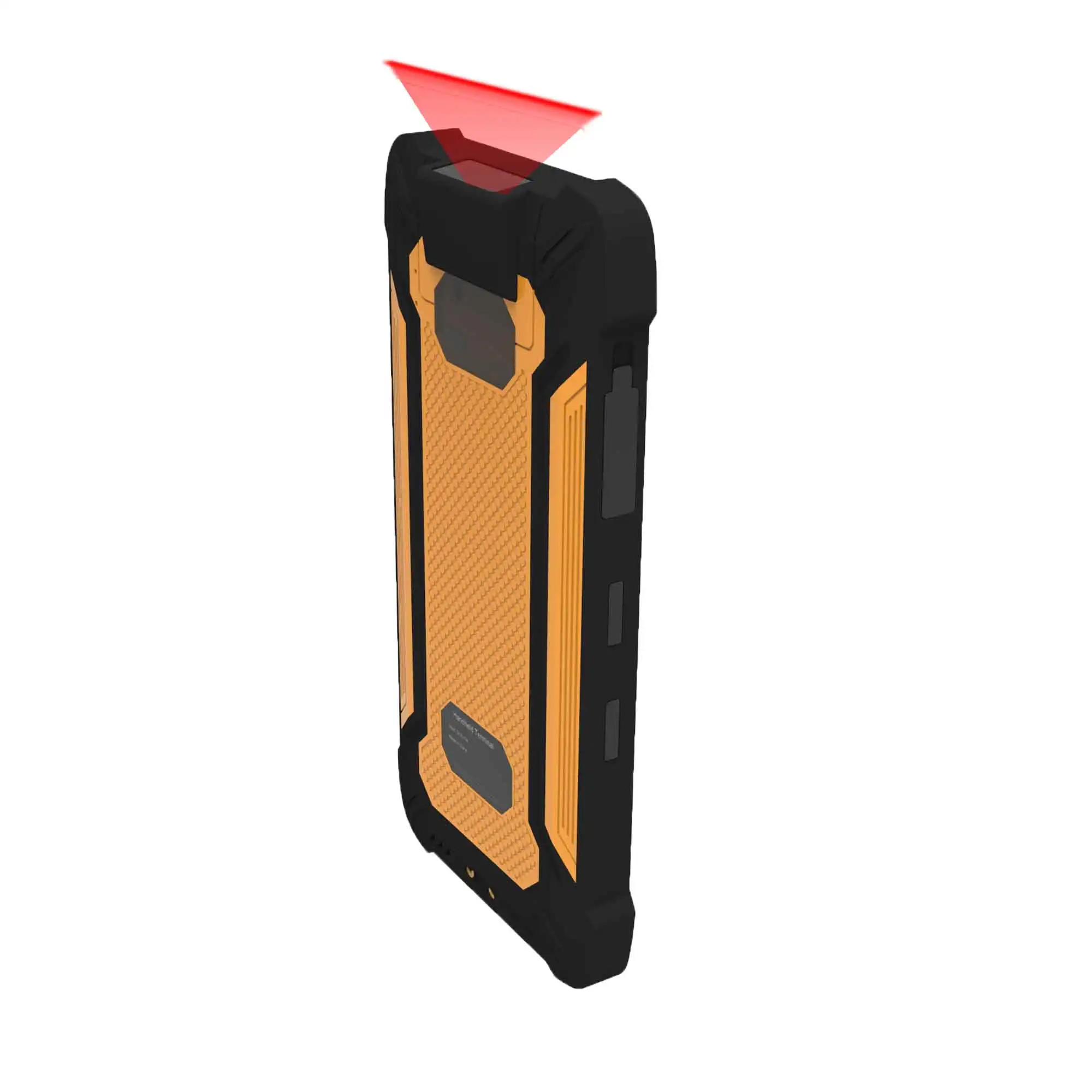

Product Introduction
| ITEM | DESCRIPTION | detail | Remark |
| OS | windows 10 home/pro/iot | ||
| CPU | intel cherry trail Z8350 | ||
| RAM/ROM | 4GB/64GB | ||
| LCD | 5.5 inch1080X1920 | 1080X1920 IPS Screen MIPI 30Pin | |
| Touch screen | 5 point touch, | ||
| Camera | 200M+500M | MIPI/5MP（OV5648） | |
| Power and battery | battery capacity 5000mAh | 3.8V 5000mah | |
| WWAN | 4G LTE, 3G WCDMA, GSM |
LTE
FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
quectel EG91 |
| GPS | baidou,GPS, glonass | u-blox-M8030 | |
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | Intel Stone Peak3165 802.11ac 1x1+BT4.0 | |
| BLUETOOTH | 4.0 version | ||
| NFC | 13.56 MHz, distance 5cm or above | support ISO14443 TYPE A standard/Mifare | optional |
| SPEAKER | 1.0 watt | ||
| Sensor |
1.
light sensor 2. compass 3. baroceptor |
||

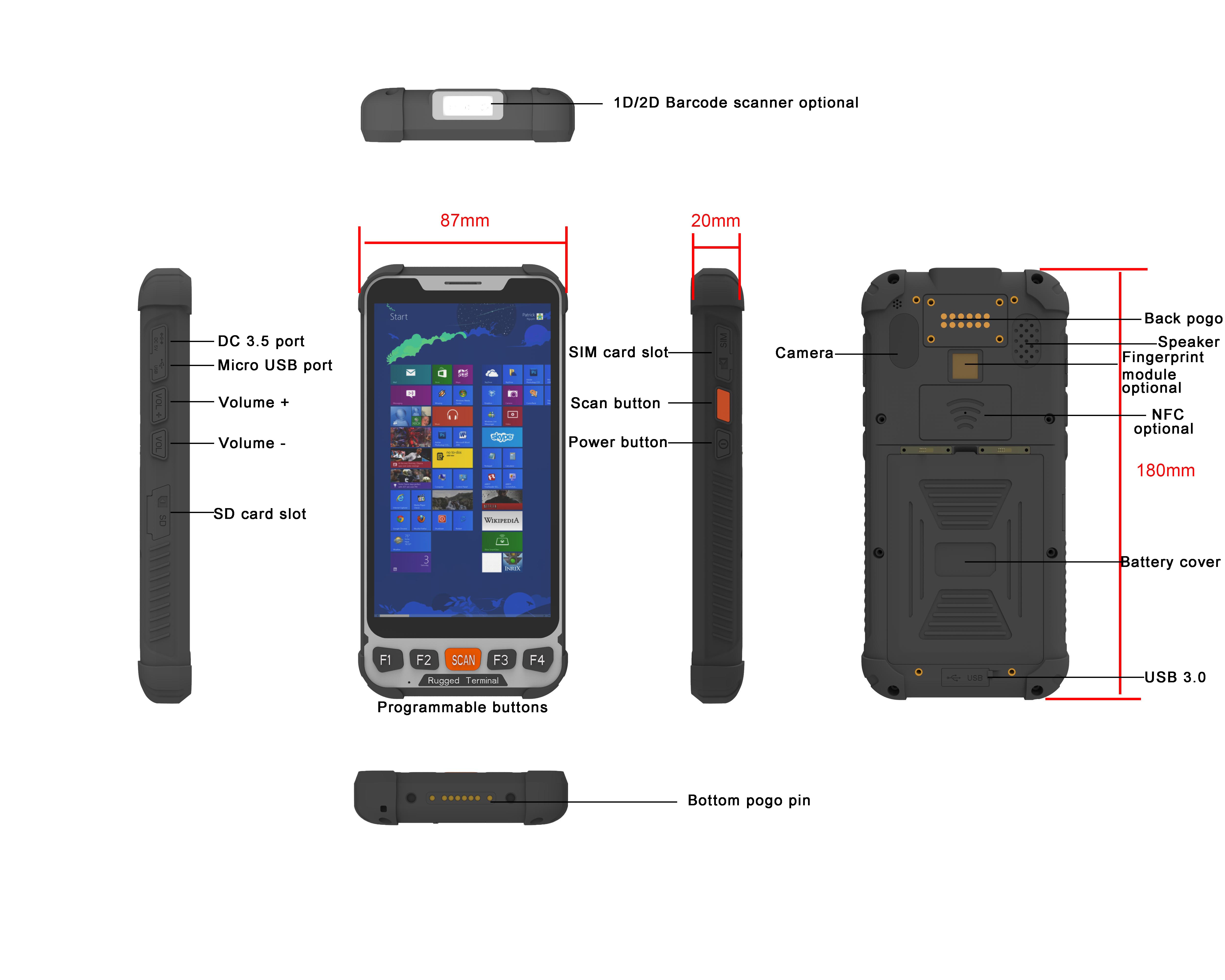

| size | 180*87*21.5mm | ||
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG | |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | ||
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | ||
| language 语言 | multi language | ||
|
interface in/out port |
1.micro
USB*1 otg 2. bottom pogopin*1, USB*1+RS232*1 3. back pogopin*1 USB*1+TTL*1 4. microphone 5. DC 充电，由原来IDS01的USB改 6. USB 3.0 7. TF 最大支持128G |
||

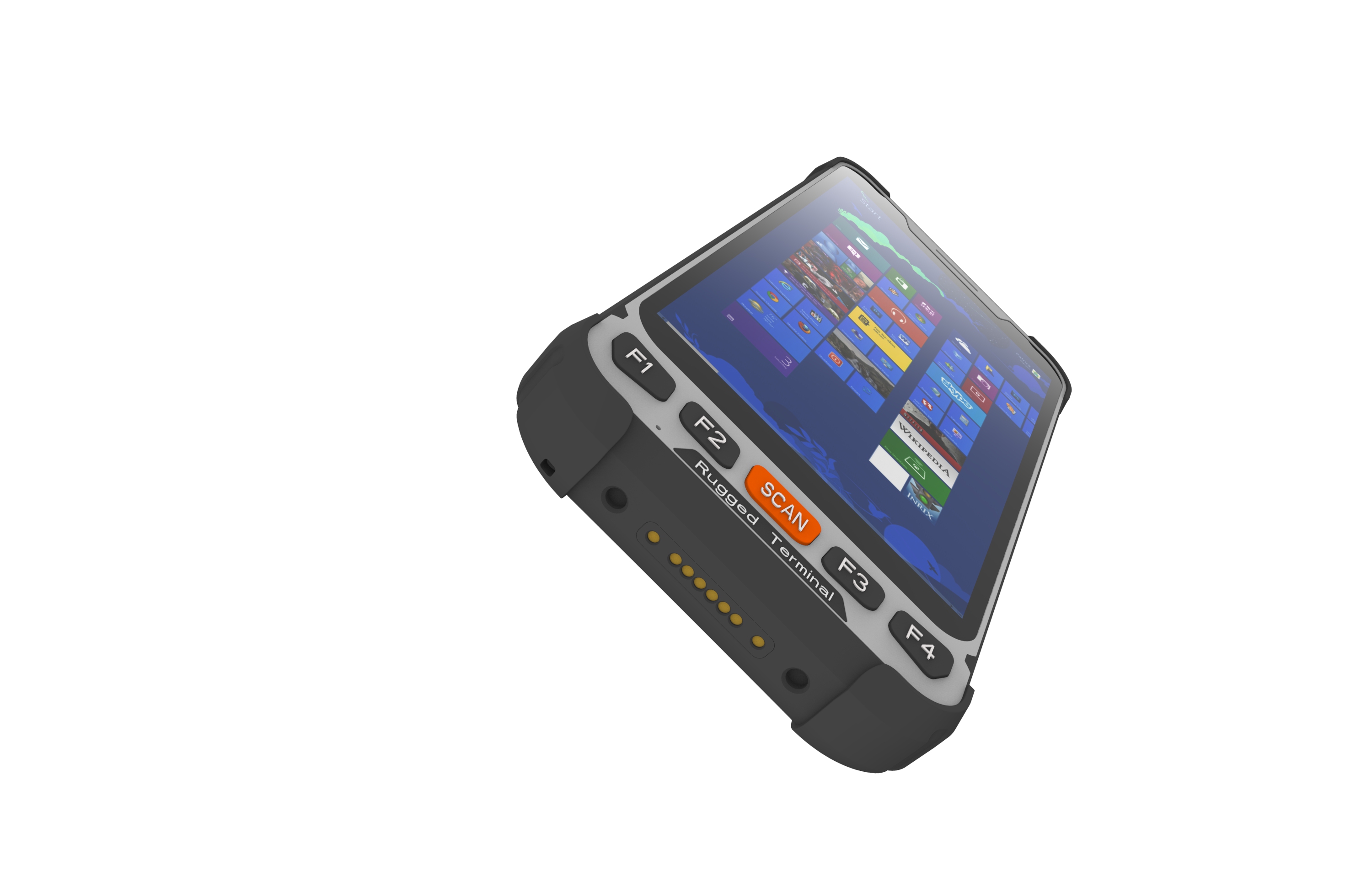

| Pogopin definition |
1.12
pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input， |
||
| casing material | ABS/PC | ||
| button | V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3 | ||

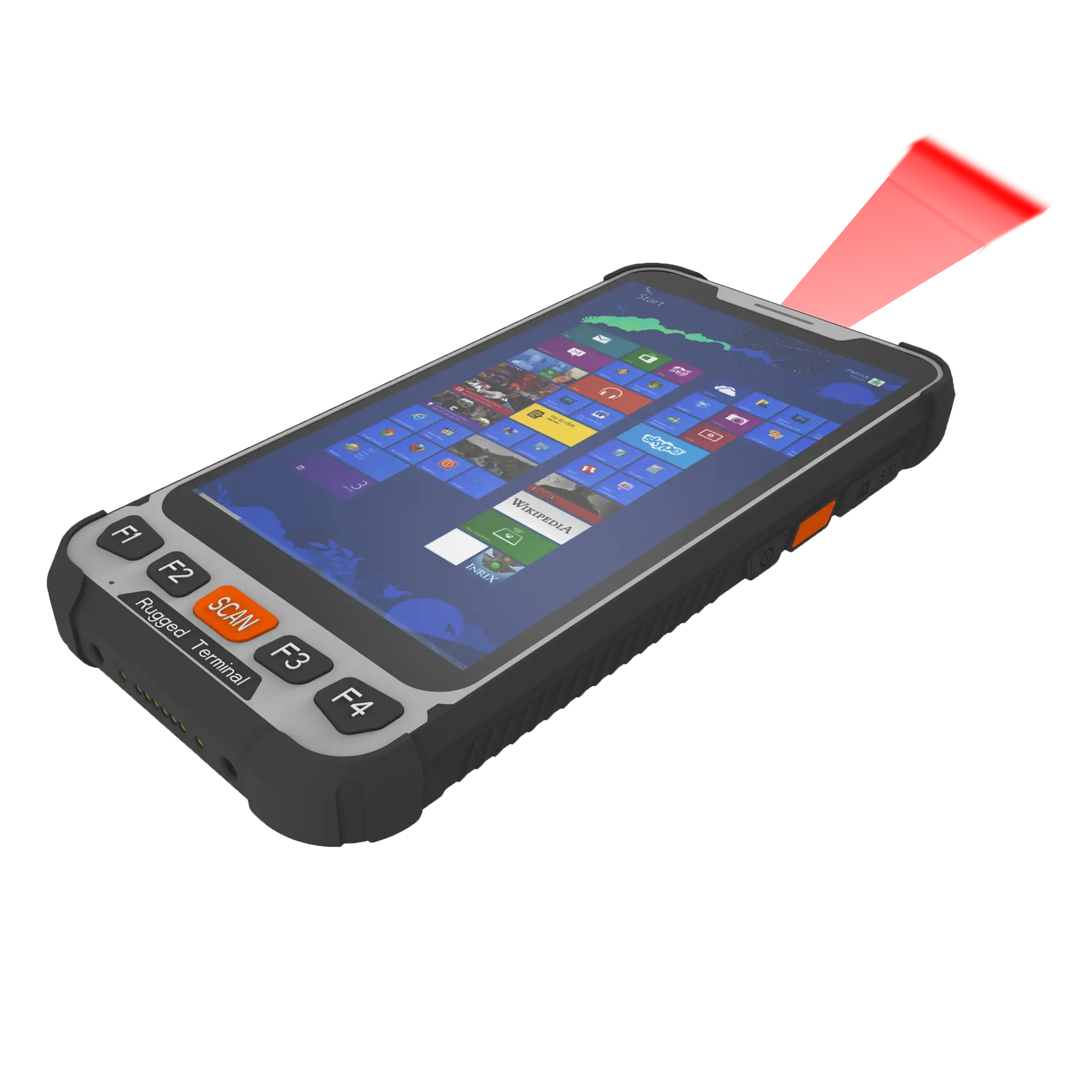

| 2D barcode module |
honeywell
N3680 RAKINDA LV3296 |
optional | |
| UHF | M500, distance 3-6 meter | optional | |

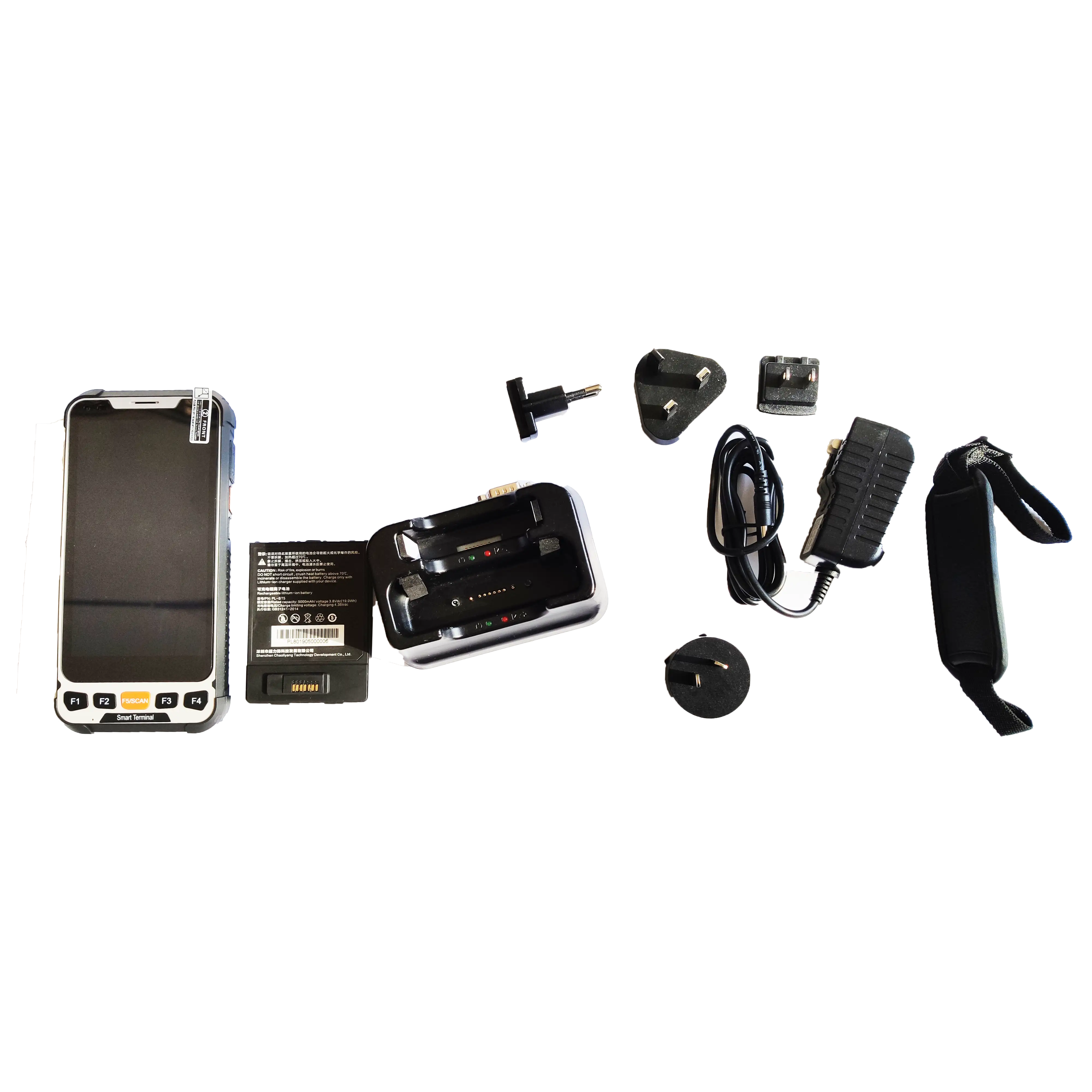

| accessories |
1.
USB cable optional 2. charger 3. handstrap 4. car holder optional 5. docking station optional 6. car charger optional 7. white box, no logo |
||
| proof rate |
1.
water proof IP67 2. Drapping proof 1.2 meter |
||
| Certification |
1.
810G 2. CE,FCC |
||
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
