产品介绍
1. 安卓7.0和Windows10可选
2. 10.1寸1920*1200分辨率，最大500 流明亮度，配备AG防反射膜，支持阳光下可视。
3. RAM/RO 3GB/32GB， 4GB/64GB 可选
4. 8400+2100=10500毫安时，可热插拔电池。12000毫安时电池可选
5. 标配4G LTE/WIFI/GPS/BT/NEC
6. 以太网POE RJ45, RS232/TTL, USB, micro USB, DC 丰富的接口
7. 二维扫描， 霍尼韦尔N3680, 可选
8. 指纹模块可选
9. UHF 3-8米 模块可选，可支持美标和欧标。
10. 高精度GPS 模块可选， 精度可达到0.25-1米，采用华大GPS三模，双天线模块。
11. 前置NFC模块可选，可以支持mifare制式
12. 底部和背部都有扩展pogopin，提供USB和串口扩展。
13. 低频 125kHz 可选
ITEM DESCRIPTION detail
OS windows 10 home/pro/iot
CPU intel cherry trail Z8350
RAM/ROM 4GB/64GB
LCD 10.1 inch1920*1200； max 500 nits sunshine readable
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 2M/5M
Power and battery "battery total capacity 10500mAh 8400+2100
play video 6 hours, working 8-10 hours charging 6 hours.
Stand by 72 hours" 12000mAh+2100mAh Optional
3.5*1.35mm, 5V 3A DC in put Magnetic charger
-----------------------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUX "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.0 version
NFC 13.56 MHz, distance 5cm or above
-----------------------------------------------------------------------------------------------------------------------------------------------------
SPEAKER 1.5 watt
Sensor "1. light sensor
2. acceleration/gravity
size 275*178*18mm
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language
-----------------------------------------------------------------------------------------------------------------------------------------------------

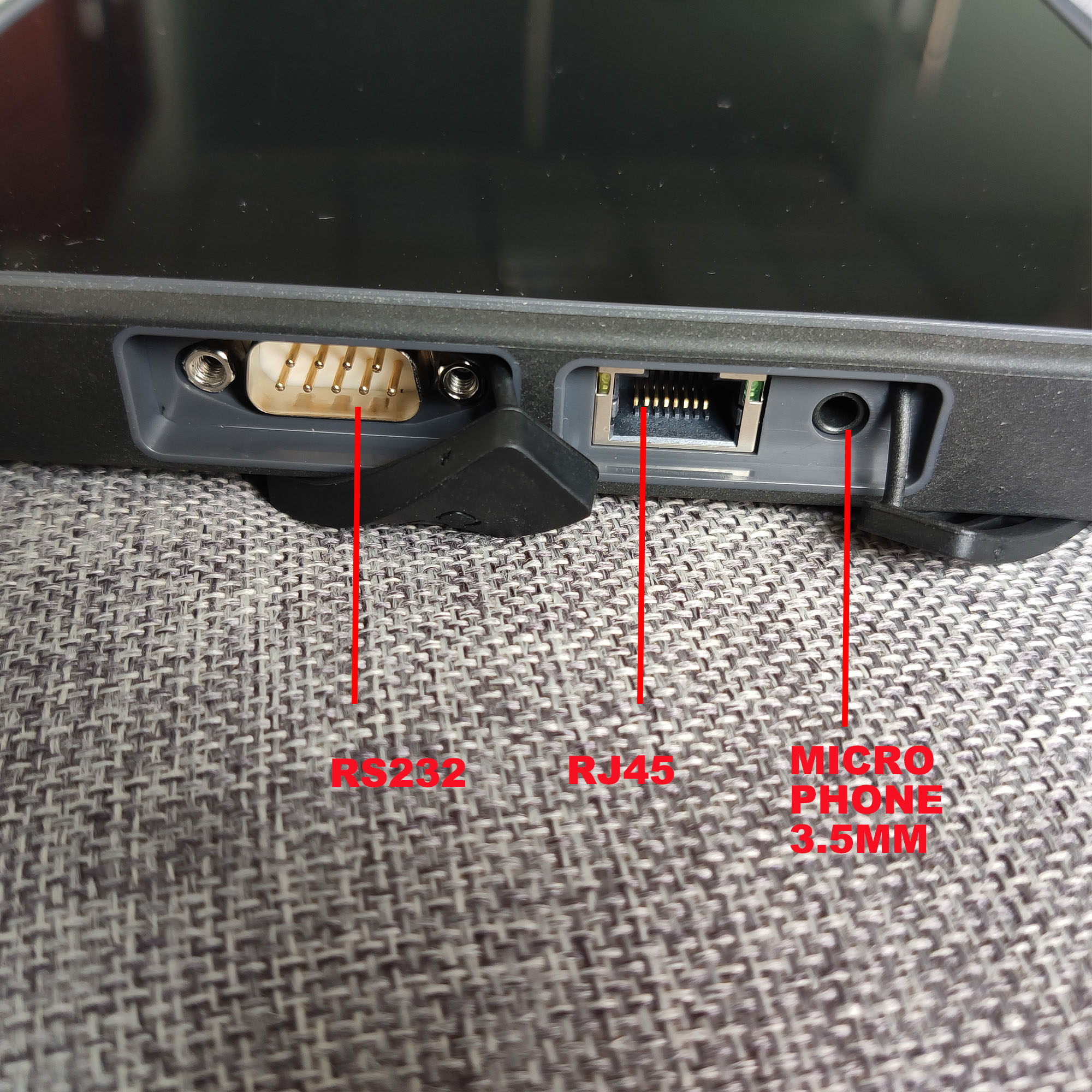

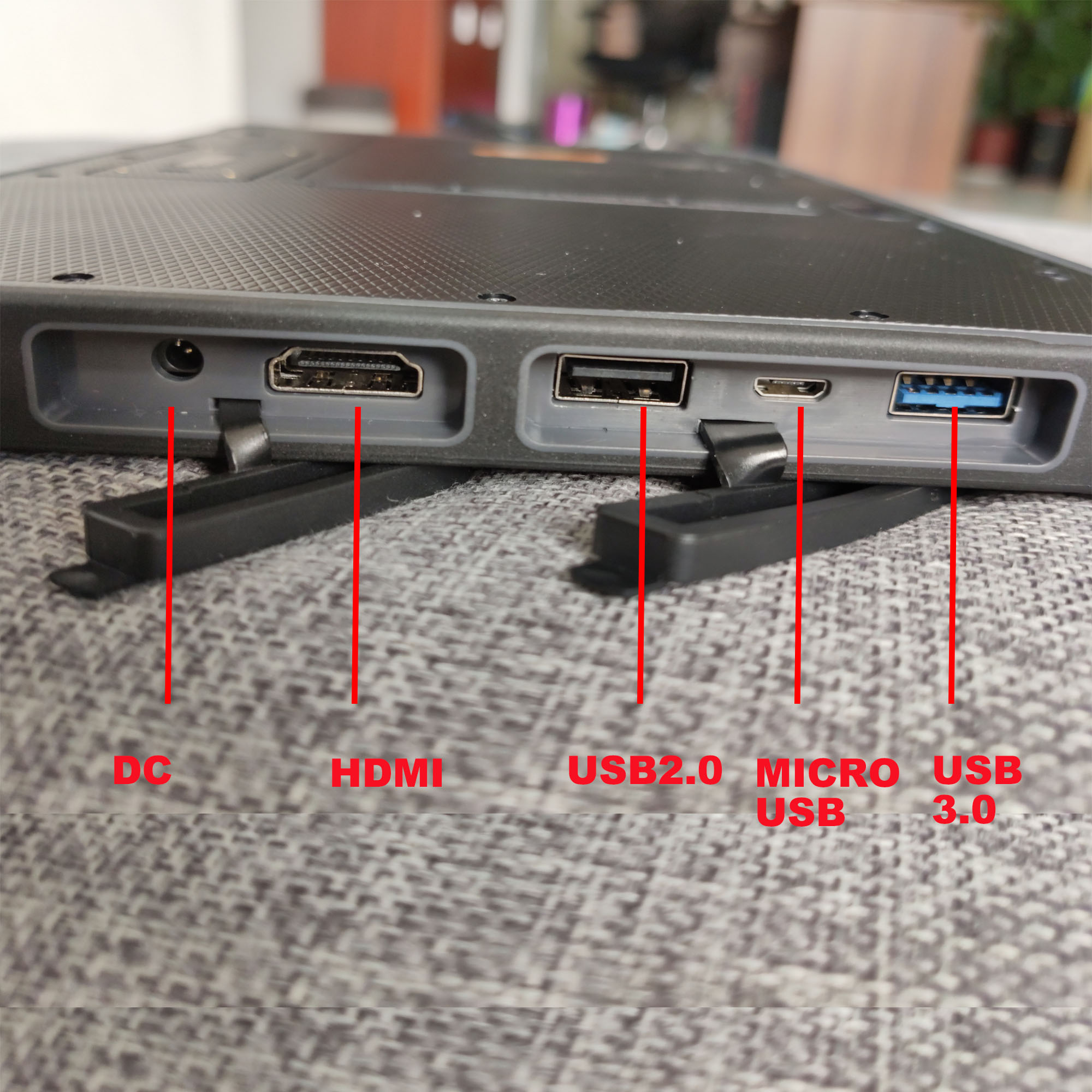

"interface
in/out port" "1.USB*2
2. Micro USB*1
3. RJ45*1
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. HDMI
9.RS232*1"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
VESA hole 75*75mm or 90*90mm"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H
-----------------------------------------------------------------------------------------------------------------------------------------------------
2D barcode module honeywell N3680 optional
UHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
accessories "1. USB cable
2. charger
3. handstrap
4. car holder
5. docking station
6. car charger
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
