Main tips：SH5 is a kind of handheld terminal which is designed to withstand rough handling, like outdoor or in-vehicle harshest environment use. It's a rare Windows system machine on the market. which is suitable for many applications such as fleet management, public transit, mining, precision farming, logistics and industrial control etc.
1.products introduce：

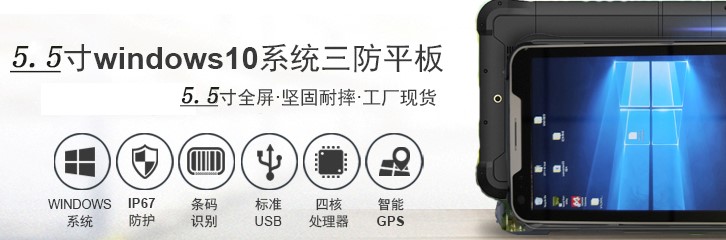

SH5 is an IP67 grade 5.5-inch rugged windows system handheld terminal. It is designed to withstand rough handling, like outdoor or in-vehicle harshest environment use. Which is suitable for many applications such as fleet management, public transit, mining, precision farming, logistics and industrial control etc.
Products description：

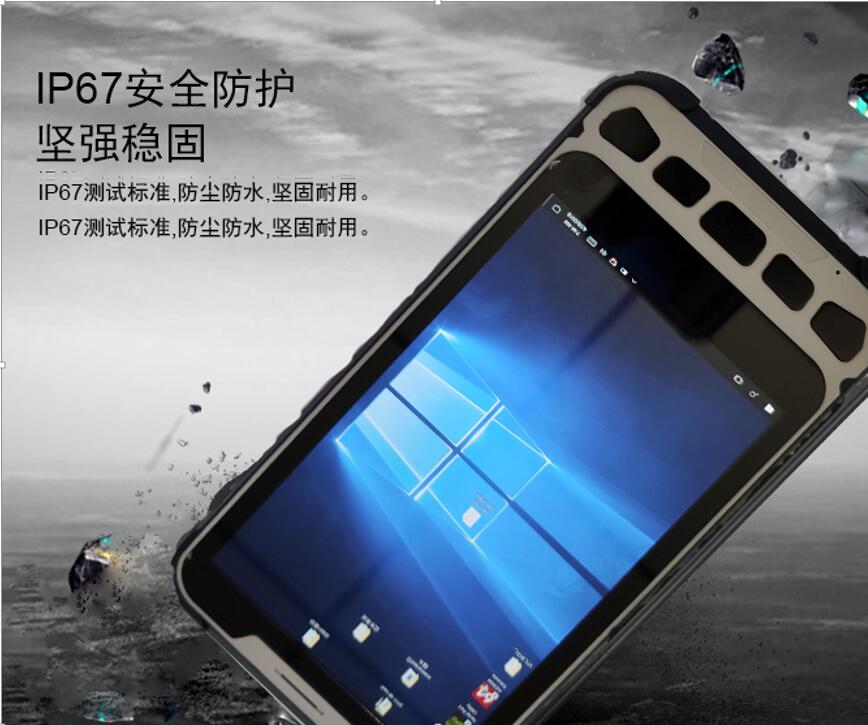

1> Windows 10 Mild interface，equipped with Z8350 processor， storage 4GB +64GB, 5.5 inch IPS capacitive screen, 500MP camera 5000mAh lithium battery;2>dustproof、waterproof. Protection grade IP67，Prevent 1.2 meters nature fall 。3>support 4G LTE，BT4.0，WiFi，GPS+BDS+GLONASS location system，RFID，barcode scanner，fingerprint，far infrared instrument reading, etc.4>build-in hot swap battery，with button，multi-function can match freely.
#RFID UHF module：Build-in UHF module, which is compatible with the device, also can provide good Scanning performance. It's a rare Windows system machine on the market.
2.basic specification
|
ST5-SPEC |
||
|
ITEM |
DESCRIPTION |
detail |
|
OS |
windows 10 home/pro/iot |
|
|
CPU |
intel cherry trail Z8350 |
|
|
RAM/ROM |
4GB/64GB |
|
|
LCD |
5.5 inch 1080X1920, 500nits |
|
|
Touch screen |
5 point touch, glove touch, support stylus |
|
|
Camera |
5M |
MIPI/5MP（OV5648） |
|
Power and battery |
battery capacity 5000mAh |
|
|
WWAN |
4G LTE, 3G WCDMA, GSM EC-25 |
EC25-E |
|
GPS |
baidou,GPS, glonass, U-blox ONE |
|
|
wifi |
802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G |
Intel Stone Peak3165 802.11ac 1x1+BT4.0 |
|
BLUETOOTH |
4.0 version |
|
|
NFC |
13.56 MHz, distance 5cm or above |
|
|
SPEAKER |
1.5 watt |
|
|
Sensor |
1. light sensor |
|
|
Dimension |
181*88*20mm |
|
|
Multi-media |
Photo Viewer |
BMP, JPG, GIF, PNG |
|
Video Format |
MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) |
|
|
Audio Format |
MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) |
|
|
language |
multi language |
|
|
interface |
1.micro USB*1 otg + 1*USB 3.0 |
|
|
Pogopin definition |
1.8 pin back, included（2USB, 1 RS232， 1 UART， 3.3V, 5V out put）， 5V input |
|
|
casing material |
ABS/PC |
|
|
button |
V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3 |
|
|
2D barcode module |
honeywell N3680 |
|
|
accessories |
1. USB cable |
|
|
proof rate |
1. water proof IP67 |
|
|
Certification |
1. 810G |
|
|
Temperature |
1. storate temperature -25 to 80 degree |
|
