Product Introduction
| SH71 Specifications | |
| OS | Android 9 |
| CPU | 2GHz, Quad/Octa Core, 12nm |
| MEMORY | 2+16/3+32 |
| Extend Slot | MicroSD, support SDHC, up to 64GB; |
| One micro SIM connector | |
| PC Communication | USB 2.0 OTG : Type-C；Support TYPE-C Headset |
| Sensers | Light, Proximity, 3D G sensor, Hall |
| LED | Charging, Scan and System stauts |
| Charging Time | <3.5 hours(Room Temperature) |
| <4 hours(35 ℃) | |
| Operation Duration | 14 hours |
| Data Collection | |
| Scan Engine | Mobydata E3200-LE/E3250-LE |
| 2D | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; |
| Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites; | |
| GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; | |
| GS1 DataBar Stacked Omnidirectional; MacroPDF; | |
| MicroPDF417; PDF417; UPC A/E Composites | |
| 1D | Auto discriminates all standard 1D codes including GS1 |
| DataBar™ linear codes. | |
| Post | Australian Post; British Post; China Post; IMB; Japanese |
| Post; KIX Post; Korea Post; Planet Code; Postnet; Royal | |
| Mail Code (RM4SCC) | |
| NFC(Optional) | 13.56MHz NFC |
| Wireless Connectivity | |
| WLAN | 802.11 ac/a/b/g/n |
| WWAN | TDD-LTE (B38/B39/B40/B41) |
| FDD-LTE (B1/B3/B7) | |
| UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz) | |
| GSM/EDGE/GPRS (900/1800MHz) | |
| VoLTE | LTE CAT6 |
| CA | Downlink 300Mbps, B1/B3/B7/B40/B41 |
| WPAN | BT 4.2/BLE |
| GPS | GPS/A-GPS, GLONASS, Beidou ,Galileo |
| Physical Specifications | |
| LCD | 4 inch, 800*480, visible under sunshine |
| Touch | GFF Captive Touch, Dragontrail Glass |
| Camera | Auto focus 8Mega, with flash LED |
| Keypad | 24 Numeric Keypad |
| Left/Right Scan Key, Left/Right K1,K2 user-defined Key | |
| Back, HOME, Switch | |
| Reciver | Support |
| Speaker | Min 90db at 10cm-1KHz Voice |
| Mic | Noise Reduction Mic |
| Charging IO | USB type-C, |
| Charging Pad | |
| Battery | Removable 3800mAh-4000mAh |
| Dimension | 160×71×17mm |
| Weight | 269g |
| Environmental Specifications | |
| Operation Temperature | -20°C ~ +50°C |
| Storage Temperature | -30°C ~ +70°C |
| Humidity | 10% ~ 90% |
| Drop | 1.5m, concrete, 12 drops |
| Tumble | 600hits, 0.5m, Steel |
| IP | IP65 |
| ESD | ±8kV Contact, ±15kV Air |
| Keypad lifecycle | 300K |
| Accessories | |

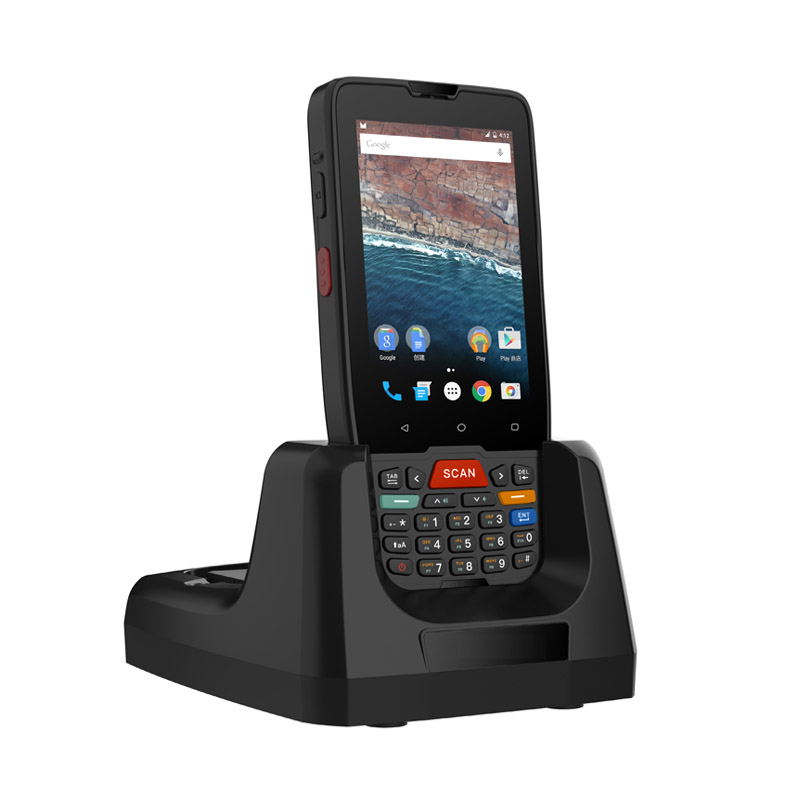

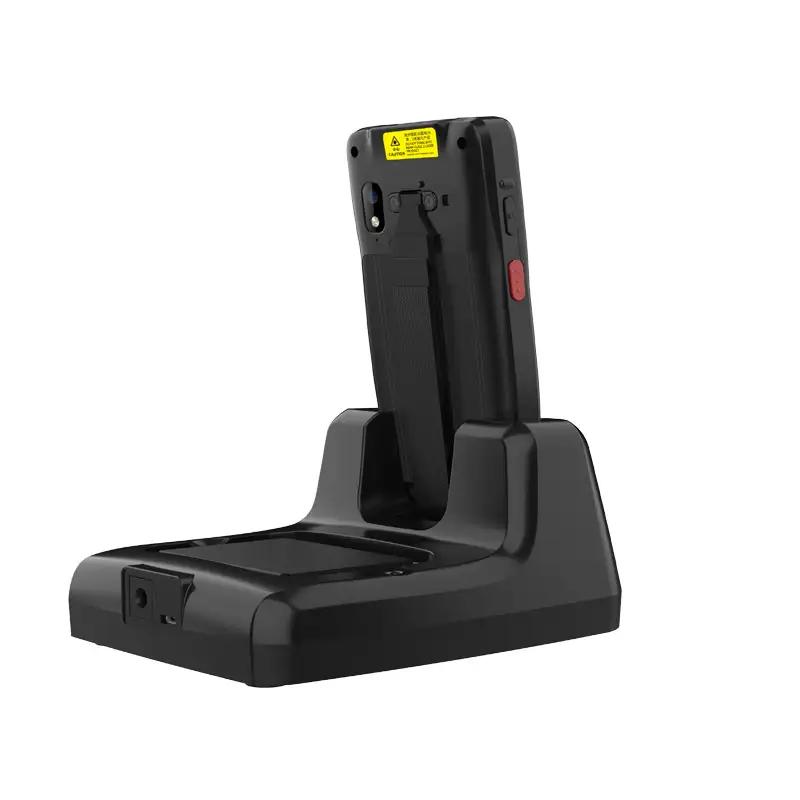

| Charging Cradle | Support 1 device and 1 battery |

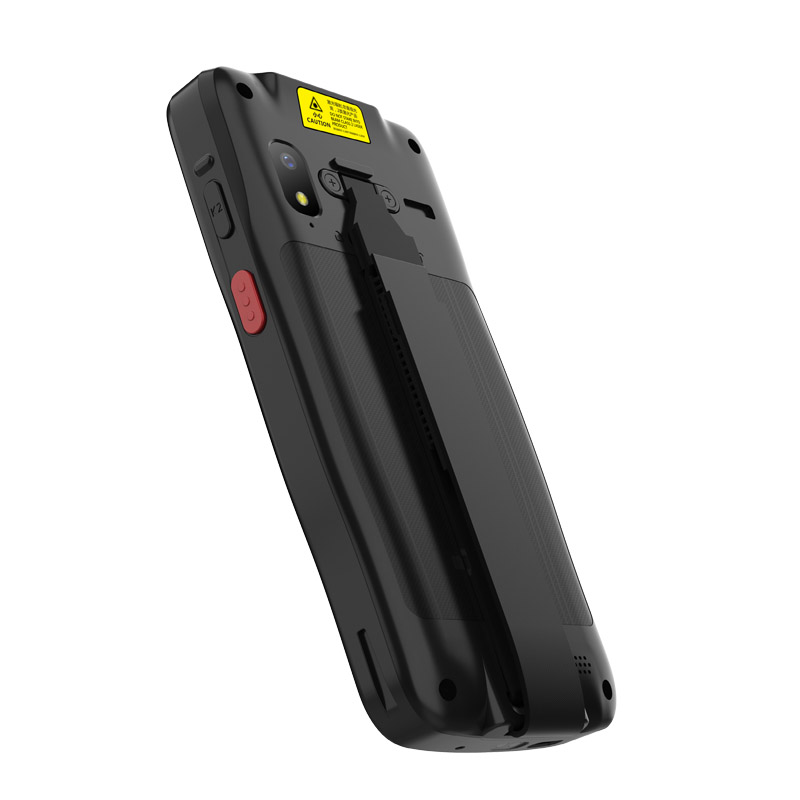

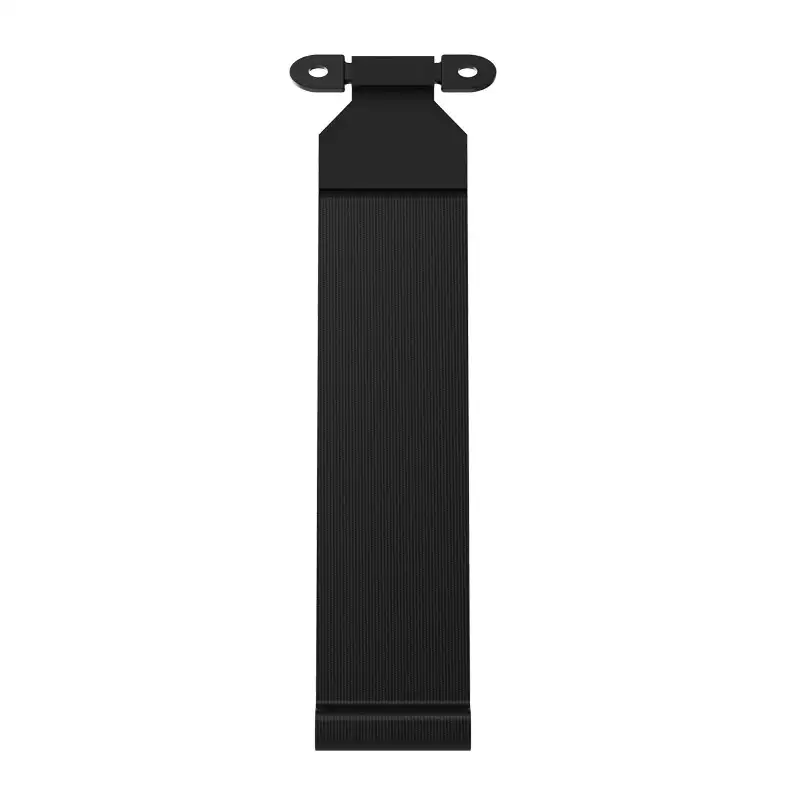

| Handstrap | Black, Nylon |
| Battery | Removable 3800mAh-4000mAh |
| Gift Box | |
| Device, Battery, QSG, Adapter, USB cable. | |
