Product Introduction
|
Spec |
|
• NXP i.MX6 Cortex A9 • 7 inch, 1024X600, capacity touch panel • RJ45，3 USB，3 RS232，1 RS422/484,1 CAN • Speaker GPIO • DC9V～36V DC power supply • Android,Linux, WinCe optional
|
|
CPU |
NXP i.MX6 1GHz |
|
LCD life |
15000hours |
|
CPU |
Cortex A9 qual core |
Touch Panel |
5 point |
|
|
RAM |
1GByte DDR3 |
TP structure |
G+G thickness 1.8MM |
|
|
ROM |
8GByte eMMC（MLC） |
Power |
DC 9V～36V（12V） |
|
|
WIFI&BT4.0 |
WIFI&BT4.0，WIFI 2.4G/5G optional |
working |
-20 to +60 |
|
|
RJ45 |
1 x 10/100M RJ45 |
storage |
-40 to +85 |
|
|
Other port |

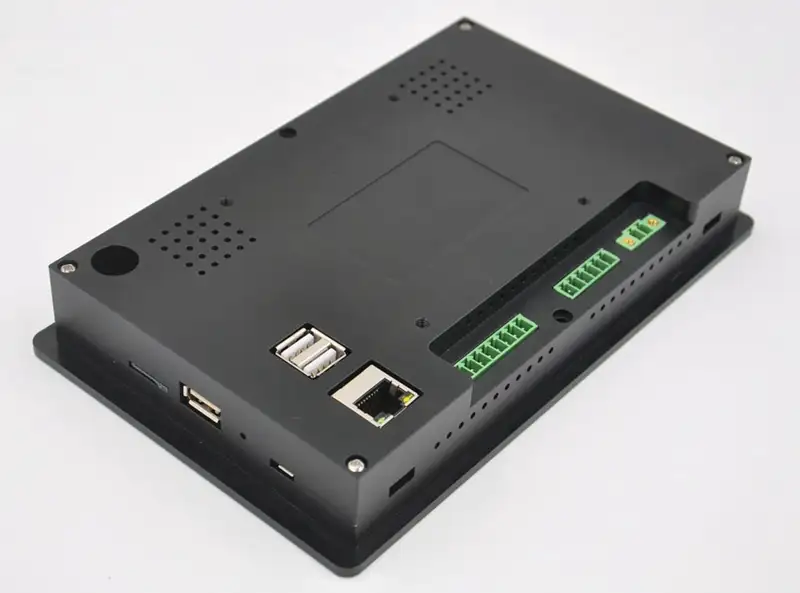

3x RS-232 1 x CAN Bus 3 x USB 2.0 Host 1 x USB 2.0 Device 4 x internal digital I/O |
Humidity |
10 to 95% |
|
|
Casing |
Aluminium |
|||
|
Siz |
198 x 124 x 30.5 mm |
|||
|
speaker |
1.4 watt 8 ou |
|
|
|
|
RTC |
yes |
OS |
Android、Linux、Wince |
|
|
Door dog |
yes |
|
|
|
|
display |
7inch TFT LED |
|
|
|
|
Resolution |
1024X600 |
|
|
|
|
lights |
500 nits |
|
|
|
|
Contrast |
800 |
|
|
|
|
Visual angle |
75 |
|
|
