Product Introduction

Technical features
Charging capacity Up to 14KW(7KW*2) Up to 22KW(11KW*2) Up to 44KW(22KW*2)
Input/Output power 230VAC±20%-50/60Hz-
32A*2-1phase
400VAC±20%-50/60Hz-
16A*2-3phase
400VAC±20%-50/60Hz-
32A*2-3phase
RCD 30Ma RCD Type A and DC 6Ma RCD function or Type B(optional)
Standby power <5W
Measuring accuracy 1%
Energy Meter MID certified
OCPP OCPP1.6 Json(OCPP2.0 optional)

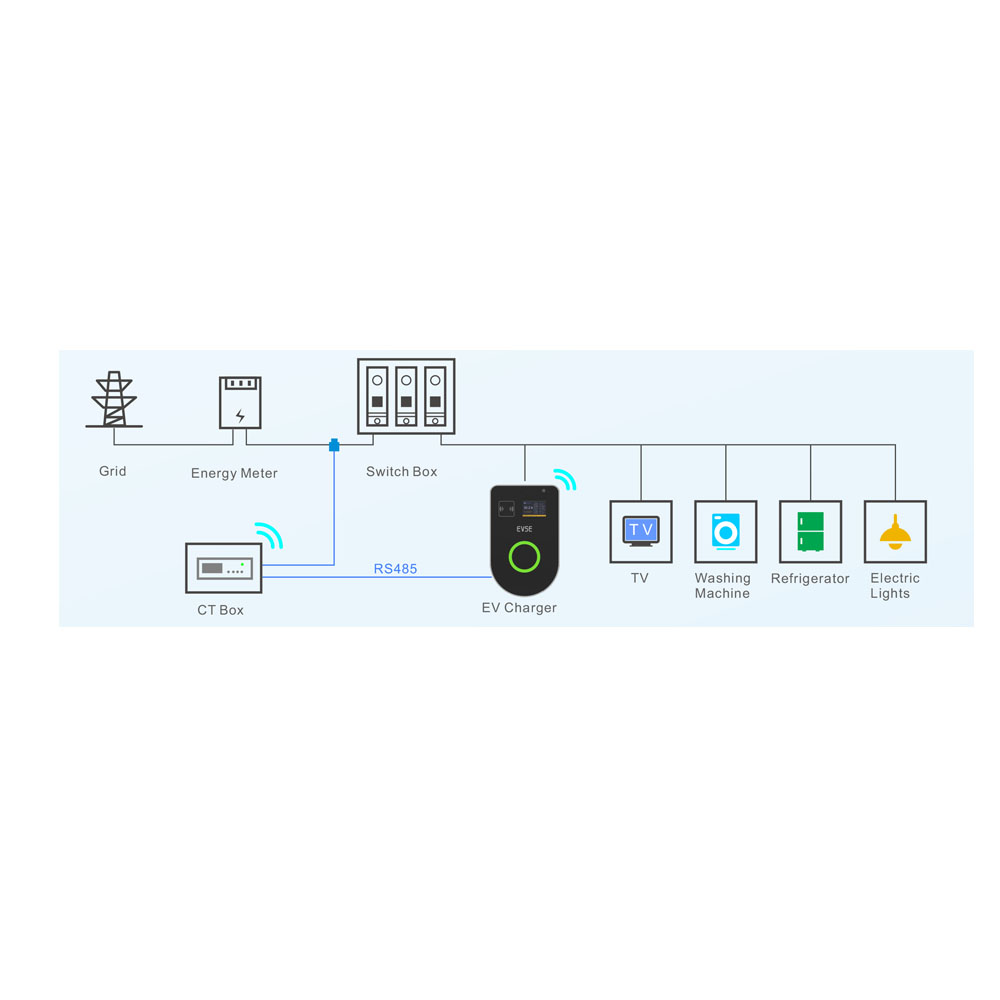

Communication WIFI/Ethernet/4G(Optional)
User interface LED / LCD(3.5’’) / RFID(mifare iso& IEC 14443A)
Certificate/Compliance CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018

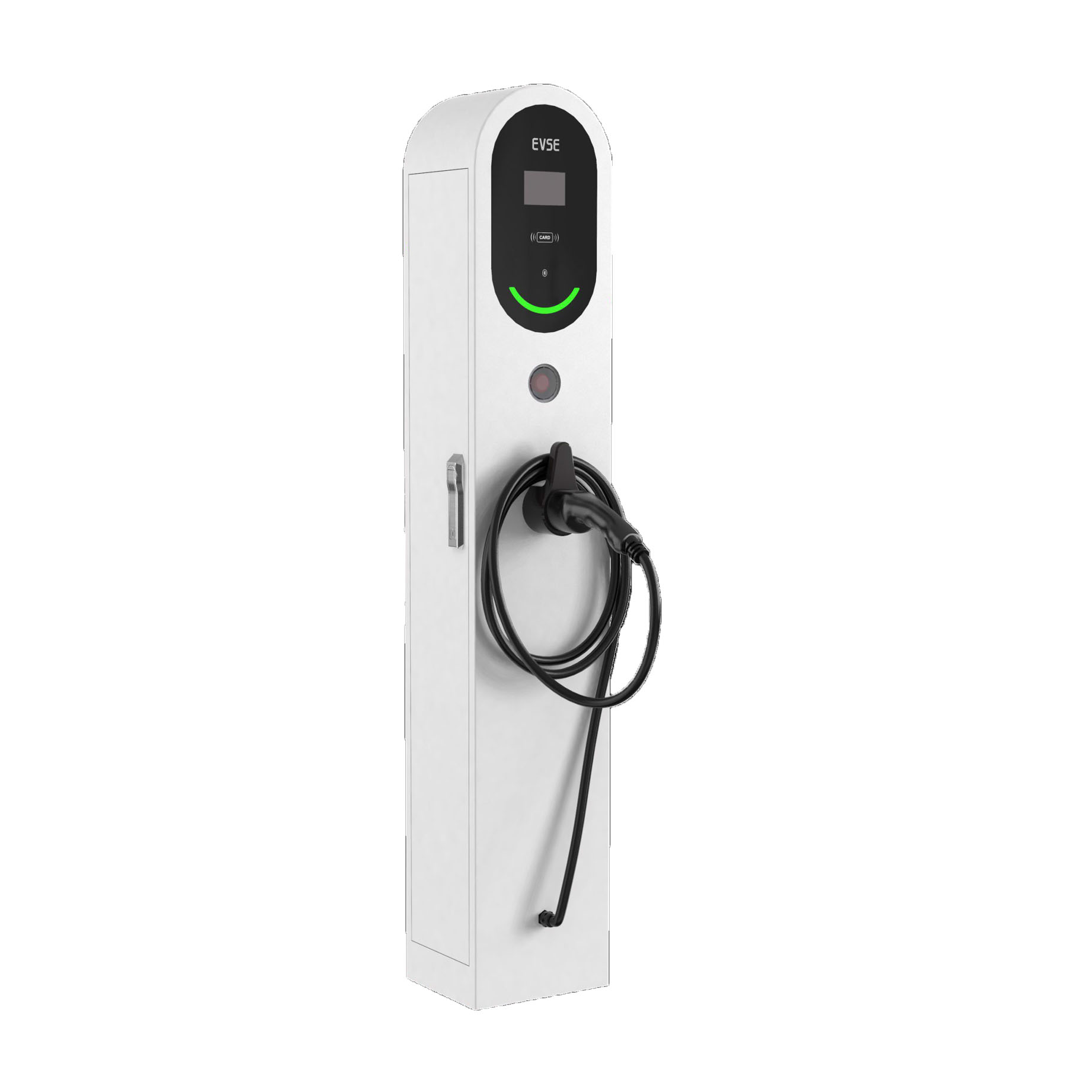

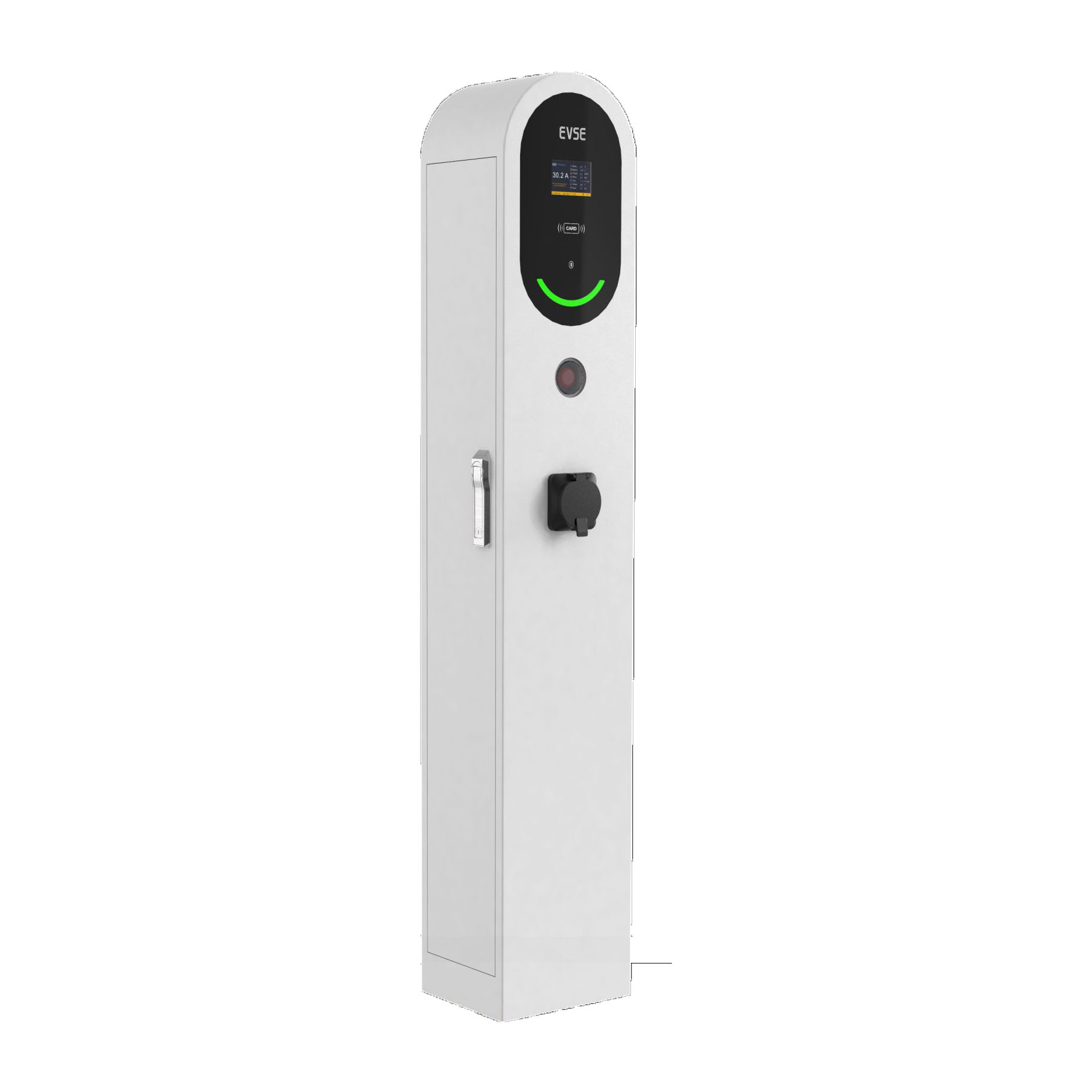

Charging Interface Type 2 socket*2 or Type 2 Gun *2 5M
Special Protection
Over current protection, Residual current protection, Ground protection, Surge
protection, Over/Under voltage protection, Over/Under frequency protection,
Over/Under temperature protection
Physical properties
Warranty 2 years
Protection IP54, IK10,
Enclosure Galvanized steel
Front Panel Temper glass
Installation Floor-stand
Cooling Natural cooling
Operating temperature -30˚C to +55˚C
Humidity Max.95%(non-regulating)
Product Dimensions 1200*290*230(L*W*H)mm
Package Dimension 1320*480*430(L*W*H)mm
Net Weight 30Kg 33Kg 35Kg
Gross Weight 45Kg 48Kg 50Kg
