Product Introduction

Model

YL7K-Y1

YL11K-Y2

YL22K-Y3

Technical features

Charging capacity

Up  to 7KW

Up  to 11KW

Up  to 22KW

Input/Output power

230VAC±20%-50/60Hz-32A-1phase

400VAC±20%-50/60Hz-16A-3phase

400VAC±20%-50/60Hz-32A-3phase

 RCD

30Ma RCD Type A and  DC 6Ma RCD function

Standby power

<3W

Measuring accuracy

1%

Communication

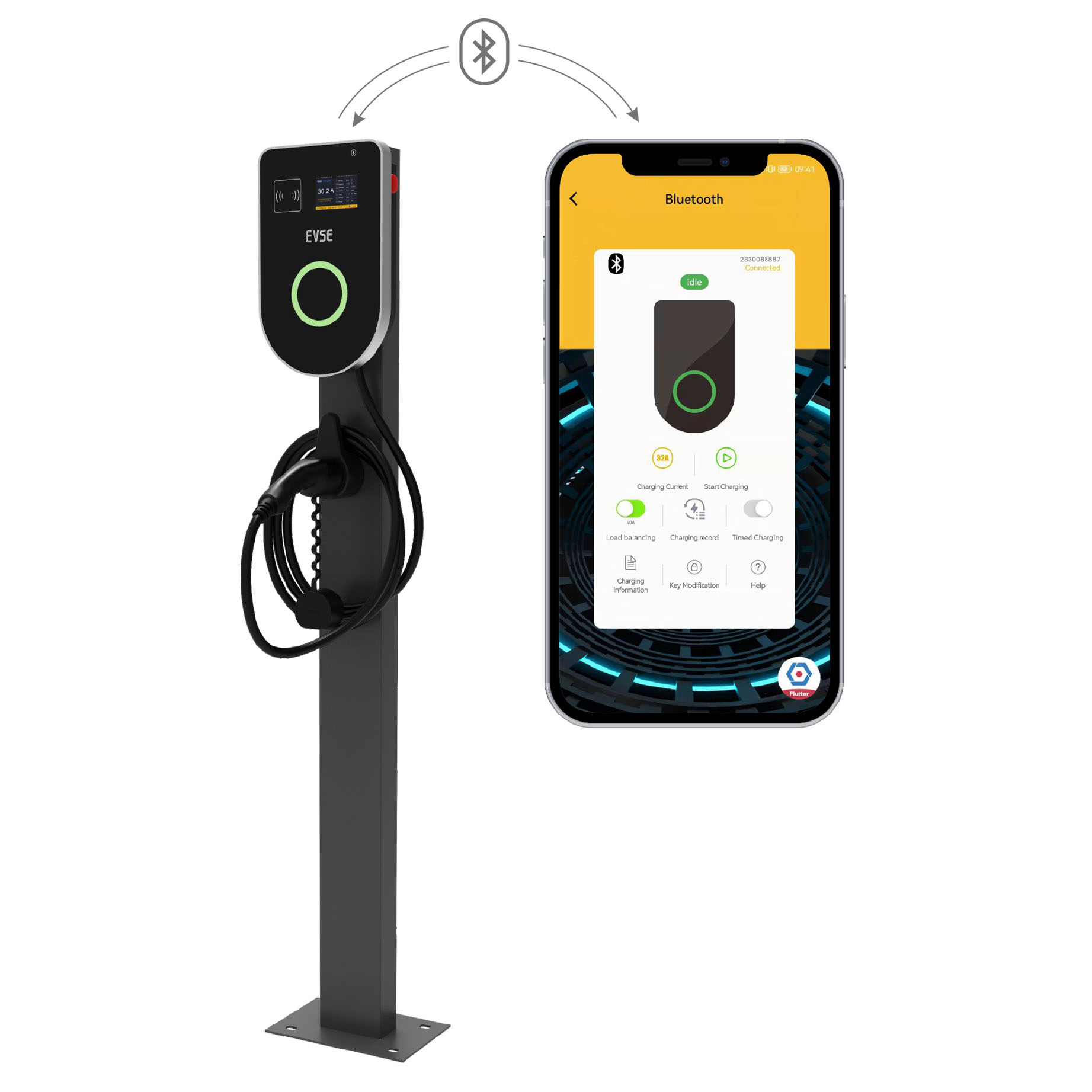

Bluetooth/WIFI(Optional) APP

User interface

LED/LCD(3.5’’)/ RFID(mifare iso& IEC 14443A)

Certificate / Compliance

CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018

Charging Interface

Type 2 cable  5M/ SAE J1772

Type 2 cable  5M

Type 2 cable  5M

Special Protection

Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection,  Over/Under temperature protection

Physical properties

Warranty

2 years

Protection

IP54, IK10

Enclosure

Plastic PC940/ Galvanized steel

Front Panel

 Temper glass

Special Protection

Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection,  Over/Under temperature protection

Installation

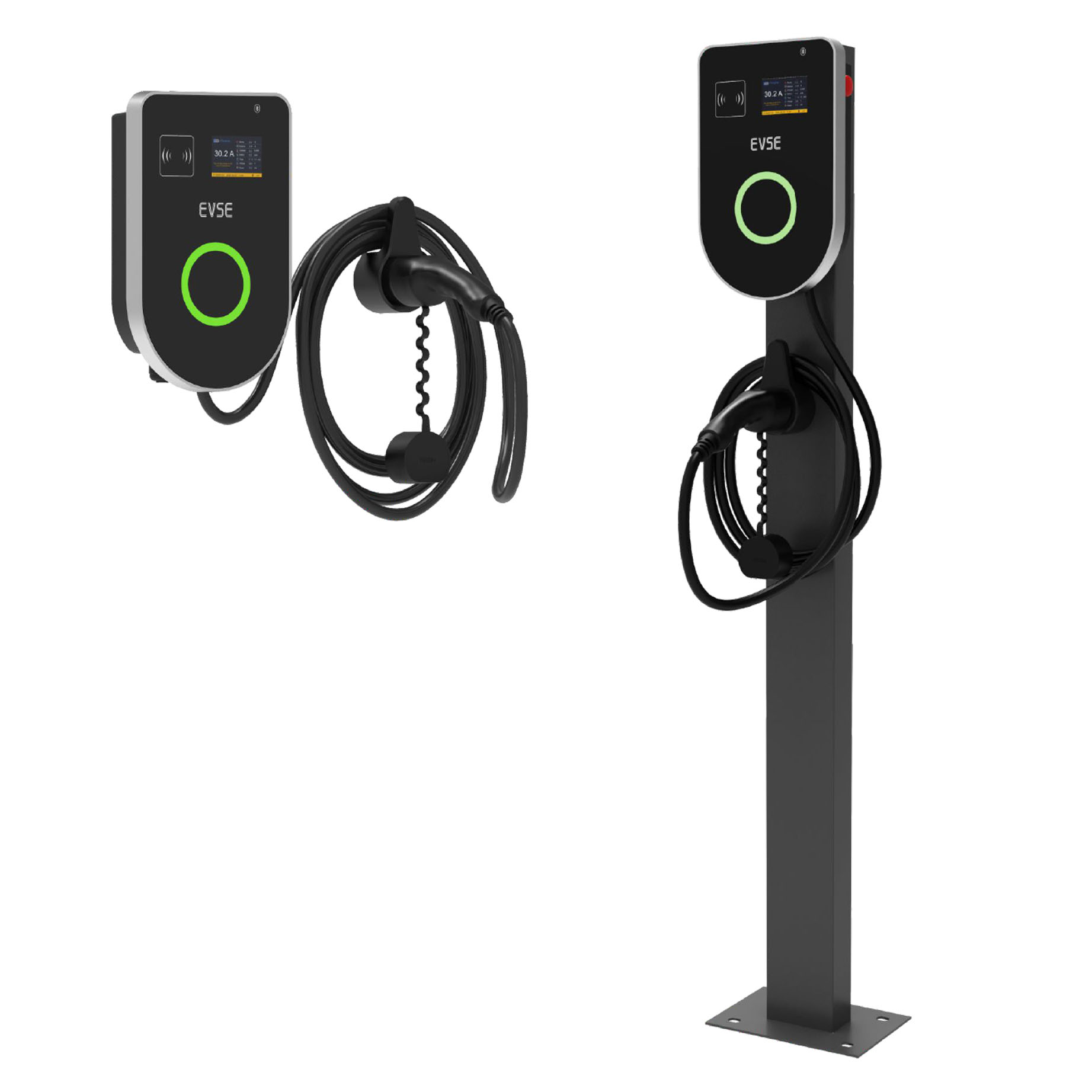

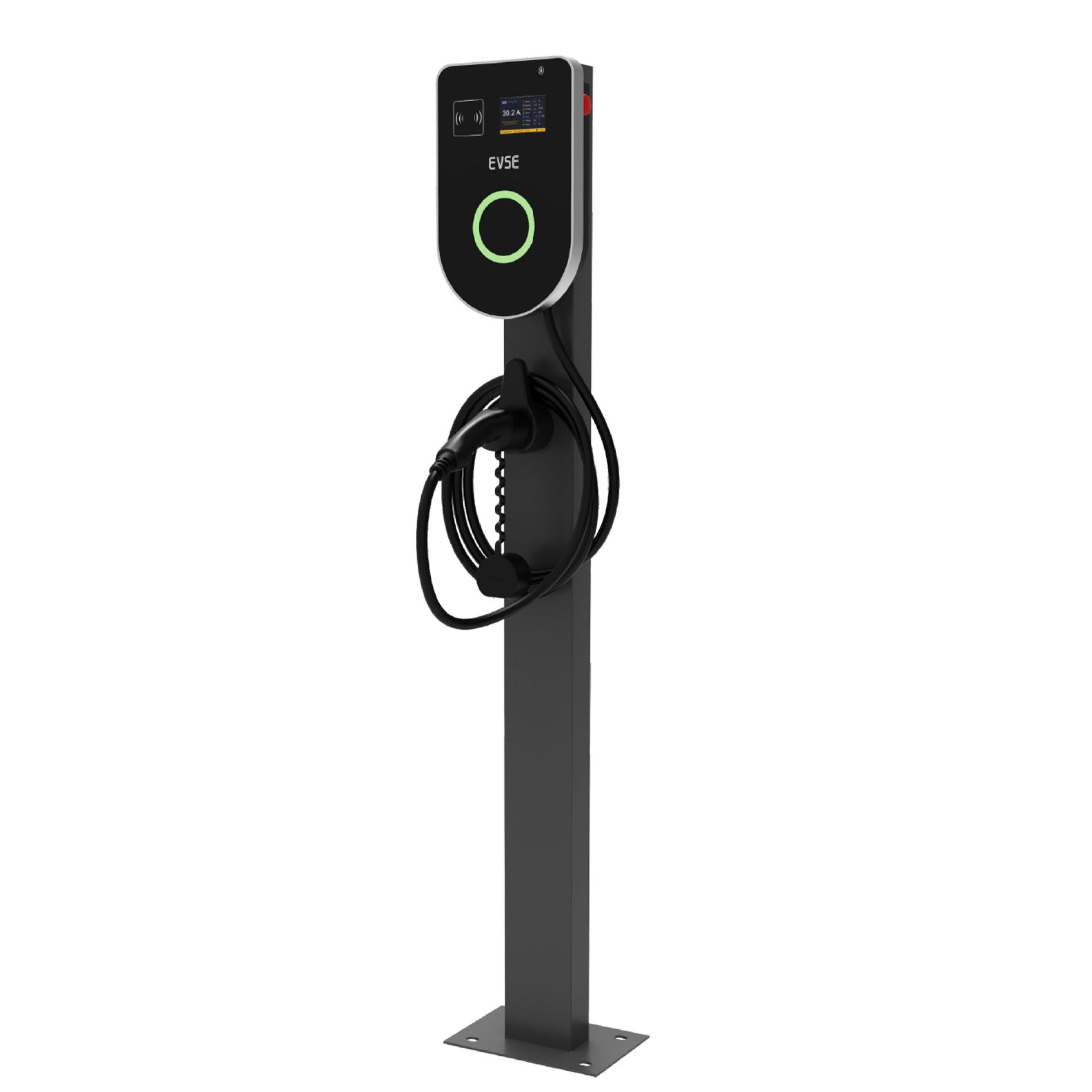

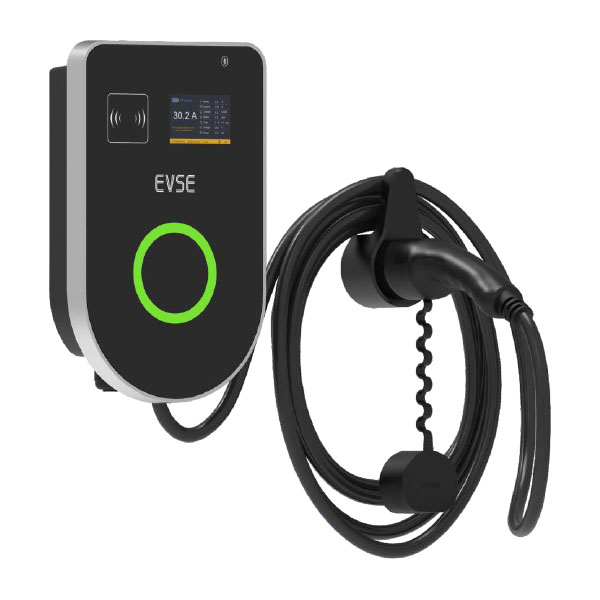

Wall-mount/Pole-mount

Cooling

Natural cooling

Operating temperature

-30 to +55

Humidity

Max.95%(non-regulating)

Product Dimensions

320*230*100(L*W*H)mm

Package Dimension

462*302*248(L*W*H)mm

Net Weight

4.5Kg

5.1Kg

5.5Kg

Gross Weight

5.5Kg

6.1Kg

6.5Kg
