Product Introduction
1. windows 10 pro/home/iot optional
2. Processor, intel i3-8100y, I5-8200Y, I7-8500Y optional
3. 8 Inch 1920*1200 solution, max 500 nits and AG protector sunshine readable LCD
4. RAM/ROM 8GB/256GB, 8GB/512GB, 16GB/1000GB optional
5. 7.7V, 5000mAh big battery
6. 4G LTE/WIFI/GPS/BT/NEC
7. 5M/13M camera
8. POE RJ45, RS232/TTL, USB, micro USB, DC, microphone interface
9. 2D barcode honeywell N3680 optional
10. finger print optional
11. UHF 3-8 meter optional
12. high precision GPS optional, precision is 0.25-1 meter
13. front NFC optional, support mifare one
14. bottom and back pogo pin, provide USB and TTL extend.
15. LF 125KHz optional
Full spec:
OS windows 10 home/pro/iot
CPU intel I3-8100Y/I5-8200Y/I7-8500Y optional standard one is I5-8200Y
RAM/ROM 8GB/256GB 8GB/512GB optional, 16GB/512GB is optional
LCD 8 inch1920*1200； max 500 nits sunshine readable
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 5M/13M， flash light, auto focus.
Power and battery 5000mAh, 7.6V lithium battery, built in charging 4.5H, play video 7.7H
DC4.0*1.7mm, 12V 3A DC in put
------------------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.2 version
NFC 13.56 MHz, distance 5cm or above
---------------------------------------------------------------------------------------------------------------------------------------------------
SPEAKER 1.5 watt
Sensor "1. light sensor
2. acceleration/gravity"

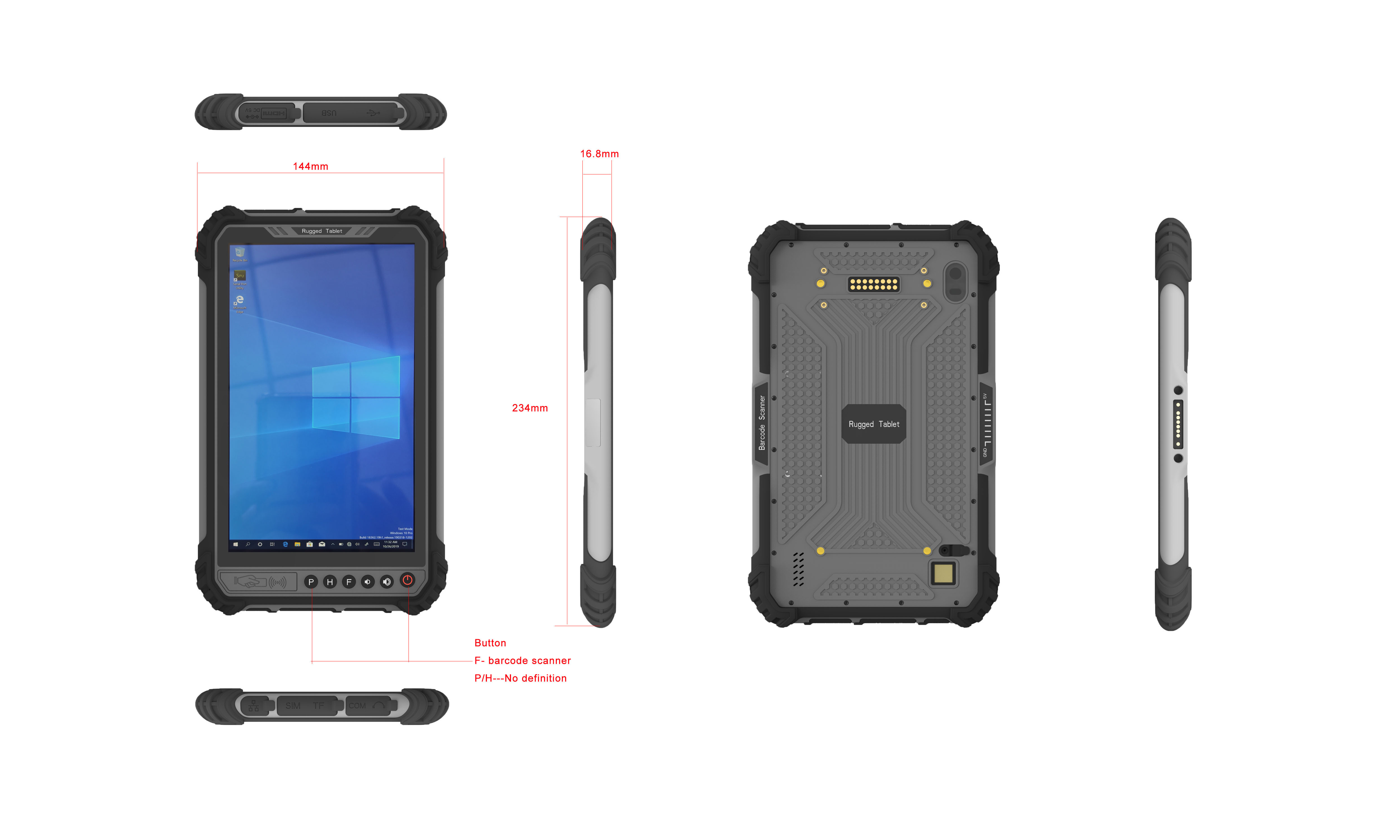

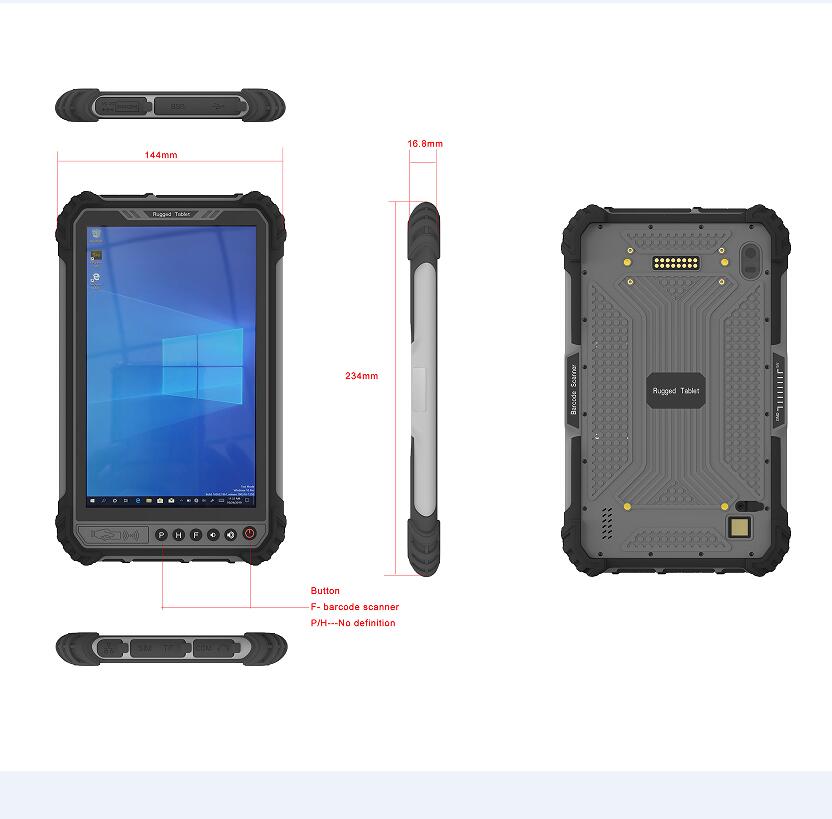

size 234*144*16.8mm
---------------------------------------------------------------------------------------------------------------------------------------------------
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language multi language
---------------------------------------------------------------------------------------------------------------------------------------------------
"interface
in/out port" "1.USB 3.0 *2
2. bottom pogopin*1, USB and serial
3. back pogopin*1
4. DC*1 3.5*1.35
5. microphone+earphone
6. HDMI"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H
------------------------------------------------------------------------------------------------------------------------------------------------
2D barcode module honeywell N3680 optional
UHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
-----------------------------------------------------------------------------------------------------------------------------------------------
accessories "1. USB cable
2. charger
3. handstrap
4. car holder optional
5. docking station optional
6. car charger optional
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
