Product Introduction

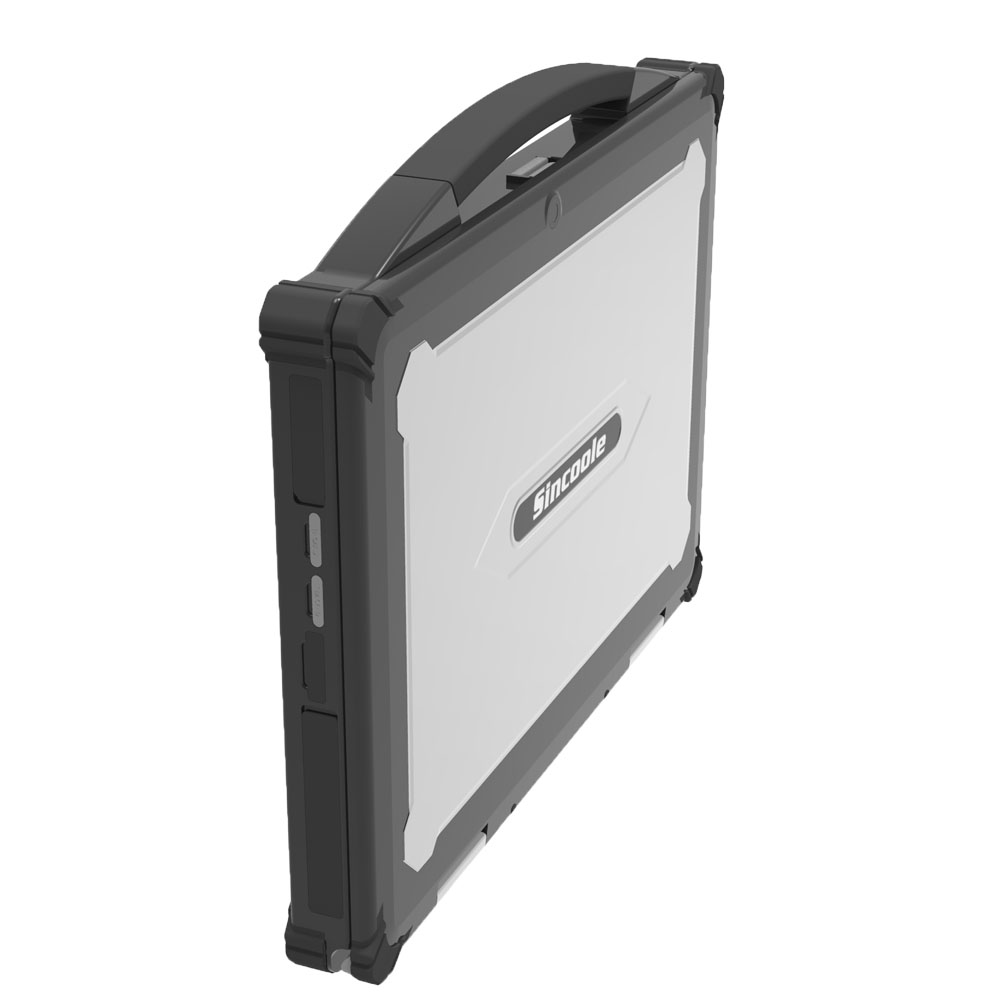

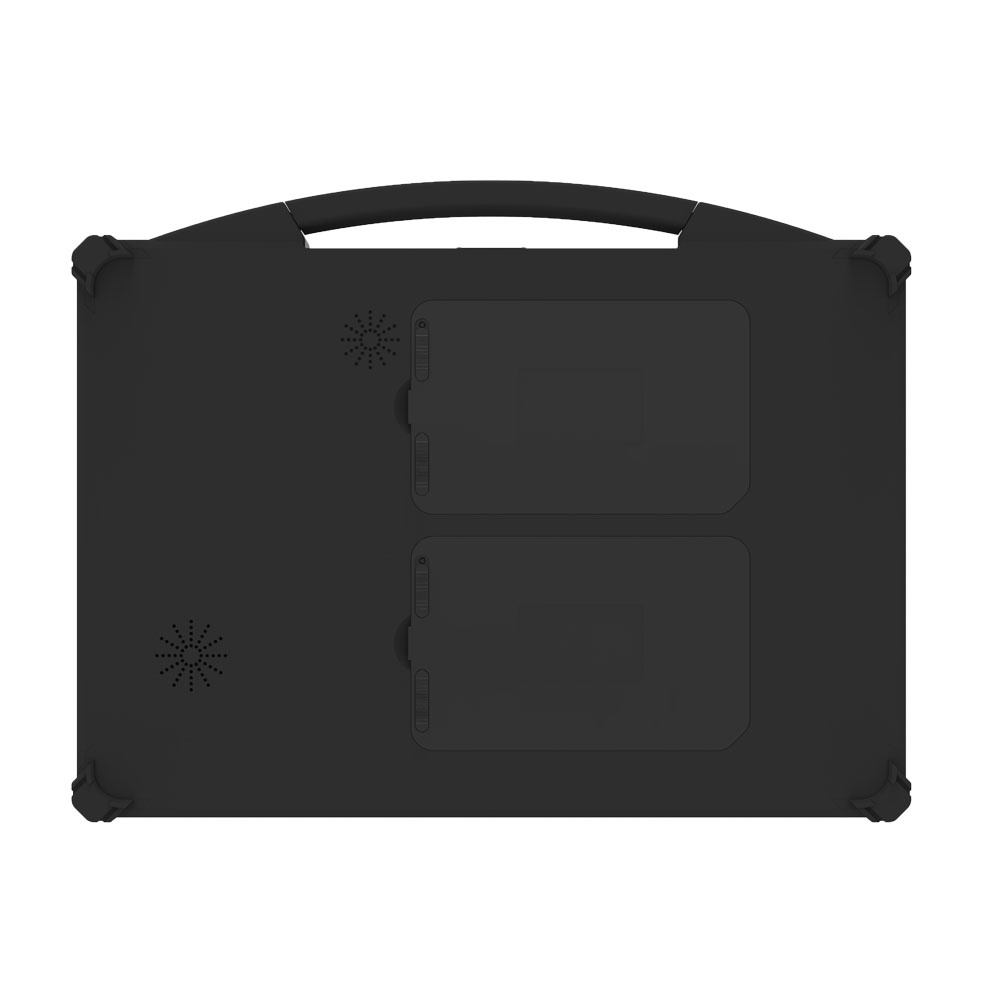

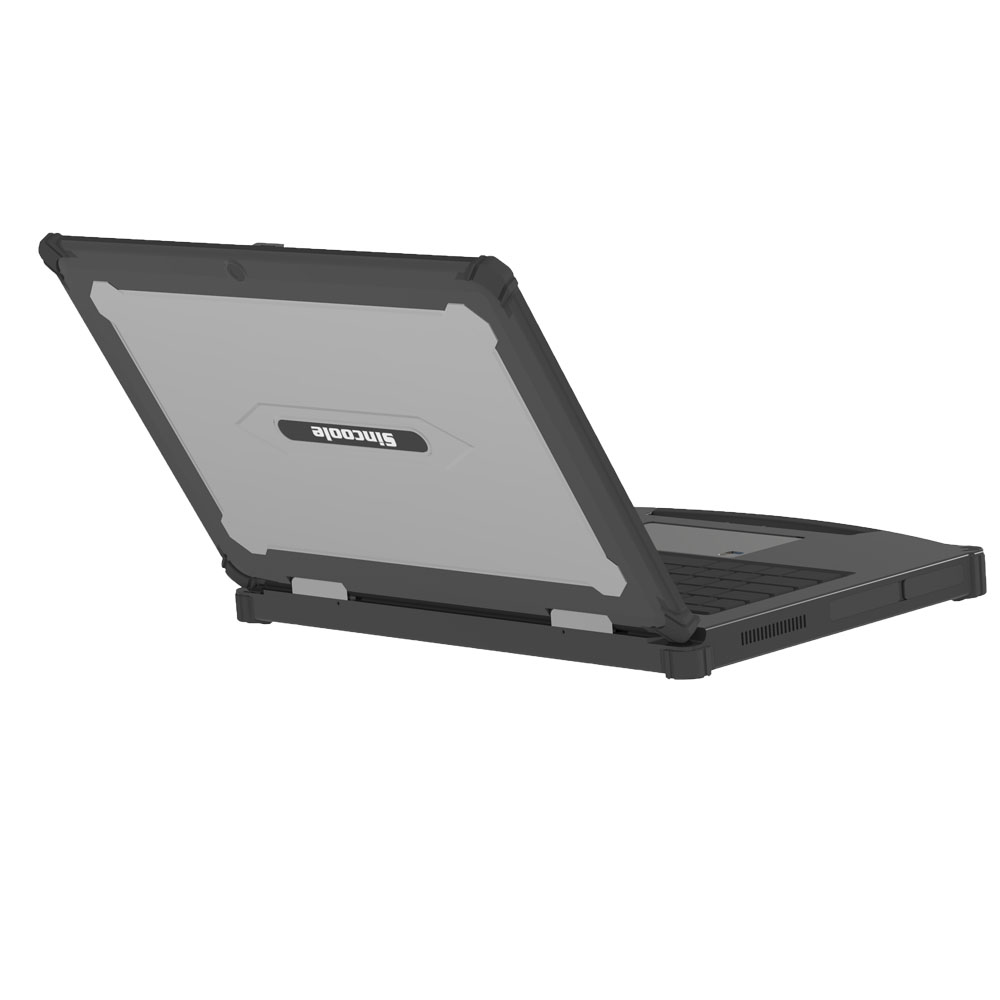

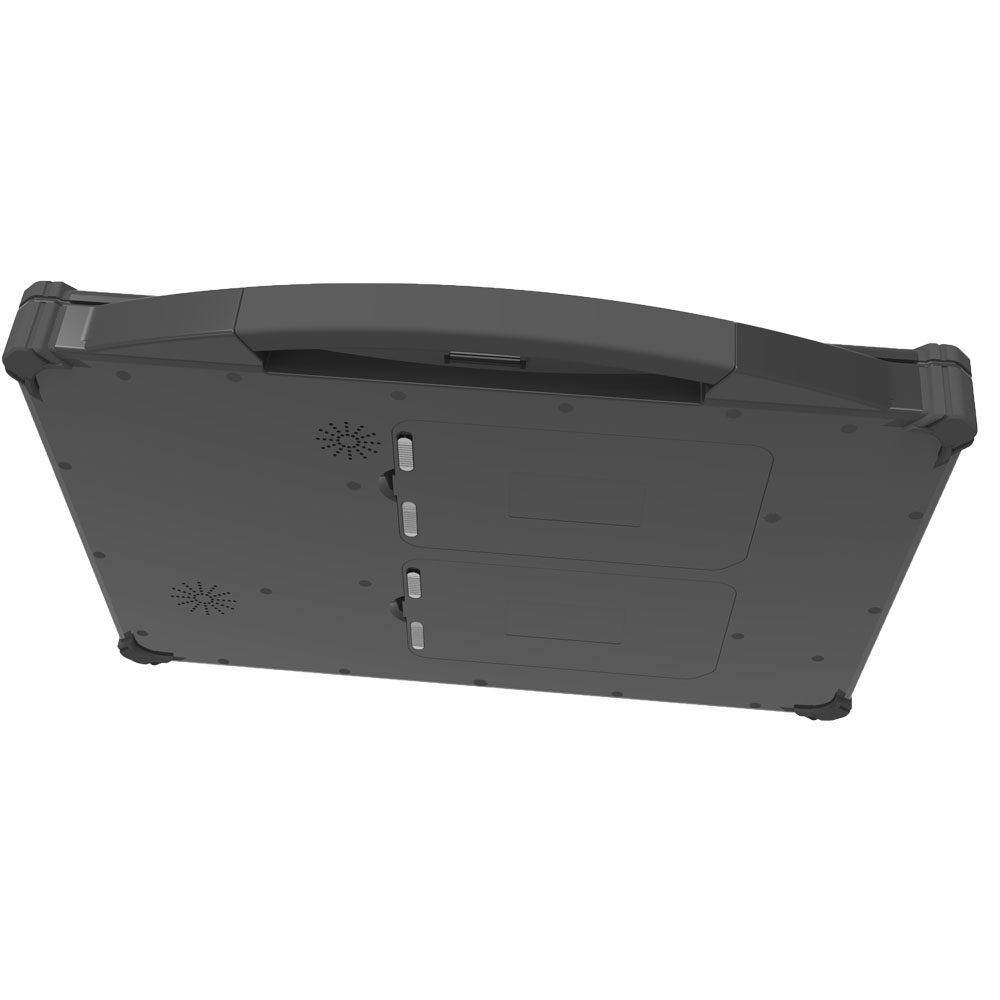

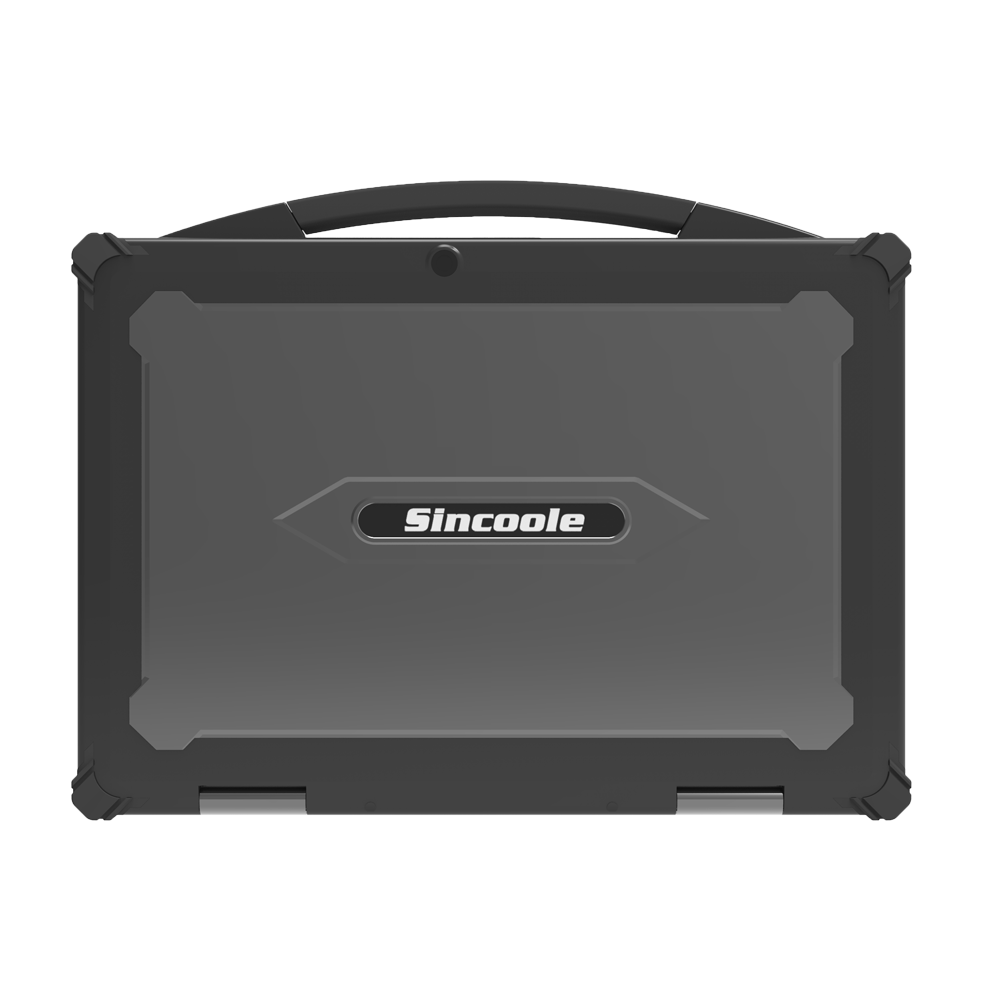

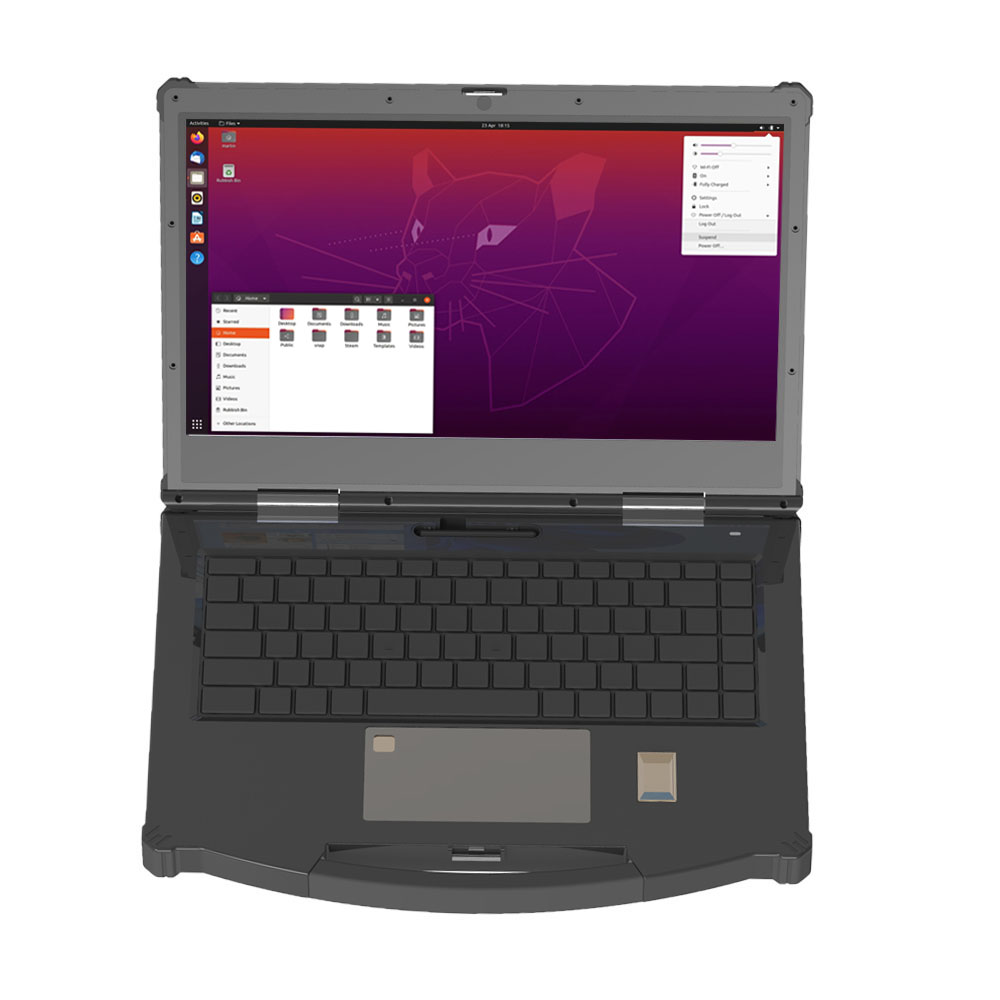

14 inch linux ubantu 20.04 industrial rugged laptops
1. Linux and Android 14 Dual OS can be switch
2. Dual removeable battery support hot swap
3. Dual Ethernet RJ45, support POE power charging.
4. Waterproof IP66, Dusty proof, and Droppin proof.
5. 14 inch high brightness, LCD
6. Removeable SSD for DATA safe.
| ITEM | Detail | Remark |
| OS |
Android 14.0 Or Linux Ubantu |
Android 14/ Linux Ubantu 20.04 Optional, can switch by one button |
| CPU | RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz) | |
| ethernet LAN RJ45 | 2*RJ45,1000Mbps*1, 100Mbps*1 | RJ45*1 Support POE |
| RAM | 16GB | 32GB/8GB optional |
| EMMC | 128GB | |
| ROM | 512GB SSD | 1TB Optional |
| SPI Nor flash | Nor flash for Bootload | |
| LCD | 14 inch1920*1080 | max 800 nits sunshine readable, |
| Touch Panel |
10 point touch panel glass material MN228 |
|
| Camera | Front 8M/ Real 20M | |
| Battery |
8000mAh*7.6V*2 Dual battery，removeable =32000mAh*3.8V |
|
| RTC | small battery for save time | |
| charging |
TYPE-C，all in one，charging power 65W DC4.0， 12V charging |
|
| 4G; LTE |
Mega 770A module calling and message |
|
| wifi |
IEEE 802.ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.g, IEEE
802.n Support WIFI 2.4ГГц, 5ГГц support WiFi 6.0 |
|
| GPS | Beidou/GPS/GLONASS | |
| BT | BT5.0 | |
| NFC | Support | |
| interface |
1. USB Type_c (USB 3.0) with USB OTG support (specify) all in one 2. USB-A 3.0 * 2 3. Headphones jack 3.5 mm 4. HDMI（±14*4.6mm full-size）port 5. 1*SIM slot, Dual card in one slot 6. 1*TF slot 7. 1*mini USB for Uart 8. RJ45*2, one support POE |
|
| Sensor |
Microphone, -Light sensor, -Accelerometer, -Cameras, -Flashlight -Compass. |
|
| fingerprint | optional | |
| ID module | optional | |
| UHF | optional | |
| 2D barcode | optional | |
| high precision GPS | optional | |
| Stylus | fixed on the laptop | |
| waterproof | IP66 | |
| temperature |
working: -20 to 55 storage: -25 to 70 |
|
| dropping | 1.2 meter |
