Product Introduction

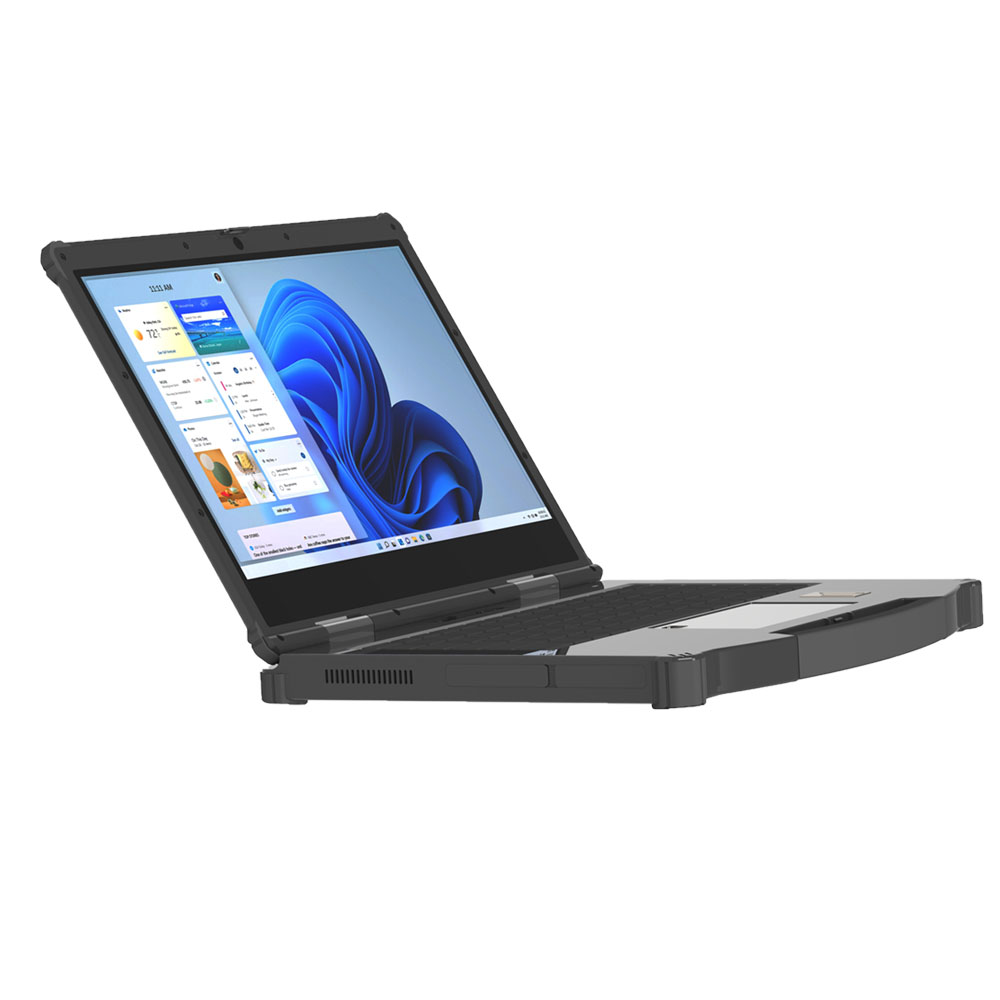

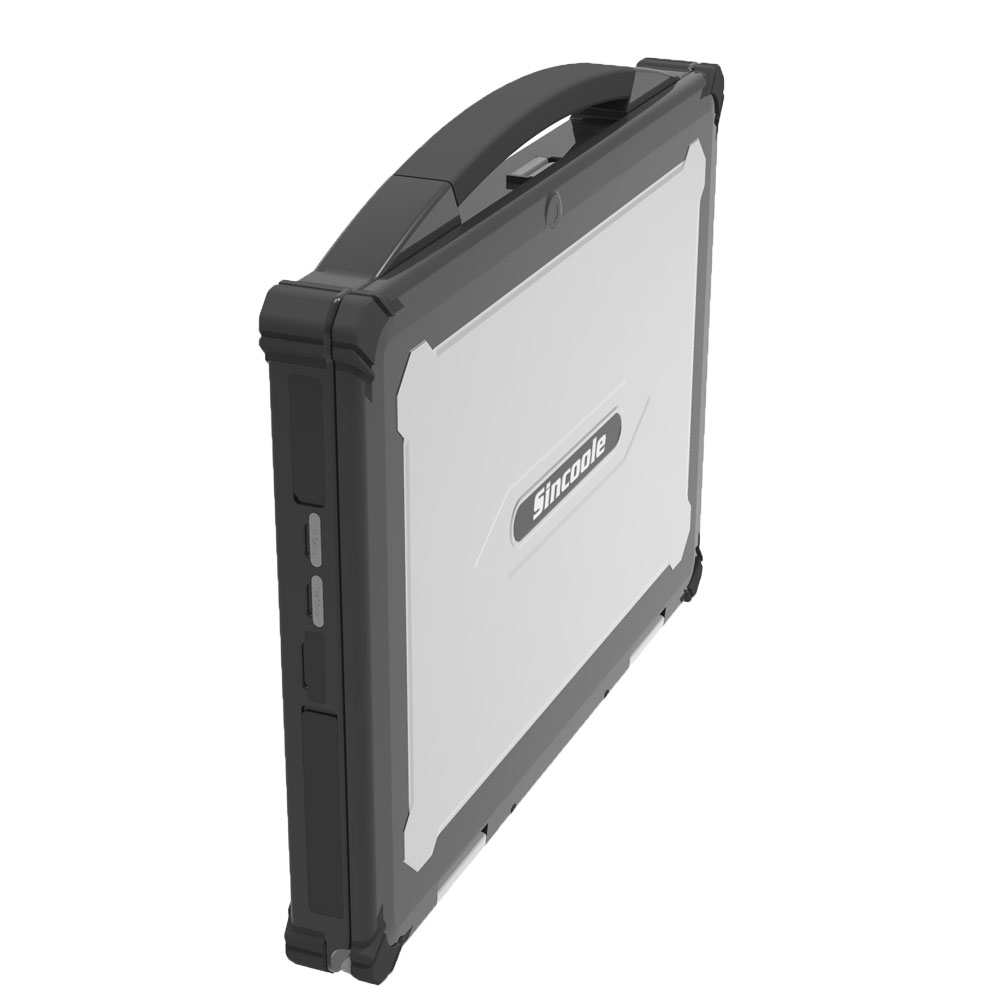

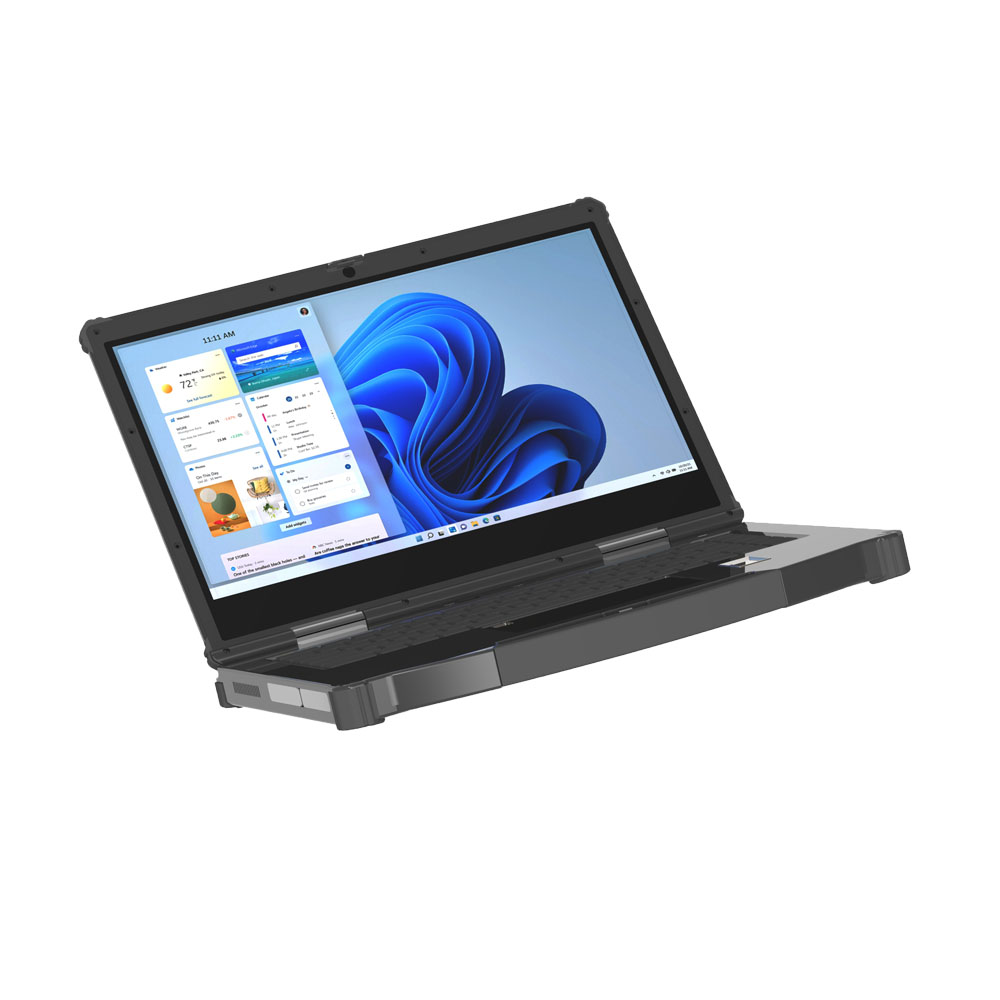

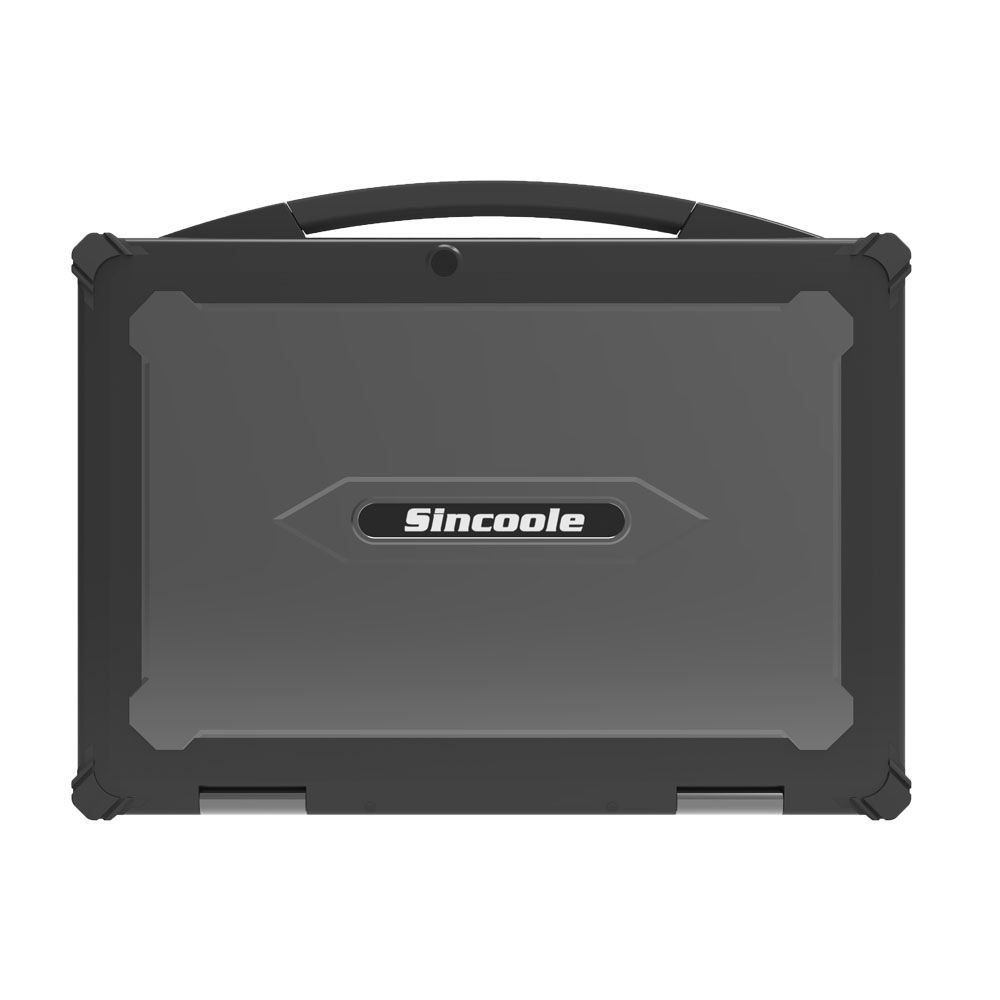

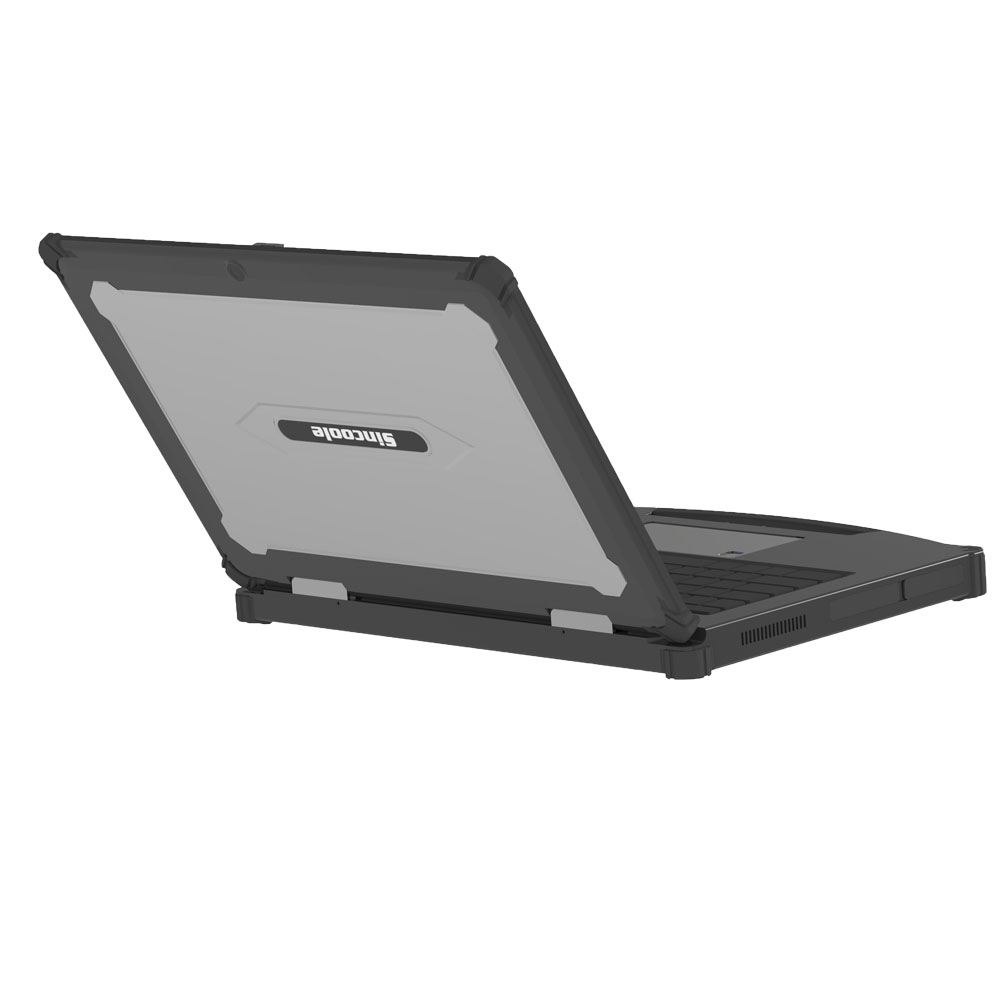

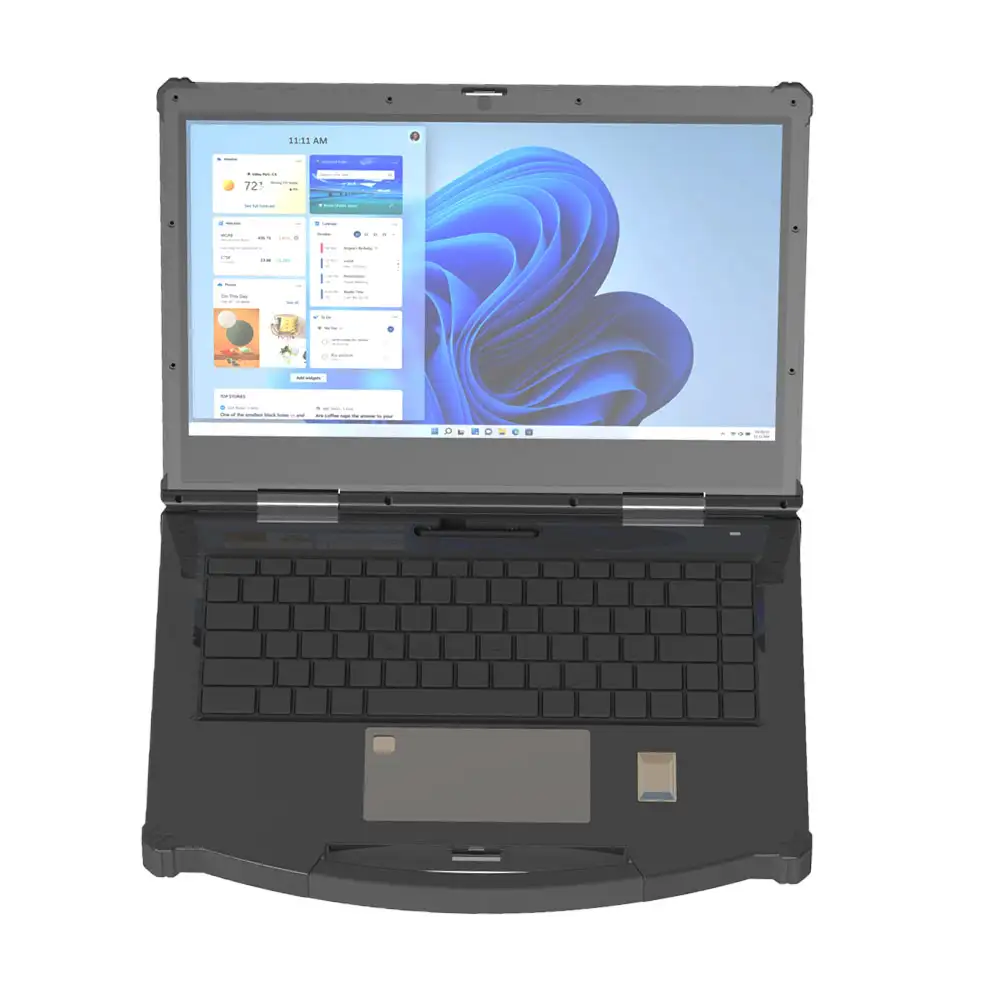

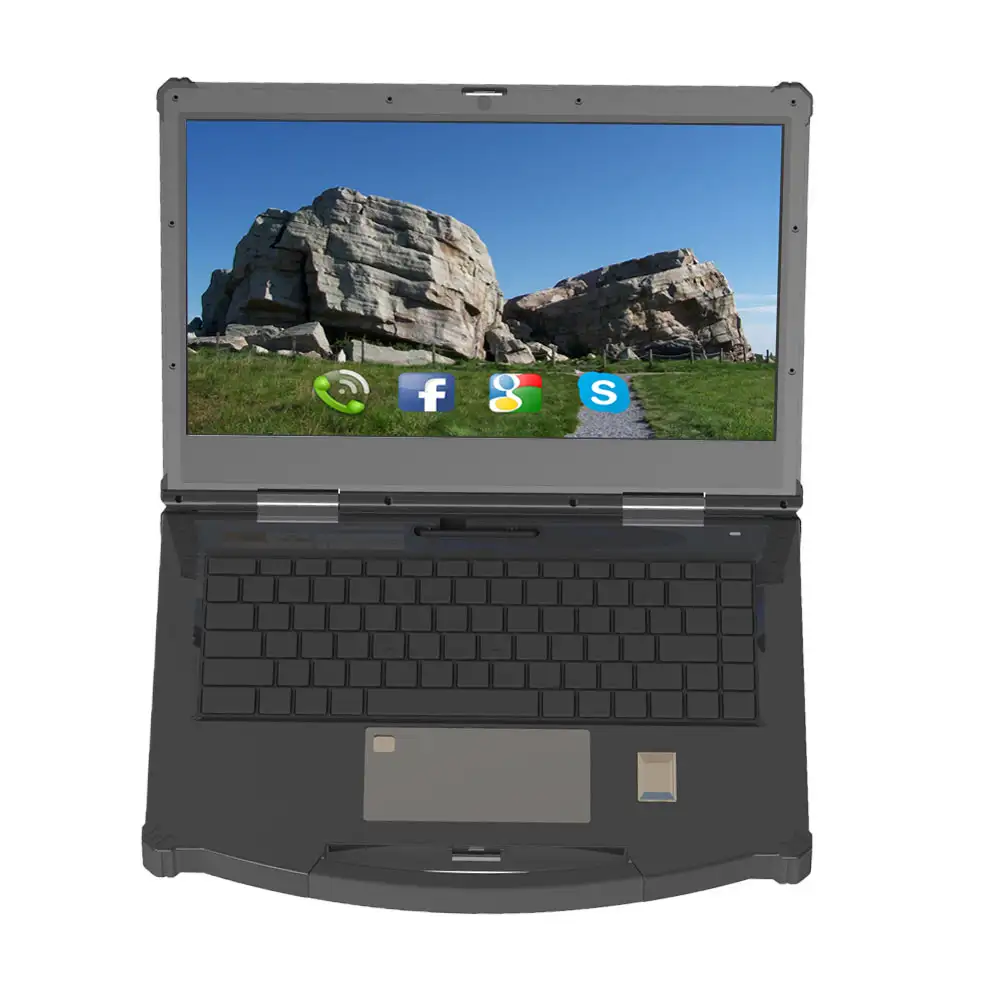

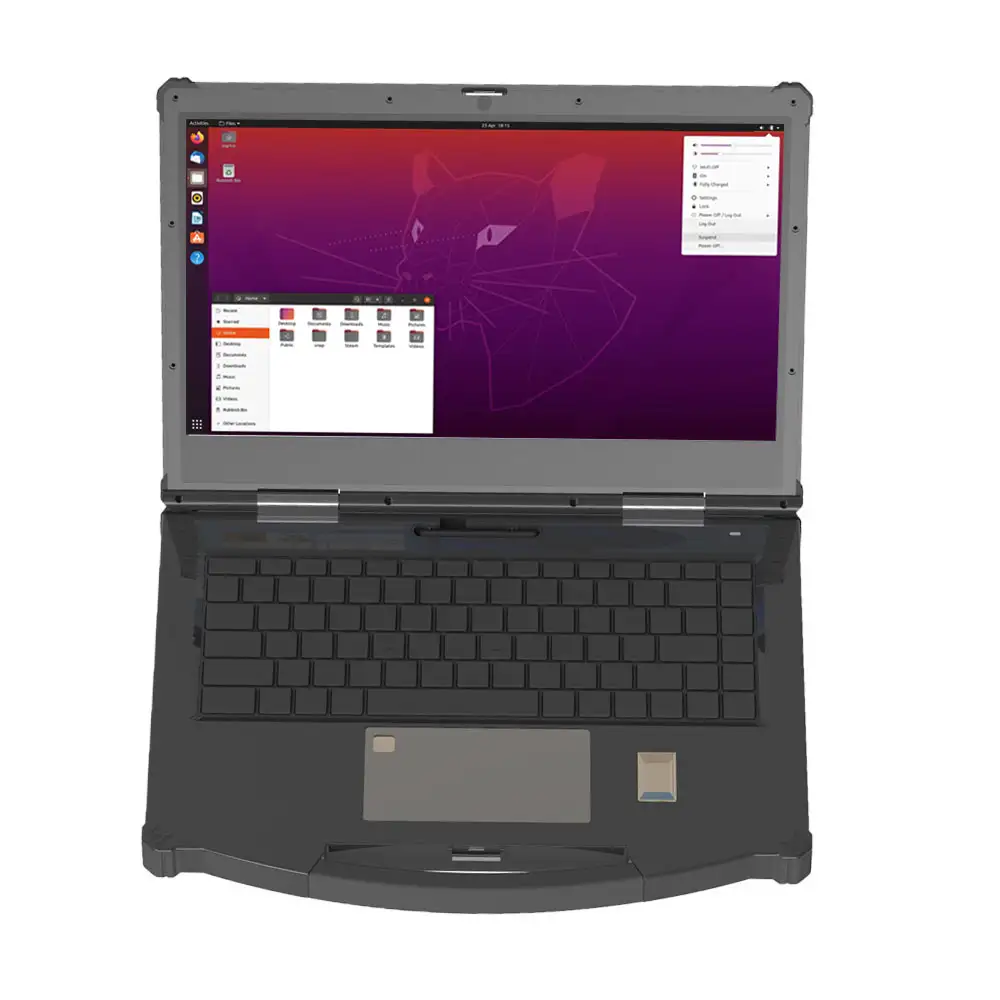

14 inch linux ubantu 20.04 industrial rugged laptops
1. Linux and Android 14 Dual OS can be switch

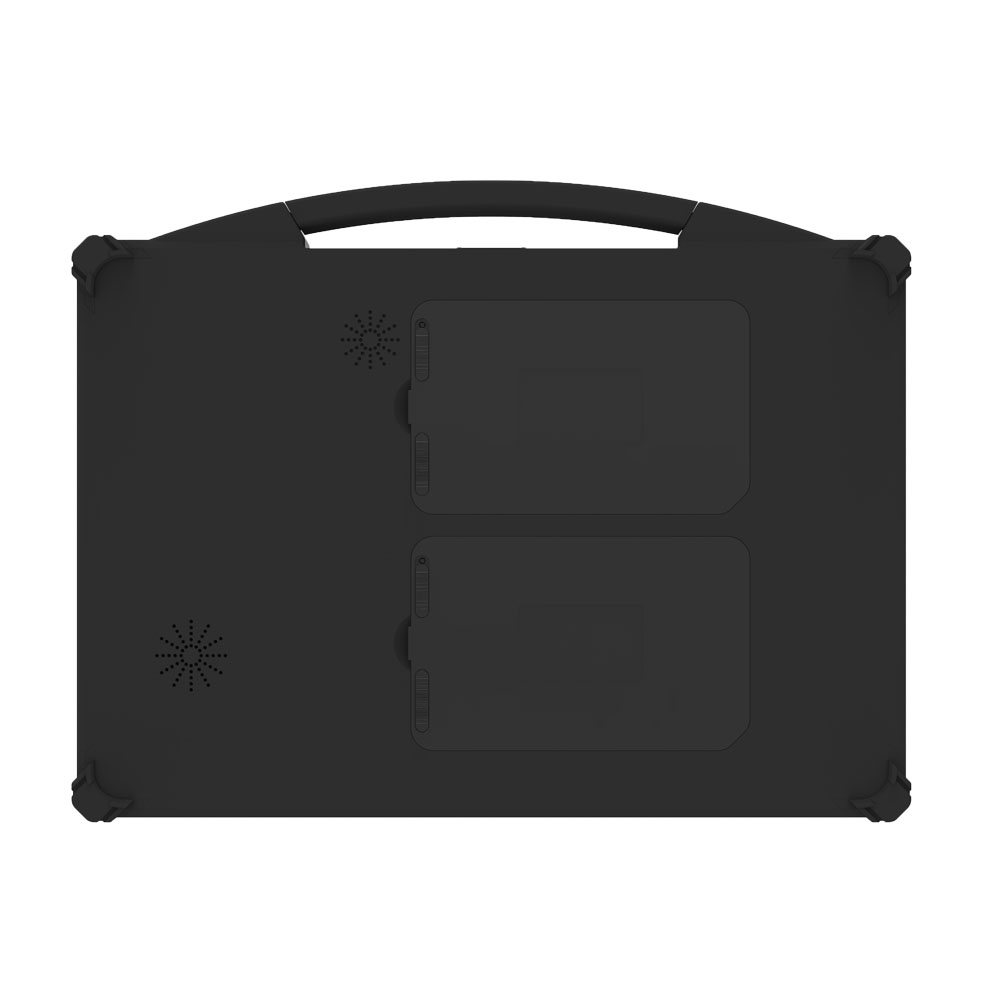

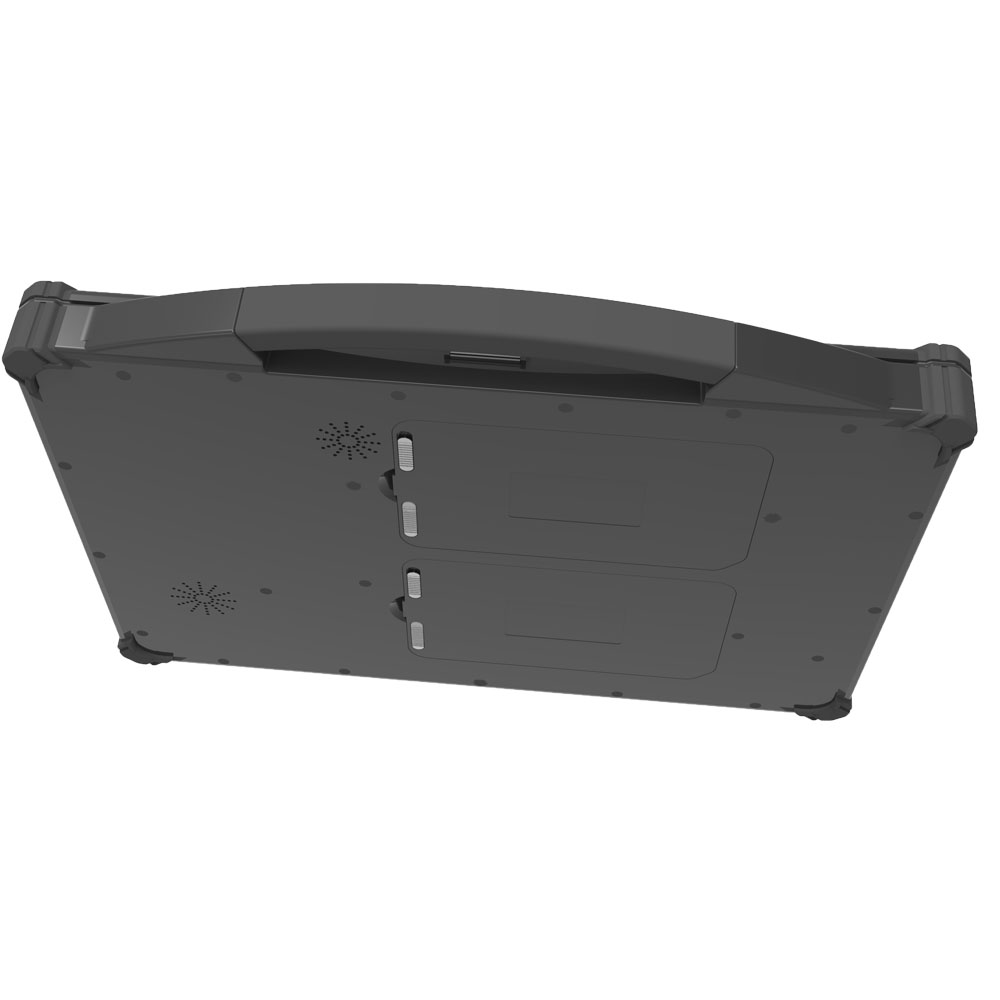

2. Dual removeable battery support hot swap
3. Dual Ethernet RJ45, support POE power charging.
4. Waterproof IP66, Dusty proof, and Droppin proof.
5. 14 inch high brightness, LCD
6. Removeable SSD for DATA safe.
| ITEM | DESCRIPTION | detail |
| OS | windows 10/11 home/pro/iot | |
| CPU | intel I3-1215U/I5-1235U/I7-1255U optional | standard one is I5-1235U |
| RAM | 8GB/16GB/32GB optional | |
| ROM | 256GB/512GB/1TB optional | |
| removeable secure SSD, 256GB/512GB/1TB optional | ||
| LCD | 14 inch1920*1080 | max 800 nits sunshine readable, |
| Touch screen |
10
point touch support tylus support thin glove touch |
|
| Camera | 5M/13M | MIPI CONNECTOR |
| Power and battery |
6000mAh,
7.6V lithium battery + 3000mAh, 15.2V lithium battery |
charging 4.5H, play video 8H |
| DC5.5*2.5mm, 19V 3A DC in put | ||
| WWAN | 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC |
4G
Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 B34 WCDMA:B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8 |
| GPS | baidou,GPS, glonass | |
| high precision GPS module optional | ||
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | SUPPORT WIFI 6 |
| BLUETOOTH | 5.0 version | |
| NFC | 13.56 MHz, distance 5cm or above | |
| SPEAKER | 1.5 watt | |
| Sensor |
1.
light sensor 2. acceleration/gravity |
|
| size | 335*265*32mm | |
| weight | 1.85kg | |
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |
| language 语言 | multi language | |
|
interface in/out port |
1.
USB 3.0 *4, TYPE-C*1 2. RJ45*1, or RJ45*2 optional 3. DC*1 5.5*2.5 4. microphone+earphone 5. HDMI*1 6. RS232*1 7. SSD TF card 8. SIM card slot*1 9. secure SSD slot*1 |
|
| casing material | ABS/PC/rubber TPU/aluminum | |
| button | V+ -, Power, P, F, H | |
| fingerprint | support | optional |
| Front NFC | under the screen, the distance is 3-5cm, mifare one is optional | optional |
| high precision GPS | 0.25-1 meter high precision GPS, support GPS, beidou, glonass | optional |
| accessories |
1.
USB cable 2. charger 3. hand bag 4. white box, no logo |
|
| proof rate |
1.
water proof IP65 2. Drapping proof 1.2 meter |
|
| Certification |
1.
810G 2. CE,FCC |
|
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
