Product Introduction
1. android 7.0 and windows 10 Optional
2. 10.1 Inch 1920*1200 solution, max 500 nits and AG protector sunshine readable LCD
3. RAM/ROM 3GB/32GB, 4GB/64GB optional
4. 8400+2100=10500 mAh hot swap battery, 12000mAh big battery optional
5. 4G LTE/WIFI/GPS/BT/NEC

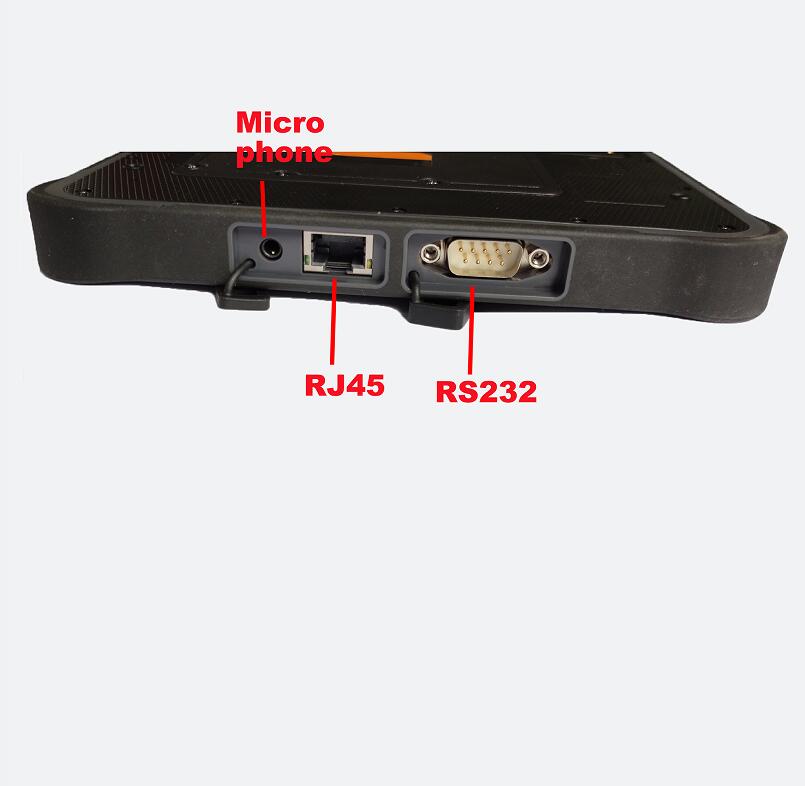

6. POE RJ45, RS232/TTL, USB, micro USB, DC, microphone interface
7. 2D barcode honeywell N3680 optional
8. finger print optional
9. UHF 3-8 meter optional
10. high precision GPS optional, precision is 0.25-1 meter
11. front NFC optional, support mifare one
12. bottom and back pogo pin, provide USB and TTL extend.
13. LF 125KHz optional
-----------------------------------------------------------------------------------------------------------------------------------------------------
ITEM DESCRIPTION detail
OS windows 10 home/pro/iot
CPU intel cherry trail Z8350
RAM/ROM 4GB/64GB
LCD 10.1 inch1920*1200； max 500 nits sunshine readable
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 2M/5M
Power and battery "battery total capacity 10500mAh 8400+2100
play video 6 hours, working 8-10 hours charging 6 hours.
Stand by 72 hours" 12000mAh+2100mAh Optional
3.5*1.35mm, 5V 3A DC in put Magnetic charger
-----------------------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUX "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.0 version
NFC 13.56 MHz, distance 5cm or above
-----------------------------------------------------------------------------------------------------------------------------------------------------
SPEAKER 1.5 watt
Sensor "1. light sensor
2. acceleration/gravity
size 275*178*18mm
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language multi language
-----------------------------------------------------------------------------------------------------------------------------------------------------

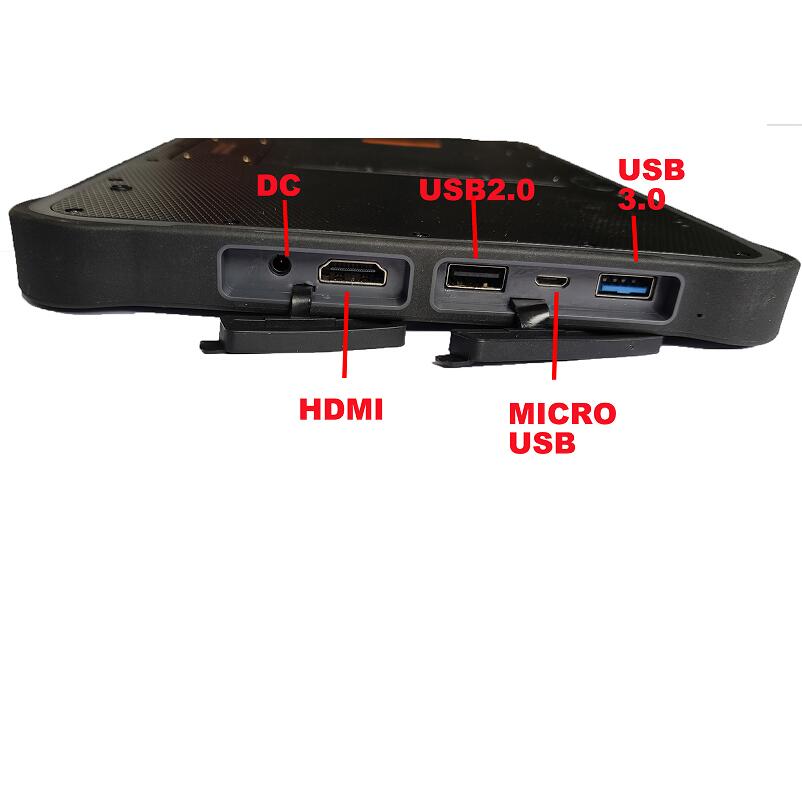

"interface
in/out port" "1.USB*2
2. Micro USB*1
3. RJ45*1
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. HDMI
9.RS232*1"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
VESA hole 75*75mm or 90*90mm"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H
-----------------------------------------------------------------------------------------------------------------------------------------------------
2D barcode module honeywell N3680 optional
UHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
-----------------------------------------------------------------------------------------------------------------------------------------------------
accessories "
1. USB cable
2. charger
3. handstrap
4. car holder
5. docking station
6. car charger
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
