Product Introduction

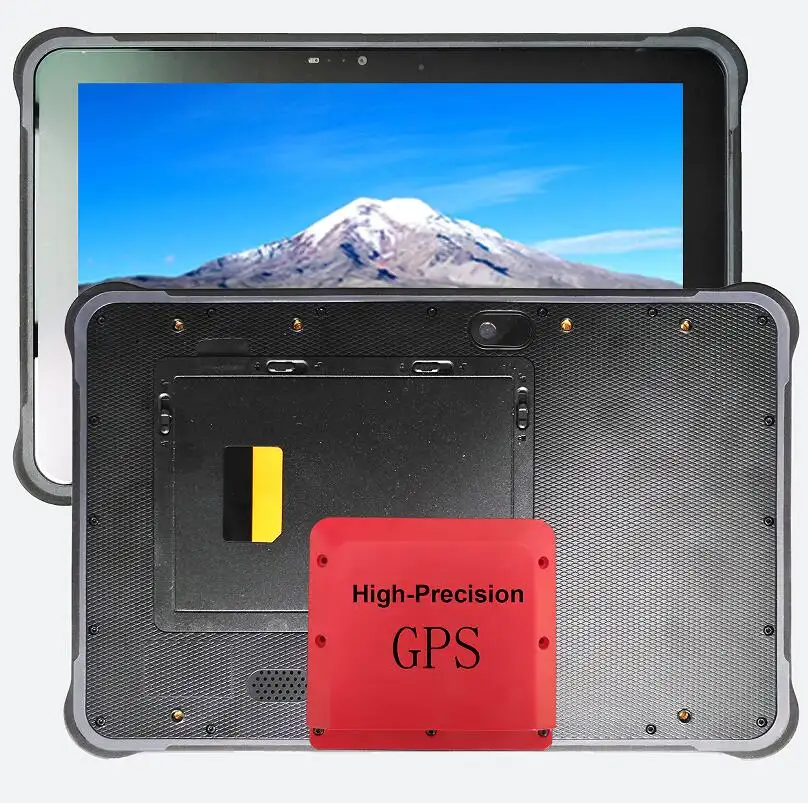

High precision GPS module main spec:
1. android 7.0 and windows 10 Optional
2. 10.1 Inch 1920*1200 solution, max 500 nits and AG protector sunshine readable LCD
3. RAM/ROM 3GB/32GB, 4GB/64GB optional
4. 8400+2100=10500 mAh hot swap battery, 12000mAh big battery optional
5. 4G LTE/WIFI/GPS/BT/NEC
6. POE RJ45, RS232/TTL, USB, micro USB, DC, microphone interface
7. 2D barcode honeywell N3680 optional
8. finger print optional
9. UHF 3-8 meter optional
10. high precision GPS optional, precision is 0.25-1 meter
11. front NFC optional, support mifare one
12. bottom and back pogo pin, provide USB and TTL extend.
13. LF 125KHz optional
| ITEM | DESCRIPTION | detail |
| OS | windows 10 home/pro/iot | |
| CPU | intel cherry trail Z8350 | |
| RAM/ROM | 4GB/64GB | |
| LCD | 10.1 inch1920*1080； | max 500 nits sunshine readable |
| Touch screen |
10
point touch support tylus support thin glove touch |
|
| Camera | 2M/5M | |
| Power and battery |
battery
total capacity 10500mAh 8400+2100 play video 6 hours, working 8-10 hours charging 6 hours. Stand by 72 hours |
12000mAh+2100mAh Optional |
| 3.5*1.35mm, 5V 3A DC in put | Magnetic charger | |
| WWAN | 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC |
4G
Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 B34 WCDMA:B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8 |
| GPS | baidou,GPS, glonass | |
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | intel 3165 |
| BLUETOOTH | 4.0 version | |
| NFC | 13.56 MHz, distance 5cm or above | |
| SPEAKER | 1.5 watt | |
| Sensor |
1.
light sensor 2. acceleration/gravity |
|
| size | 275*178*18mm | |
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |
| language 语言 | multi language | |
|
interface in/out port |

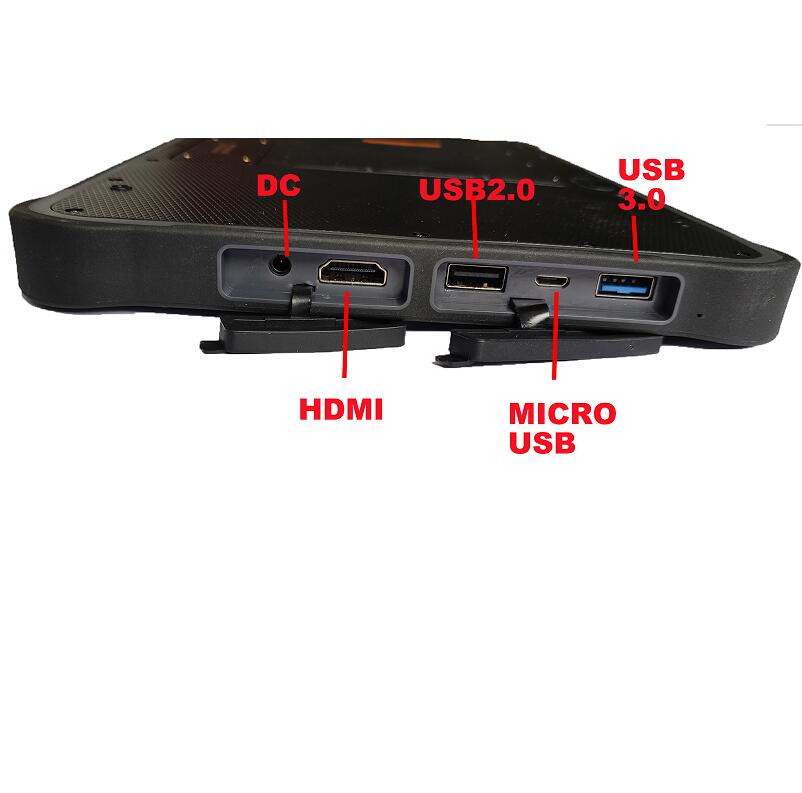

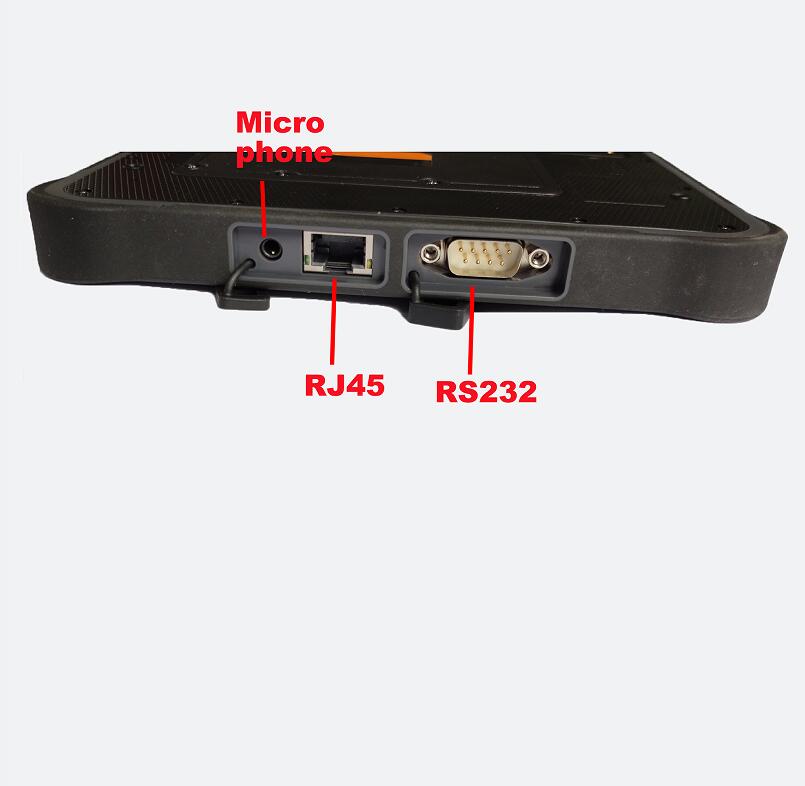

1.USB*2 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. mini HDMI 9.RS232*1 |
|
| Pogopin definition |
1.16pin
back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V) VESA hole 75*75mm or 90*90mm |
|
| casing material | ABS/PC/rubber TPU/aluminum | |
| button | V+ -, Power, P, F, H | |
| 2D barcode module | honeywell N3680 | optional |
| UHF | 900MHz | optional |
| fingerprint | support | optional |
| Front NFC | under the screen, the distance is 3-5cm, mifare one is optional | optional |

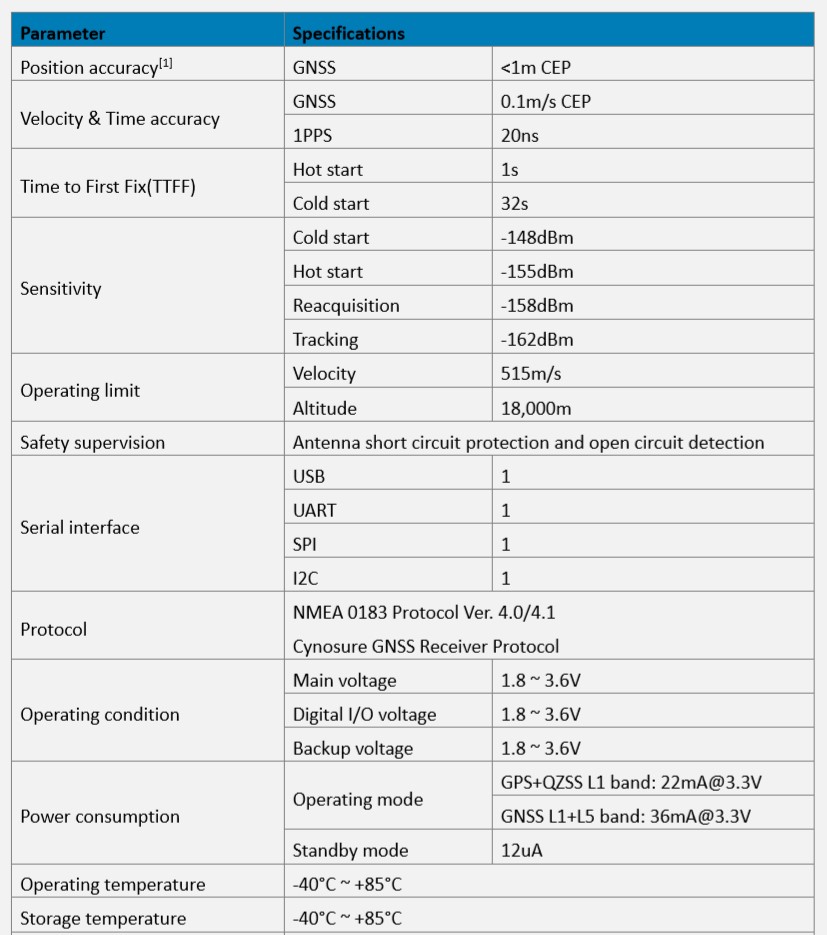

| high precision GPS | 0.25-1 meter high precision GPS, support GPS, beidou, glonass | optional |

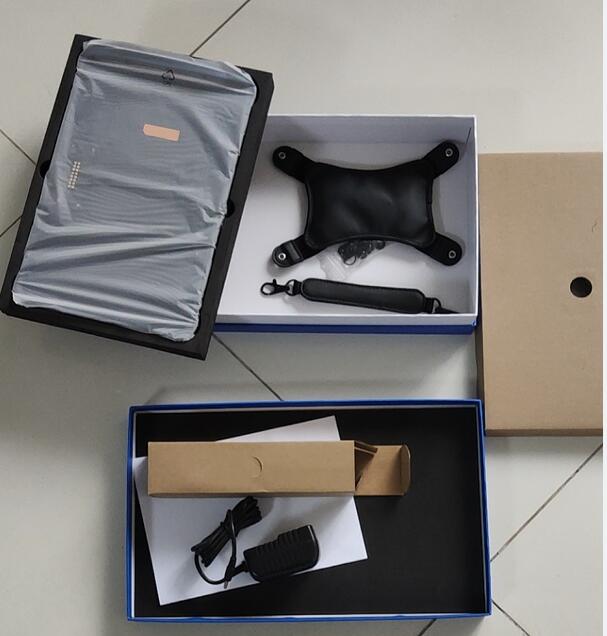

| accessories |
1.
USB cable 2. charger 3. handstrap 4. car holder 5. docking station 6. car charger 7. white box, no logo |
|
| proof rate |
1.
water proof IP65 2. Drapping proof 1.2 meter |
|
| Certification |
1.
810G 2. CE,FCC |
|
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
