Product Introduction

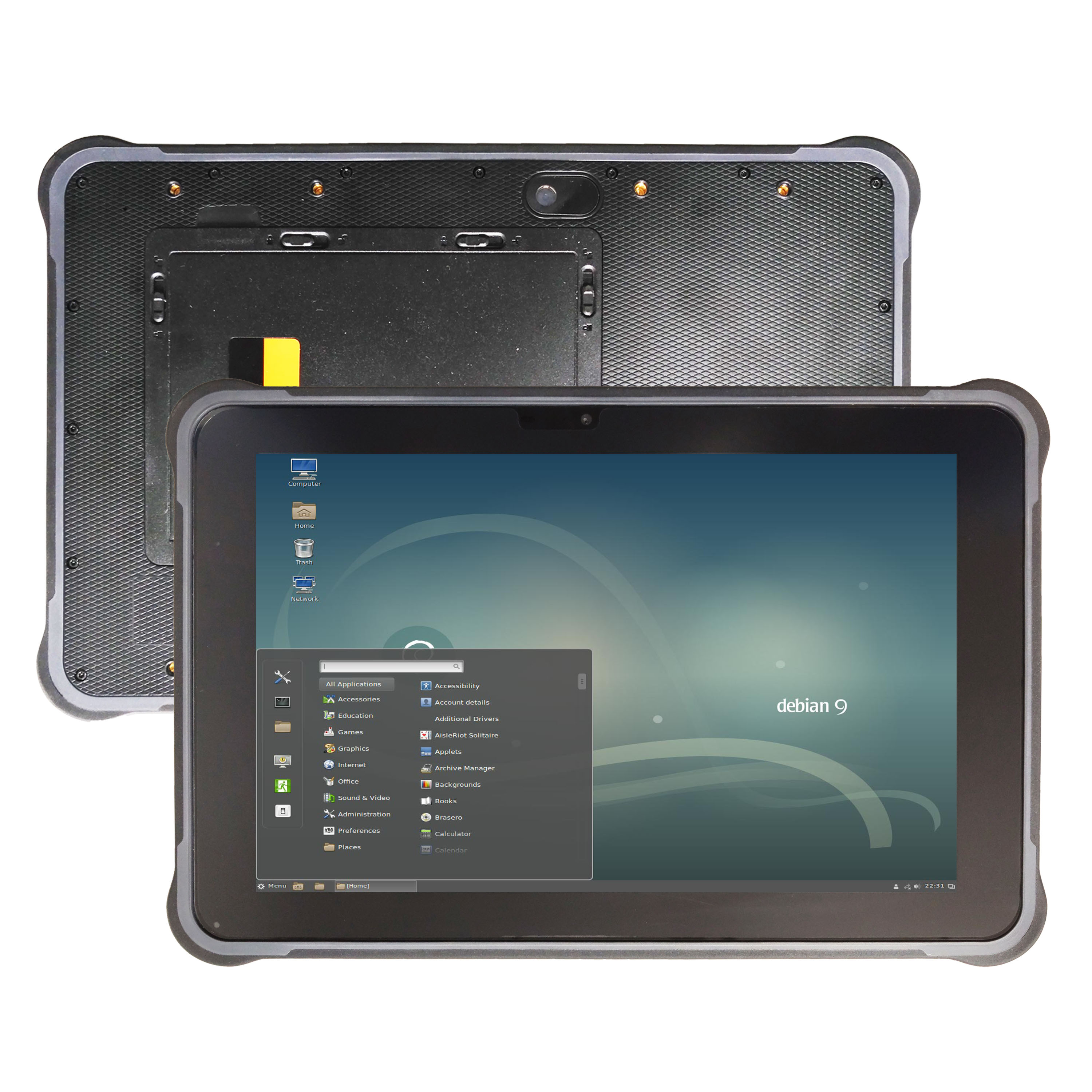

10.1 inch android 7.1 and linux Debian optional
RAM/ROM 4GB/64GB
4G LTE/WIFI/GPS/BT/NFC

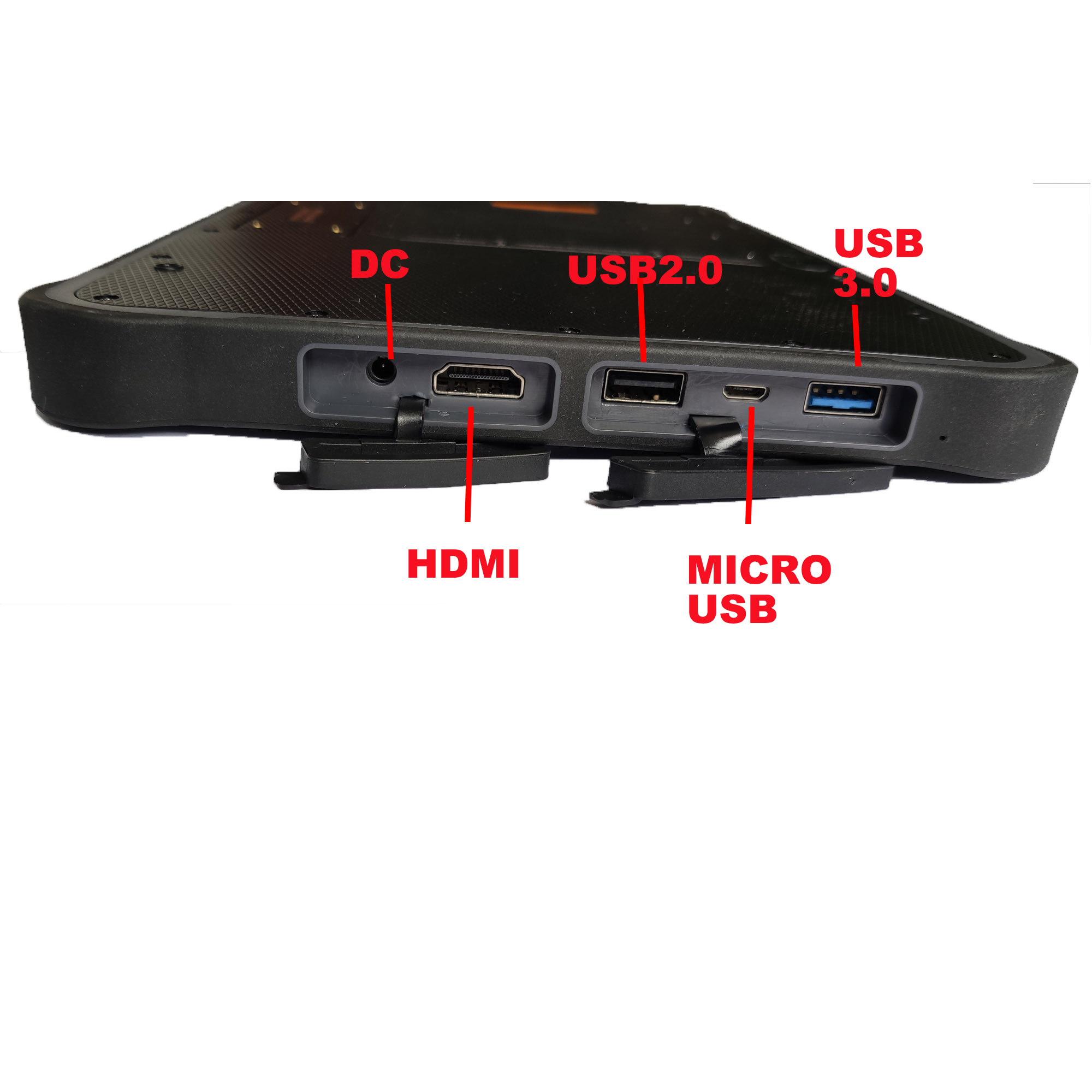

USB 3.0*1, USB2.0*1, Micro USB *1
HDMI, RS232, DC3.5
bottom pogopin, and back pogopin
support USB, TTL, 5V and 3.3V output and input
2D barocde N3680 optional
UHF M500 optional
high precision GPS optional
front NFC optional
can customize OS and function
| ITEM | DESCRIPTION | detail | Remark |

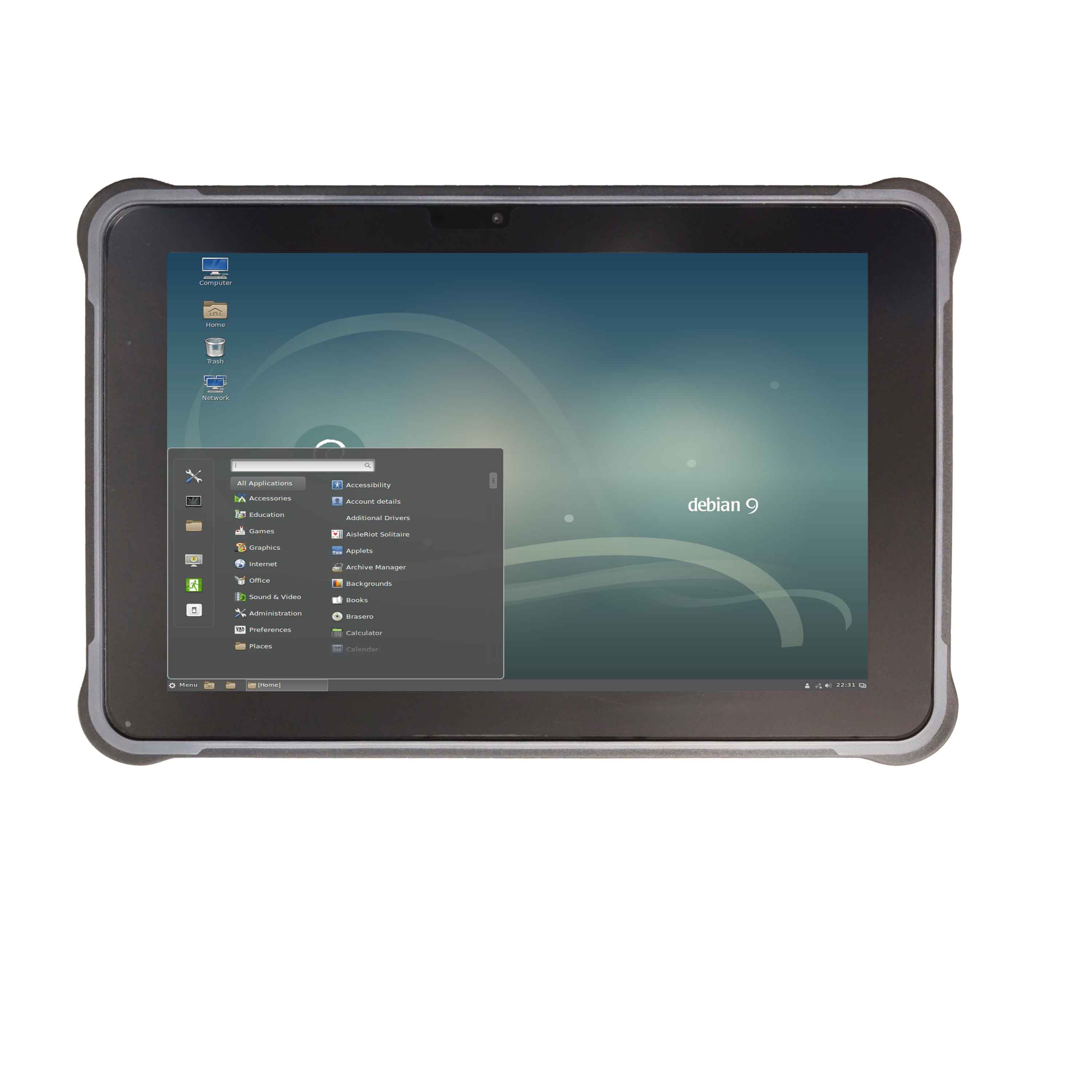

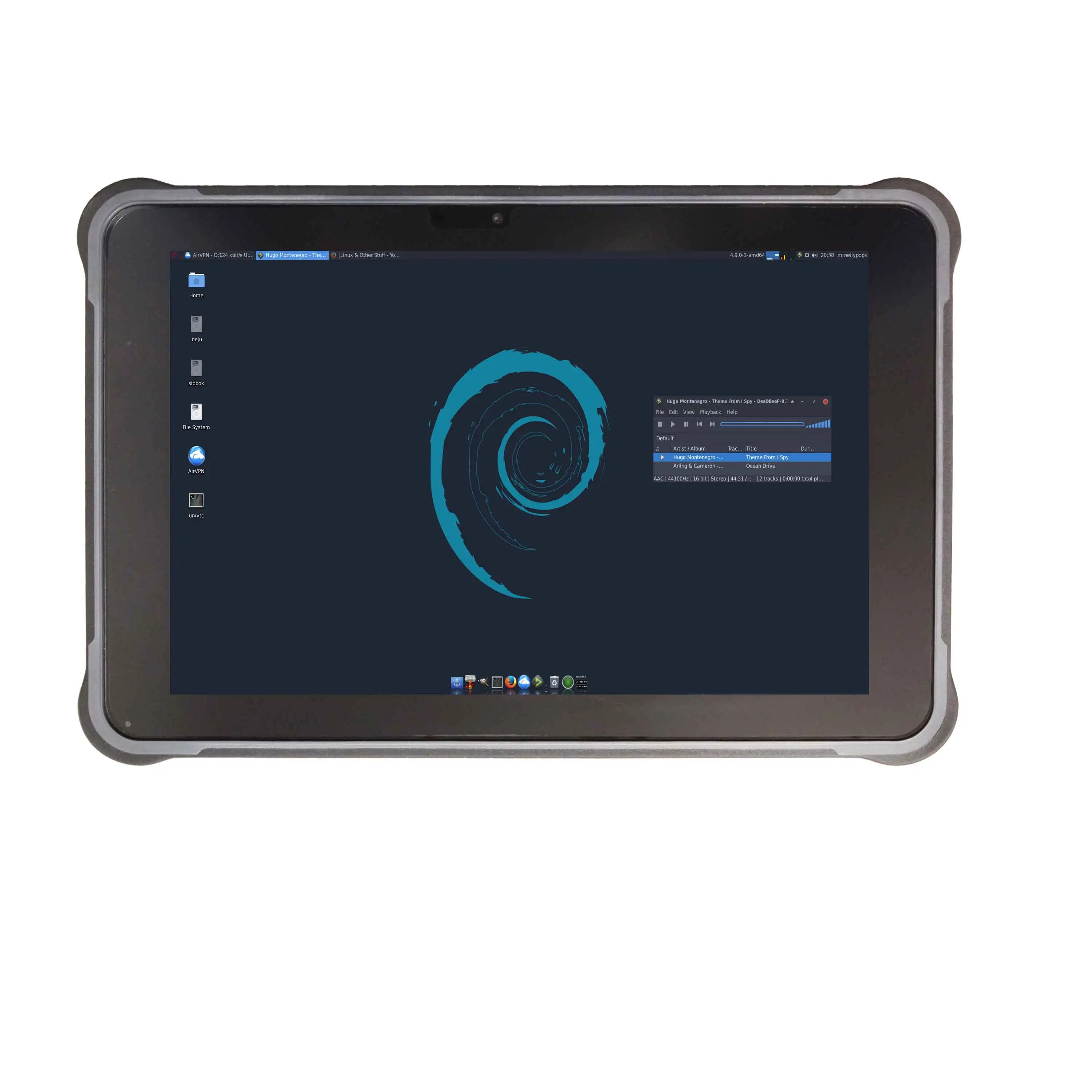

| OS | Linux-debian | ||
| CPU |
RK3399 6 Core 1.8GHz， A72 |
||
| RAM/ROM | 4GB/64GB | ||
| LCD | 10.1 inch1920*1200； | 500 nits sunshine readable | |
| Touch screen | 10 point touch, support stylus | ||
| Camera | 5M/13M, flash | 5M/13M, flash | |
| Power and battery | battery total capacity 10500mAh |
8400mAh,hotswap,
2100mAh backup power 3.8V 3A imput, support hotswap |
|
| 3.5*1.35mm, 5V 3A DC in put | Magnetic charger | ||
| WWAN | 4G LTE, 3G WCDMA, GSM |
4G
Fre: FDD: B1,B2, B3,B5, B7, B8, B12， B20 TDD: B38,B39,B40,B41 B34 WCDMA:B1, B8 TD-SCDMA: B34, B39 GSM/GPRS/EDGE |
|
| GPS | baidou,GPS, glonass | ||
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | ||
| BLUETOOTH | 4.0 version | ||
| NFC | 13.56 MHz, distance 5cm or above | ||
| SPEAKER | 1.5 watt | ||
| Sensor |
1.
light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor |
||

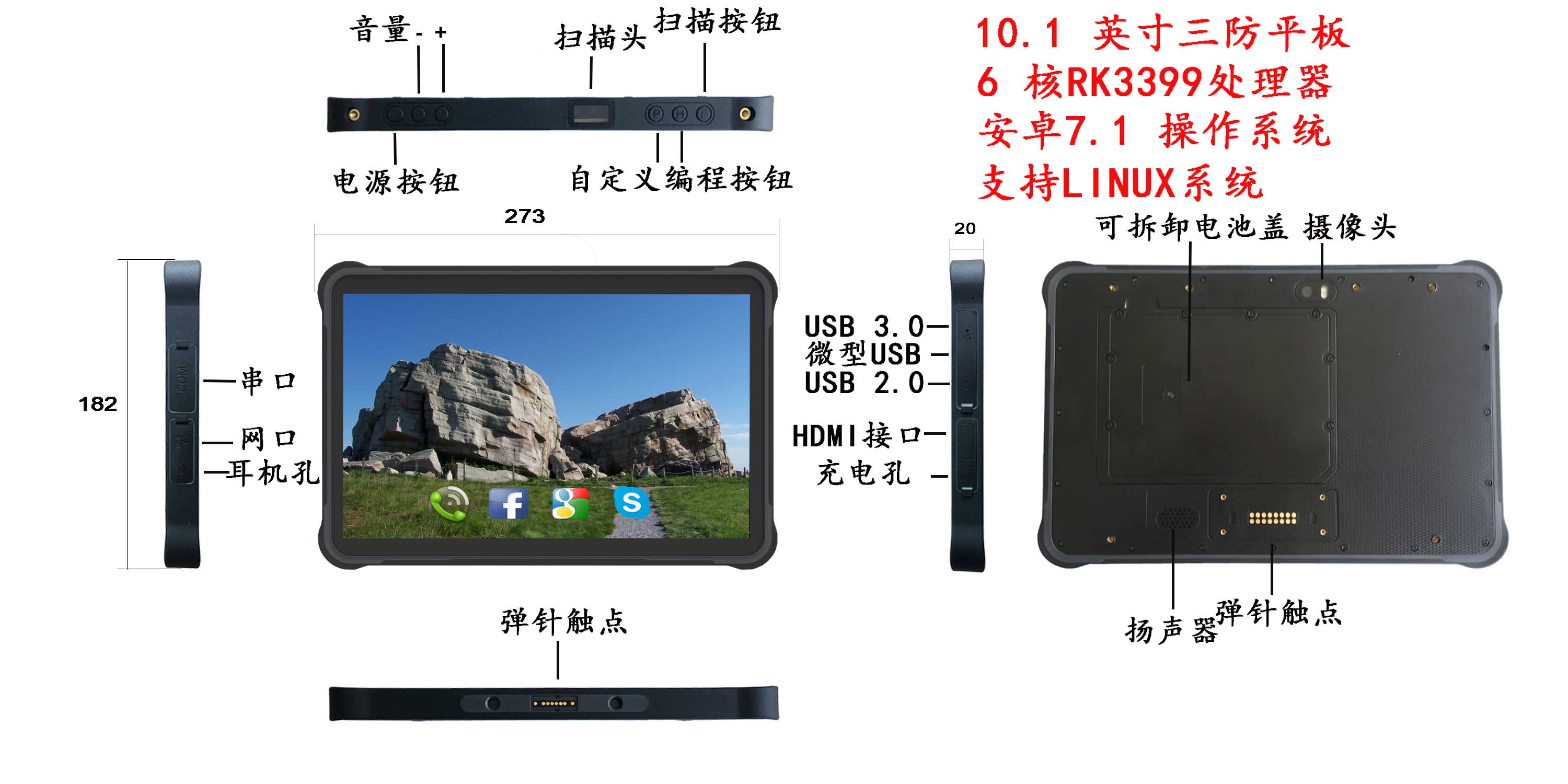

| size | 275*178*18mm | ||
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG | |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | ||
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | ||
| language | multi language | ||
|
interface in/out port |
1.
normal USB*1 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. RS232*1 9. HDMI*1 10.micro SD *1 11.SIM card slot *1 |
||
| Pogopin definition |
1.16pin
back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， ) VESA hole 75*75mm or 90*90mm |
||
| casing material | ABS/PC | ||
| button | V+ -, Power, P, F, H | ||
| 2D barcode module | honeywell N3680 | optional | |
| UHF | reading and write distance 1meter to 10 meter | optional | |
| fingerprint module | LD-8800-M | optional | |
|
standard accessories in gift box |
1.
USB cable 2. charger( 4-in-1) 3. handstrap 4. handstring 5. white box, no logo |
||
|
optional accessories |
1.
car docking 2. extra battery 3. screen protective film 4. car holder 5. docking station 6. car charger |
||
| proof rate |
1.
water proof IP65 2. Drapping proof 1.2 meter |
||
| Certification |
1.
810G 2. CE,FCC |
||
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
