Product Introduction
| items | Details | Descrption |
| Style | 游戏本 GameBOOK | |
| SIZE | 358*265*29 | |
| Material | A C 五金 D件塑胶 | |
| Color | BLACK | |
| Panel size | 16 inches 支持1080P 2.5K 4K 高刷显示 16:10 eDP(支持显卡直连技术) | |
| Weight | about 2.2KG | |
| System Configuration | ||
| items | Details | Descrption |
| CPU | intel | 12th Generation Intel® Core AlderLake-H/13th GGeneration Intel® Core Raptor Lake-H |
| GPU | intel | Intel® Iris® Xe Graphics NVIDIA RTX 3060 6GB/RTX 3070 8GB |
| RAM | DDR4 | DDR4 \3200MHz, 2* SO-DIMM |
| SSD | M.2 SSD |
1*Support
one M.2 22*80 SSD 1*Support PCIE SSD |
| Network | ||
| items | Details | Descrption |
| WIFI | WIFI module |
M.2 interface, Support 802.11B/G &
802.11B/G/N&AC two Wireless antenna Bluetooth 4.0 2-in-1 WIFI &BT combo card |
| RJ45 | RJ45 | RTL8111H |
| I/O Configuration | ||
| items | Details | Descrption |

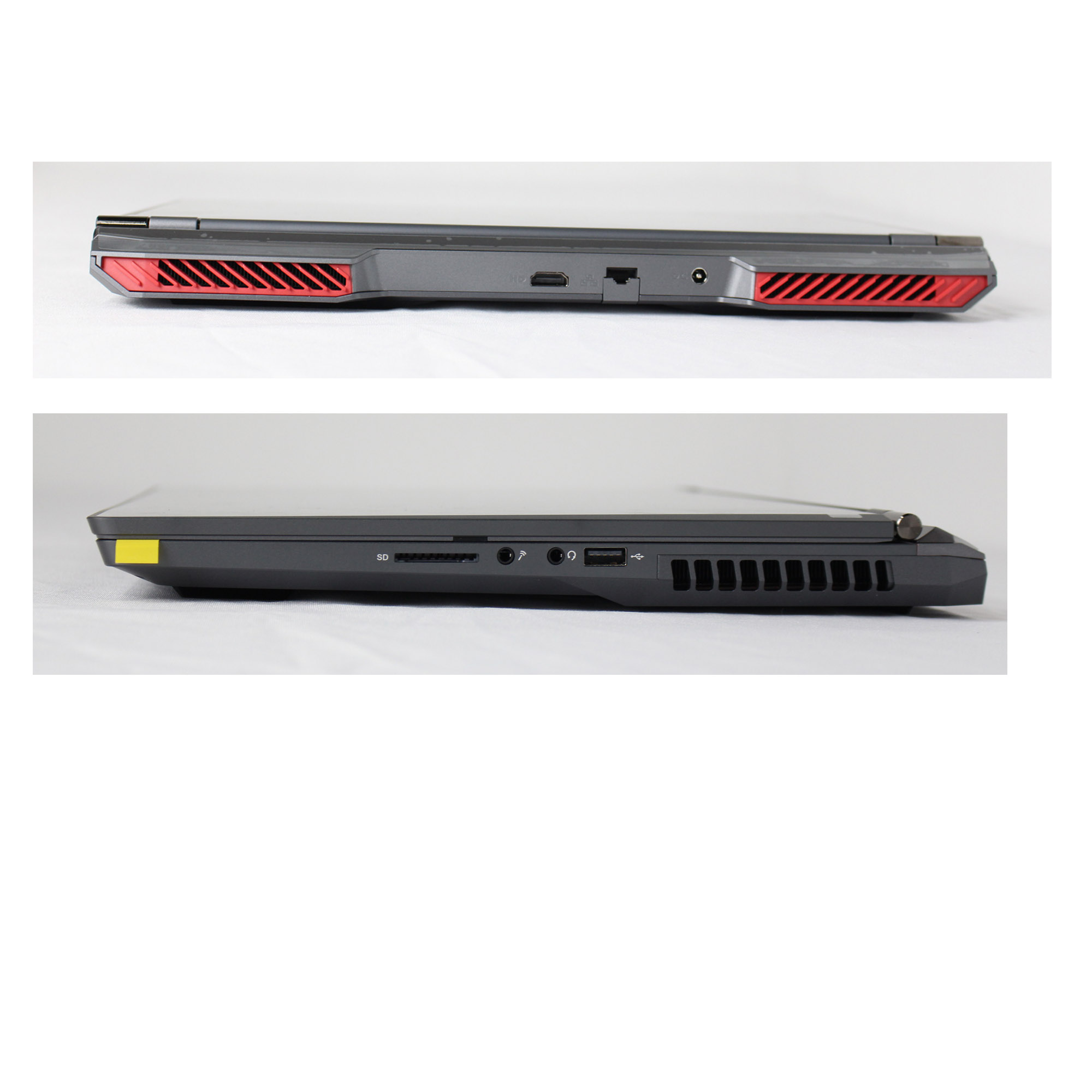

| USB port | Standard USB port | 2*USB3.0 , 1*USB2.0 |
| Audio jack | Audio Jack | ∮3.5mm 1 LINE OUT 1* MIC in |
| DC jack | power in | ∮5.5mm Power connect |
| HDMI port | HDMI port | 1* HDMI2.0 |
| Type C port | Type port | 1* TYPEC 全功能 |
| Camera | inner Camera | 2.0M Camera |
| Card Reader | inner Card Reader | 2IN1 SD/MMC |
| Speaker | inner Speaker | 2 stereo Speakers |
| Microphone | inner Microphone | 2* Digital microphone |
| touchpad | inner touchpad | Yes (multi touch)带指纹解锁 |
| keyboard | inner keyboard | 游戏键盘 多彩背光灯 |
| Accessories | ||
| items | Details | Descrption |
| Power adapter | 19.5V 9.23Apower adapter | 180W adapter |
| battery | inner Battery | 4Cells 4S1P 6000mAh 90Wh |
| software | ||
| items | Details | Descrption |
| OS | OS | Support Win8.1/Win10/ win11/linux/Ubuntu etc |
