Product Introduction
Project Information

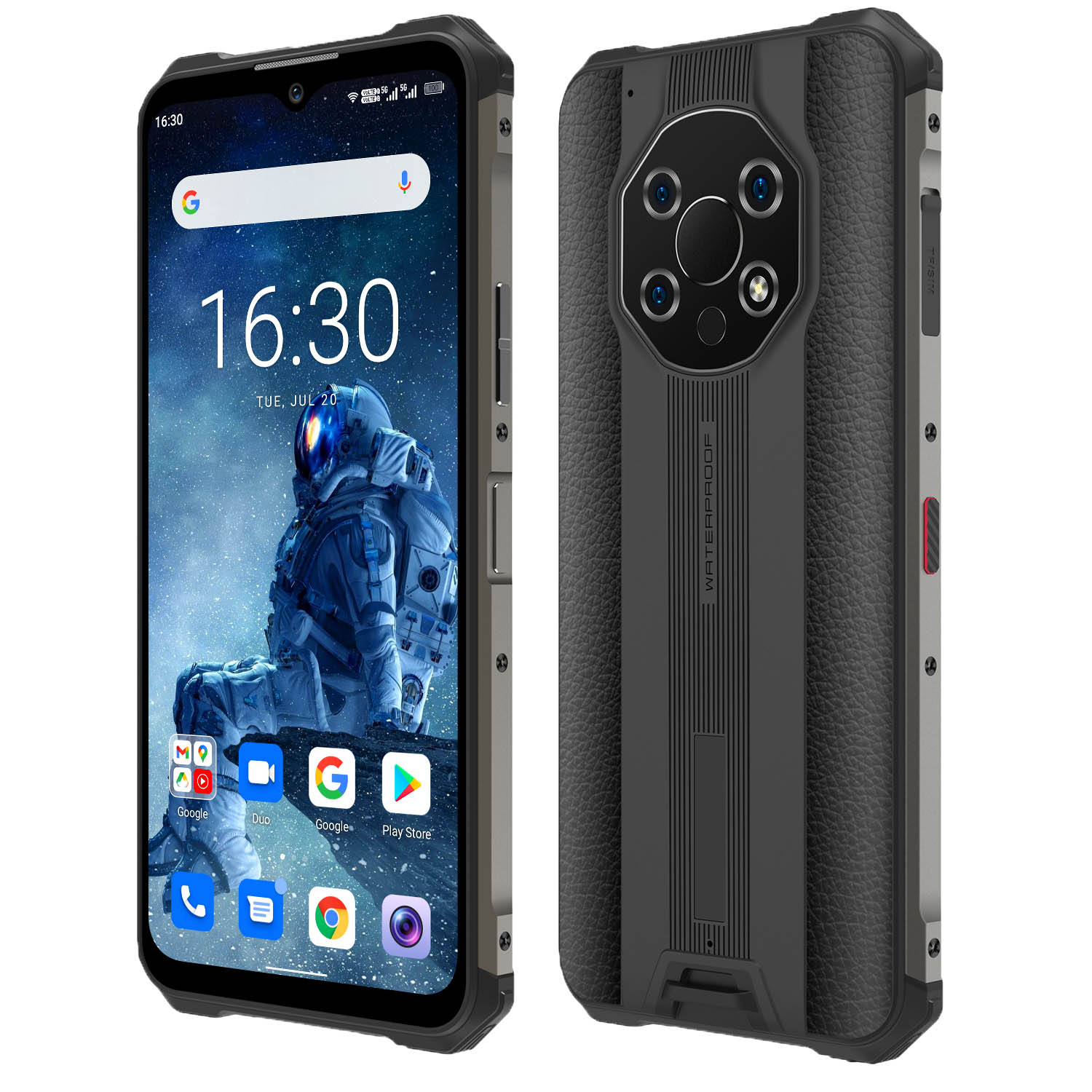

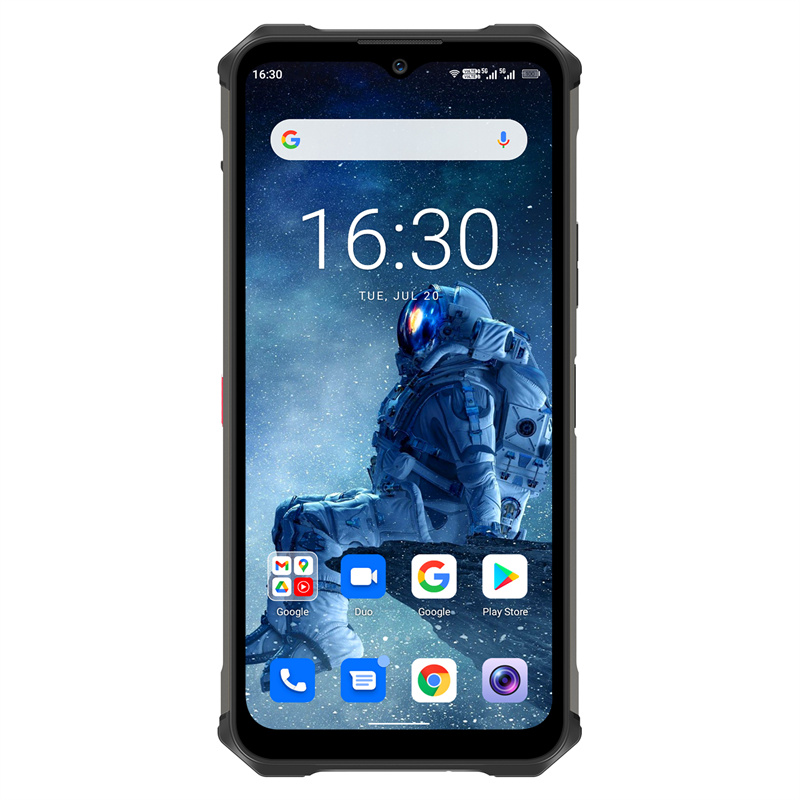

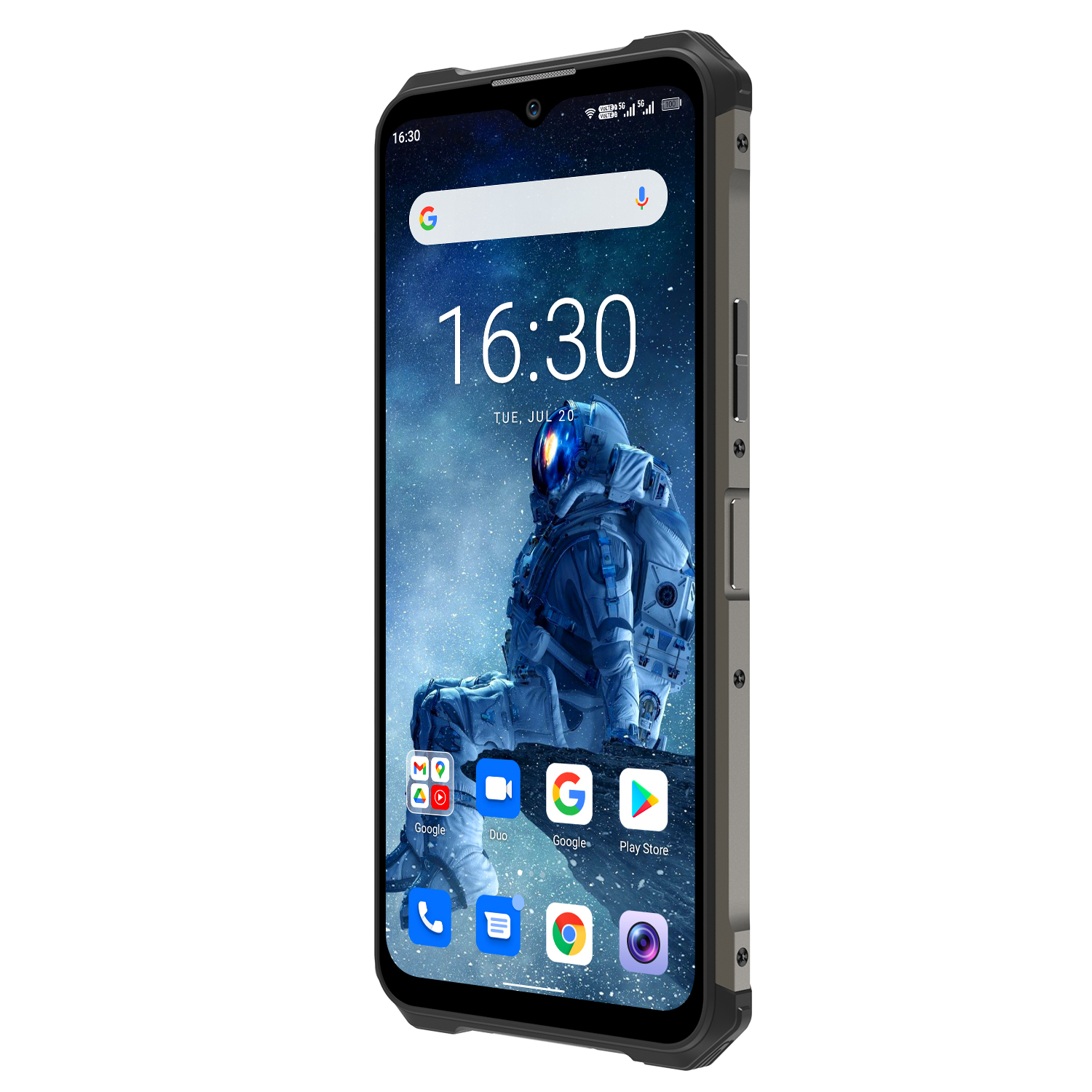

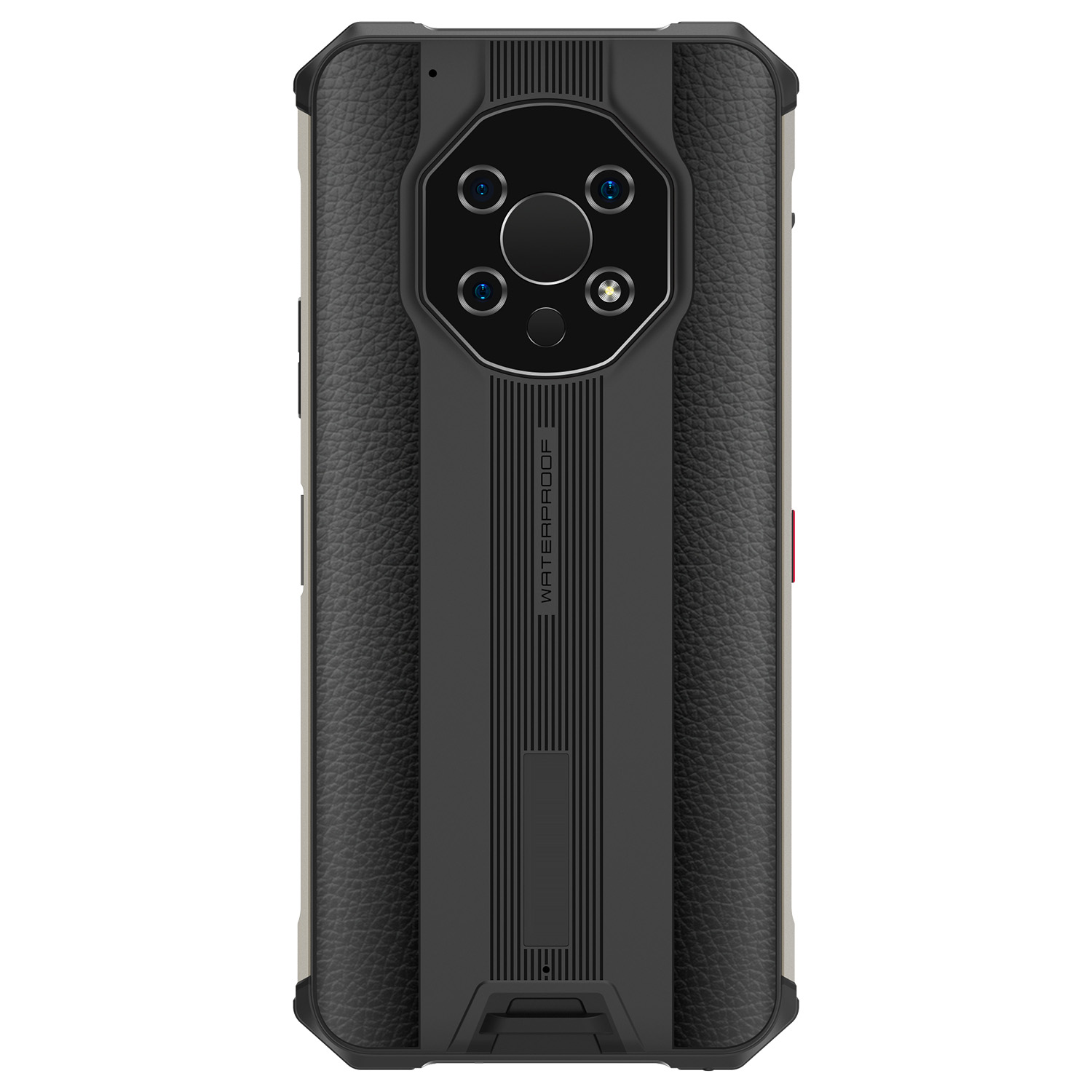

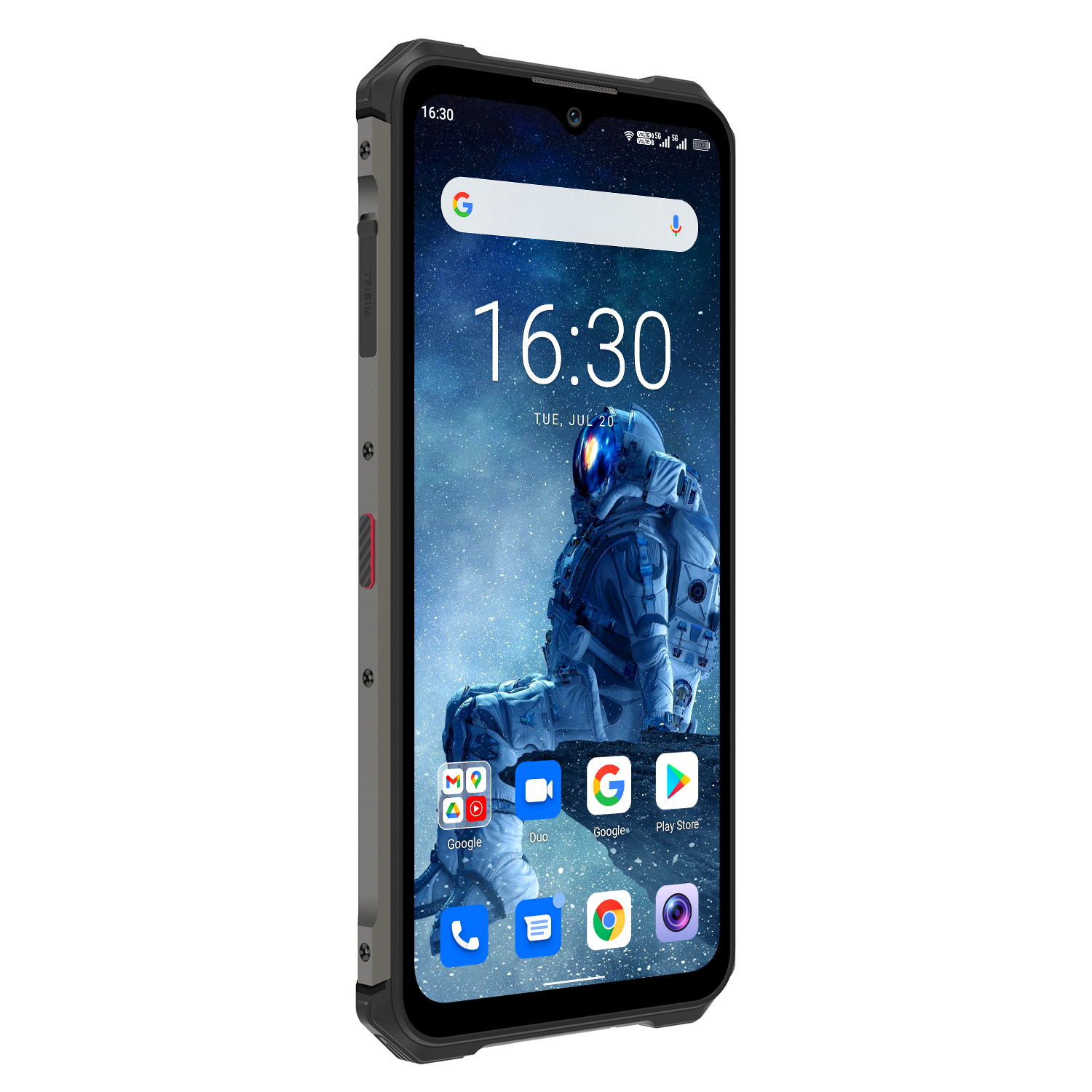

Product Name 5G rugged handset
Model SM8500
Phone Type rugged handset, explosion-proof mobile phone, industrial mobile phone,5G mobile phone, fingerprint identification, public intercom,NFC,PTT,SOS
Carriers and Networks
NETWORKS "GSM：B2/3/5/8
CDMA：BC0/BC1
WCDMA：B1/2/4/5/6/8/19
TDD:B34/B38/B39/B40/B41
FDD:B1/2/3/4/5/7/8/12/17/19/20/25/26/28A/28B/66
5G:N1/3/38/41/77/78"
Network Mode DSDS
SIM card Nano-SIM card
WIFI 2.4G/5.0G，support 802.11 a/b/g/n/ac
BT support Bluetooth 5.0
--------------------------------------------------------------------------------------------------------------------------------------------------
Phone info
Structure Bar
Colour Black
Size 175*84*15mm
Weight 290g
Battery Type Li-polymer，5000mAh，Supports 9V2A fast charging
Osd
Screen Size 6.52 in
DPI HD+720(RGB)×1600
TP Corning Gorilla
系统及硬件
OS Android 11
CPU MT6833 Oct-core 2*Cortex A76 2.2GHZ 6*Cortex A55 2.0GHZ
RAM 8GB
ROM 128GB
TF-card Supports NM memory cards up to 256GB
Back camera 48M AF+2M( macro）+0.3M（Along）
Front Camera 8M FF
flashlight Rear LED flash
Positioning system GPS+GLONASS+Beidou+Galileo
NFC Support, transmission frequency: 13.56MHZ (support ID card identification)
FingerPrint support
--------------------------------------------------------------------------------------------------------------------------------------------------
sensor Gravity sensor, light sensor, range sensor, acceleration sensor, gyroscope sensor, electronic compass, fingerprint recognition，Temperature measurement (accuracy ±0.2, range -40--125 degrees Celsius)
Language multilateral
Interfaces and Buttons
USB port Type-C，support USB OTG
Data expansion serial port Support external camera, hand microphone, other OTG equipment, etc
customize keys "Supports one definable physical button. It can be used for PTT intercom, SOS one key alarm, etc
"
power button on /off
volume button vol+/-
Other function
IP IP68 waterproof, dustproof, 1.2m anti-fall, professional shockproof
Explosion-proof optional, Ex ip IIc T4
Working Temperature ‘-10℃~50℃
Storage Temperature ’-20℃~70℃
