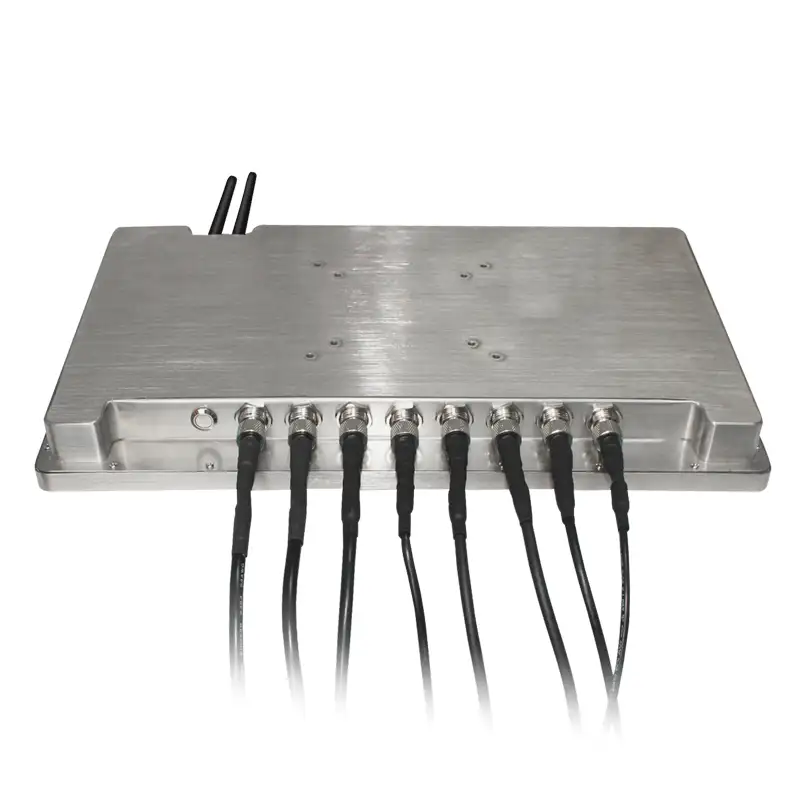

Product Introduction
Items Description Remark
Operating System Windows 11 Home Edition/Professional version/Enterprise Edition Windows 10/linux Optional
CPU Intel ® Celeron ®J6412 4 cores 4 threads,Frequency 2.00GHz/Turbo frequency 2.60GHz/Power consumption 10W Separately Intel ® Celeron ®J6413/N6210/N6211 optional，4 cores 4t hreads/Dual-core dual-threaded/Dual-core dual-threaded ,Frequency 1.80GHz/1,20GHz/1.20GHz,Turbo frequency 3.00GHz/2.60GHz/3.00GHz,Power consumption 10W/6.5W/6.5W
GPU Intel® UHD Graphics for 10th Gen Intel® Processors Intel ® Celeron ®J6413/N6210/N6211 Same as this
RAM/ROM "Intel ® Celeron ®J6412:
RAM：8GB/16GB
ROM: 128GB/256GB/512G（SSD）" 1* SODIMM slot, support single-channel 2400MHz DDR4 memory, maximum support 16GB。 （Intel ® Celeron ®J6413/N6210/N6211 Same as this）
Panel Size 15.6-inch 4:3
Panel Type TFT-LCD
Resolution FHD(1920*1080)
Display Area 307.5(W)×231(H)mm
Contrast Ratio 1500:01:00
Viewing Angle 85°/85°/85°/85°(CR＞10)
Display Color 16.7M colors Backlight luminance :250cd/m^2(MIN)，300cd/m^2(TYP)
Touch G+G 10 points of touch
Mohs Hardness 7H
Cooling Type Fanless Cooling
Dimension 384*239*40mm
Material LCD screen + glass panel + stainless steel body
Network Functions 1* RTL8111H Gigabit LAN card, support Wake-on-LAN and PXE function
Audio Functions On-board ALC897 7.1+2-channel hi-fi audio controller, support MIC/Line-out amplifier Support for audio input and output
Horn Φ24*11.7H mm Rated:2W/ Max：2.5W

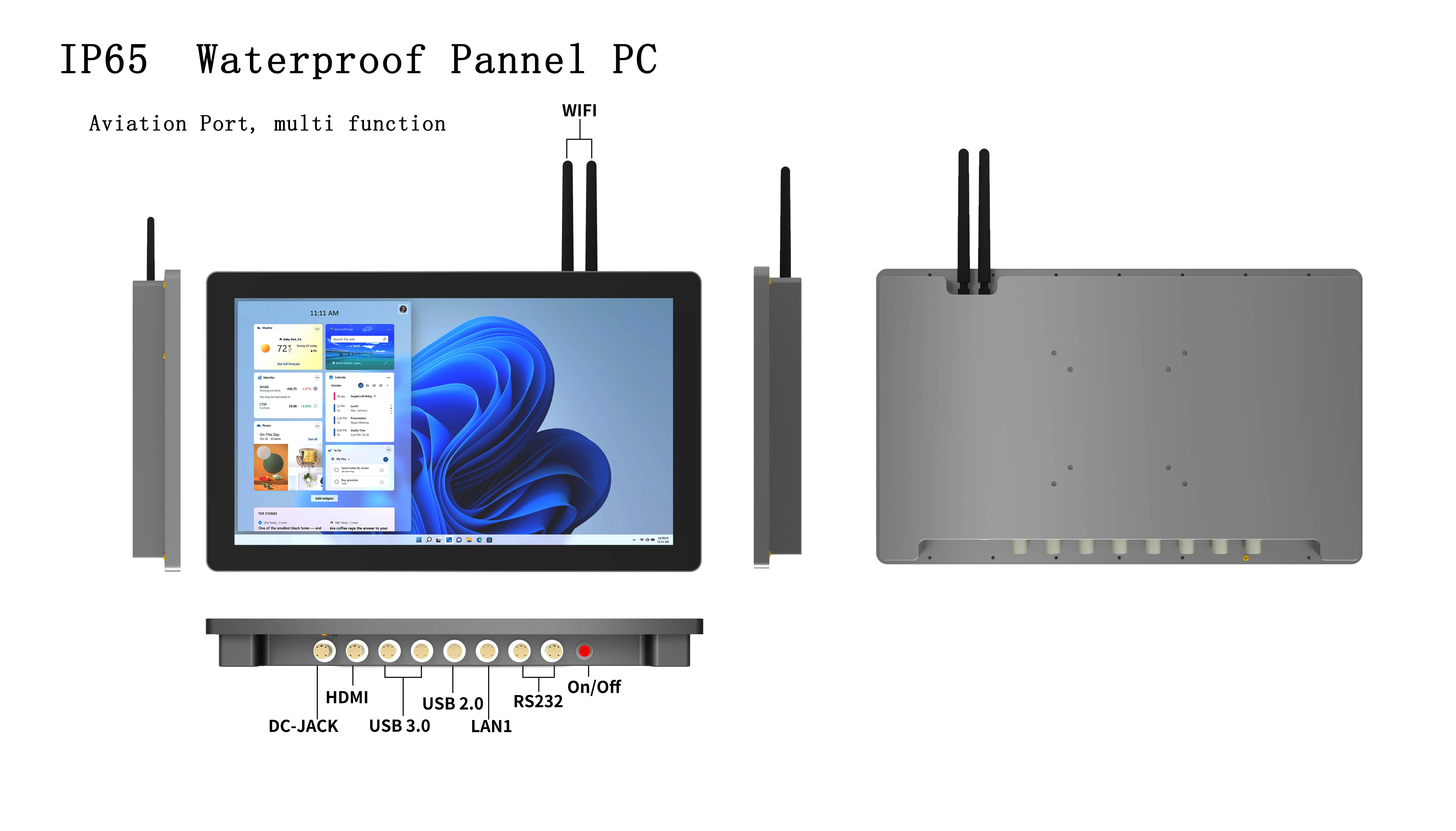

Interfaces "1. 1× DC_IN power supply interface
2. 1×HDMI Audio and video output
3. 2×USB3.0
4. 1×USB2.0
5. 1×LAN
6. 2×RS232"
DC Support 12V voltage，12V/4A
Wireless Network wifi 2.4& 5G，bluetooth Optional WiFi 2.4&5G，bluetooth4.0，4G
Operating temperature -20℃~55℃
Storage temperature -30℃~60℃
Ingress protection IP67
Authentication IP67
