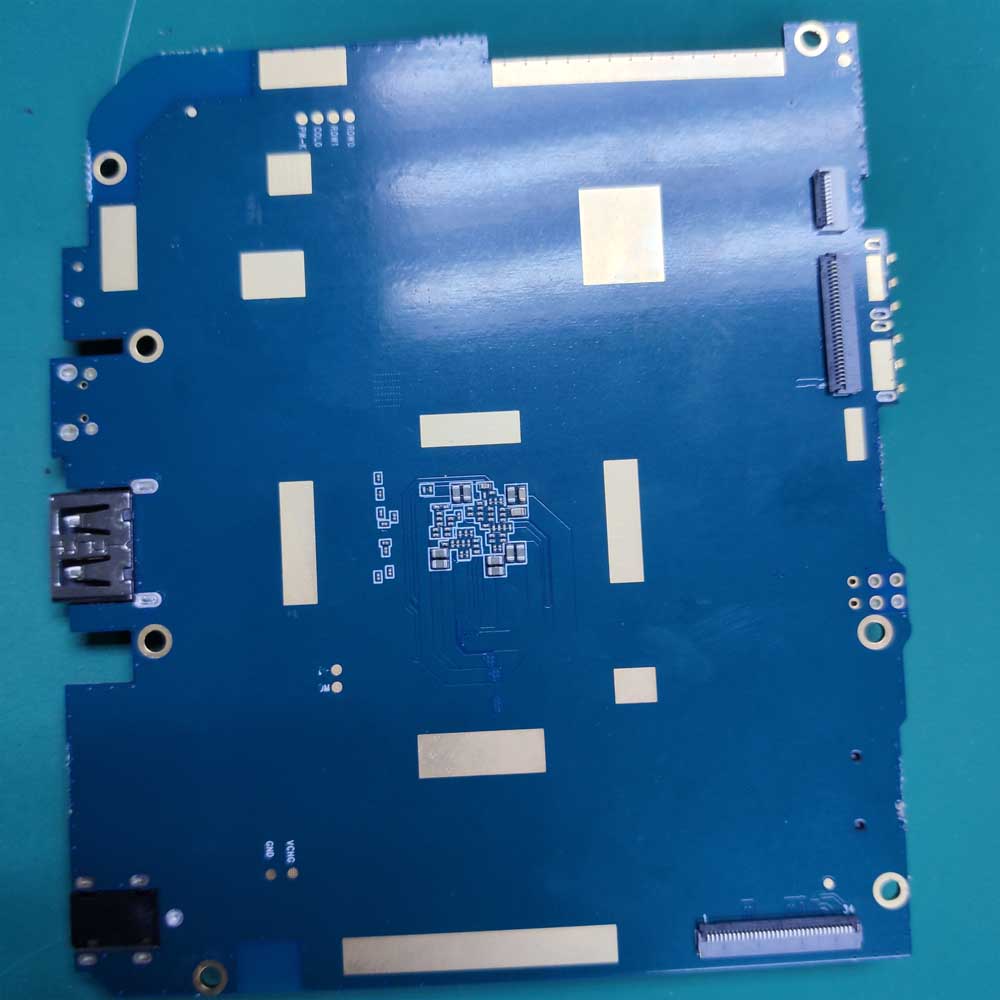

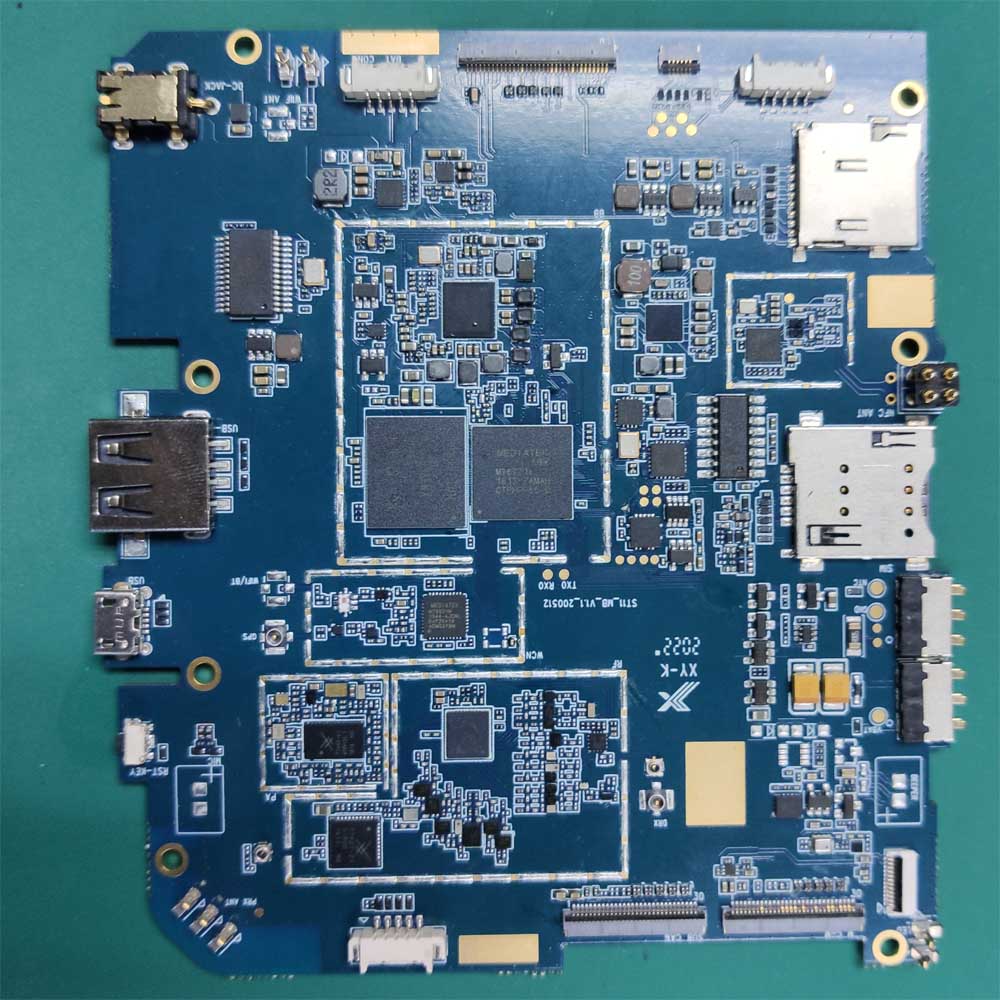

•  MT6771 mainboard support android 11
  •  MT6771 mainboard support android 11
MT6771 mainboard support android 11  MT6771 mainboard support android 11

Product Introduction

ITEM DESCRIPTION detail
OS Android 9.0
CPU MT6771 Octa core 2.0 GHz
RAM/ROM 6GB/128GB, 8GB/256GB 可选
LCD 10.1 inch1920*1200; 500 nits sunshine readable
Touch screen 10 point touch, support stylus
Camera 5M/13M, flash 5M/13M, flash
Power and battery battery total capacity 10500mAh 8400mAh,hotswap, 2100mAh backup power
3.8V 3A imput, support hotswap
3.5*1.35mm, 5V 3A DC in put Magnetic charger
WWAN 4G LTE, 3G WCDMA, GSM 4G Fre:
FDD: B1,B2, B3,B5, B7, B8, B12, B20
TDD: B38,B39,B40,B41
B34
WCDMA:B1, B8
TD-SCDMA: B34, B39
GSM/GPRS/EDGE
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5G
BLUETOOTH 5.0 version
NFC 13.56 MHz, distance 5cm or above
SPEAKER 1.5 watt
Sensor 1. light sensor
2. compass
3. gravity
4. acceleration
5. baroceptor
size 275*178*18mm
Multi-media
(Hardware decoding)
Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language multi language
interface
in/out port
1. normal USB 3.0*1
2. Micro  OTG USB*1
3. RJ45*1
4. bottom pogopin 8pin, USB and serial
5. back pogopin
16pin, USB and serial
6. DC*1 3.5*1.35
7. microphone+earphone
8
. RS232*1
Pogopin definition 1.16pin back of cover, include (1USB, 1 RS232, 1 UART, 3.3V, 5V OUT)
2. 8pin in bottom; (1USB, 1 RS232, 1 UART, )
VESA hole 75*75mm or 90*90mm
casing material ABS/PC
button V+ -, Power, P, F, H 2个未定义按键有时候客户需要定义其他功能
2D barcode module honeywell N3680 optional
UHF reading and write distance 1meter to 10 meter optional
fingerprint module LD-8800-M optional
standard
accessories
in gift box
1. USB cable
2. charger( 4-in-1)
3. handstrap
4. handstring
5. white box, no logo
optional
accessories
1. car docking
2. extra battery
3. screen protective film
4. car holder
5. docking station
6. car charger
proof rate 1. water proof IP65
2. Drapping proof 1.2 meter
Certification 1. 810G
2. CE,FCC
Temperature 1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
