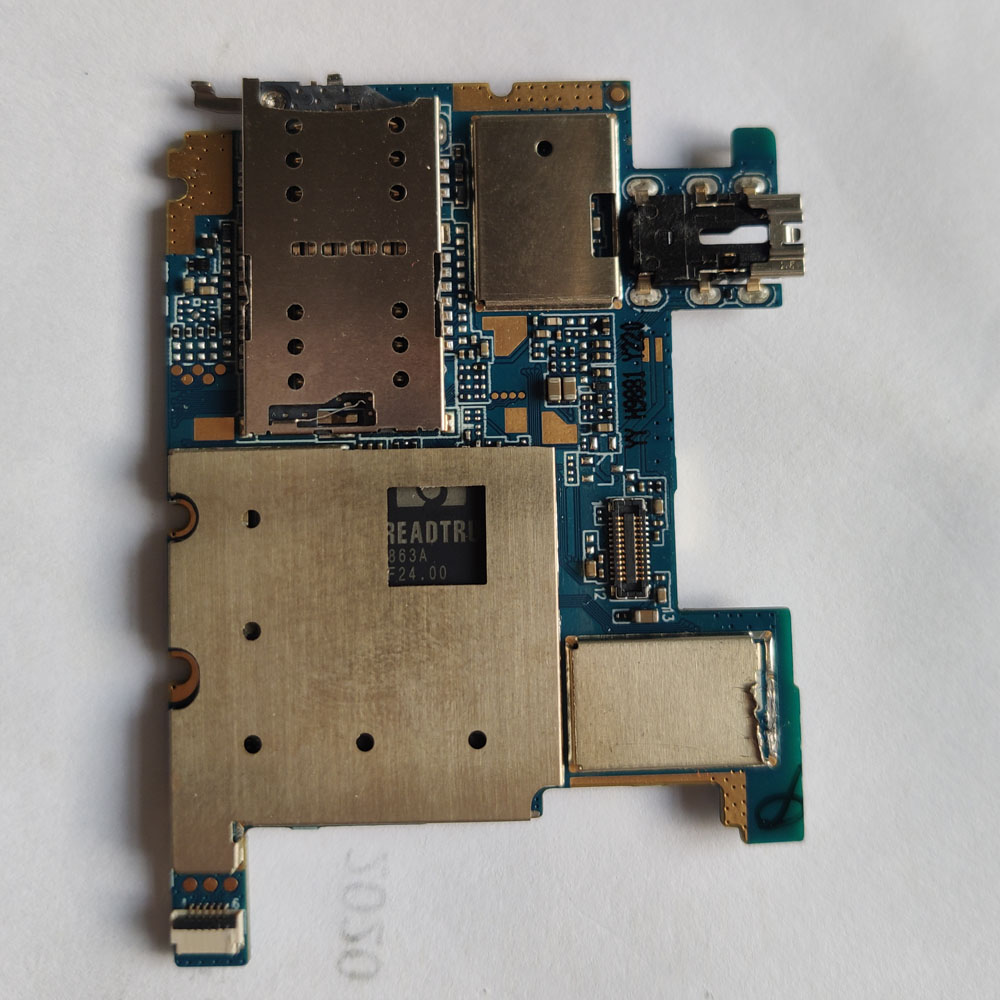

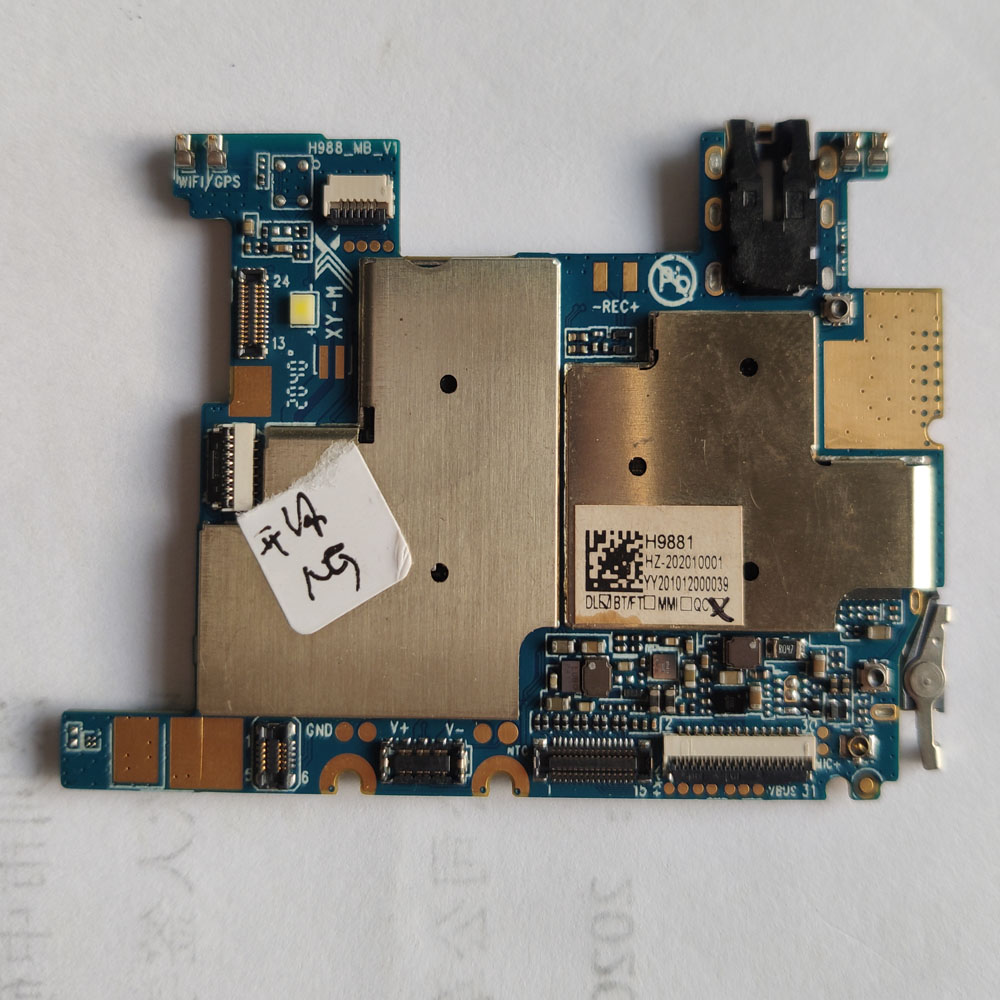

SC9863A mobile phone mainboard ODM  SC9863A mobile phone mainboard ODM

Product Introduction

HW Relations Platform SC9863A
Category CPU frequency CA55x 8,up to 1.6G+1.2G Hz
GPU IMG8322 clock up to 550MHz
Technology(nm) 28nm
Operating system Android 10.0
ROM 16GB -EMCP
RAM 2GB -EMCP
Operation frequency GSM:850/900/DCS/PCS
WCDMA;2100/1900/900 MHz(1700/850)
       1900/1700/850 MHz(2100/900)
LTE-FDD;B1,3,7,8,20 (B28A or 28B)
      B2,4,5,7,17,66,71(B28A or 28B)
LTE-TDD:B38,39,40,41
--可选
SIM 三选二卡
(支持双Nano卡或单卡+T卡)支持热插拔
SD Micro SD
Display 6.22"HD+ INCELL水滴屏,分辨率720*RGB*1520,19:9,0.7旭硝子盖板
F-Camera 500W/FF
B-Camera 800W/AF
Deputy camera-1 30W/FF(遮挡提示)
Deputy camera-2 装饰镜头
Bluetooth 4.2
FM Radio Yes
Internal memory 视系统而定
Expansion T-Flash card Yes, Up to 64GB
USB  Yes, TYPE-C,2.0
Audio processor K类(可选)
GPS/AGPS/GLONASS/BEIDOU GPS/AGPS/格洛纳斯
Wi-Fi Yes; 802.11 b/g/n(2.4G)
Torch Yes,(闪光灯支持)
Flash Led Yes,(假闪高亮)-可选真闪
G-sensor Yes,3D
Light-sensor Yes,(可选)
Proxy-sensor Yes,(可选)
Hall No
NFC No
Fingerprint Yes,(可选)
Gyro No,(可选)
compass No,(可选)
OTG Yes,(可选)
MIC Yes,硅麦
Charge current Yes,5V/1.5A,(可选)
EOS Eos 300V Vcharger OVP:  6V
Others Release 1999
Radio Interface GSM Yes
EGSM No
EVDO No
CSD No
HSCSD  No
GPRS Yes,class12,type B
EDGE Yes,class12,type B
DRM Yes
encryption Yes
Flight mode Yes
Others
Machinery Features
Size(L*W*H) 158.1mm*76mm*8.9mm
Weight /
Color 黑色
Keypad 屏内3个触摸按键
Side key 3个物理按键 volume+/volume-,power
RF antenna Yes, internal type
FM antenna Yes, earphone antenna
3.5/2.5mm standard audio jack 3.5mm/CTIA标准
Battery 4000mAH/锂电池/4.35V/内置
USB Port TYPE-C/Micro-USB 可选
Electroacoustic parts 1 mic,1 vib.,1 rec.,1 spk.
Speaker 1609 BOX
receiver 0809引线式
motor 0827扁平马达
Hole for carrying strap No
Stylus No
Others
Software Features
Voice Features Voice codec HR/FR/EFR/AMR-NB(如出印度,需关闭AMR)
Echo cancellation Yes
Call logs Yes
Delete Call logs Yes
Handsfree calling Yes
Call waiting Yes
Call divert Yes
Any key answer No
Auto-answer No
Auto-redial No
Speed dial Yes
IP dial Yes
Call barring Yes
Call timer Yes
Blacklist Yes
Whitelist Yes
Voice dial Yes
Voice recorder Yes
Video call Yes
Multi-party call Yes
Others
Message SMS >150Mbyte along with MMS, SMS,applications stored in ME
SMS group send Yes; >=50
SMS export No
SMS import No
MMS Yes; 最大容量是300 KB
Mass MMS Yes; 300Kb
Voice mail server Yes
Save to Phone; 可复制到SIM卡
Others
Phonebook Memory status 不限(视存储空间而定)
Group allocation No
Caller group No
vCard No
Search Yes
Phonebook export Yes; 导出到SD卡、SIM卡
Phonebook import Yes; 从SD卡、SIM卡导入
Delete Yes; 提供单个和批量删除功能
Others
MMI User Interface Graphical, animated (3D UI) 具体以客户定制为准
Wallpaper Yes,png.jpg.bmp.gif
Power on/off display Yes
Screen saver Yes
Show date & time Yes
Default language 可选
Optional languages 多国语言
Greeting text 按客户需求
LCD backlight settings Yes;
Others
PIM Calendar Yes
Alarm Yes; 支持关机闹钟
Calculator Yes
World clock Yes
Flash player Yes
Office applications Yes; 第三方软件支持
Email Yes
Push email Yes
Others
Sounds and Vibrator Send DTMF Yes
Volume settings Yes
Key tone Yes
Melodies for incoming call Yes
Melodies for SMS  Yes
Melodies for Power on/off Yes
User profiles Yes
MMI sounds Incoming Call;Alarm;Power on;Power off;Message Tone;Keypad Tone;
Sound & Vibrator prompt type Only ring;Only vibration; ring and vibration
Others
Multimedia Video recorder MPEG4
Sound recorder AMR
Audio player MP3, aac, midi, wav, amr
Video player MPEG4, H.263, H.264 30fps
Others
Internet Services Browser UC第三方应用
PC Connectivity USB USB2.0 high speed
IrDA No
WebCam No
USB data Modem No
PC synchronization Yes
Others
Battery performance Battery 4000mAH battery
Standby time TBD
Talk time TBD
Others
Packing Battery 1 pcs
Travel charger 1 pcs
Data cable 1 pcs
User manual 1 pcs
Earphone 1 pcs
Warranty card 1 pcs
Others
