Product Introduction
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 10 pro | Windows 11 optional |
| CPU | Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz) | Turbo can reach 2.80GHz |
| GPU | UHD Graphics 24 EUs | |
| TPM | TPM2.0 support | |
| RAM | 8GB | 4GB Optional |
| ROM | 256GB | 128GB / 512GB Optional |
| LCD | 10.1 inch; 1200*1920; 800nits | |
| Touch Screen | 10 Point Touch | Stylus Support |
| Camera | Front: 5M; Rear: 13M | |
| Power and Battery | 1000mAh / voltage 7.4Vdc | |
| WWAN |
FDD
LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: B2/B3/B5/B8 |
Module: EC25-AUX |
| GPS | BDS, GPS, GLONASS | |
| WIFI |
802.11a/b/g/n/ac
Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
WiFi/Bluetooth 2-in-1 |
| BLUETOOTH | 4.2 Version | |
| SPEAKER | 8Ω 1.5 W *2 | |
| Sensor |
1.
Light sensor 2. Acceleration sensor 3. G-sensor |
|
| Size | 262*174*29.1mm | |
| Weight | 850±50g | |
| Language | Multi language | |
|

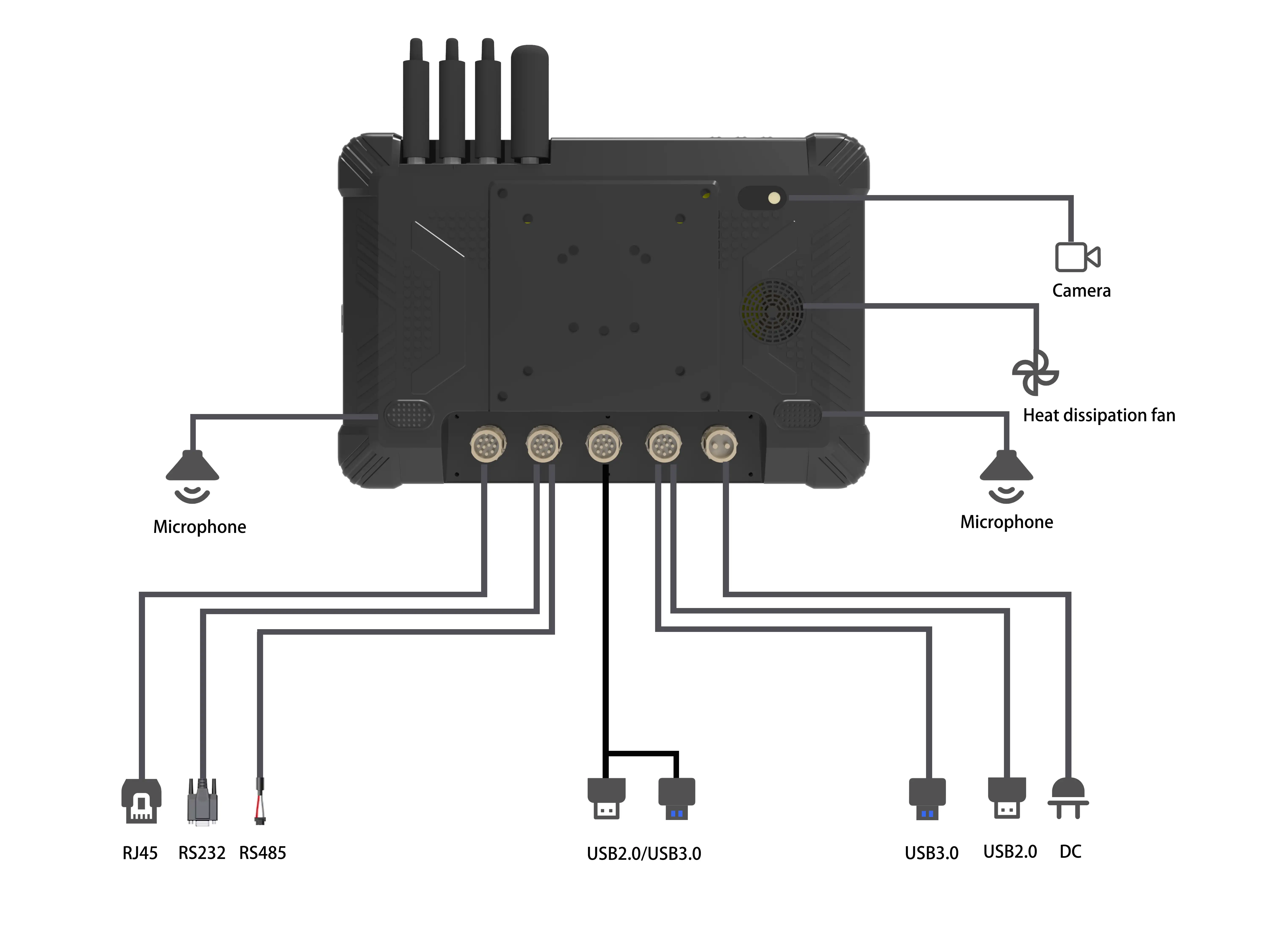

Interface In/Out Port |
All
interfaces are aviation plug interfaces (aviation plug M16) 1. USB interface: USB 2.0 *2+USB 3.0 *2 2. Ethernet interface: RJ45 *1 3. Serial port: RS232 *1+RS485 *1 4. Charging interface: DC *1 |
Optional: The interface can be customized with features according to project requirements |
| Button | V+ / -, Power | F1~F6 buttons can customize button functions |
| Accessories |
1.
Packaging box 2. Adapter 3. Bracket 4. Aviation plug-in cable *5 5. External antenna *4 (GPS *1, 4G *1, WiFi *2) 6. Screw |
|
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust
& Waterproof IP65 Dropping Resistance 1.2 meters |
|
| Temperature |
Storage
Temperature: -40 °C to 60 °C Operation Temperature: -20 °C to 55 °C |
