Product Introduction
| OS | Windows 11 Pro | Windows 10 Pro/Iot Optional |
| CPU |
Intel
I5-1235U 10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.7GHz/power consumption 15W |
I7-1255U
Optional 10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W |
| GPU | Intel® Iris® Xe Graphics 80EU | I7: Intel® Iris® Xe Graphics 96EU |
| RAM/ROM | 16GB/512GB | 8GB/256GB; 32GB/1TB Optional |
| LCD | 10.1 inch; 1200*1920; 450nits | SQ101D |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Real: 8MP | 5M/13M optional |
| Power | 12V 4A aviation input | |
| WWAN |
FDD_LTE:
B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
EC25-AUX (5G customizable) |
| GPS | BDS, GPS, GLONASS | |
| WIFI |
802.11a/b/g/n/ac/ax
Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
Intel® Wi-Fi 6 AX201 |
| BLUETOOTH | 5.2 Version | |
| NFC | 13.56 MHz, Distance: 7-15mm | ISO14443; TYPE A; Mifare |
| SPEAKER | 1.0 Watt | |
| Sensor |
1.
Light Sensor 2. Acceleration Sensor 3. G-Sensor |
|
| Size | 262*174*29.1mm | |
| Weight | 1.1KG | |
| Language | Multi language | |
|

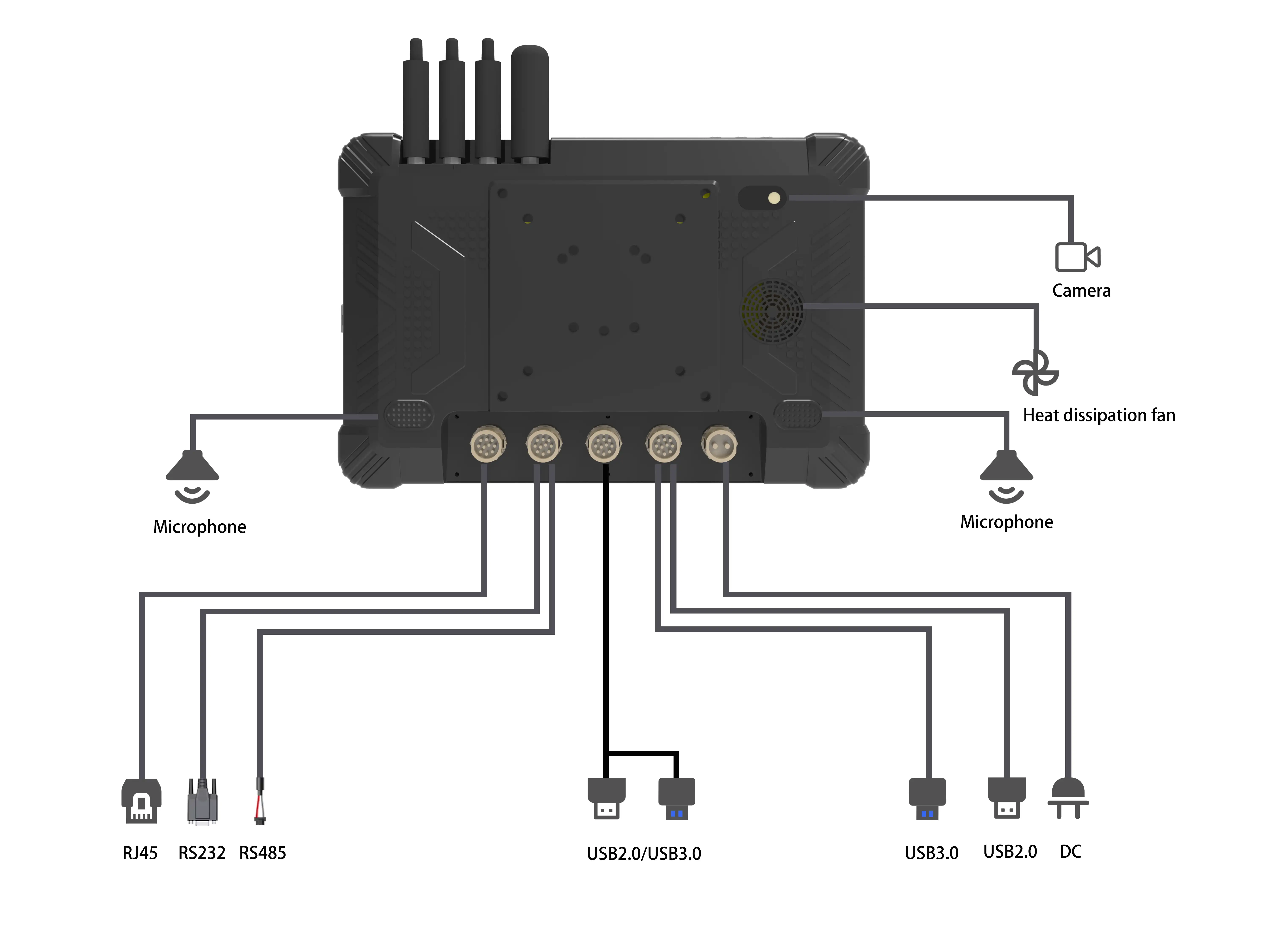

Interface In/Out Port |
1.
DC 12V 3A --aviation port 2. HDMI Type A x1,Audio and video output--aviation port 3. USB Type_A：USB3.2 Gen1 x2--aviation port 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging)---aviation port 5. RJ45：Support Gigabit Ethernet---aviation port 6. RS232：Standard DB9 |
|
| Casing Material | ABS/PC | |
| Button | V+ -, Power, "F" for Barcode Scan | Customized Button: P,H |
| High Precision GPS | Optional | UM960; TU101 Optional |
| Accessories |
1.
Blue Box 2. DC Charger (12V 4A) 3. Bag & Screw |
|
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust
& Waterproof IP54 Dropping Resistance 1.2 meter |
|
| Certification |
1.
MIL-STD-810G 2. ISO 3. MSDS |
|
| Temperature |
Storate
Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 60 °C |
