Product Introduction
Name: Industrial Tablet PC
Model number: SPA83
Size: 8 inches (10.1 inches, 13.3 inches optional)
CPU: RK3288W 1.8GHz quad-core Cortex-A17
GPU: Mali-T764 GPU
Memory: 2GByte DDR3
Storage: 16G eMMC (MLC) (32GB optional)

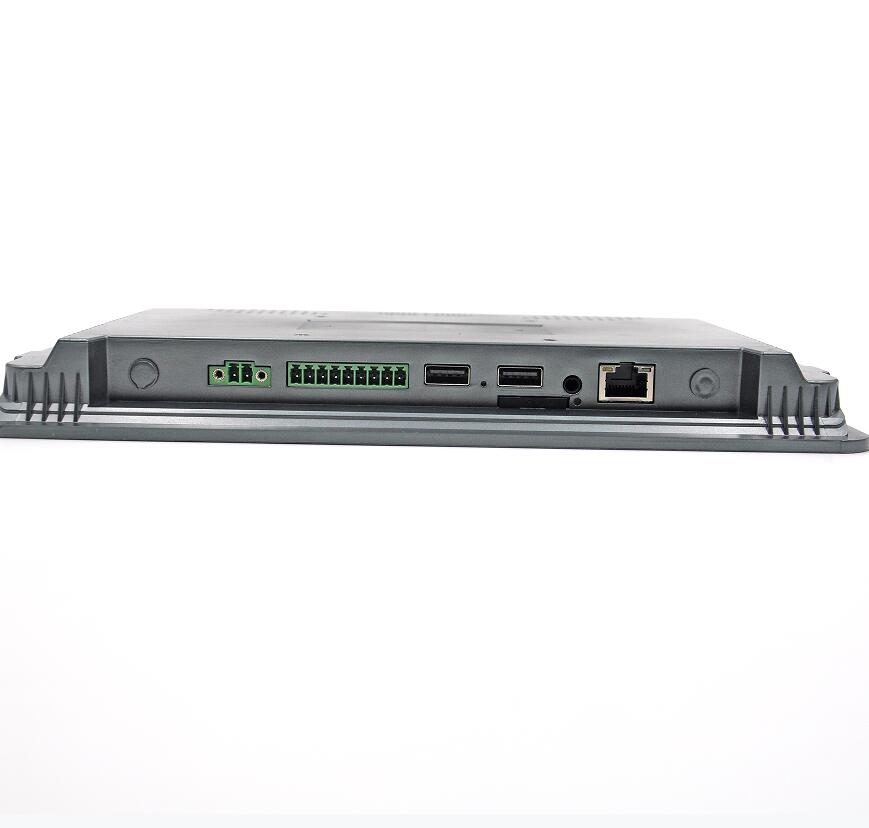

Communication: RJ45 WIFI BT 4G RS485 RS232 CAN
Operating system: Android7.1.2 Ubuntu (optional)
Shell material: PC+ABS
Working temperature: -10℃～60℃
Working voltage: DC12V/2A (support PoE power supply)
Resolution: 1280*800
Contrast: 800
Backlight brightness: 300
Backlight type: LED
Backlight life: 20000 hours (typical)
Screen ratio: 16:10
Viewing angle: 160 degrees
Touch screen: capacitive touch
Sound: Built-in speaker (can be connected externally), headphone jack output
Wireless network: WIFI 2.4G + BT4.2 (with SRRC certification)
Wired network: Gigabit RJ45 support (PoE power supply)
Mobile network: 4G optional (support GPS)
Serial communication: 1xRS485 2xRS232 (CAN communication optional)
USB interface: 1xUSB Host, 1xUSB OTG (settable)
Installation method: buckle installation, VESA hole 75x75mm
