Product Introduction

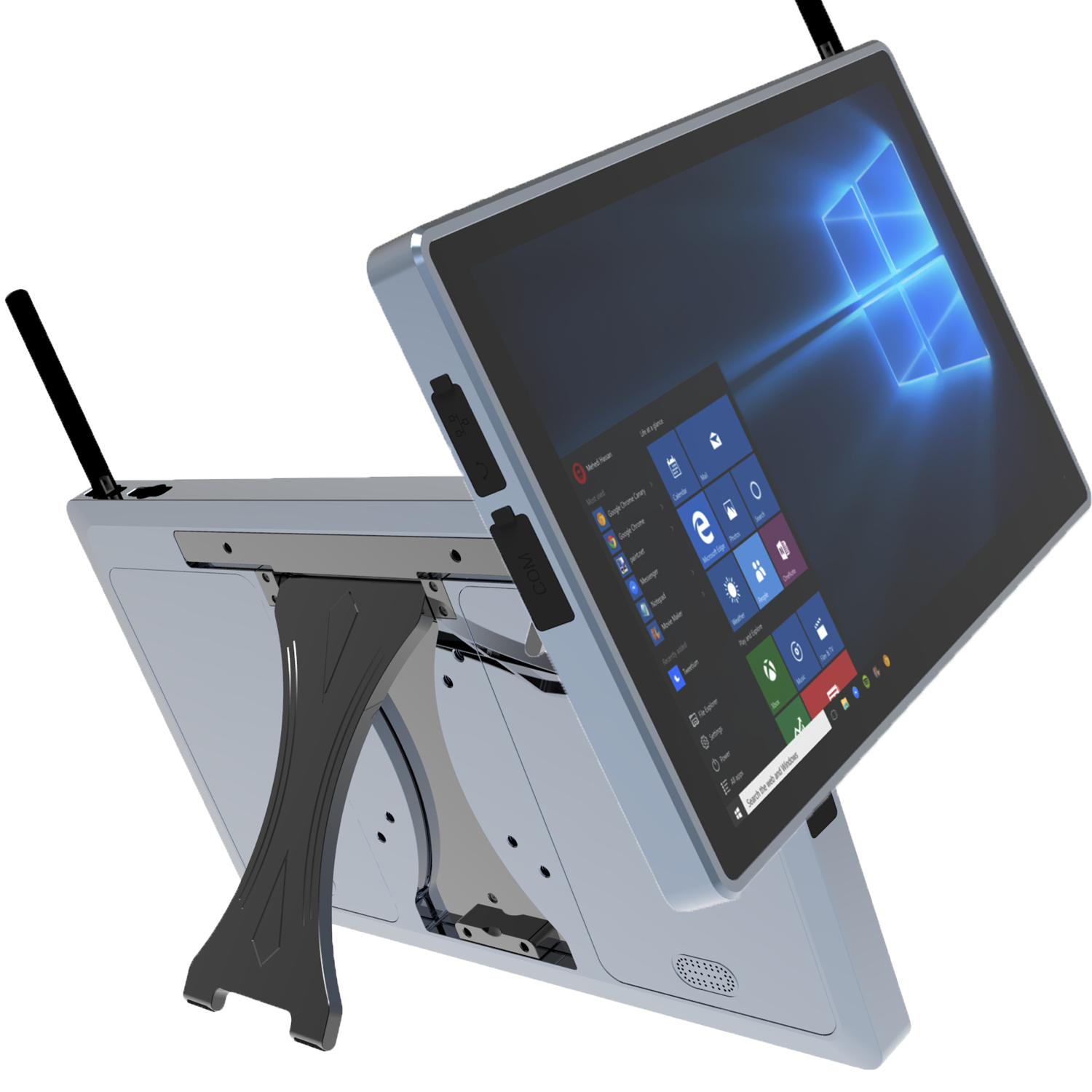

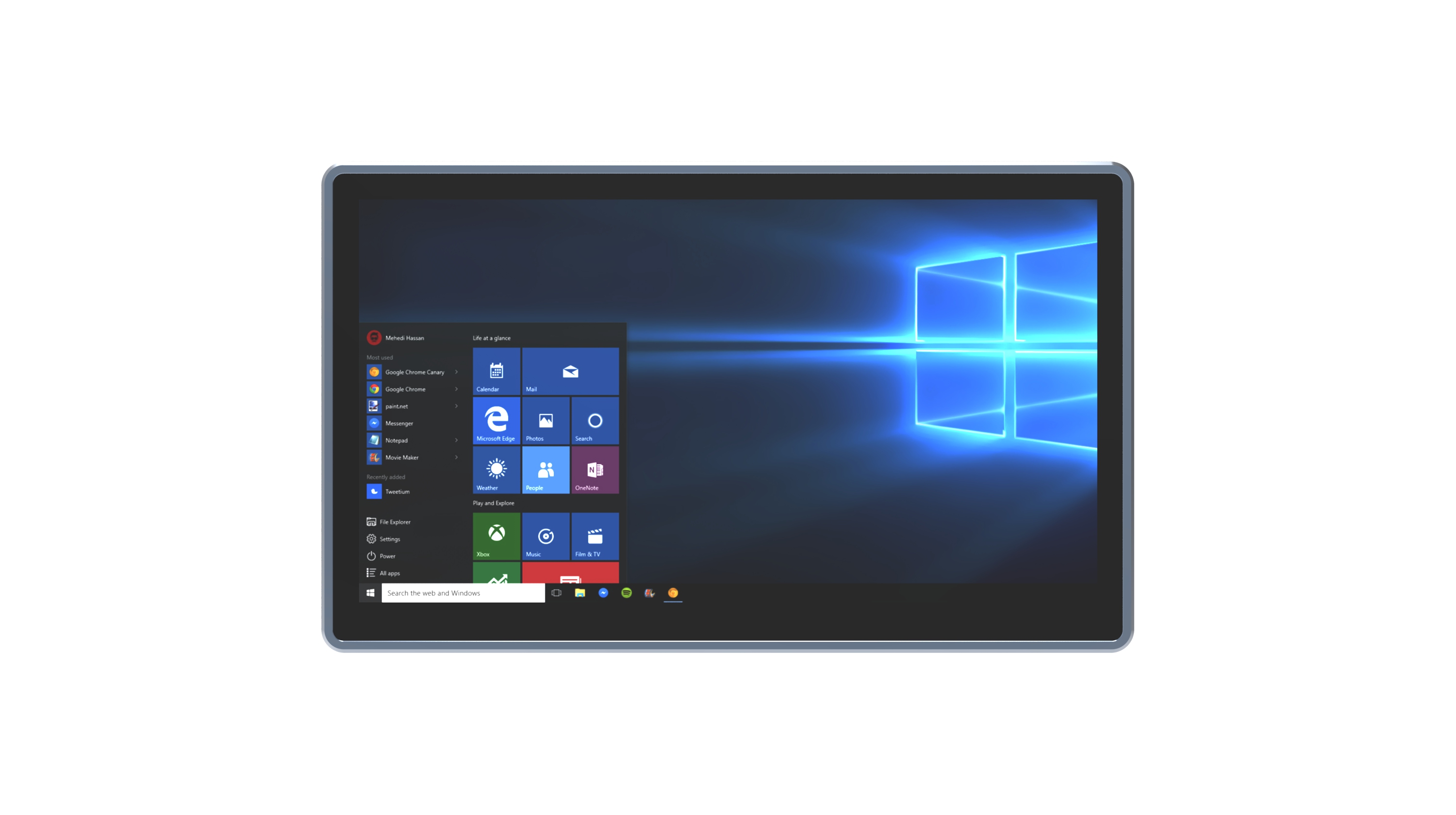

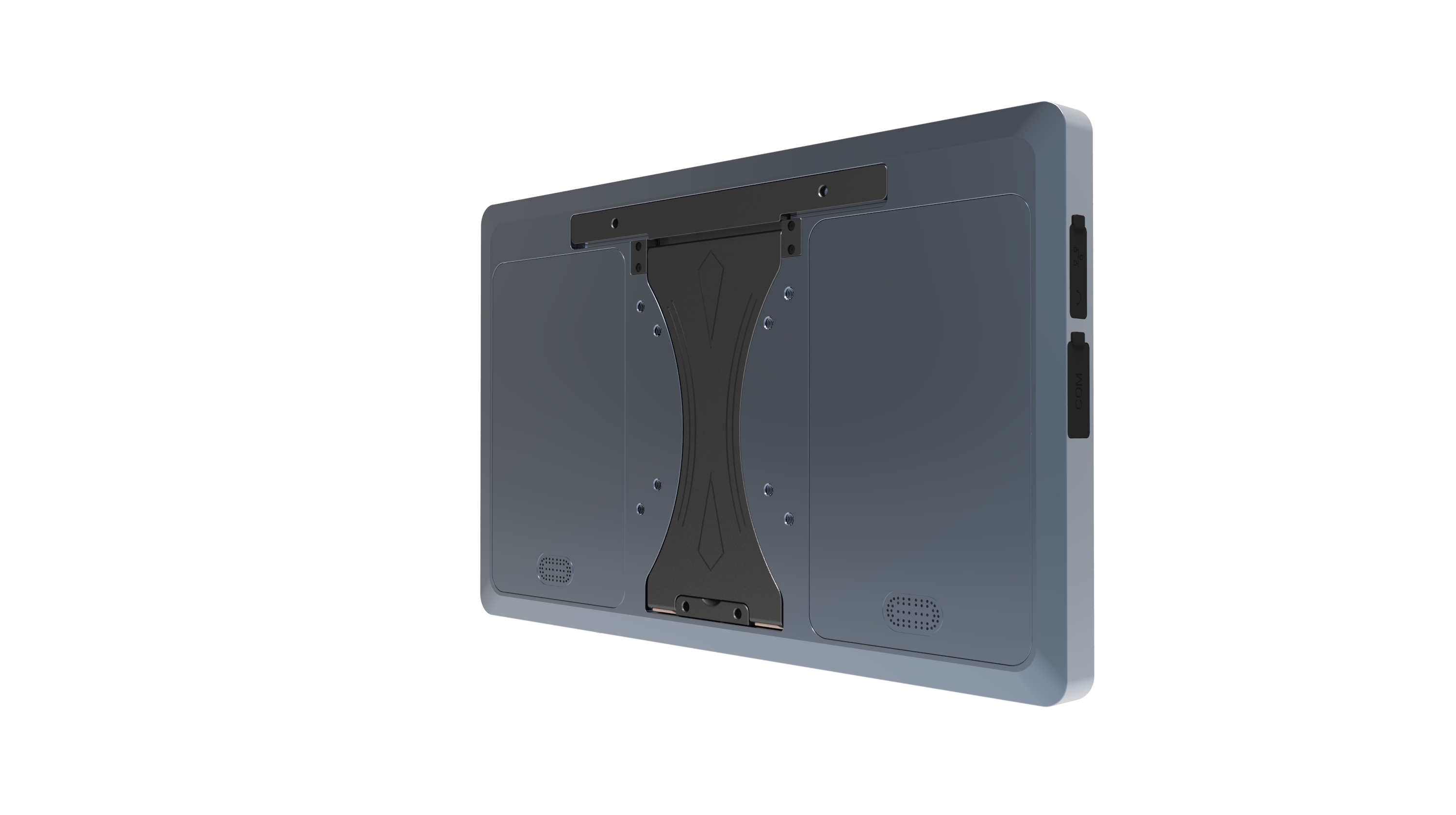

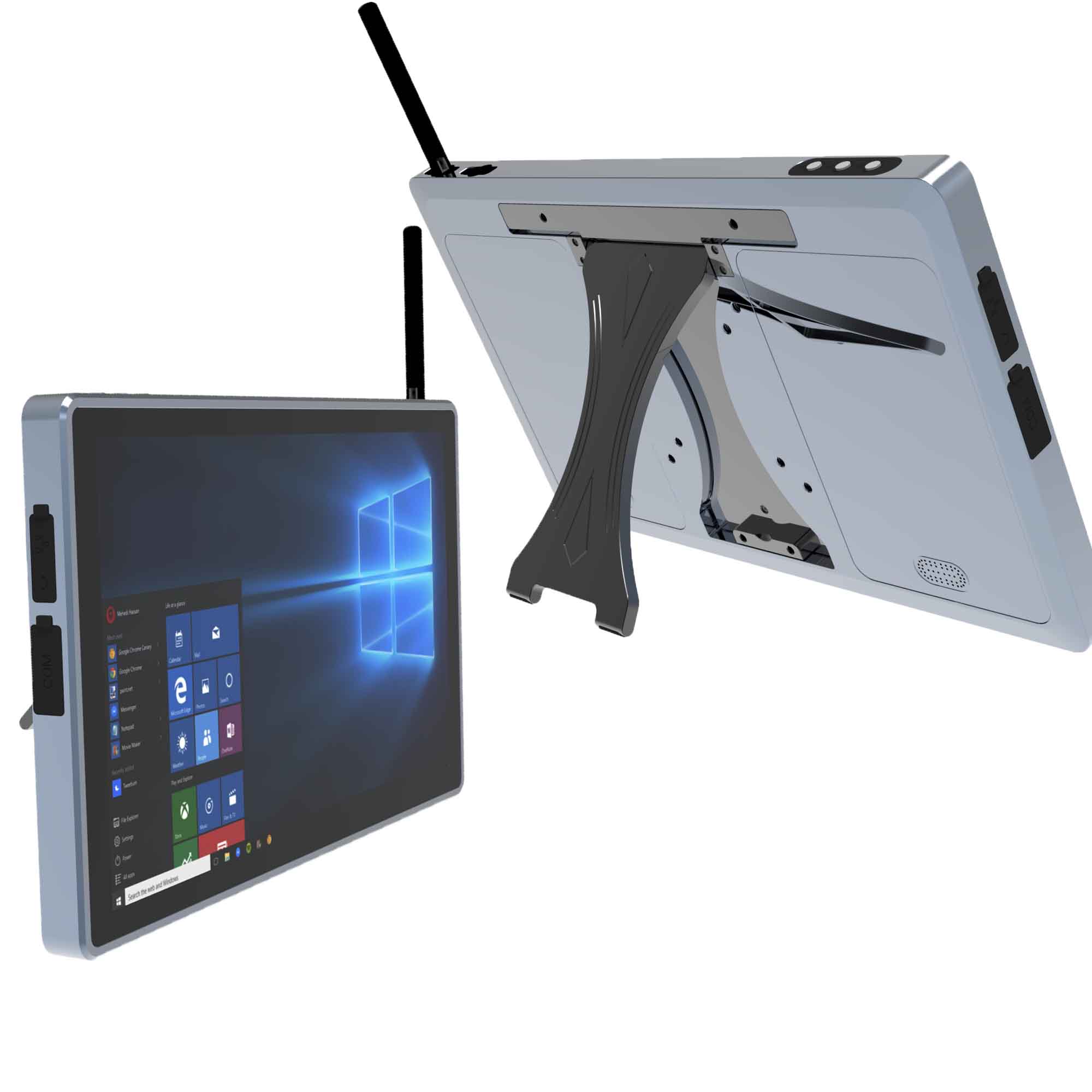

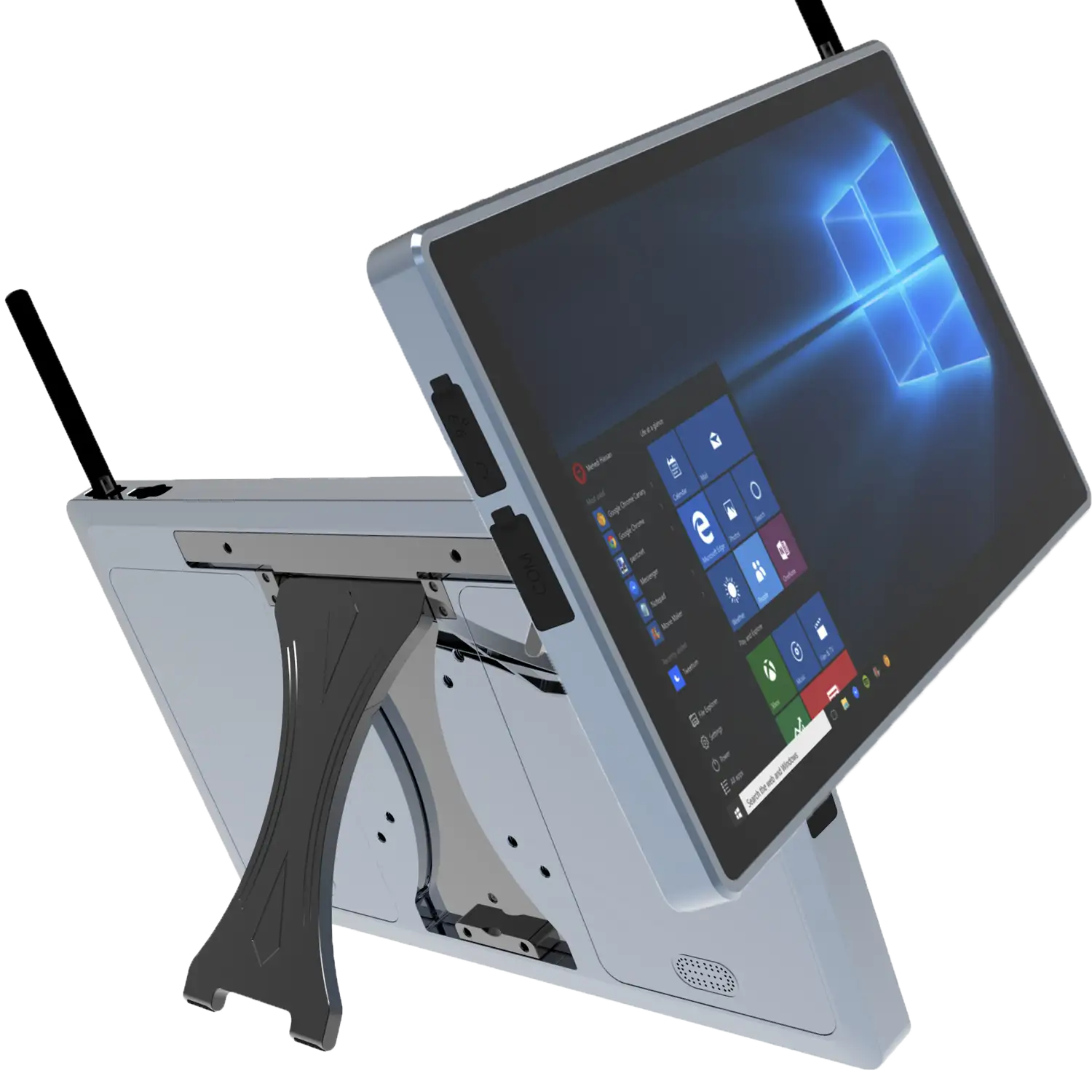

15.6 inch waterproof windows Panel PC
ITEM DESCRIPTION detail
OS windows 10 home/pro/iot
CPU intel I5-8200Y I7-8500Y optional
RAM/ROM 8GB/256GB 8GB/512GB optional, 16GB/512GB is optional
LCD 15.6 inch1920*1080； max 300 nits sunshine readable
Touch screen "10 point touch
support tylus
support thin glove touch"
Power DC4.0*1.7mm, 12V 3A DC in put
-----------------------------------------------------------------------------------------------------------------------------------------
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.2 version
SPEAKER 1.5*2 watt
size 380*230*21mm
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language
-----------------------------------------------------------------------------------------------------------------------------------------

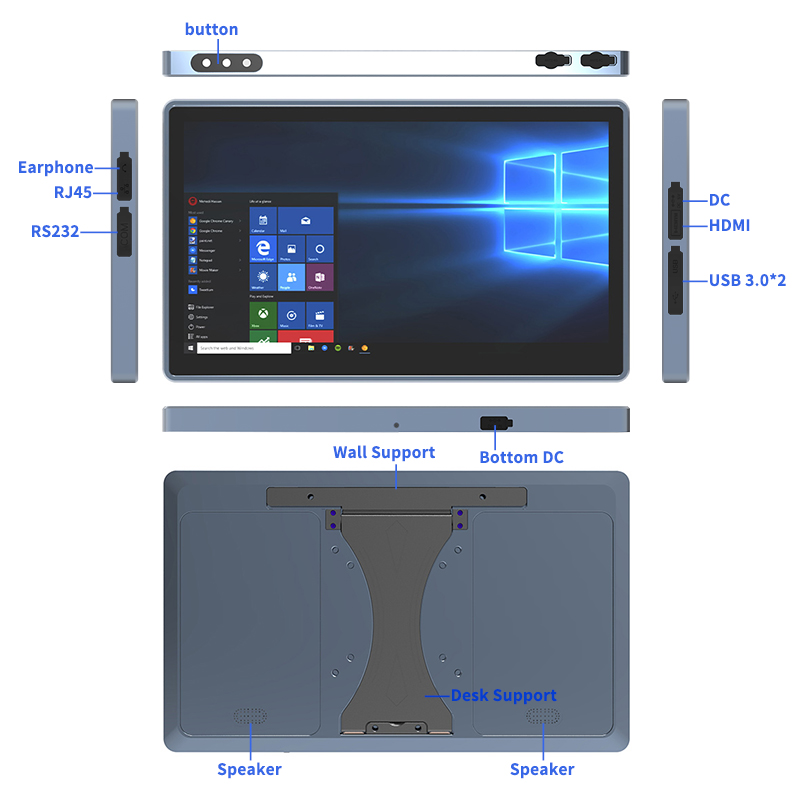

"interface
in/out port" "1.USB 3.2 *2
2. RJ45*1
3. DC*1 3.5*1.35
4. microphone+earphone
5. HDMI
6.RS232*1"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power
accessories "1. charger
2. white box, no logo"
proof rate 1. water proof IP65/66
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
