Product Introduction

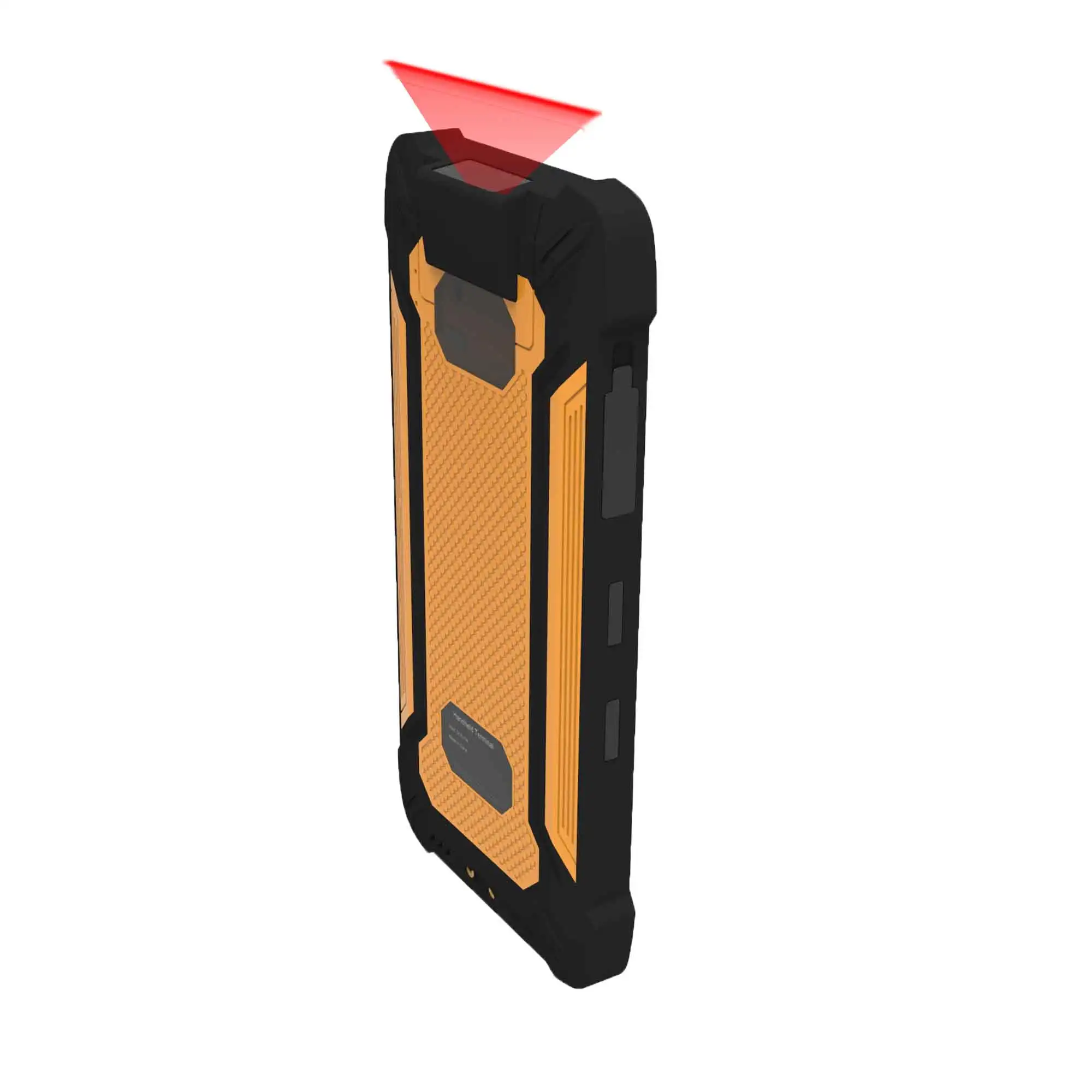

1. 5.5 Inch Android 7.0 and windows 10 pro, home, IOT scanner smart terminal
2. RAM/ROM 4GB/64GB
3. 4G LTE/WIFI/GPS/BT/NFC
4. IP67 Water proof, 1.2 meter droping testing
5. USB3.0, Micro USB, DC 3.5,
6. back and bottom pogopin
7. removeable battery 5000mAh
8. 5.5 inch 1920*1080, 500 nits brightness
9. net weight 400g, gloss weight 750g
10. 1D/2D barcode optional
11. UHF Optional
12. high-precision GPS optional

13. docking station optional

ITEM	DESCRIPTION	detail	Remark
OS	windows 10 home/pro/iot
CPU	intel cherry trail Z8350
RAM/ROM	4GB/64GB
LCD	5.5 inch1080X1920	1080X1920 IPS Screen MIPI 30Pin
Touch screen	5 point touch,
Camera	200M+500M	MIPI/5MP（OV5648）
Power and battery	battery  capacity 5000mAh	3.8V 5000mah
WWAN	4G LTE, 3G WCDMA, GSM	LTE FDD: B1/B3/B7/B8/B20/B28A    WCDMA: B1/B8    GSM: B3/B8	quectel EG91
GPS	baidou,GPS, glonass		u-blox-M8030
wifi	802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5G	Intel Stone Peak3165  802.11ac 1x1+BT4.0
BLUETOOTH	4.0 version
NFC	13.56 MHz, distance 5cm or above	support ISO14443 TYPE A standard/Mifare	optional
SPEAKER	1.0 watt
Sensor	1. light sensor 2. compass 3. baroceptor
size	180*87*21.5mm
Multi-media (Hardware decoding)	Photo Viewer	BMP, JPG, GIF, PNG
	Video Format	MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
	Audio Format	MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言	multi language
interface in/out port	1.micro USB*1 otg 2. bottom pogopin*1, USB*1+RS232*1 3. back pogopin*1 USB*1+TTL*1 4. microphone 5. DC 充电，由原来IDS01的USB改 6. USB 3.0 7. TF 最大支持128G
Pogopin definition	1.12 pin back, included 2USB*1, RS232*1， 3.3V, 5V output， 5V input 2. 8pin bottom； USB*1、TTL*1 5V input，
casing material	ABS/PC
button	V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3
2D barcode module	honeywell N3680 RAKINDA LV3296		optional
UHF	M500, distance 3-6 meter		optional
accessories	1. USB cable optional 2. charger 3. handstrap 4. car holder optional 5. docking station optional 6. car charger optional 7. white box, no logo
proof rate	1. water proof IP67 2. Drapping proof 1.2 meter
Certification	1. 810G 2. CE,FCC
Temperature	1. storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree
