Product Introduction

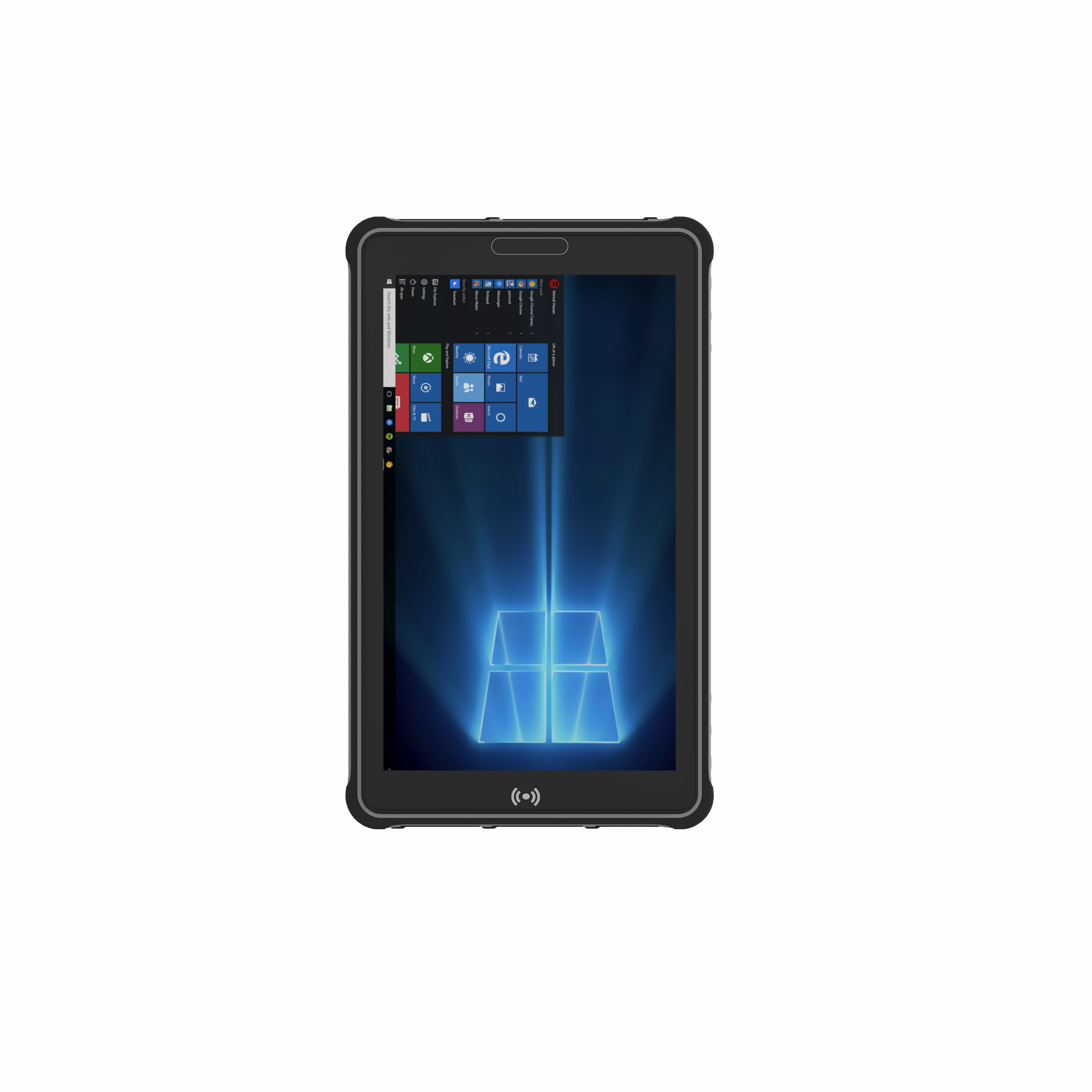

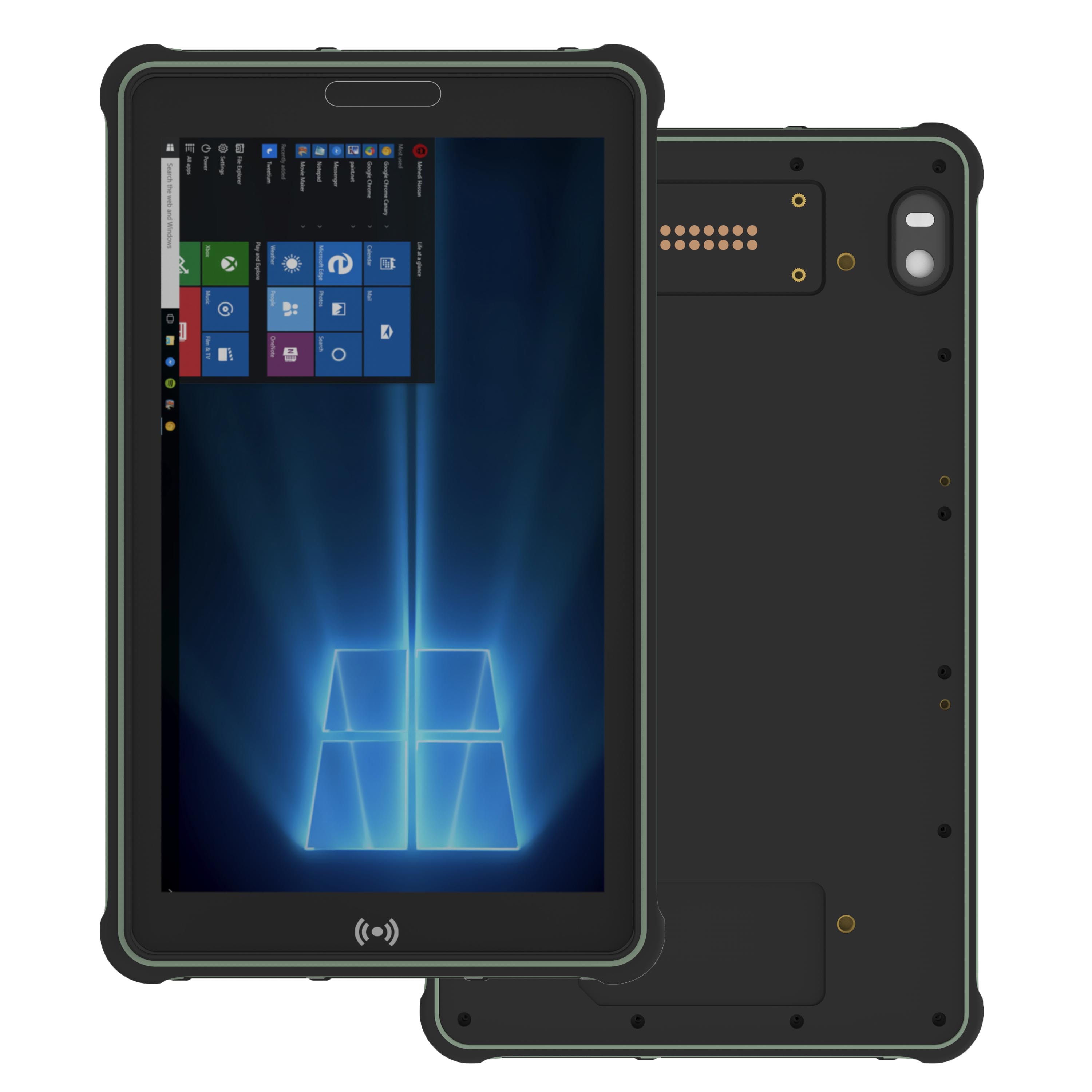

8 inch Windows 10 pro High precision GPS Rugged Tablet ST8
1. Android, Windows， linux optional
2. intel z8350, MT6753, RK3399, MT6771 optional
3. 8 inch 1920*1200，max brightness, 400 nits, capacity touch panel
4. RAM 3GB/4GB/6GB/8GB optional， ROM 32GB/64GB/128GB/256GB optional
5. 4G LTE/WIFI/GPS/BT, NFC optional
6. USB3.0, USB2.0, Micro USB, DC 3.5*1.35, 耳机孔3.5
7. 2D barcode，UHF，fingerprint，high precision GPS，optional
8. RJ45，RS232 optional
9. back and bottom POGO pin optional
10. desk plastic docking，metal vehicle docking, optional
11. size 225.6*134.6*13.3mm， net weight 0.6kg
| ITEM | DESCRIPTION | detail |
| OS | windows 10 home/pro/iot | |
| CPU | intel cherry trail Z8350 | |
| RAM/ROM | 4GB/64GB | |
| LCD | 8 inch1920*1200； | max 500 nits sunshine readable |
| Touch screen |
10
point touch support tylus support thin glove touch |
|
| Camera | 2M/5M | |
| Power and battery | battery capacity 7800mAh | |
| 3.5*1.35mm, 5V 3A DC in put | Magnetic charger | |
| WWAN | 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC |
4G
Fre: FDD: B1,B2, B3, B4, B5, B7, B8, B28 TDD: B40 B34 WCDMA:B1, B2,B4,B5,B8 GSM: B2, B3, B5, B8 |
| GPS | baidou,GPS, glonass | |
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | intel 3165 |
| BLUETOOTH | 4.0 version | |
| NFC | 13.56 MHz, distance 5cm or above | |
| SPEAKER | 1.5 watt | |
| Sensor |
1.
light sensor 2. acceleration/gravity |
|
| size | 228*137*12.8mm | |
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |
| language 语言 | multi language | |
|
interface in/out port |
1.USB2.0*1

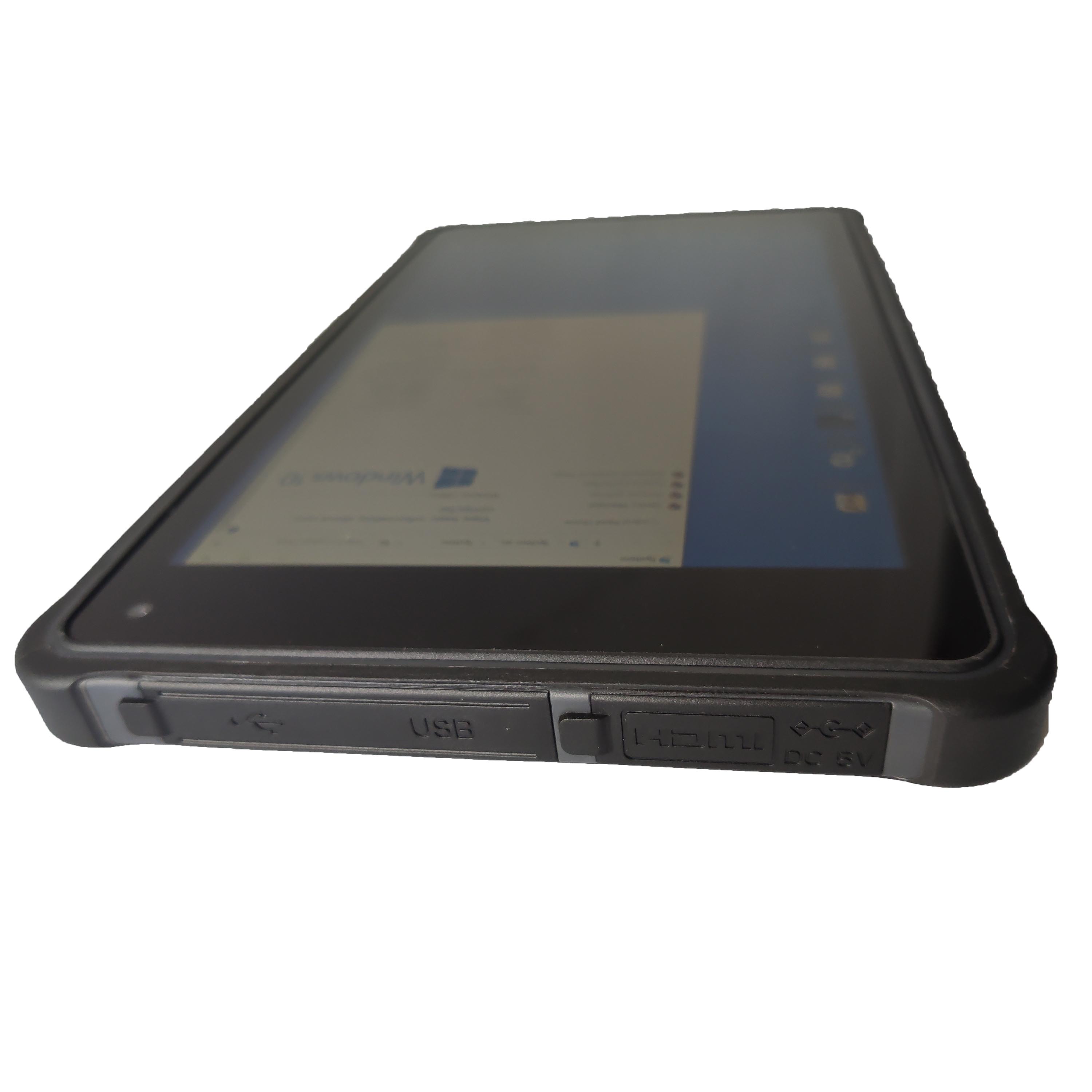

USB3.0*1 2. Micro USB*1 3. RJ45*1 need special cable (optional) 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. mini HDMI 9.RS232*1 (need special cable, optional) 10. micro SD*1 11. SIM card*1 |
|
| Pogopin definition |
1.16pin

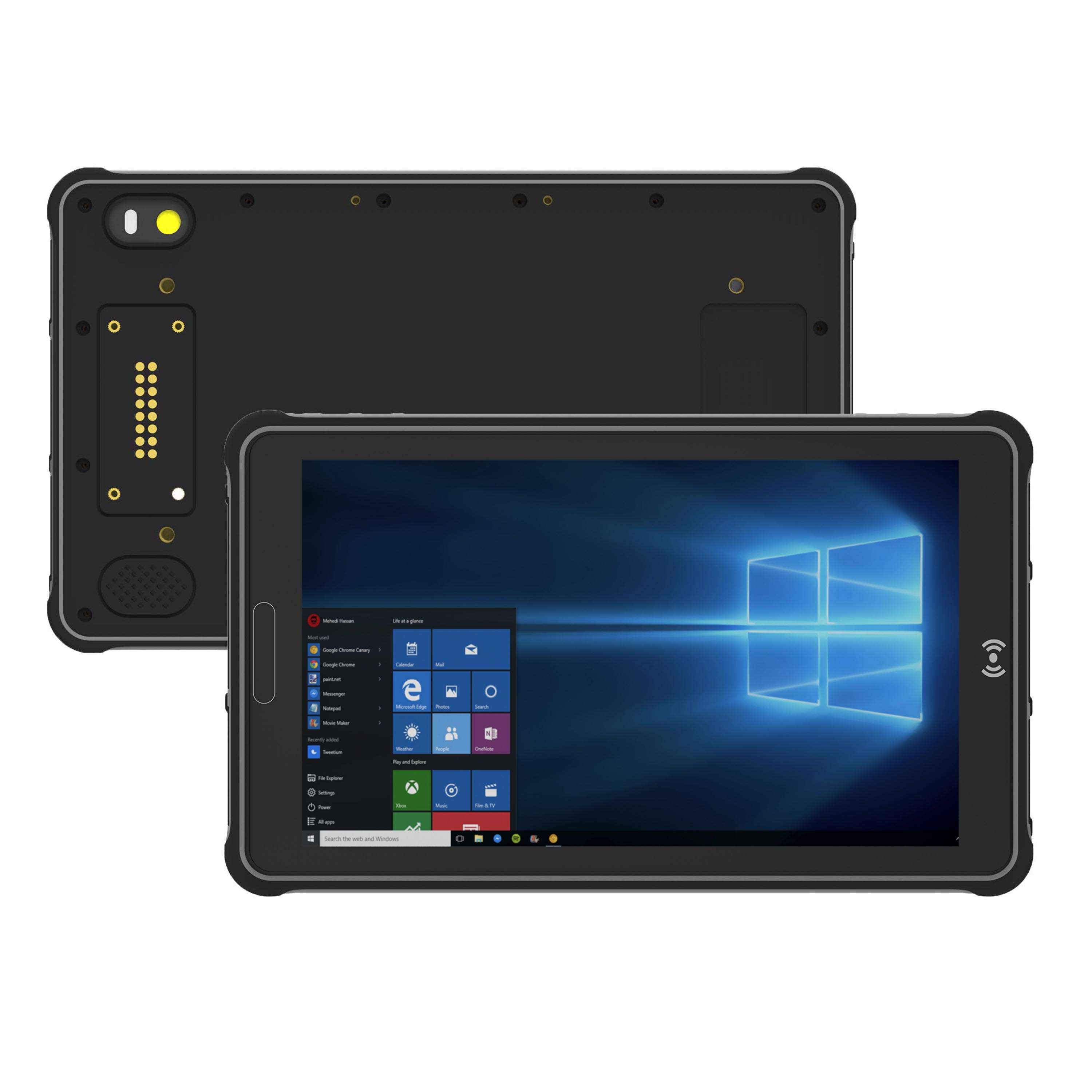

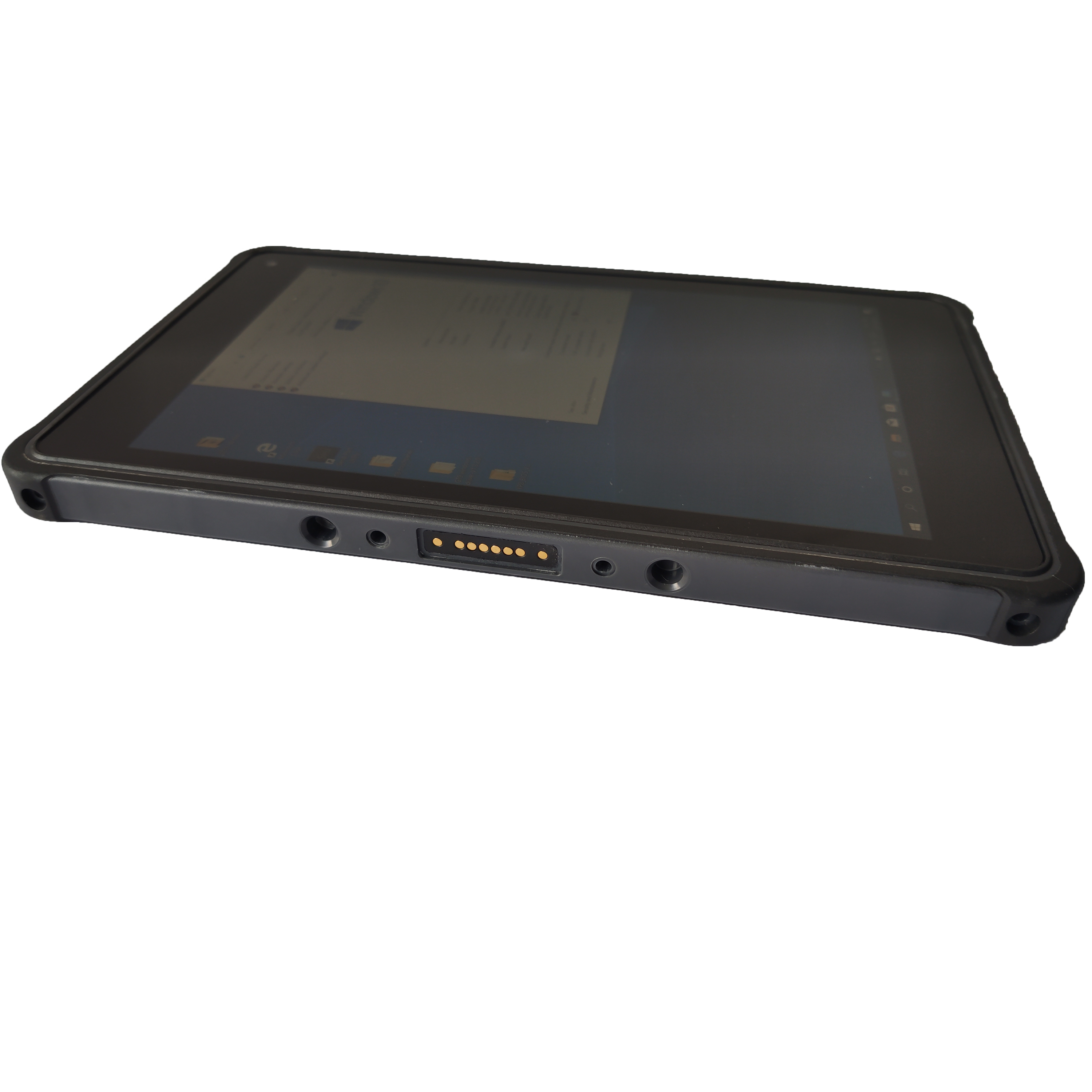

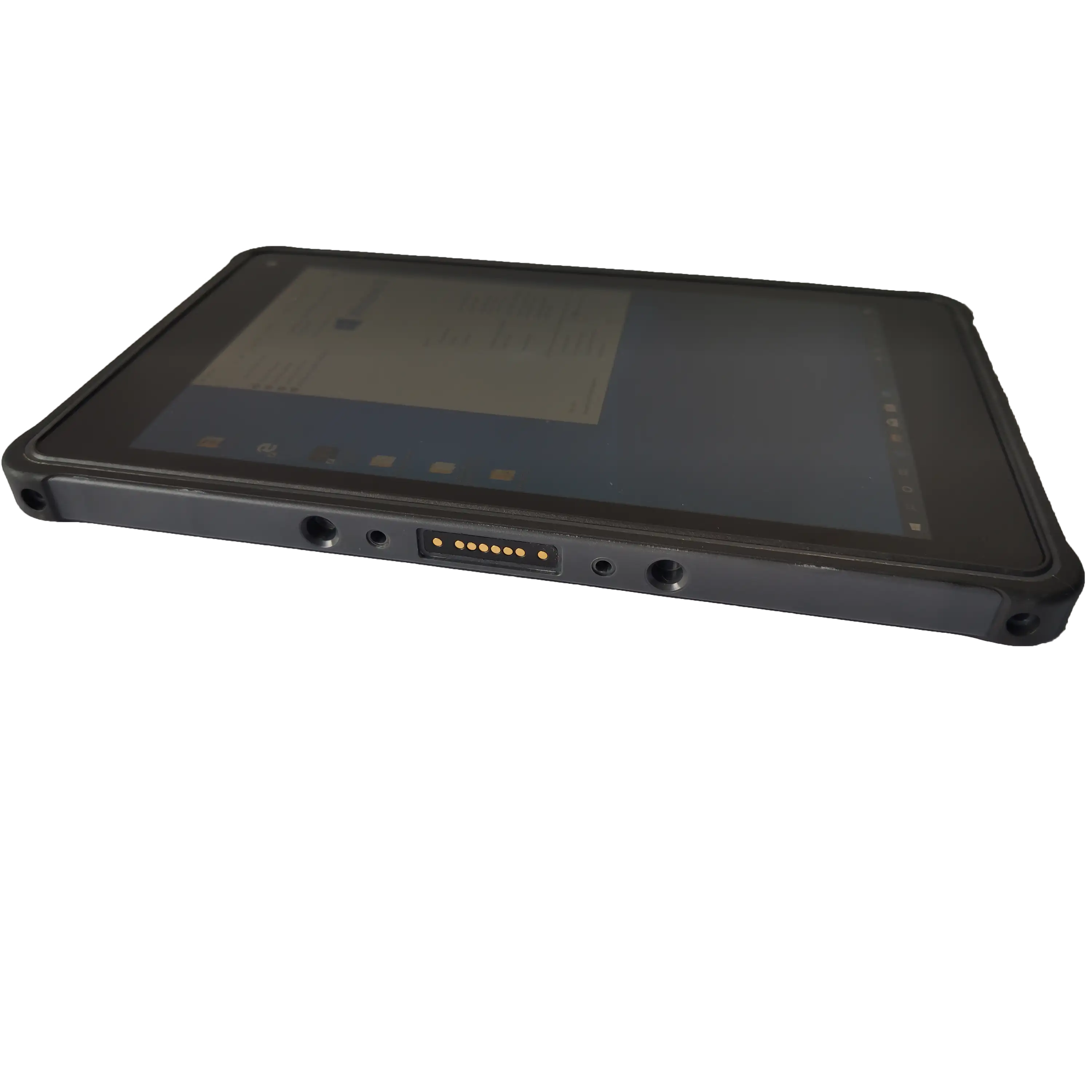

back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V) |
|
| casing material | ABS/PC/rubber TPU/aluminum | |

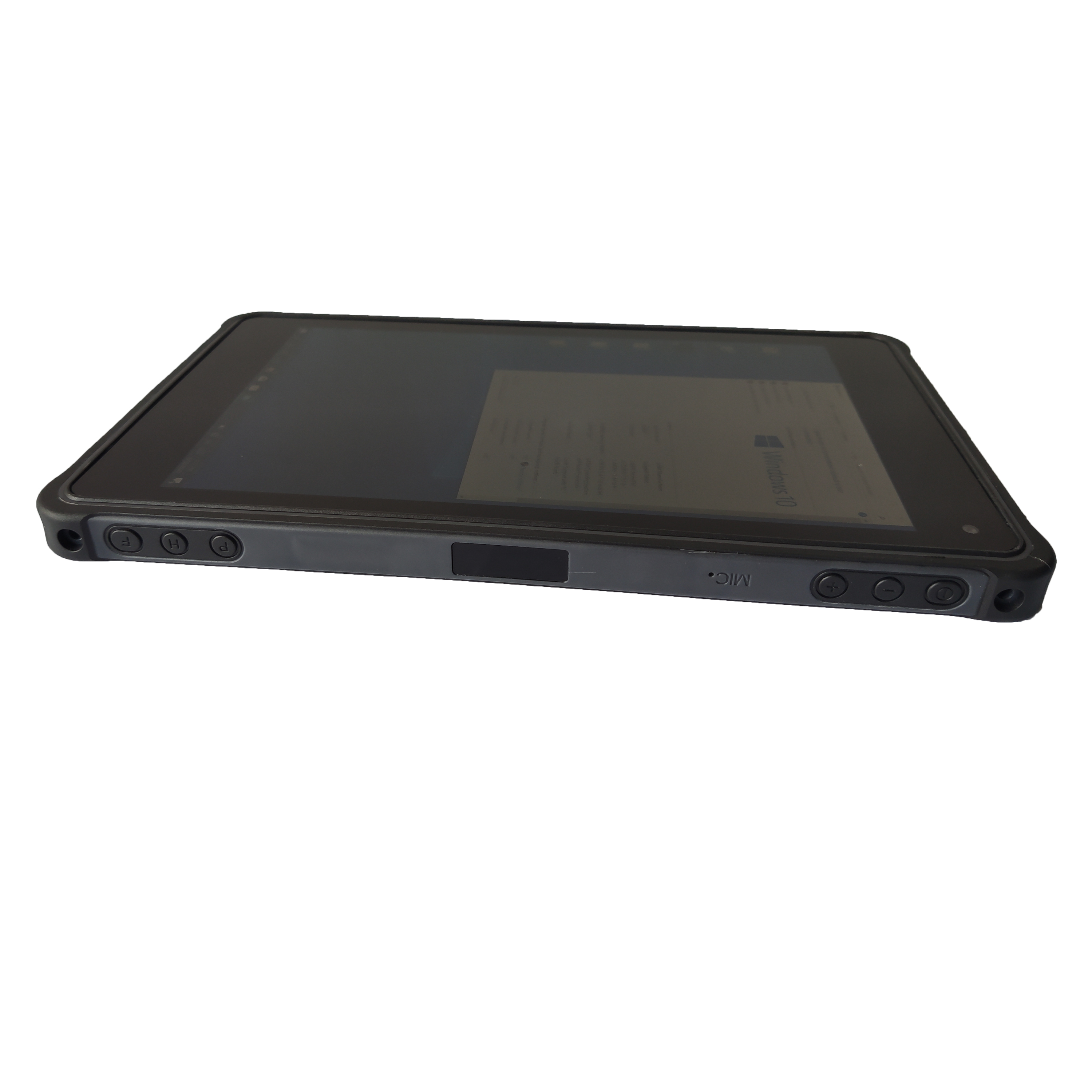

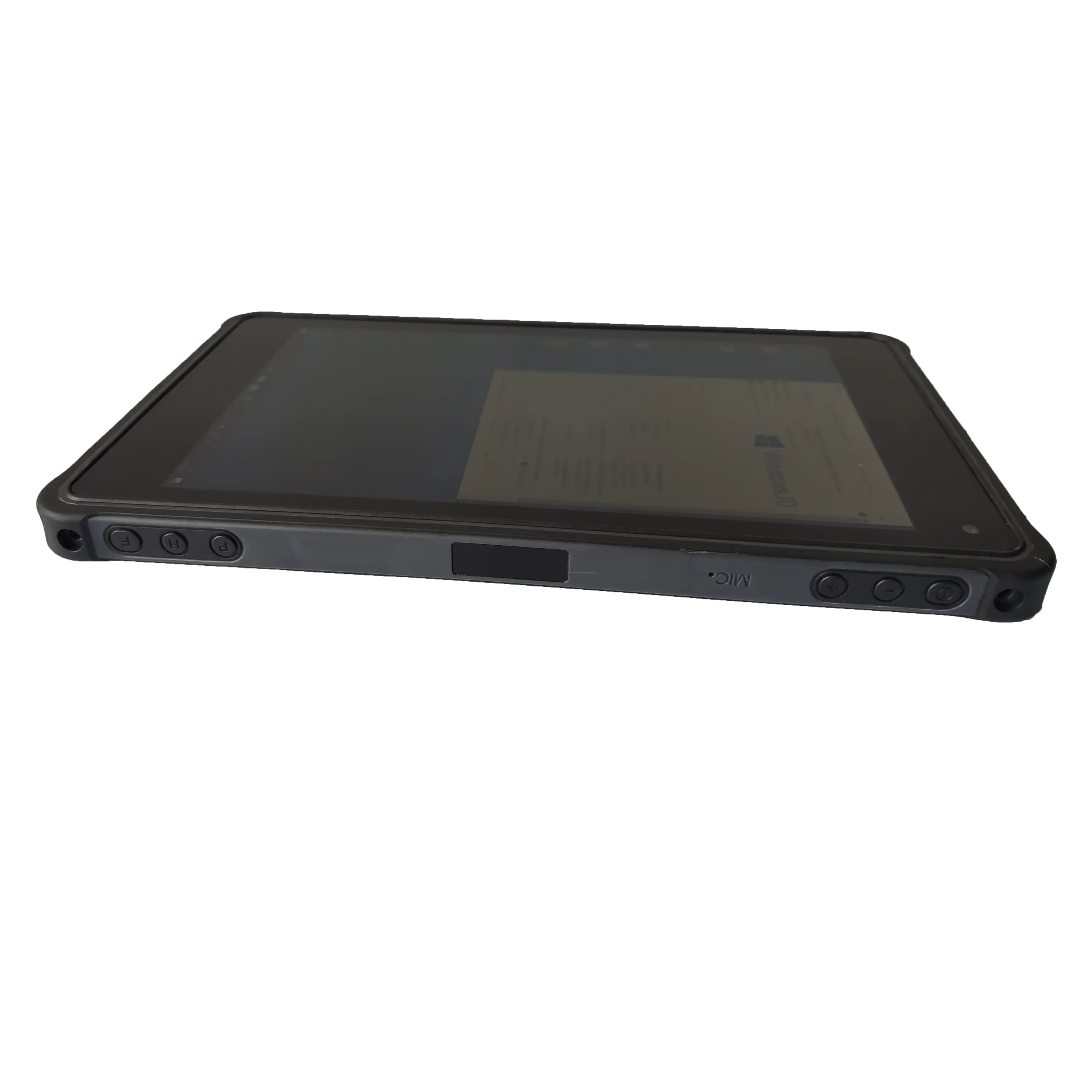

| button | V+ -, Power, P, F, H | |
| 2D barcode module | honeywell N3680 | optional |

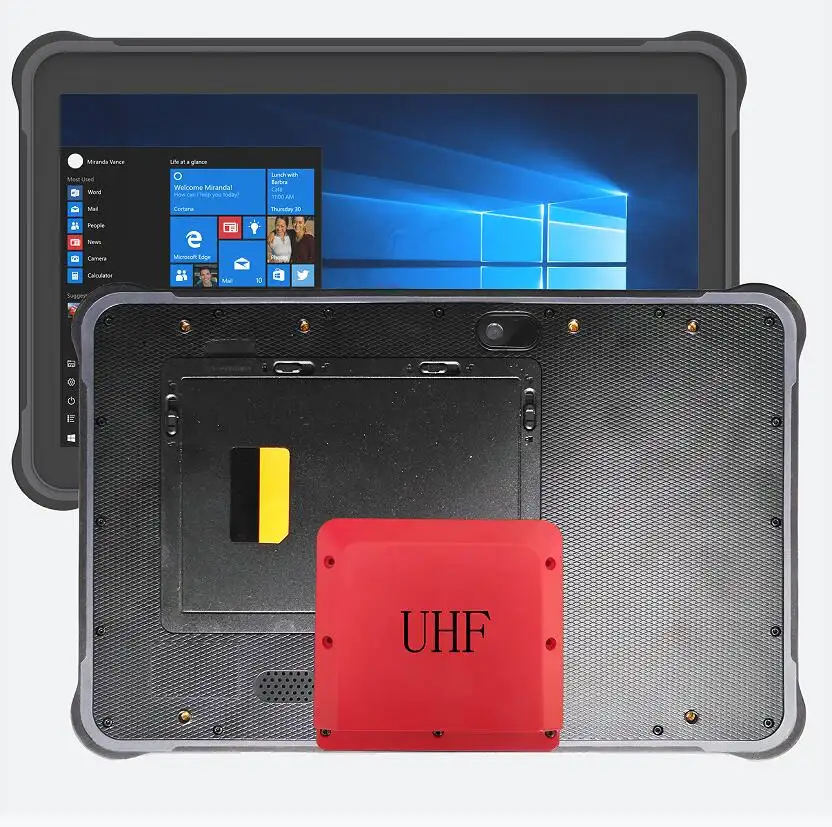

| UHF | 900MHz | optional |
| fingerprint | support | optional |
| Front NFC | under the screen, the distance is 3-5cm, mifare one is optional | optional |

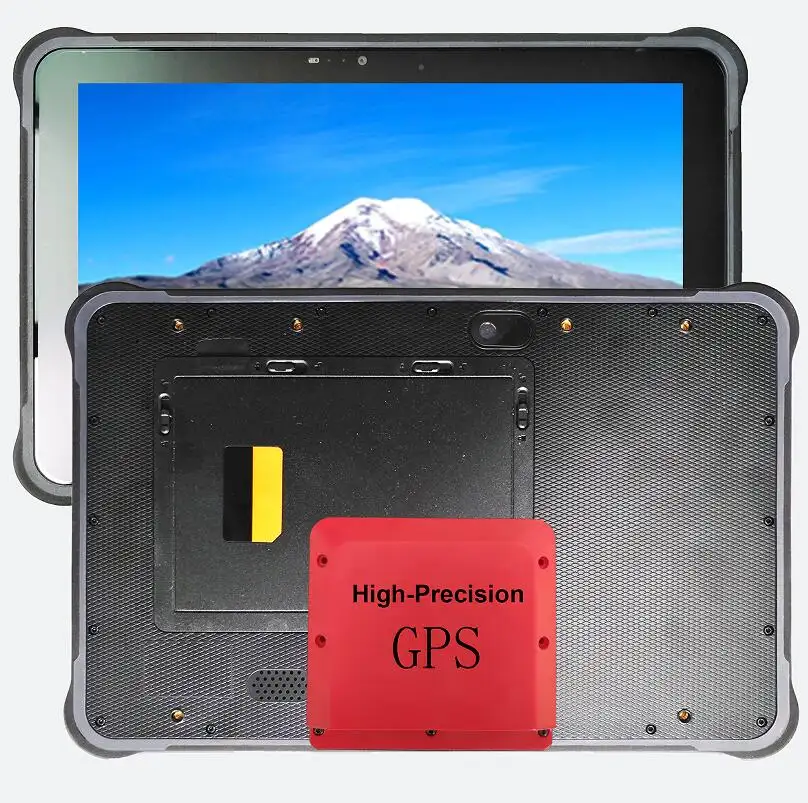

| high precision GPS | 0.25-1 meter high precision GPS, support GPS, beidou, glonass | optional |
| accessories |
1.
USB cable 2. charger 3. handstrap 4. car holder 5. docking station 6. car charger 7. white box, no logo |
|
| proof rate |
1.
water proof IP65 2. Drapping proof 1.2 meter |
|
| Certification |
1.
810G 2. CE,FCC |
|
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
