Product Introduction
ITEM DESCRIPTION detail
OS windows 10 home/pro/iot
CPU intel Jasper Lake, N4500(2 core)/N5100 (4 core) 1GHZ to 2.8GHz standard one is N5100
RAM/ROM 8GB/256GB 4GB/128GB，可选
LCD 8 inch1920*1200； max 450 nits sunshine readable
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 5M/13M
Power and battery 5000mAh, 7.6V lithium battery
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.2 version
Sensor "1. light sensor
2. acceleration/gravity
"
size 234*144*16.8mm
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language
"interface
in/out port" "1.USB 3.0 *2
2. RJ45*1
3. bottom pogopin*1, USB and serial
4. back pogopin*1
5. DC*1 3.5*1.35
7. microphone+earphone
6. HDMI
7.RS232*1"

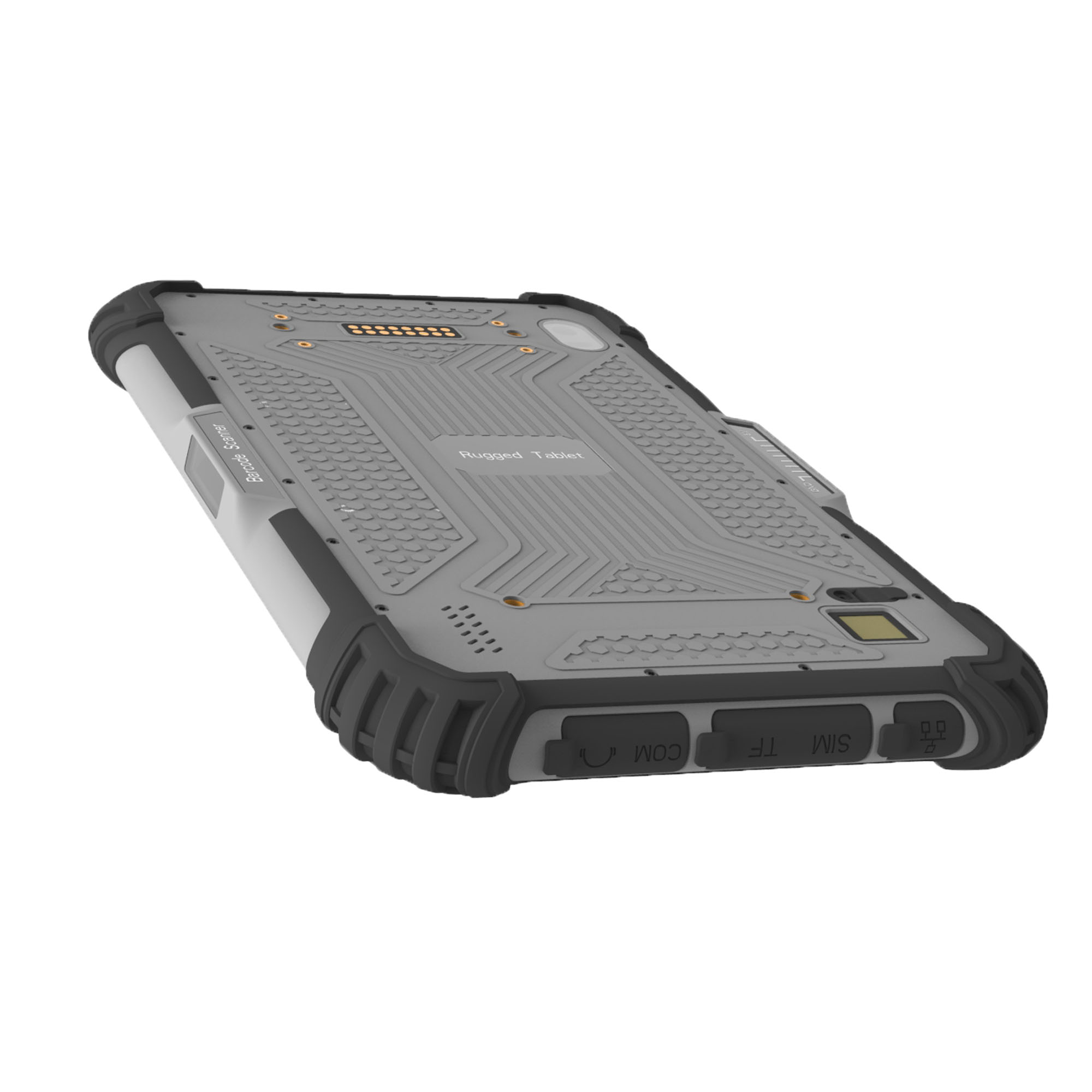

Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
VESA hole 75*75mm or 90*90mm"
casing material ABS/PC/rubber TPU/aluminum
UHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
accessories "1. USB cable
2. charger
3. handstrap
4. car holder

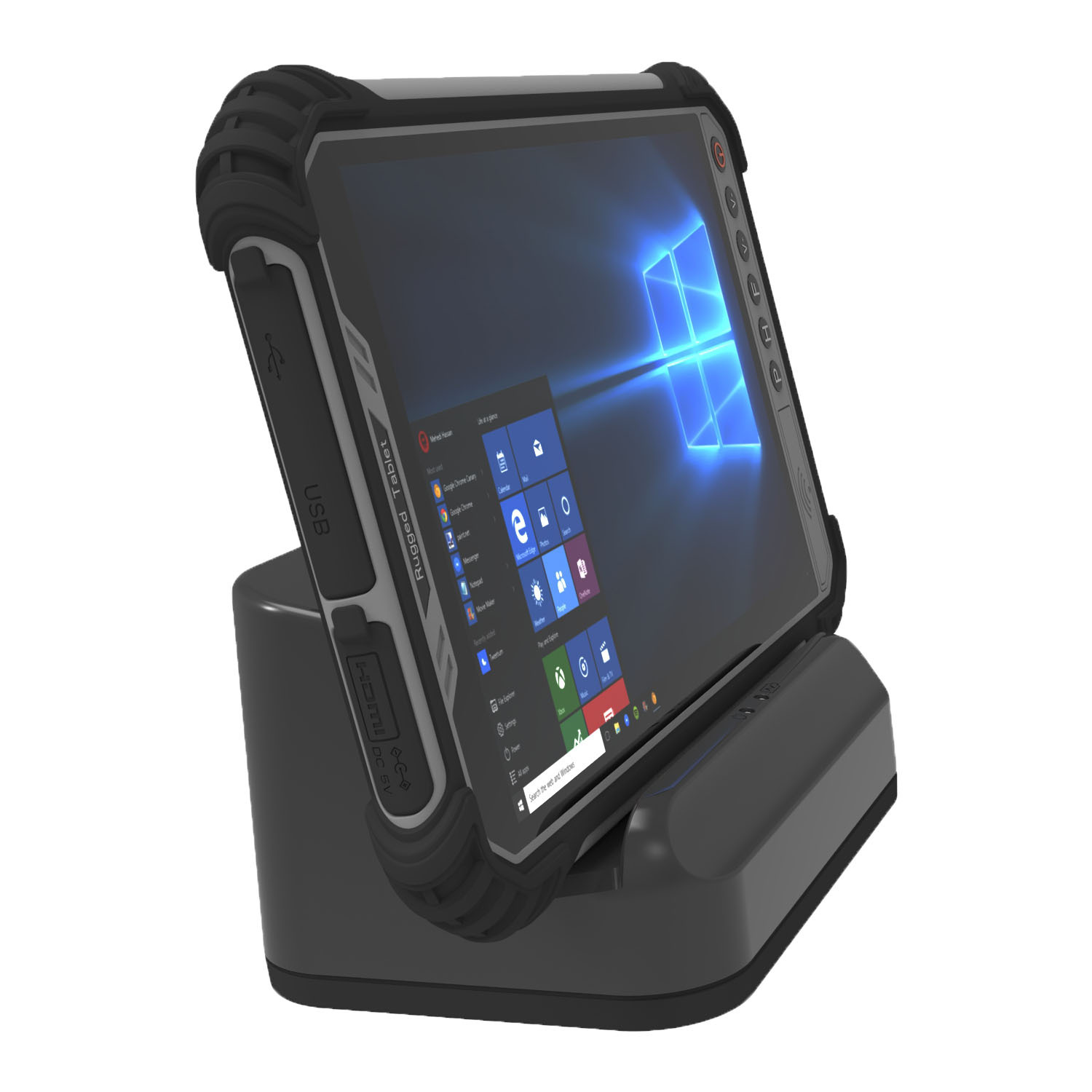

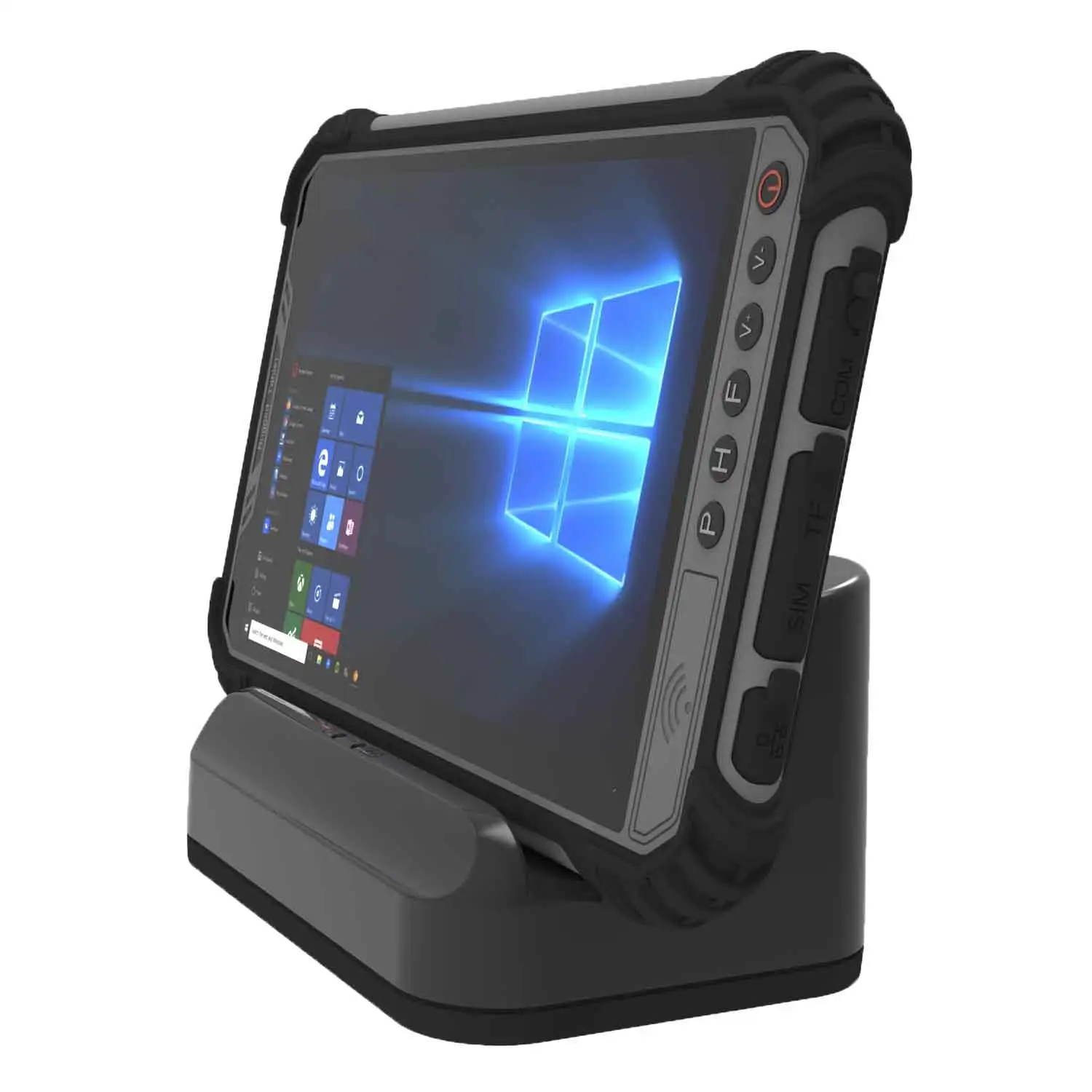

5. docking station
6. car charger
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
OS windows 10 home/pro/iot
CPU intel Jasper Lake, N4500(2 core)/N5100 (4 core) 1GHZ to 2.8GHz standard one is N5100
RAM/ROM 8GB/256GB 4GB/128GB，可选
LCD 8 inch1920*1200； max 450 nits sunshine readable
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 5M/13M
Power and battery 5000mAh, 7.6V lithium battery
DC4.0*1.7mm, 12V 3A DC in put
------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC "4G Fre:FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.2 version
NFC 13.56 MHz, distance 5cm or above
------------------------------------------------------------------------------------------------------------------------------------
SPEAKER 1.5 wattSensor "1. light sensor
2. acceleration/gravity
"
size 234*144*16.8mm
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language
"interface
in/out port" "1.USB 3.0 *2
2. RJ45*1
3. bottom pogopin*1, USB and serial
4. back pogopin*1
5. DC*1 3.5*1.35
7. microphone+earphone
6. HDMI
7.RS232*1"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
VESA hole 75*75mm or 90*90mm"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H
------------------------------------------------------------------------------------------------------------------------------------
2D barcode module Newland N1/N1-ER/SE4710/SE2707 optionalUHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
accessories "1. USB cable
2. charger
3. handstrap
4. car holder
5. docking station
6. car charger
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
