Product Introduction
-------------------------------------------------------------------------------------------------------------------------------------------------
ITEM DESCRIPTION detail
OS windows 10 home/pro/iot
CPU intel cherry trail Z8350
RAM/ROM 4GB/64GB
LCD 8 inch1920*1200； max 400 nits
Touch screen capacity touch panel
Camera 2M/5M
Power and battery battery capacity 7800mAh
3.5*1.35mm, 5V 3A DC in put
-------------------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.0 version
NFC 13.56 MHz, distance 5cm or above
-------------------------------------------------------------------------------------------------------------------------------------------------
SPEAKER 1.5 watt
Sensor "1. light sensor
2. acceleration/gravity
"

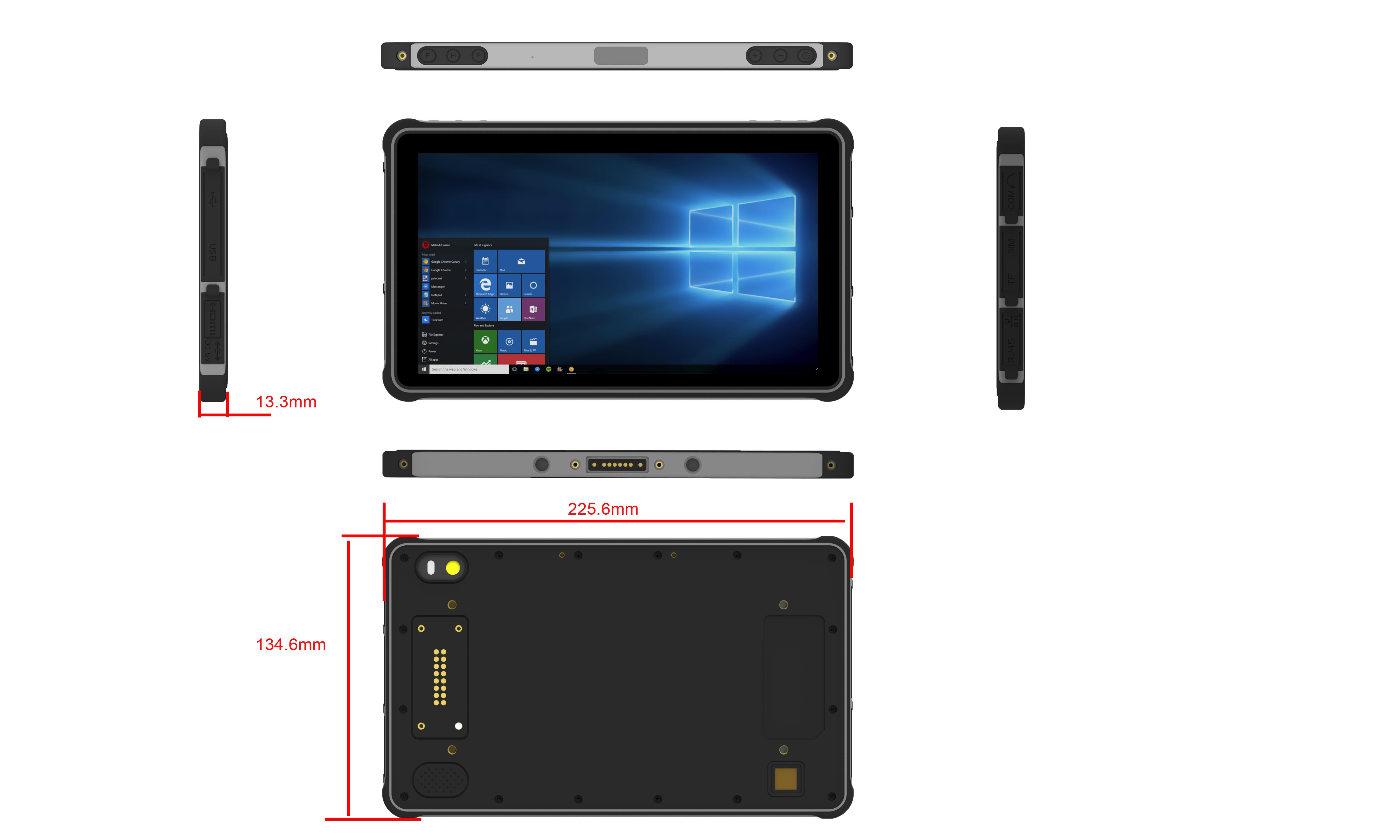

size 225.6*135.6*13.3mm
weight 0.6kg
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language
-------------------------------------------------------------------------------------------------------------------------------------------------

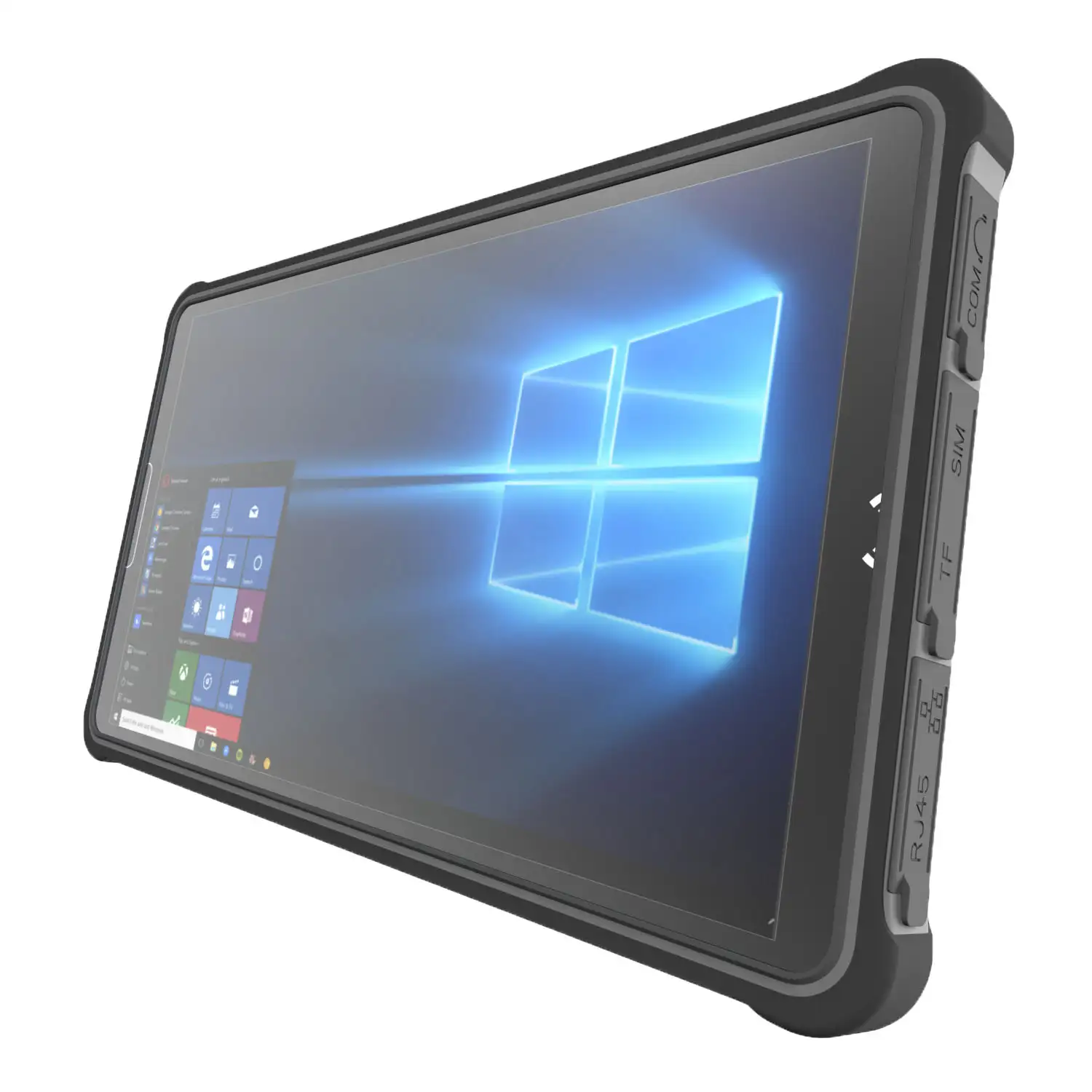

"interface
in/out port" "1.USB2.0*1 USB3.0*1
2. Micro USB*1
3. RJ45*1 need special cable (optional)

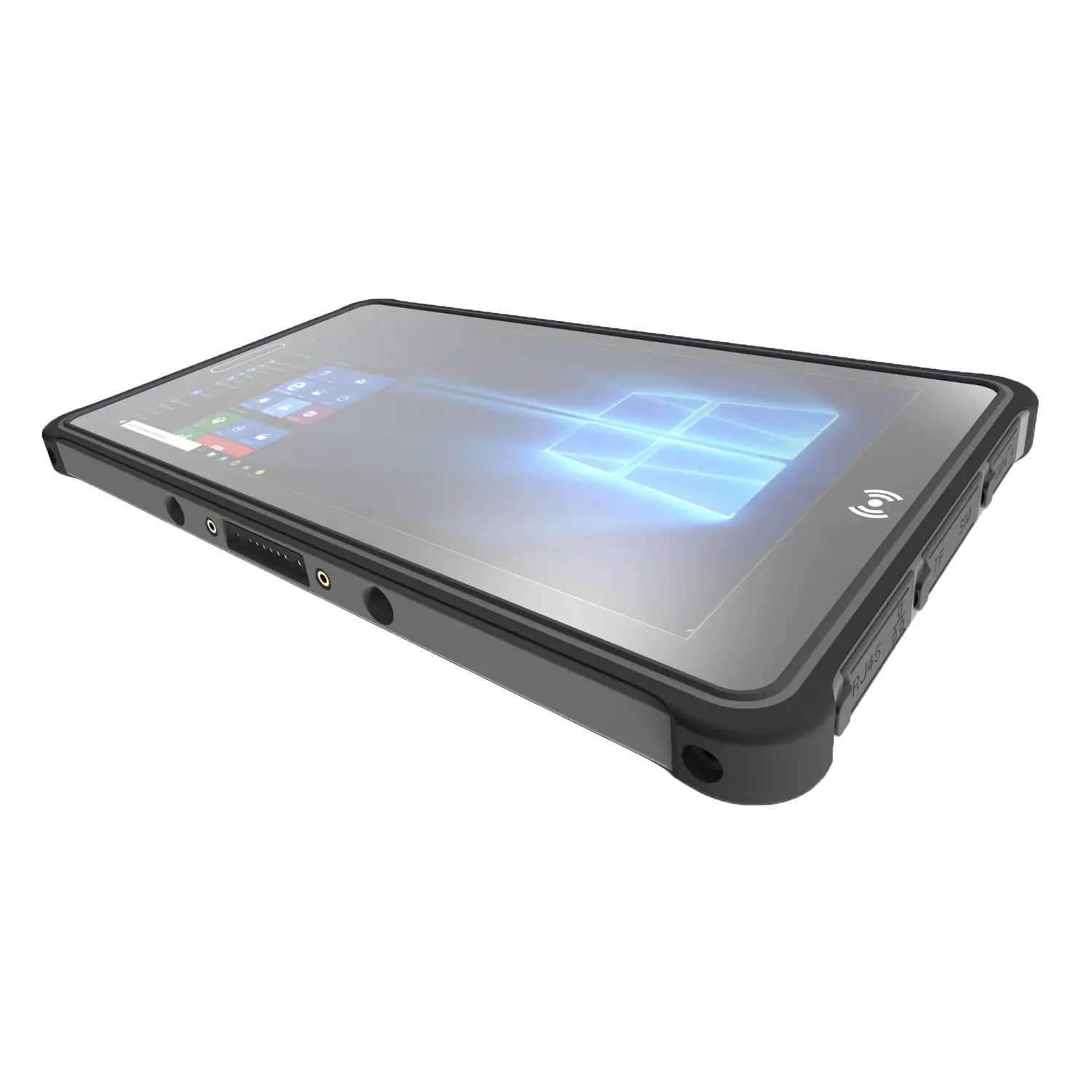

4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. mini HDMI
9.RS232*1 (need special cable, optional)
10. micro SD*1
11. SIM card*1"

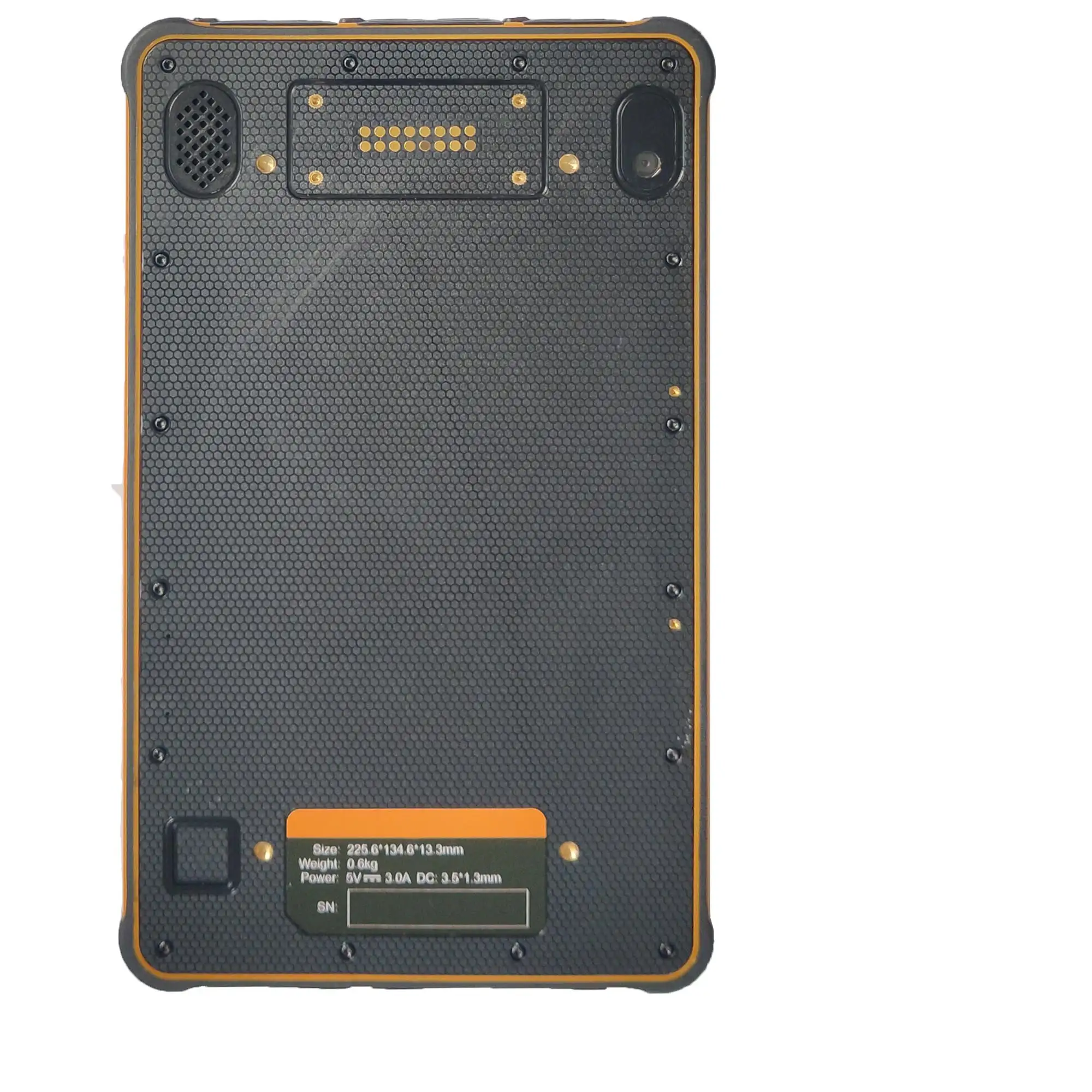

Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H
-------------------------------------------------------------------------------------------------------------------------------------------------
2D barcode module EM 2096 (N3680 in jacket) optional
UHF 900MHz optional
fingerprint support optional

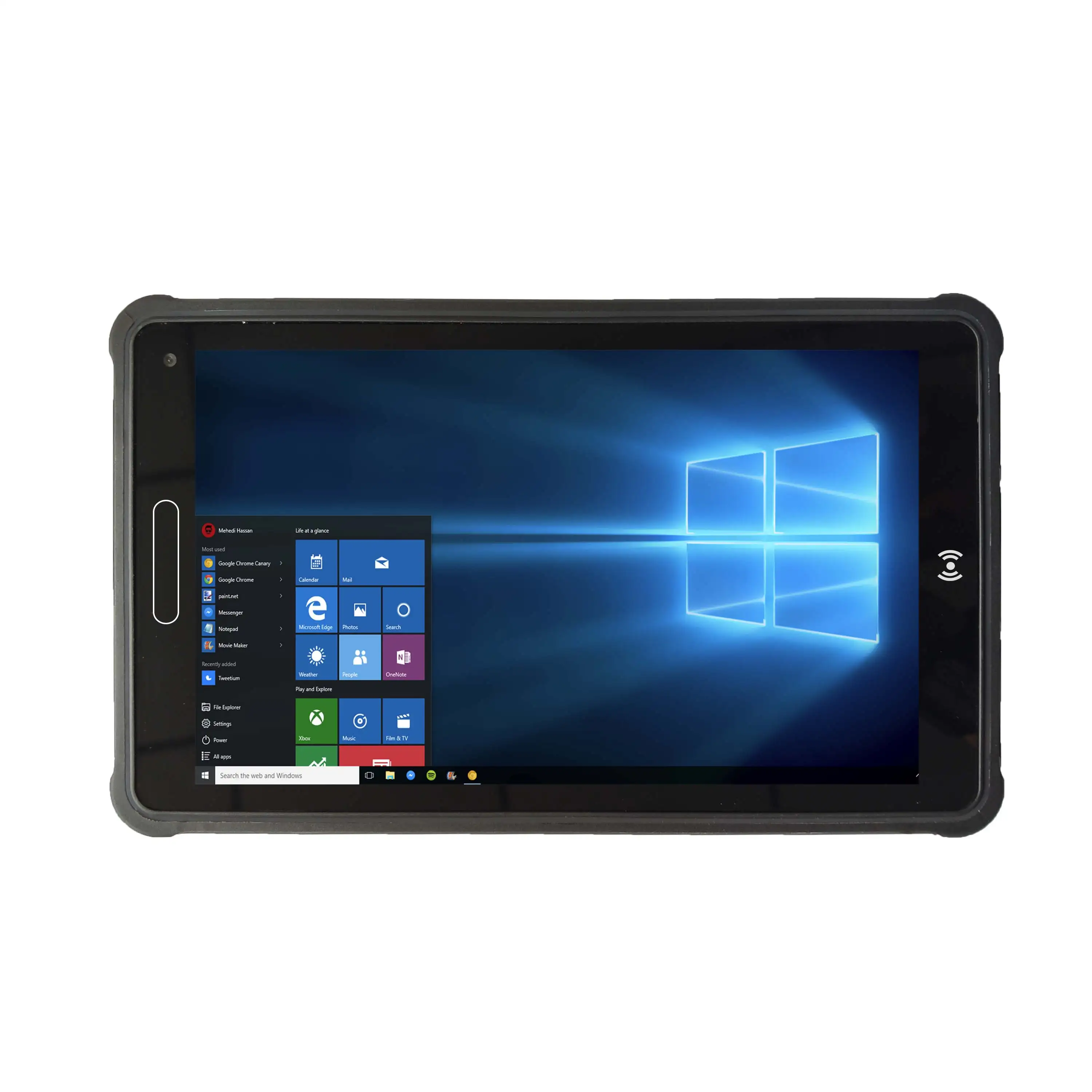

Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
-------------------------------------------------------------------------------------------------------------------------------------------------
accessories
"1. USB cable optional
2. charger
3. handstrap optional
4. car holder optional
5. docking station optional
6. car charger optional
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
