Product Introduction
----------------------------------------------------------------------------------------------------------------------------------------------------
ITEM DESCRIPTION detail
OS Android 11
CPU "MT6771, 8 core, 2.0GHz, A73
RAM/ROM 4GB/64GB, 6GB/128GB, 8GB/256GB, optional
LCD 8 inch1920*1200； max 400 nits
Touch screen capacity touch panel
Camera 5M/13M
Power and battery battery capacity 7800mAh
3.5*1.35mm, 5V 3A DC in put
----------------------------------------------------------------------------------------------------------------------------------------------------
WWAN 4G LTE, 3G WCDMA, GSM, "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G
BLUETOOTH 4.0 version
NFC 13.56 MHz, distance 5cm or above
----------------------------------------------------------------------------------------------------------------------------------------------------
SPEAKER 1.5 watt
Sensor "1. light sensor
2. acceleration/gravity
size 228*137*13.3mm
net weight 0.6kg
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language 语言 multi language
----------------------------------------------------------------------------------------------------------------------------------------------------

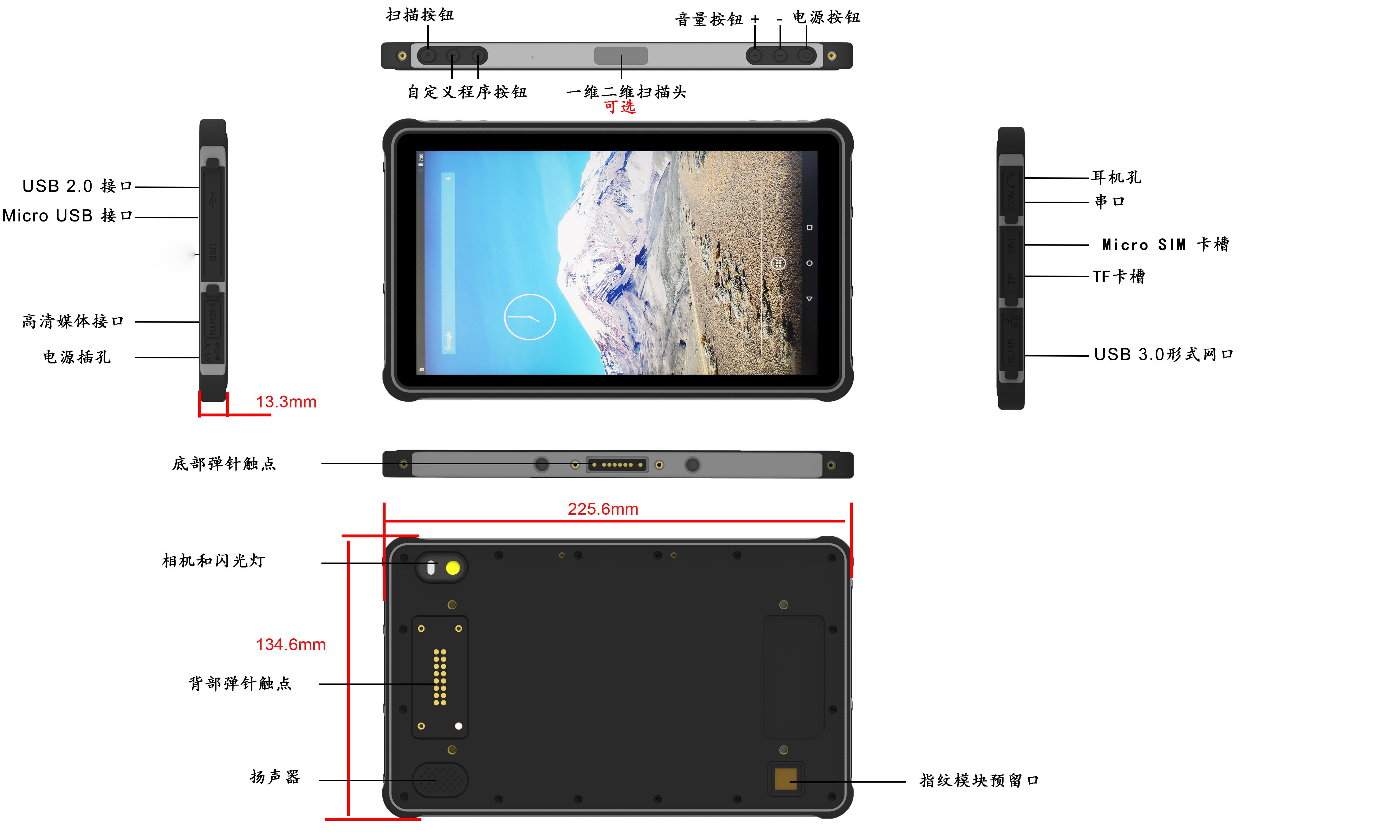

"interface
in/out port" "1.USB*2
2. Micro USB*1
3. RJ45*1 optional
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8.RS232*1 optional
9. micro SD*1
10. SIM card*1"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)"
casing material ABS/PC/rubber TPU/aluminum
button V+ -, Power, P, F, H
----------------------------------------------------------------------------------------------------------------------------------------------------
2D barcode module EM2096 optional
UHF 800-930MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
face recognition JSK-LA008 Optional
----------------------------------------------------------------------------------------------------------------------------------------------------
accessories "1. USB cable optional
2. charger
3. handstrap optional
4. car holder optional
5. docking station optional
6. car charger optional
7. white box, no logo "
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
