Product Introduction

---------------------------------------------------------------------------------------------------------------------------------------------------

ITEM DESCRIPTION detail

OS Android 13.0 (support GMS)

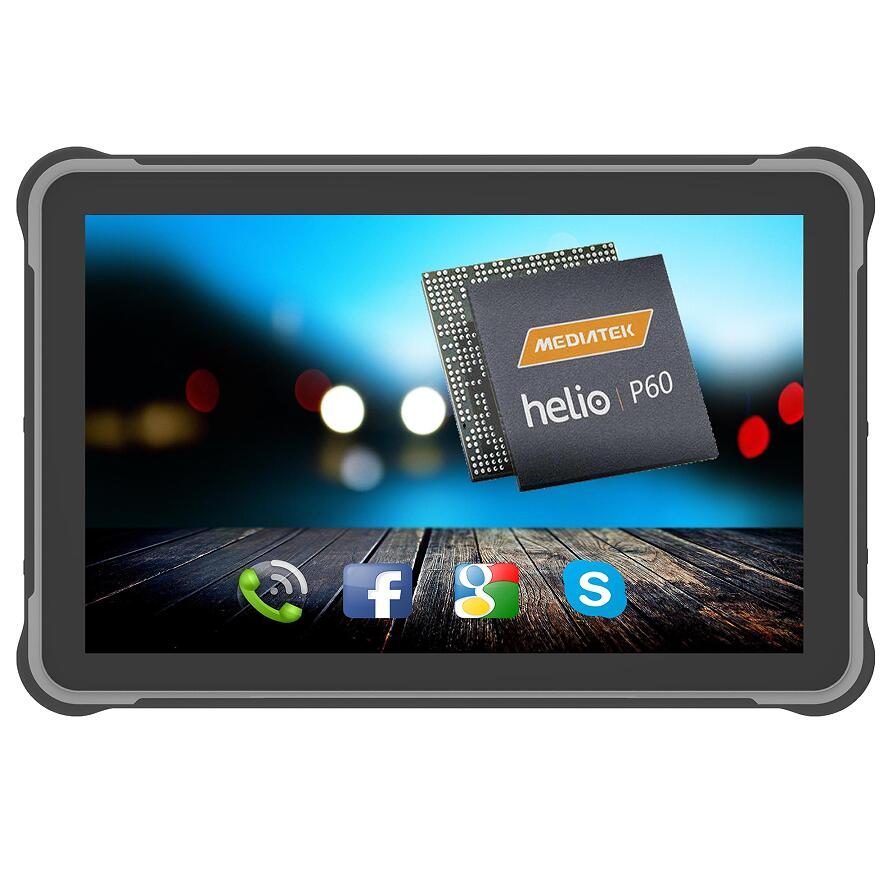

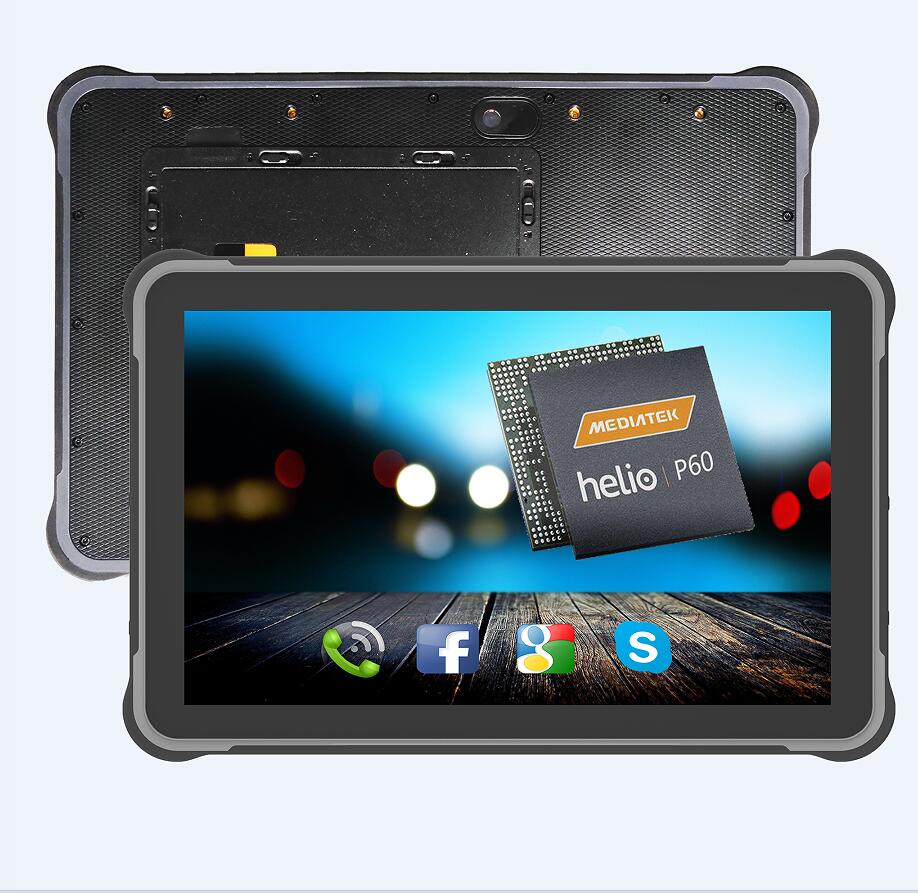

CPU MTK P60 MT6771 Octa A73 core 2.0 GHz
RAM/ROM 8GB/128GB OR 6GB/128GB, OR 4GB/64GB
LCD 10.1 inch1920*1200； 500 nits sunshine readable
Touch screen 10 point touch, support stylus
Camera 5M/13M, flash 5M/13M, flash
Power and battery battery total capacity 10500mAh "8400mAh,hotswap, 2100mAh backup power
3.8V 3A imput, support hotswap"

3.5*1.35mm, 5V 3A DC in put Magnetic charger

---------------------------------------------------------------------------------------------------------------------------------------------------

WWAN 4G LTE, 3G WCDMA, GSM "4G Fre:
FDD: B1,B2, B3,B4, B5, B7, B8, B10, B12，B13, B14, b17,  B20, B23, B24, B25, B26
TDD: B38,B39,B40,B41, B66, B71
B34
WCDMA:B1,B2, B5, B8
TD-SCDMA: B34,B35, B36, B37, B38 B39, B40, B41, B42, B43
GSM/GPRS/EDGE, 850/900/1800/1900"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5G
BLUETOOTH 4.0 version

NFC 13.56 MHz, distance 5cm or above

---------------------------------------------------------------------------------------------------------------------------------------------------

SPEAKER 1.5 watt
Sensor "1. light sensor
2. compass
3. gravity
4. acceleration
5. baroceptor"
size 275*178*18mm
"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)

language multi language

---------------------------------------------------------------------------------------------------------------------------------------------------

"interface
in/out port" "1. normal USB*1
2. Type-c USB*1
3. RJ45*1
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. RS232*1"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， )
VESA hole 75*75mm or 90*90mm"
casing material ABS/PC

button V+ -, Power, P, F, H

---------------------------------------------------------------------------------------------------------------------------------------------------

2D barcode module honeywell N3680 optional
UHF reading and write distance 1meter to 10 meter optional

fingerprint module LD-8800-M optional

---------------------------------------------------------------------------------------------------------------------------------------------------

"standard
accessories
in gift box" "1. USB cable
2. charger( 4-in-1)
3. handstrap
4. handstring
5. white box, no logo"
"optional
accessories" "1. car docking
2. extra battery
3. screen protective film
4. car holder
5. docking station
6. car charger
"
proof rate "1. water proof IP65/IP66/IP67
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
