Product Introduction
Model: ST11

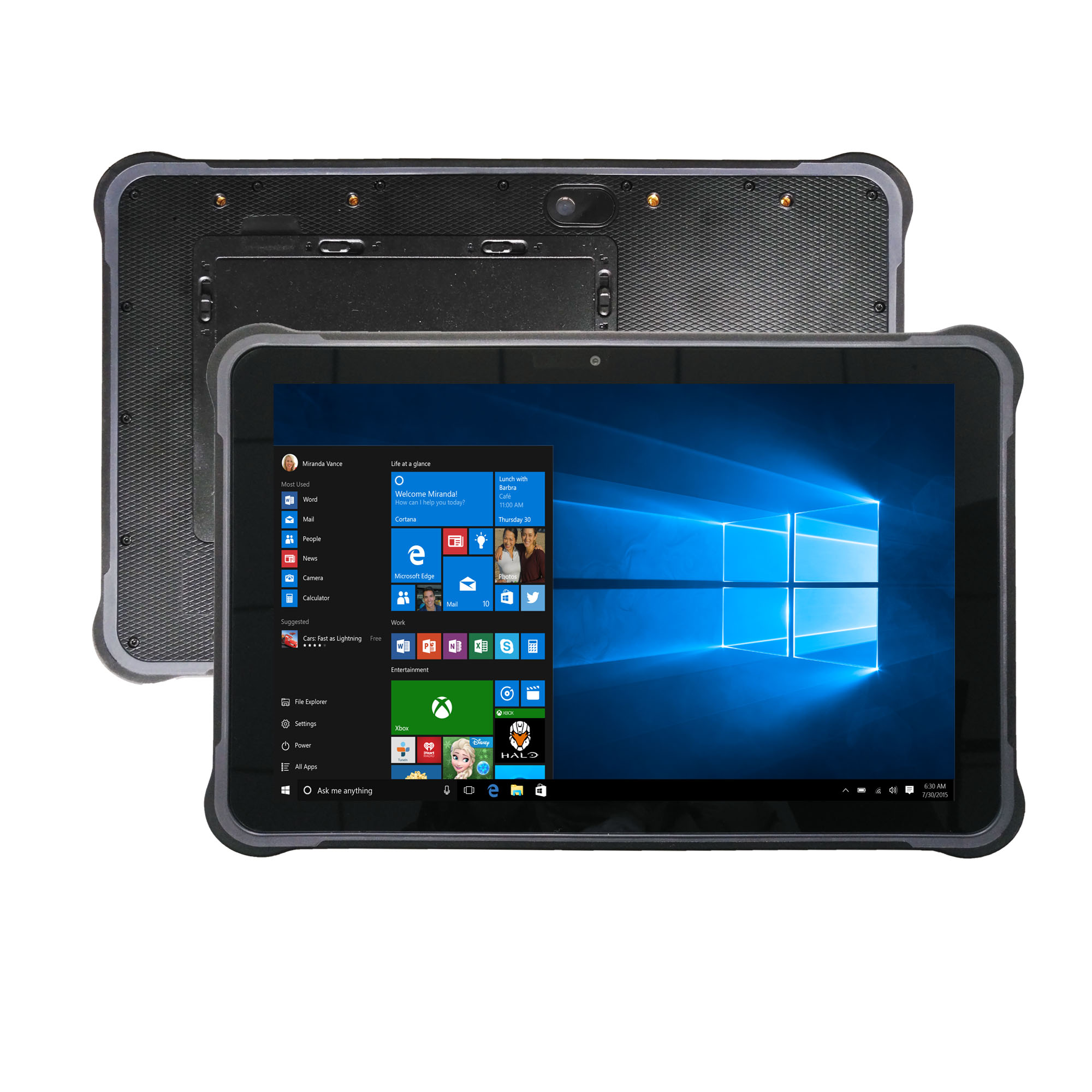

1. android 7.0 and windows 10 Optional
2. 10.1 Inch 1920*1200 solution, max 500 nits and AG protector sunshine readable LCD
3. RAM/ROM 3GB/32GB, 4GB/64GB optional
4. 8400+2100=10500 mAh hot swap battery, 12000mAh big battery optional
5. 4G LTE/WIFI/GPS/BT/NEC

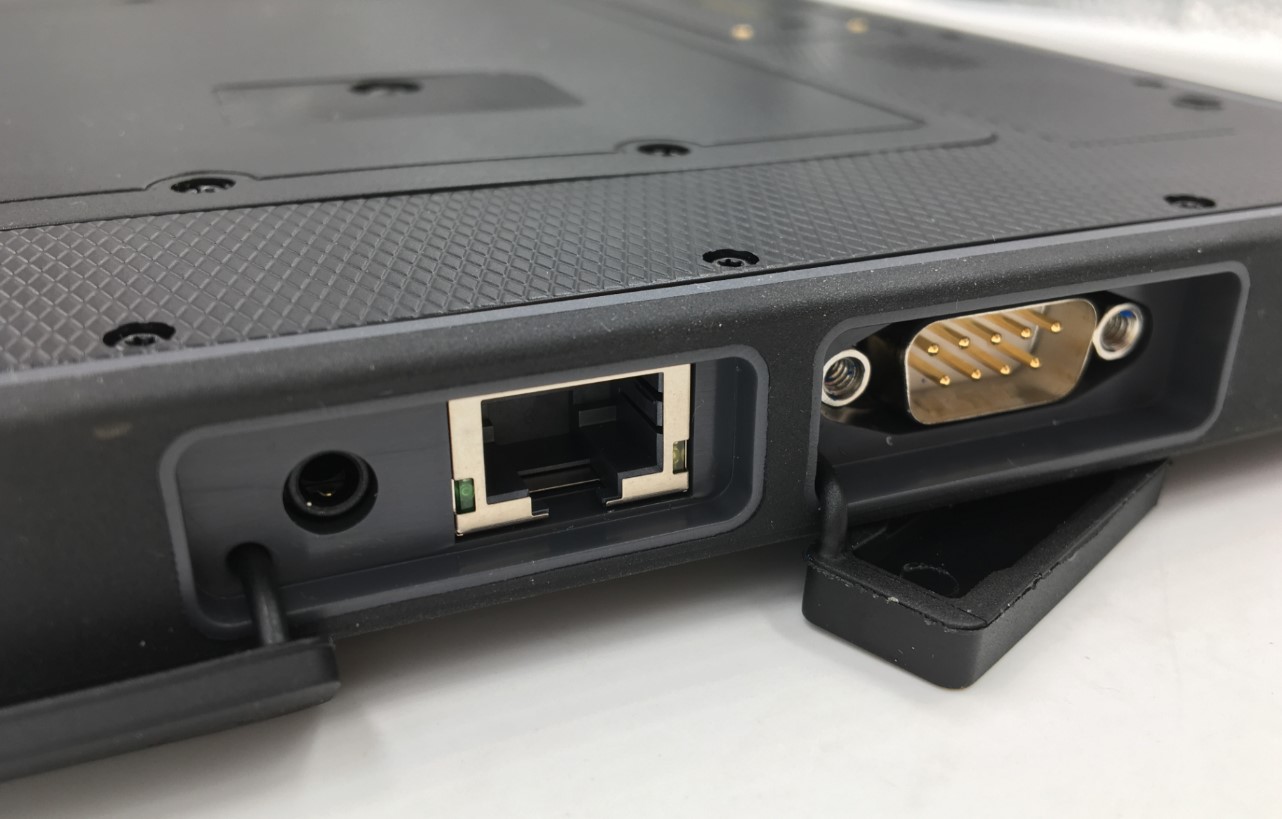

6. POE RJ45, RS232/TTL, USB, micro USB, DC, microphone interface
7. 2D barcode honeywell N3680 optional
8. finger print optional
9. UHF 3-8 meter optional
10. high precision GPS optional, precision is 0.25-1 meter
11. front NFC optional, support mifare one

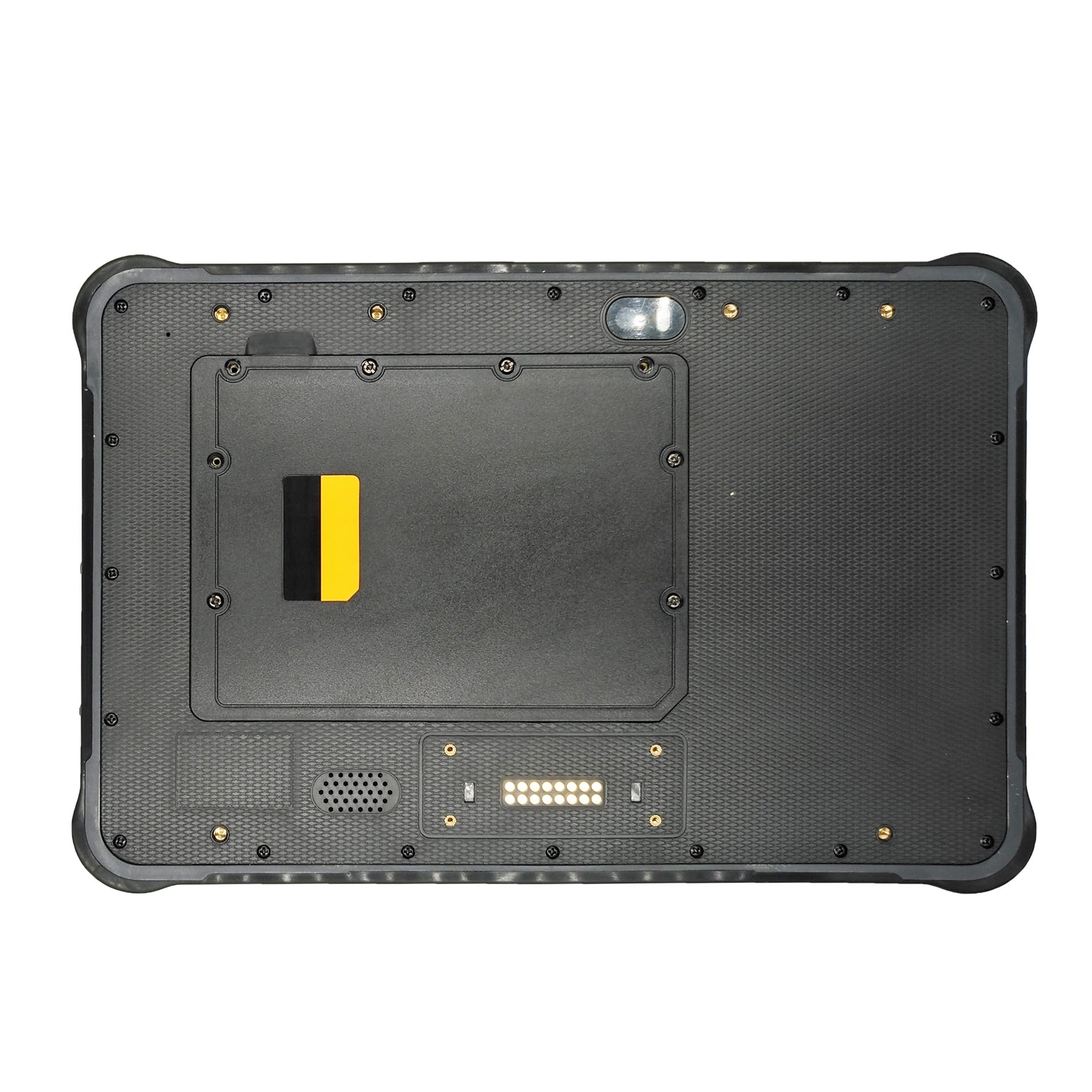

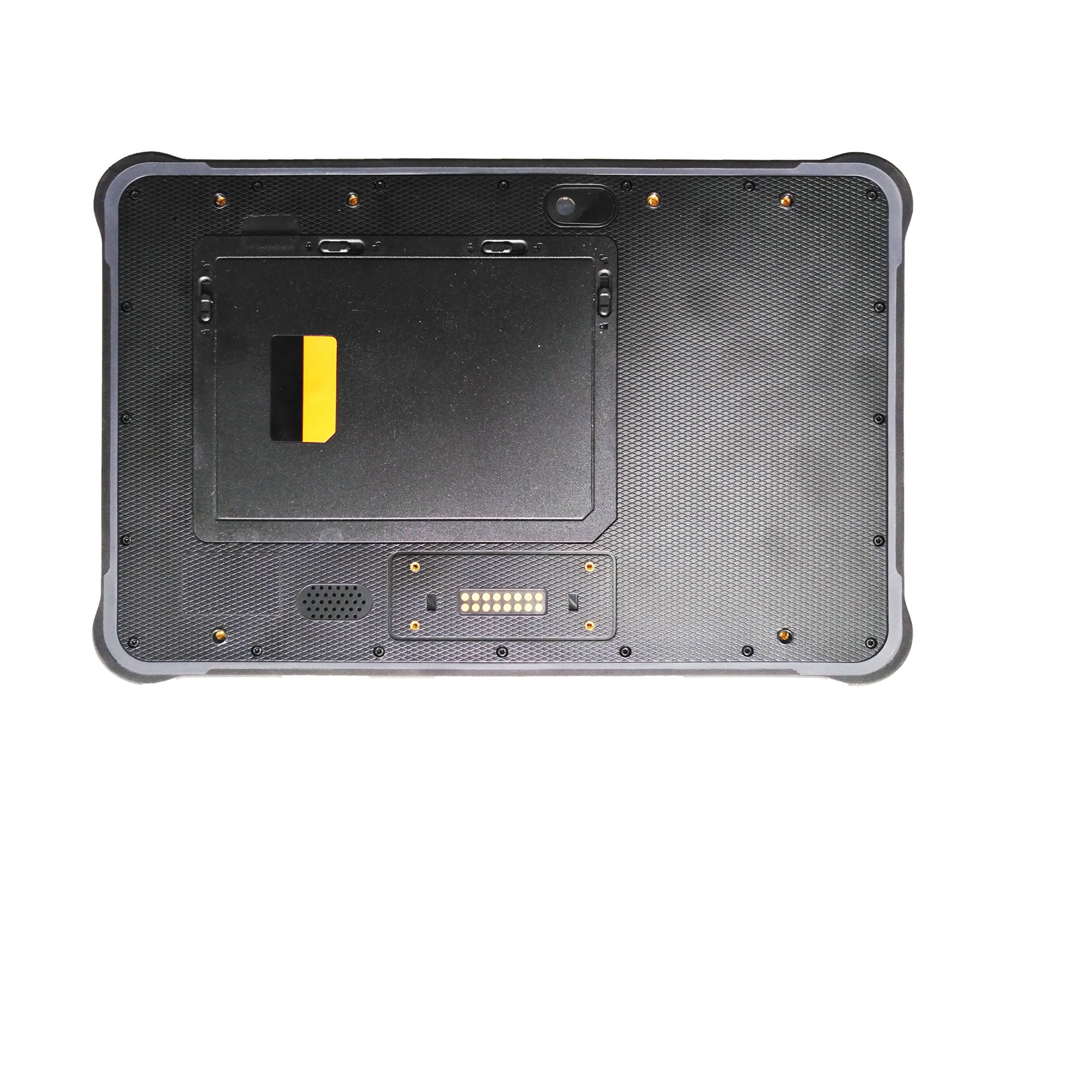

12. bottom and back pogo pin, provide USB and TTL extend.
13. LF 125KHz optional
| OS | android 9.0 | ||
| CPU | MT6771 8 core | ||
| RAM/ROM | 6GB/128GB | ||
| LCD | 10.1 inch1920*1200； | 500 nits sunshine readable | |

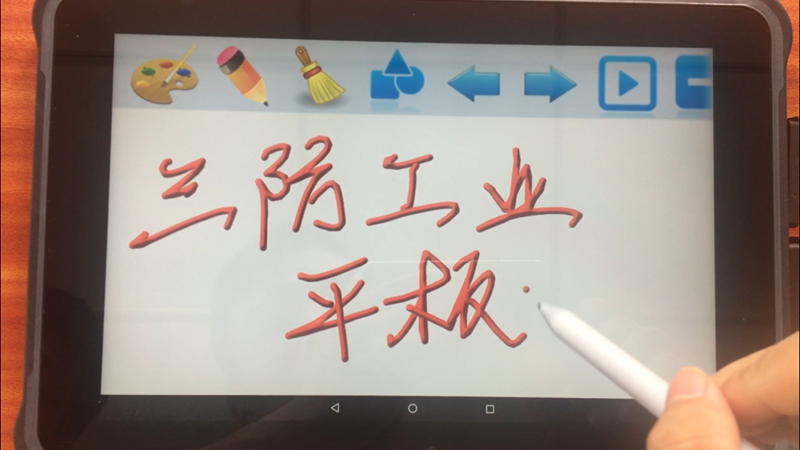

| Touch screen |
10
point touch support tylus support thin glove touch |
||
| Camera | 5M/13M, flash | 5M/13M, flash | |
| Power and battery |
battery
total capacity 10500mAh play video 8 hours, working 10 hours charging 4 hours. |
8400mAh,hotswap,
2100mAh backup power 3.8V 3A imput, support hotswap play video 8 hours, working 10 hours charging 4 hours. |
|
| 3.5*1.35mm, 5V 3A DC in put | Magnetic charger | ||
| WWAN | 4G LTE, 3G WCDMA, GSM |
4G
Fre: FDD: B1,B2, B3,B5, B7, B8, B12， B20 TDD: B38,B39,B40,B41 B34 WCDMA:B1, B8 TD-SCDMA: B34, B39 GSM/GPRS/EDGE |
|
| GPS | baidou,GPS, glonass | ||
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | ||
| BLUETOOTH | 4.0 version | ||
| NFC | RFID 13.56 MHz, distance 5cm or above | ||
| SPEAKER | 1.5 watt | ||
| Sensor |
1.
light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor |
||
| size | 275*178*18mm | ||
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG | |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | ||
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | ||
| language | multi language | ||
|

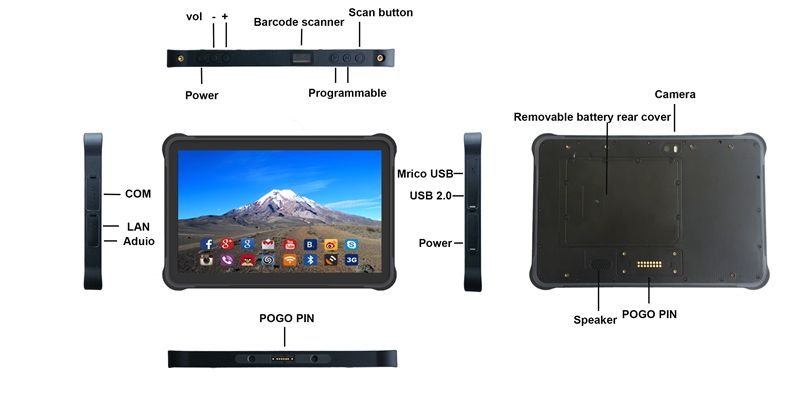

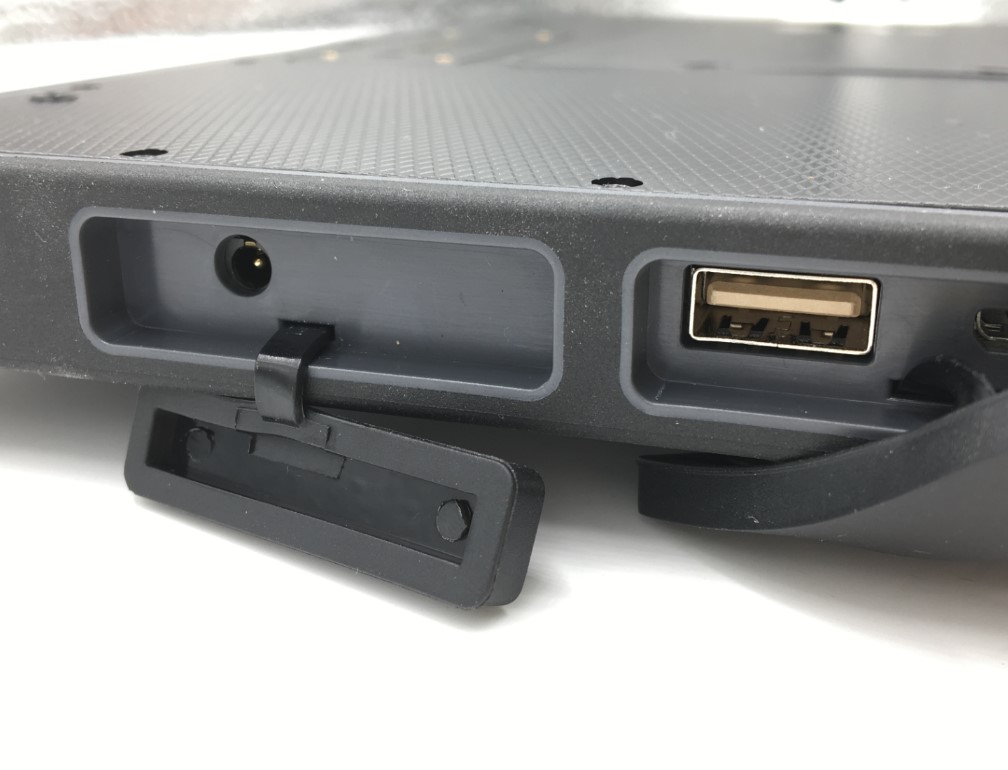

interface in/out port |
1.
normal USB*1 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. mini HDMI 9.RS232*1 |
||
| Pogopin definition |
1.16pin
back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V OUT) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， ) VESA hole 75*75mm or 90*90mm |
||
| casing material | ABS/PC/Rubber TPU/aluminum | ||
| button | V+ -, Power, P, F, H | ||
| 2D barcode module | honeywell N3680 | optional | |
| UHF | 1meter to 10 meter | optional |
|
| fingerprint module | LD-8800-M | optional | |
| accessories |
1.
USB cable 2. charger 3. handstrap 4. car holder 5. docking station 6. car charger 7. white box, no logo |
||
| proof rate |
1.
water proof IP65 2. Drapping proof 1.2 meter |
||
| Certification |
1.
810G 2. CE,FCC |
||
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
