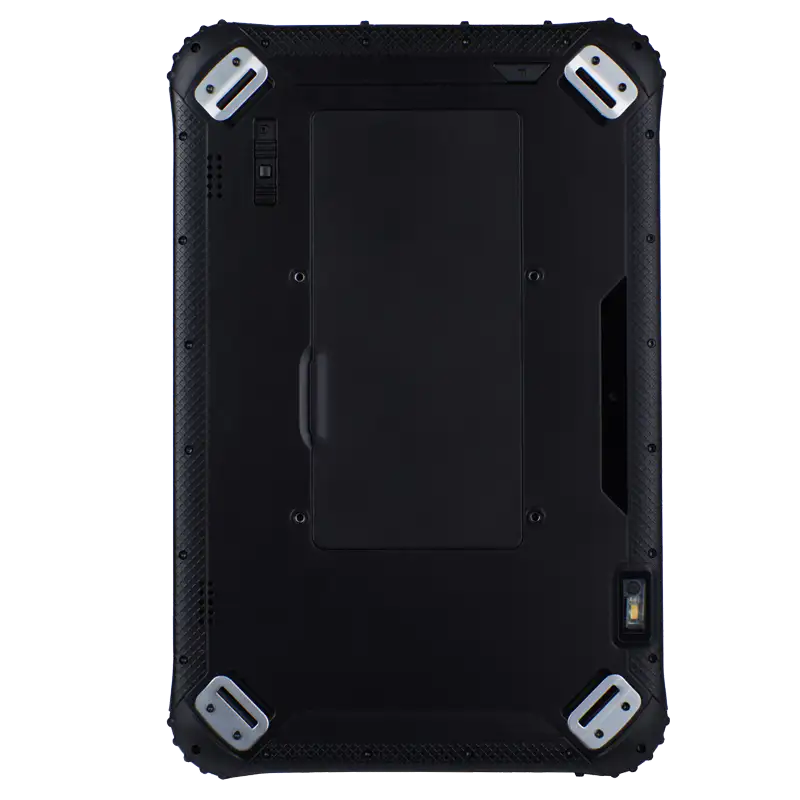

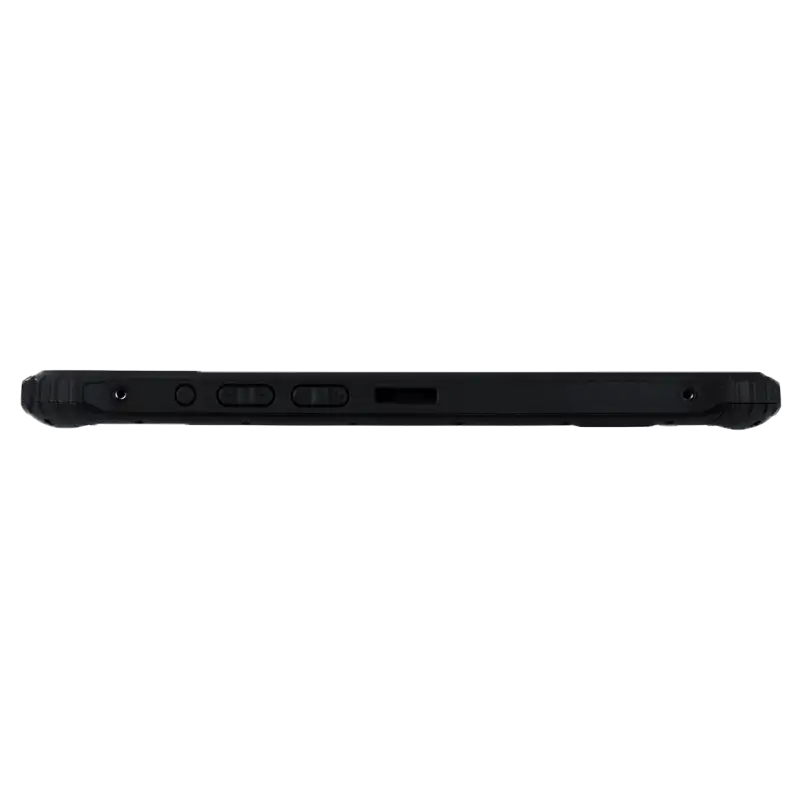

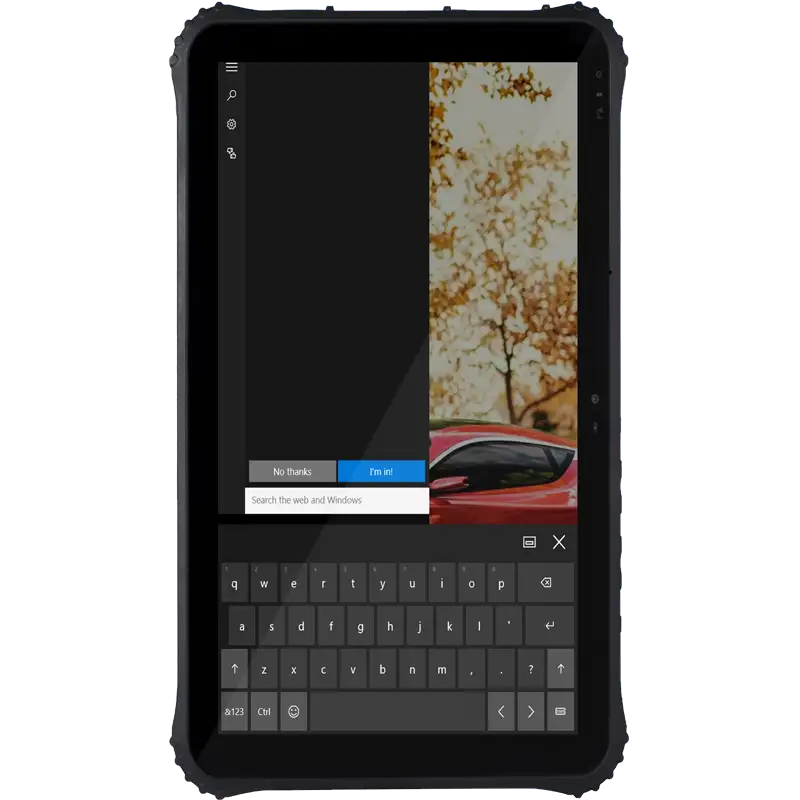

Product Introduction

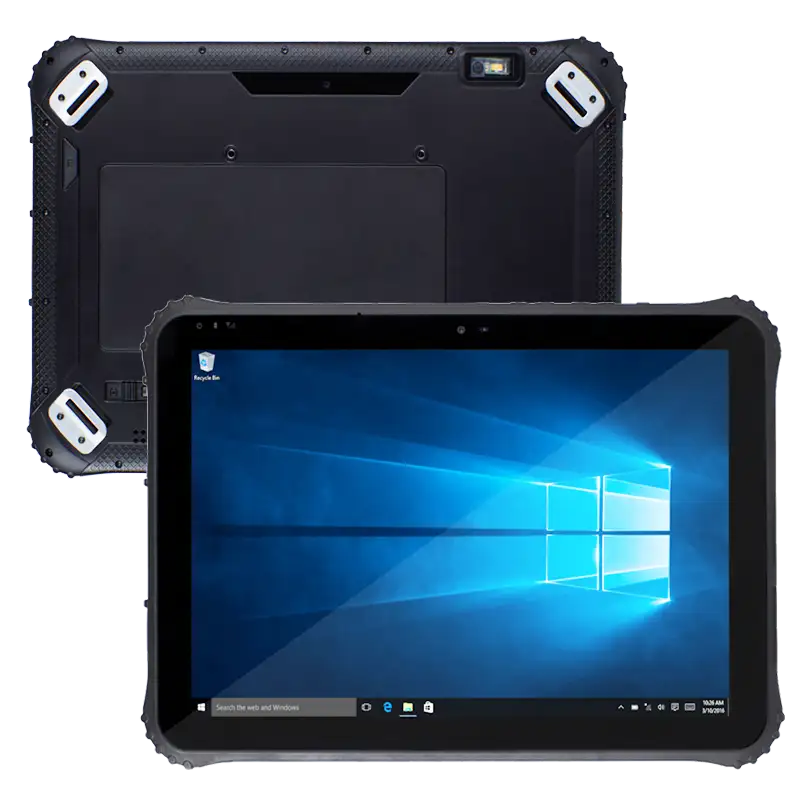

1. 12.2 inch windows 10 pro, IOT, home rugged tablet
2. RAM/ROM 4GB/64GB
3. 4G LTE/WIFI/GPS/BT

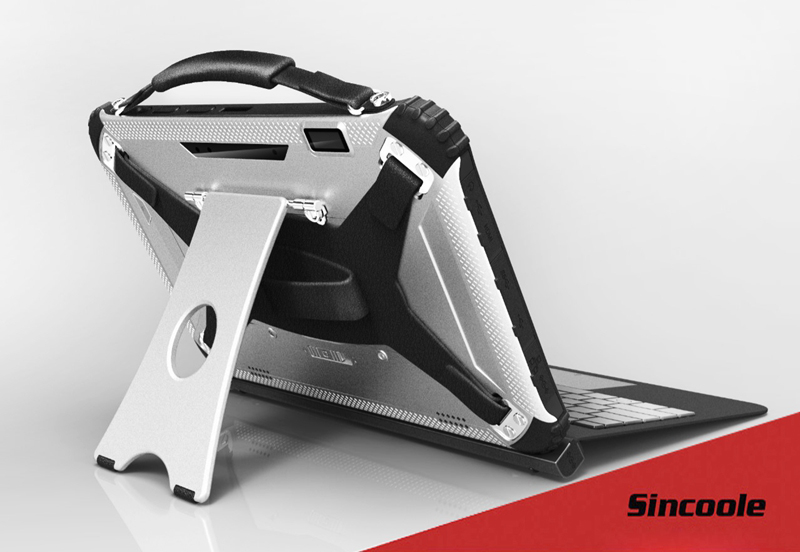

4. Support docking station, handstrap, should strap, hand string for rugged tablet
5. removable, hotswap rugged tablet
| Product Outlook | |||||||
| Type | Details | Standard Configuration | Optional Configuration | ||||

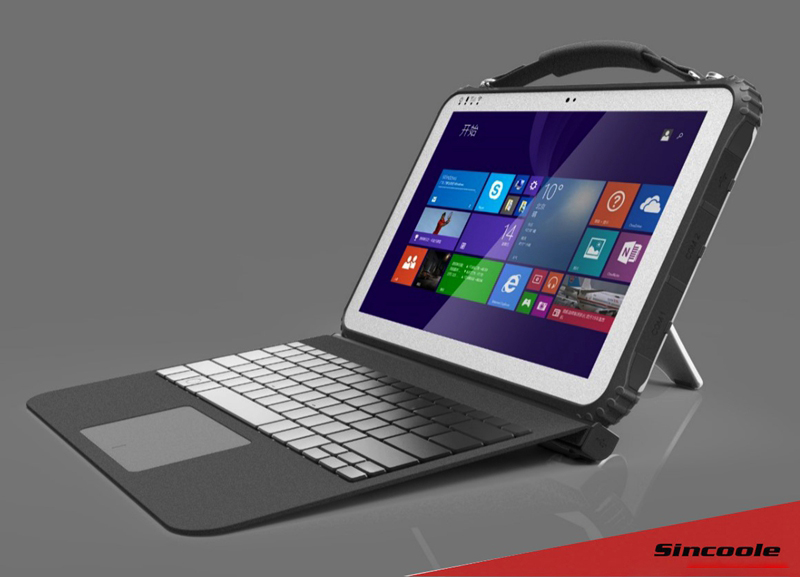

| Product Form | Type | 12.2“ Rugged Tablet(optional keyboard) | NA | ||||
| Dimension | 319.6*216*23.4 mm | NA | |||||
| Weight | Main Unit: 1500g | NA | |||||
| Device Color | Black+silver（Back panel-silver，Front panel-black） | black（back panel-black，front panel-black） | |||||
| LCD | Screen Size | 12.2“ 16:10 | NA | ||||
| Resolution | 1920*1200 IPS screen | NA | |||||
| Brightness | 280Nit | Optional SLR sunlight readable film | |||||
| TP | Touch Panel | 5point capacitive，G+G，Corning gorrila glass, Rigidity: 7H above, anti-scratch，TP thickness：1.1mm，COF，support glove and wet hand touch | Optional SLR sunlight readable film | ||||
| Camera | Front | Front 2.0MP | NA | ||||
| Rear | rear 5.0MP | NA | |||||
| Speaker | Built-in | built-in 8Ω/0.8W water-proof speaker x2 | NA | ||||
| Mic | Built-in | sensivity:-42db, Output resistance:2.2kΩ | NA | ||||
| Battery | Type | Lithium-ion polymer / swappable | NA | ||||
| Capacity | 13000mHA/3.7V | NA | |||||
| Endurance | 8hrs (default 50%volumn，default 200lumens brightness，play 1080P HD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Descriptions | |||||
| CPU | Type | intel cherrytrail Z8300 | NA | ||||
| Speed | 1.44Ghz-1.84GHz | NA | |||||
| GPU | Type | Intel® HD Graphics | NA | ||||
| RAM | DDR3L | 4GB | 2GB | ||||
| ROM | Emmc | 64GB | 16G/32G/128G | ||||
| compass | Built-in | compass | NA | ||||
| gyroscope | Built-in | gyroscope | NA | ||||
| G_sensor | Built-in | gravity sensor | NA | ||||
| Internet Connections | |||||||
| Type | Details | Description | |||||
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n) Frequency:2.4G+5.8G dual bandWIFI | NA | ||||
| Bluetooth | Built-in | BT4.0 (BLE) class1 transmission distance：10m | NA | ||||
| 3G | Built-in | NA |
FIBOCOM_H380 M.2 band：GSM/GPRS/EDGE Band(850&900&1800&1900 MHZ), WCDMA Band(850&900&1900&2100MHz)，HSDPA 21Mbps，HSUPA 5.76 Mbps |
||||
| 4G | Built-in | NA |
ME936 LTE M.2
LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
WCDMA/HSDPA/HSUPA/HSPA+ :850MHZ/900MHZ/1700 MHZ(AWS)/1900MHZ/2100MHZ
GPRS/EDGE:850MHZ/900MHZ/1800MHZ/1900MHZ
GPS/GLONASS:L1
|
||||
| GPS | Built-in | U-blox NEO-7,Support:GLONASS,QZSS,GPS;Sensitivity:-160 dBm；Cold start：<30S，Hot start：<28S，Frequency：0.25 Hz … 10 MHz (configurable) | NA | ||||
| NFC | Built-in | NA | NXP NFC 13.56MHz Support ISO/IEC : 14443A/14443B/15693/18092/mifare protocol，read card distance：4cm | ||||
| Data Collection | |||||||
| Type | Details | Description | |||||
| 1D barcode scanner | Optional | NA | Honeywell N4313 | ||||
| Optical Position: 5mil | |||||||
| Scan speed: 50/s | |||||||
| Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 | |||||||
| 2D barcode scanner | Optional | NA | Honeywell N3680 hardware decoder | ||||
| Optical Resolution:5mil | |||||||
| Scan speed:50/s | |||||||
|
Symbol system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
|
|||||||
| Connectors | |||||||
| Type | Details | Description | |||||
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max：64G | NA | ||||
| SIM card slot | 3G/4G communication | SIM card x1 | NA | ||||
| USB connector | Extensive external memory and data transfer | USB 2.0*2 (4pin) （Host）for windows | NA | ||||
| USB 3.0*1 (9pin) | NA | ||||||
| MICR USB connector | USB2.0 | MICR USB x1 | NA | ||||
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 | NA | ||||
| DC Jack | Power | DC 12V 2A ∮3.5mm power adaptor x1 | NA | ||||
| HDMI | Video Output | HDMI 1.4a x1 | NA | ||||
| Serial port connector | Serial Port | DB9 (RS232,RS485) ×2 | NA | ||||
| RJ45 connector | Ethernet port | 10/100Mbps ×1 | NA | ||||

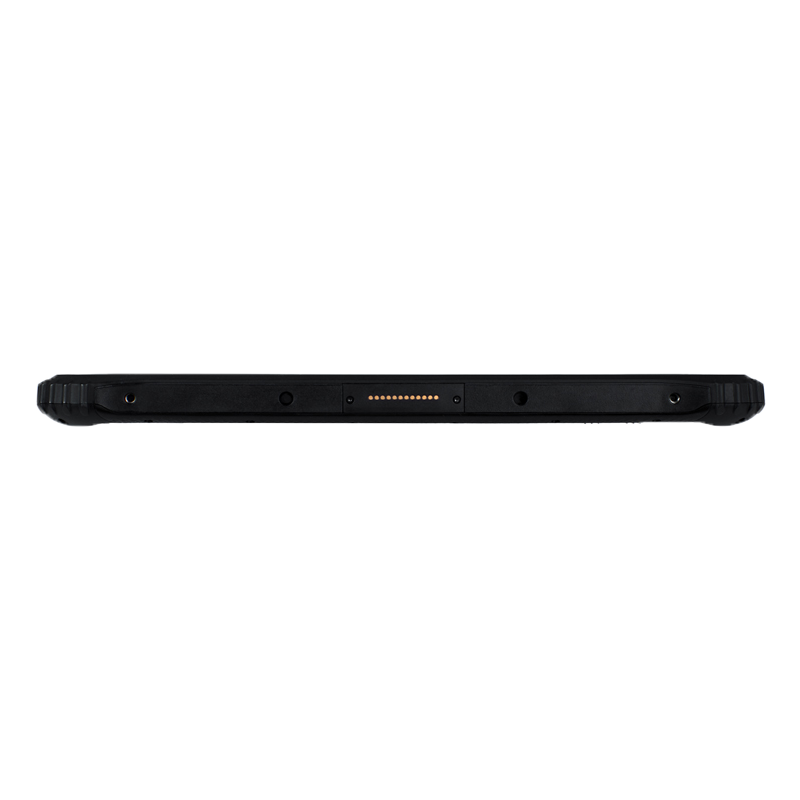

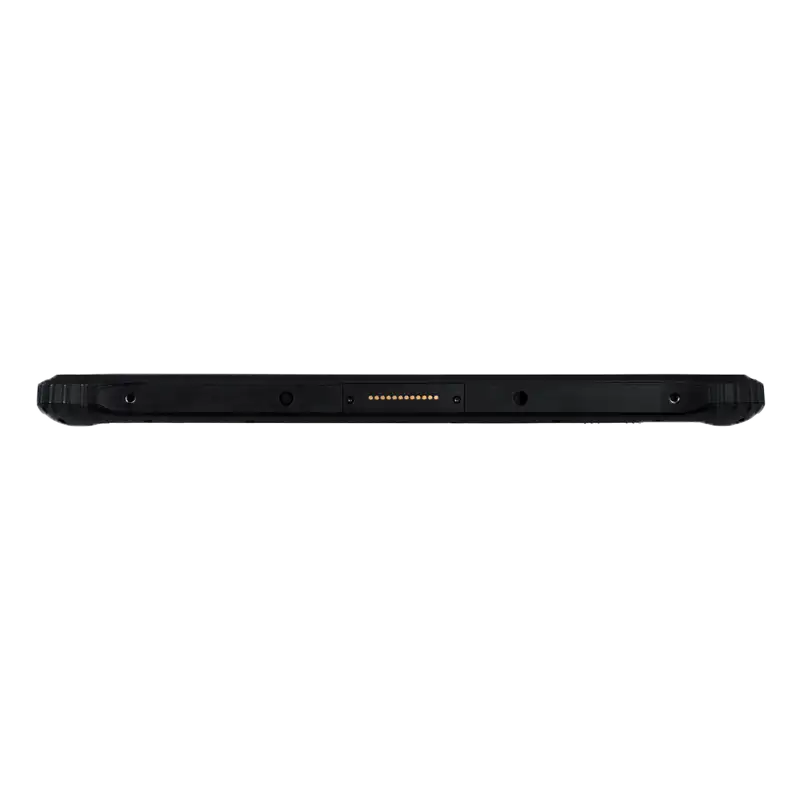

| Extensive connector | pogo Pin | 12pin Pogo Pin x1 | NA | ||||
| Button Key | |||||||
| Type | Details | Description | |||||
| power | On/Off | x1 | NA | ||||
| volume | volume up/volume down | volume+- x2 | NA | ||||
| F KEY | Scanner | Code scanner(back of unit) x1 | NA | ||||
| program | Program Key | Self define key x2 | NA | ||||
| Standard Accessories | |||||||
| Type | Details | Description | |||||
| USB Cable | USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable | NA | ||||
| Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 12V/2A USA standard CE approved | USA standard | ||||
| EU Standard | |||||||
| Software Configuration | |||||||
| Type | Details | Description | |||||
| Operation System | OS version | windows 10 Home 32bit non-activated Default language：English; Android5.1 | windows 10 Home 64bit | ||||
| Windows10 Pro 32bit /64bit | |||||||
| Windows 10 enterprise 32bit /64bit | |||||||
| Emdbedded 8.1 Industry Pro 32bit | |||||||
| Product Certificate | |||||||
| Type | Details | Description | |||||
| Certificate System | IP65 |
IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X Report ID no.：SET2015-07677
a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min；
c. Water Pressure：adjust according to water volumn；
d.Central part of water volumn：diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel：about 1min；f.test time：at least 3min；
g.distance between nozzle and panel surface：2.5～3m。
After test，there is no water leakage in sample.
|
T1 will be offered for testing | ||||
| CE | T2 will be offered for testing | ||||||
| 810G | T2 will be offered for testing | ||||||
| Reliability | |||||||
| Type | Details | Descriptions | |||||
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | |||||
| Operate Temperature | ‘-20 °C to 60 °C -4 °F to 140 °F | ||||||
| Store Temperature | ’-30 °C to 70 °C / -22 °F to 158 °F | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
|
Product feature：
1.Support Windows 10 & Android5.1；
2.Support all sizes of USB2.0 & USB3.0 connector；
3.Support NXP NFC(13.56M）；
4.Support GPS Navigation；
5.Support 1D/2D barcode scanner；
6.Support standard DB9 connector(RS232,RS485)；
7.Rugged IP65 protection level；
8.Support 13000mAh loadable batteries；
9.Support High strengthened glass touch panel,gloves and wet hand touch；
10.Support gigabit network interface；
11.Support wrist strap and leather keyboard;
|
|||||||
