Product Introduction
| ITEM | DESCRIPTION | detail |
| OS | windows 10 home/pro/iot | |
| CPU | intel cherry trail Z8350 | |
| RAM/ROM | 4GB/64GB | |
| LCD | 10.1 inch1920*1200 | 500 nits sunshine readable |
| Touch screen |
10
point touch support tylus support thin glove touch |
|
| Camera | 2M/5M | |
| Power and battery |
battery
total capacity 10500mAh 8400+2100 play video 8 hours, working 10 hours charging 4 hours. |
3.7V |
| 3.5*1.35mm, 5V 3A DC in put | Magnetic charger | |
| WWAN | 4G LTE, 3G WCDMA, GSM |
4G
Fre: FDD: B1,B2, B3,B5, B7, B8, B12， B20 TDD: B38,B39,B40,B41 B34 WCDMA:B1, B8 TD-SCDMA: B34, B39 GSM/GPRS/EDGE |
| GPS | baidou,GPS, glonass | u-blox |
| wifi | 802.11a b c, g,n wireless internet Wireless AP ( Mobile AP )2.4G, 5G | intel 3165, support windows update |
| BLUETOOTH | 4.0 version | |
| NFC | 13.56 MHz, distance 5cm or above | |
| SPEAKER | 1.5 watt | |
| Sensor |
1.
light sensor 2. acceleration/gravity |
|
| size | 275*178*18mm | |
|
Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG |
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |
| language 语言 | multi language | |
|
interface in/out port |

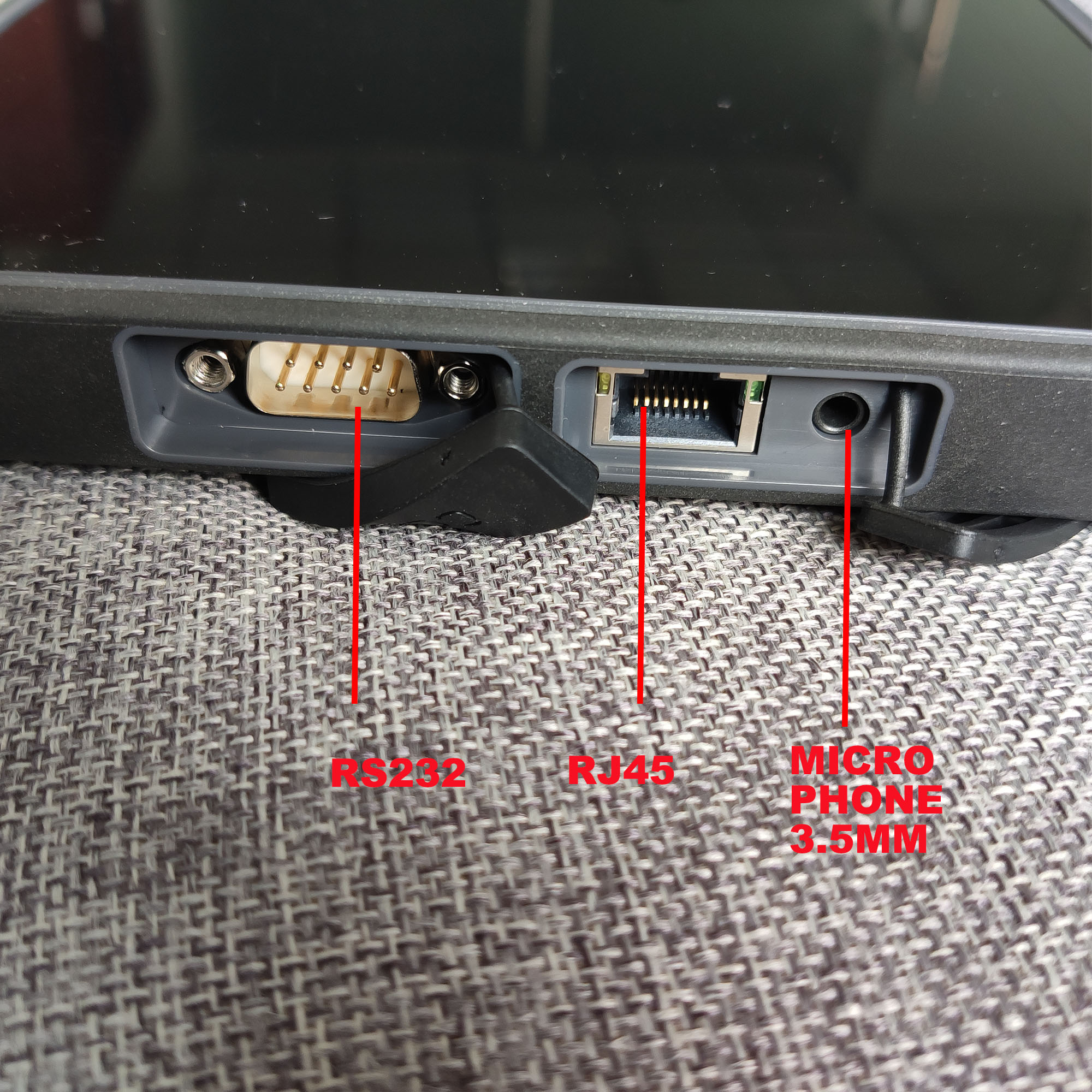

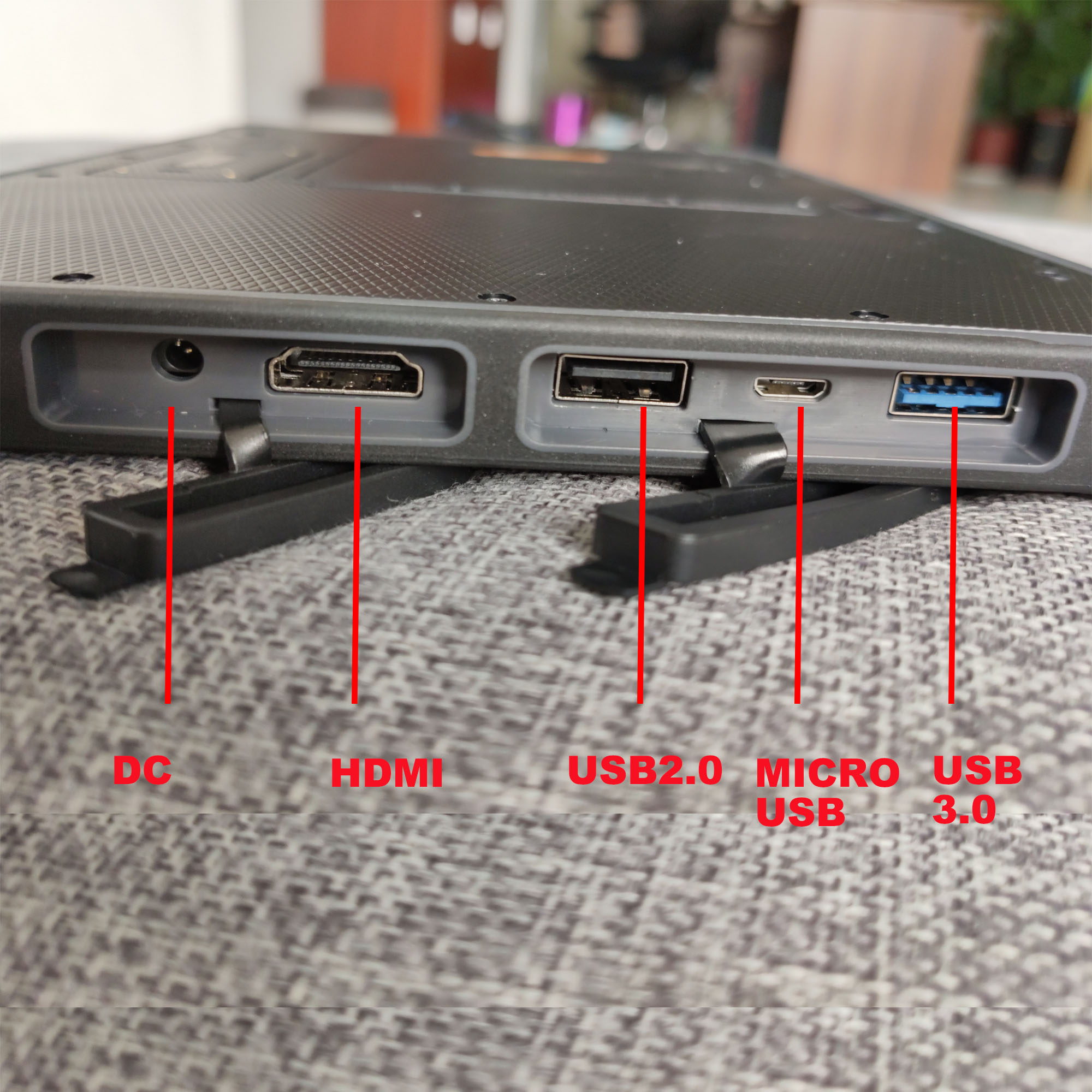

1.USB*2 2. Micro USB*1 3. RJ45*1 4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. mini HDMI 9.RS232*1 |
|
| Pogopin definition |
1.16pin
back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V) 2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V) VESA hole 75*75mm or 90*90mm |
|
| casing material | ABS/PC/rubber TPU/aluminum | |
| button | V+ -, Power, P, F, H | |
| 2D barcode module | honeywell N3680 | optional |
| fingerprint | optional | |
| accessories |
1.
USB cable 2. charger 3. handstrap 4. car holder 5. docking station 6. car charger 7. white box, no logo |
|
| proof rate |
1.
water proof IP65 2. Drapping proof 1.2 meter |
|
| Certification |
1.
810G 2. CE,FCC |
|
| Temperature |
1.
storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree |
