Product Introduction
| Type | Details | Standard Configuration | Optional | ||||

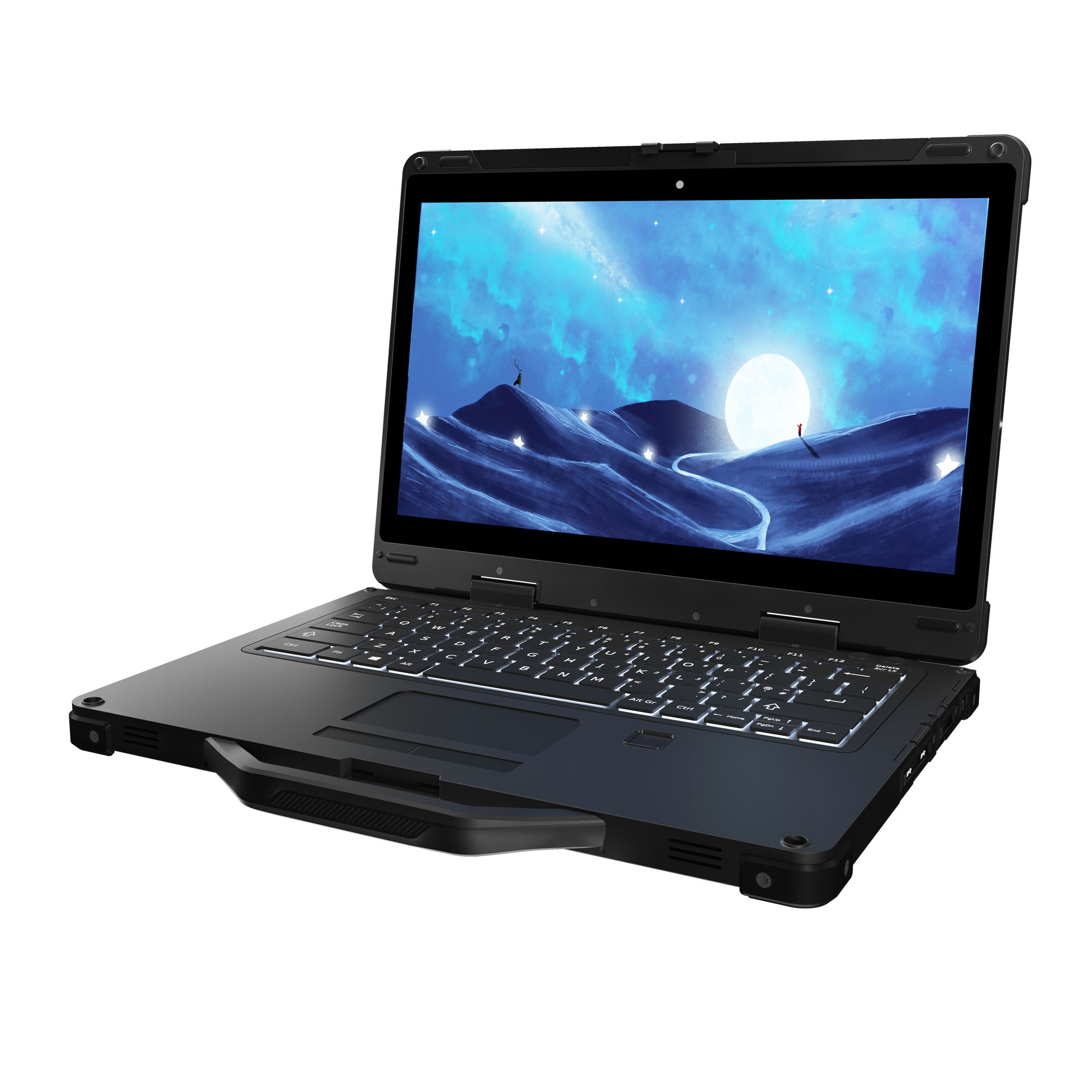

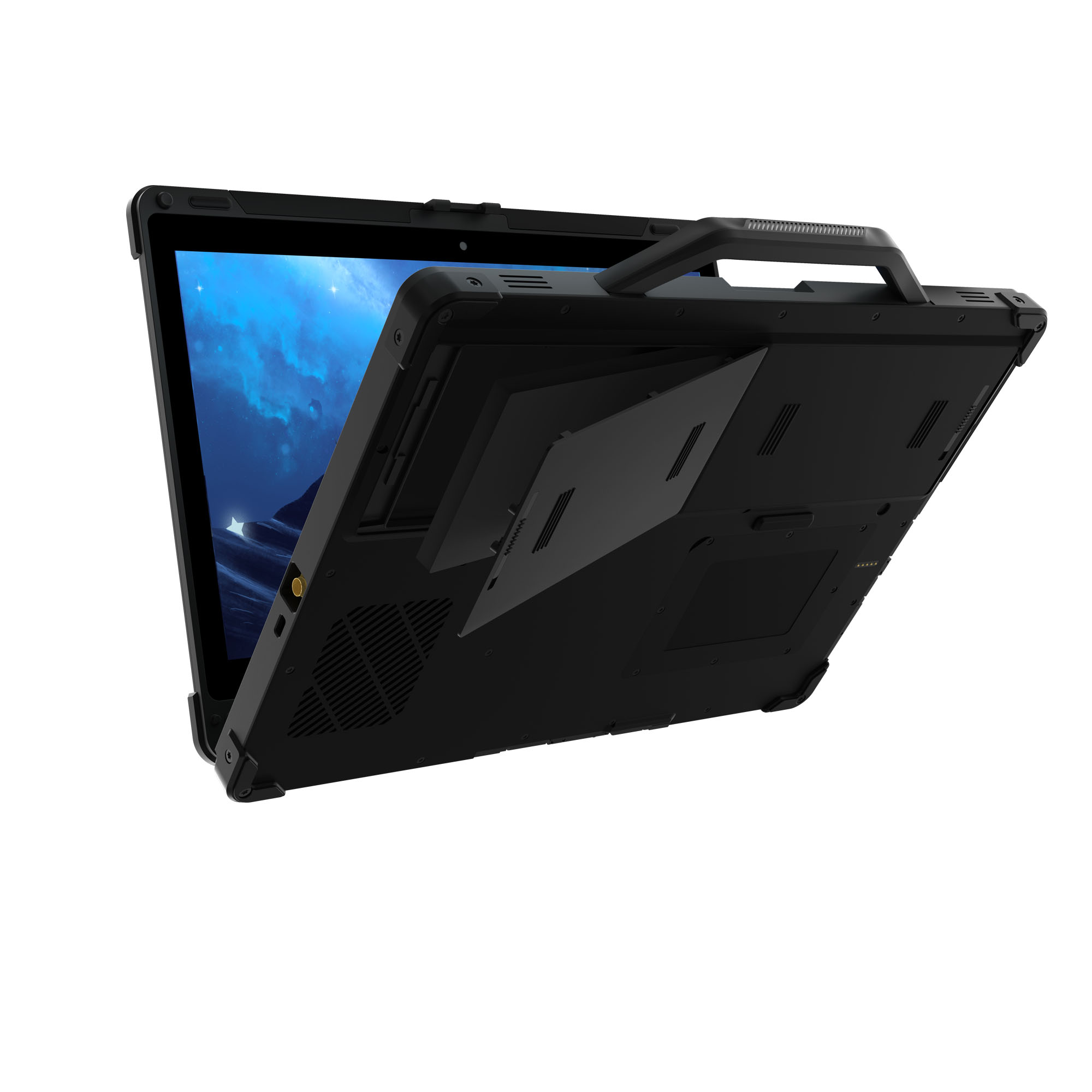

| Product Form | Type | 13.3 inch Full-rugged Netbook | NA | ||||
| Dimension | 322*233*26 mm (Host) | NA | |||||
| Weight | 2.1KG | NA | |||||
| Device Color | Black | NA | |||||
| LCD | Screen size | 13.3“ 16:9 | NA | ||||
| Resolution | 1920(H)×1080(V) FHD | NA | |||||
| Brightness | 400cd/㎡ | NA | |||||
| TP | Touch panel | NA | 10 point touch capacitive，G+G，Rigidity: 7H up, Anti-scratch，Support glove touch | ||||
| Camera | Front | Front 2.0MP ，Anti camera LED | NA | ||||
| Speaker | Built-in | Built-in 8Ω/1W x2 | NA | ||||
| Mic | Built-in | ×2 Internal Digit MIC | NA | ||||

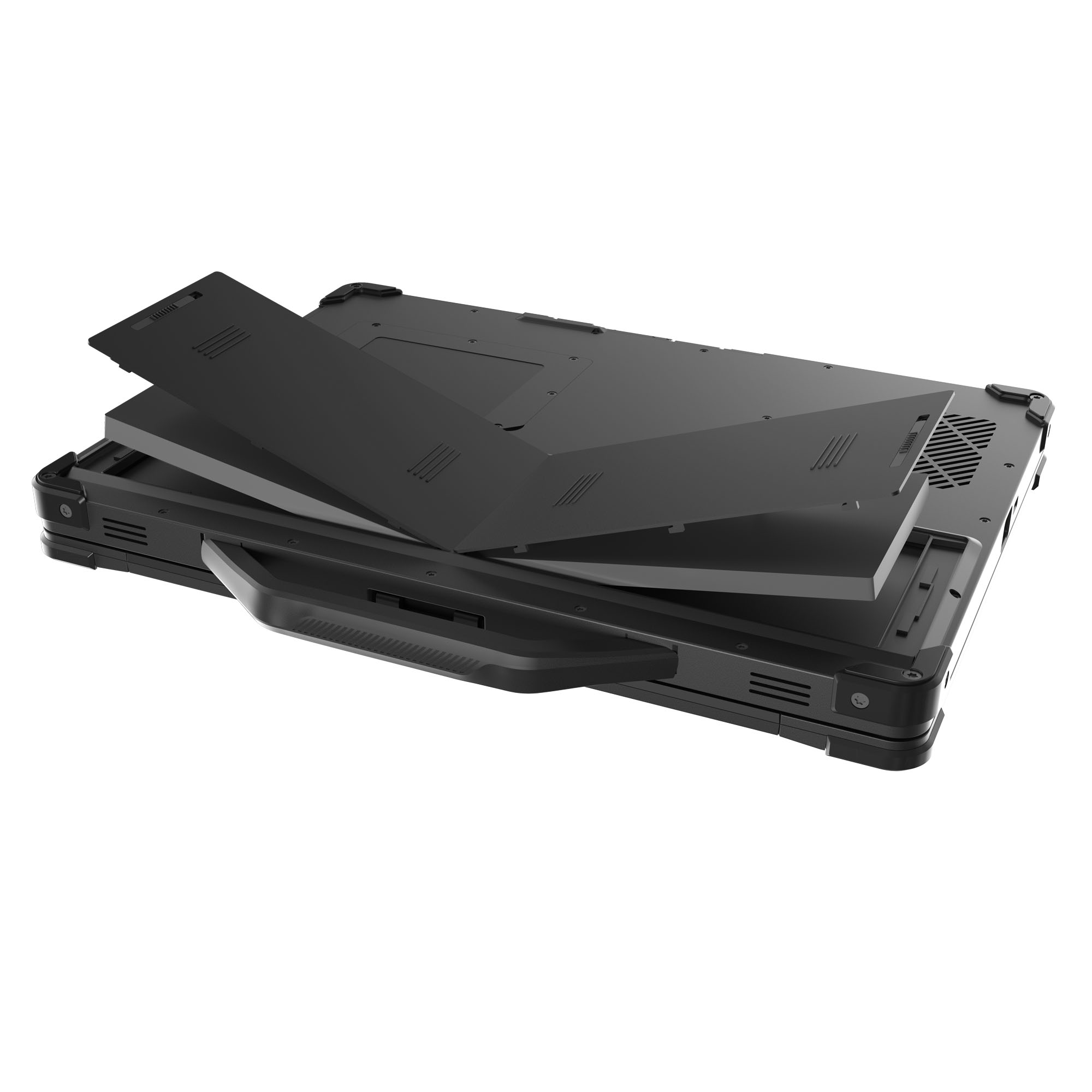

| Battery（Pluggable） | Type | ×2 External polymer lithium ion battery | NA | ||||
| Capacitive | 5600mAh/11.1V (2800mAh/11.1V x2 ) | NA | |||||
| Endurance | 10hrs(Default 50% volume，default 200 nit，Play 720P HD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Decription | Optional | ||||
| CPU | Type | i5-1135G7 (11th Generation Intel Tiger Lake UP3 -28W) | NA | ||||
| Speed | Processor 4 core 8 threads, processor base frequency 2.40 GHz, maximum frequency 4.20 GHz | NA | |||||
| GPU | Type | Gen 12 Intel® Iris® Xe Graphics | NA | ||||
| RAM | DDR4L | 8GB | 16GB | ||||
| SSD | NGFF SSD | 256GB | 512GB | ||||
| TPM | Built-in | Built-in TPM2.0 SLB9665T | NA | ||||
| Hall switch | hall | hall | NA | ||||
| Keyboard | keyboard | 78 key, with LED backlight | NA | ||||
| Network Connections | |||||||
| Type | Details | Decription | Optional | ||||
| WIFI | WIFI Modle | Intel AX200: support wi-fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax | NA | ||||
| Bluetooth | Built-in | Bluetooth V5.1 | NA | ||||
| 4G | Built-in | NA |
M. 2 interface
(EM)_ YY4GM2_ PCB_ V11R1 PCBA(EC25-EC)) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (Unicom Telecom, mobile support is not good, only B8 support, no TDD band) Europe, Middle East, Africa, Taiwan, Japan |
||||
| GPS | Built-in | NA | U-blox neo-7 support satellite: GPS; acquisition sensitivity: - 160 DBM; cold start time: < 50 seconds, hot start time: < 28 seconds, frequency: 0.25 Hz 10 MHz (configurable) | ||||
| Data Collection | |||||||
| Type | Details | Decription | Optional | ||||
| Fingreprint | Built-in | ×1 SPI fingreprint(Power on login) | NA | ||||
| Interface | |||||||
| Type | Details | Decription | Optional | ||||
| USB3.0 | USB3.0 | USB3.0*3 | NA | ||||
| Type C | Type C | x1 Thunderbolt 4 | NA | ||||
| Earphone Jack | Earphone Jack | ∮3.5mm Standard earphone jack x1 host | NA | ||||
| HDMI | HDMI | HDMI x1 （type-A） | NA | ||||
| SD Card | SD Card | SD Card x1 | Inside the battery compartment | ||||
| SIM Card | SIM Card | SIM Card x1 | |||||
| DC | DC Jack | DC 19V 3.42A power jack x1 | NA | ||||
| Serial port | Serial port | DB9 (RS232) ×1 | NA | ||||
| RJ45 port | Internet port | x1（10/100/1000M Self-adaption） | NA | ||||
| Burglar lock hole(Right） | Kensington | Kensington x1 | NA | ||||
| Heat dissipation air outlet(Right) | Heat dissipation air outlet(Right) | Heat dissipation air outlet(Right) x1 | NA | ||||
| Left extension dock | Left extension dock | NA | ×1 External GPS antenna | ||||
| POGO PIN | POGO PIN | NA | Pogo 5pin (USB interface definition) | ||||
| Button | |||||||
| Type | Details | Decription | Optional | ||||
| power | Power Button | x1 | NA | ||||
| P1 | P1 | Used to lock or open screen ×1 | NA | ||||
| Indicator light | |||||||
| Type | Details | Decription | Optional | ||||
| power | Built-in | ×1 Light color is blue when boot(Blue will not too bright), Light off when machine closed. | NA | ||||
| baterry 1 | Built-in | ×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low - power, it is not bright when discharge. | NA | ||||
| baterry 2 | Built-in | ×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low - power, it is not bright when discharge. | NA | ||||
| Caps lock | Built-in | ×1 | NA | ||||
| Standard Accessories | |||||||
| Type | Details | Decription | Optional | ||||
| Power Adaptor | Standard | 100~240V Input 19V3.42A/65W output USA standard CE approval | USA standard | ||||
| EU standard | |||||||
| Software Configuration | |||||||
| Type | Details | Decription | Optional | ||||
| OS | OS version | Windows 10 home 64bit OS | windows 10 IOT 64bit | ||||
| Windows10 Pro 64bit | |||||||
| Windows 10 enterprise 64bit | |||||||
| Product Certificate | |||||||
| Type | Details | Decription | Optional | ||||
| Certificate System | IP65 |

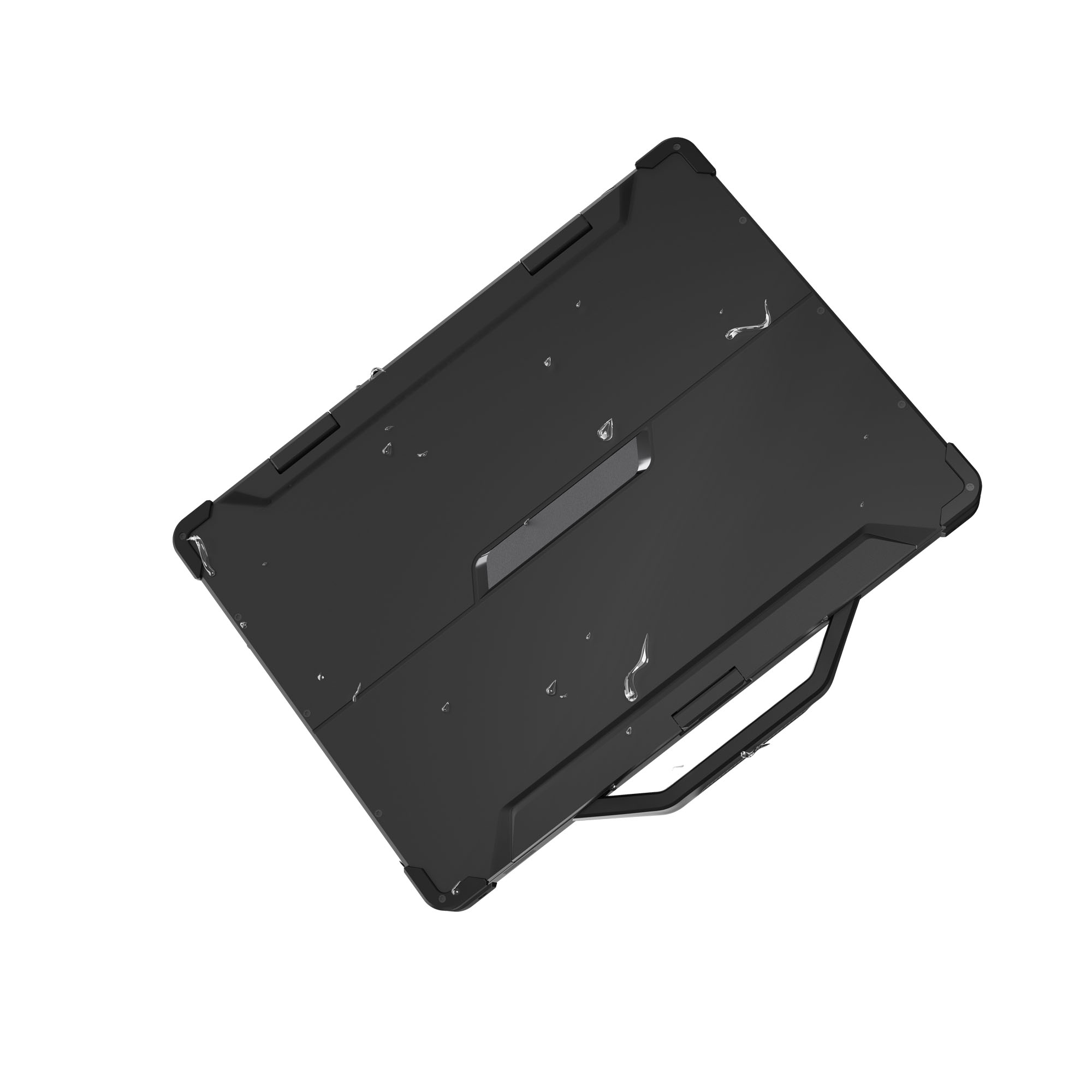

IP65 Report：Water Resistance：IP-X5，Dust
Resistance：IP-6X a.Inner Nozzle Diameter：6.3mm； b. Water Speed：12.5±0.625L/min； c. Water Pressure：Adjust according to water flow； d.Central part of water flow ：A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter；f.Test time：at least 3min； g.Distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. |
NA | ||||
| Certificate | CE,RoHS,CCC,MIL-STD-810G, | FCC | |||||
| Reliability | |||||||
| Type | Details | Decription | Optional | ||||
| Product Reliability | Drop Height | MIL-STD-810G 1.22m drop | |||||
| Operate Temperature | ‘-20 °C to 60 °C | ||||||
| Store Temperature | ’-30 °C to 70 °C | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
|
Product feature： 1. Intel? 11 CPU with built-in GPU 2. It supports windows 10, IOT and system; 3. Rich interfaces and support thunderbolt 4; 4. Support the latest WiFi 6, Bluetooth 5.1 5. IP65 protection grade of three proofs; 6. Double battery design, hot swap battery; 7. Support high-strength glass touch screen of Corning gorilla and glove touch; |
|||||||
