Product Introduction
| OS | Android 14 | |
| CPU | MTK MT6877 Octa Core; 2.4GHz |
6x
Cortex-A55 @2.0GHz 2x Cortex-A78 @2.4GHz |
| GPU | Arm Mali-G68 | |
| RAM/ROM | 8GB/256GB | 16GB/512GB optional |
| LCD | 10.1 inch; 1200*1920；TFT |
350nits
(TYP) 400nits (MAX) |
| Touch Screen | 10 Point Touch | Support stylus |
| Camera | Front: 5MP; Rear: 13MP | |
| Power and Battery | 10000mAh / voltage 3.8Vdc(38.0Wh) | |
| WWAN |
GSM:B2/B3/B5/B8 WCDMA:B1/B2/B5/B8 FDD-LTE:B1/B3/B5/B7/B8/B20/B28/B6/B18/B19 TDD-LTE:B34/38/39/40/41(N) NR:N3/N28/N41/N77/N78 |
|
| GPS | BDS, GPS, GLONASS | |
| WIFI |
802.11a/b/g/n/ac
Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
|
| BLUETOOTH | 5.0 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO/IEC 14443 A/B，ISO/IEC 15693 |
| MIC | -42db, 2.2kΩ | |
| SPEAKER | 40x22.59x3.1mm, 8Ω 1W | |
| Sensor |
1.
G-sensor 2. Magnetic sensor 3. Gyroscope |
|
| Size | 252.0*168.0*13.8mm | |
| Weight | 800±50g | |
| Language | Multi language | |
|
Interface In/Out Port |
Type-C *1 | |
| Button | Power, V+ -, "SOS" | Scanner version, "SOS" changed to "Scan" |
| 1D/2D Barcode | optional | NLS-N1 optional |

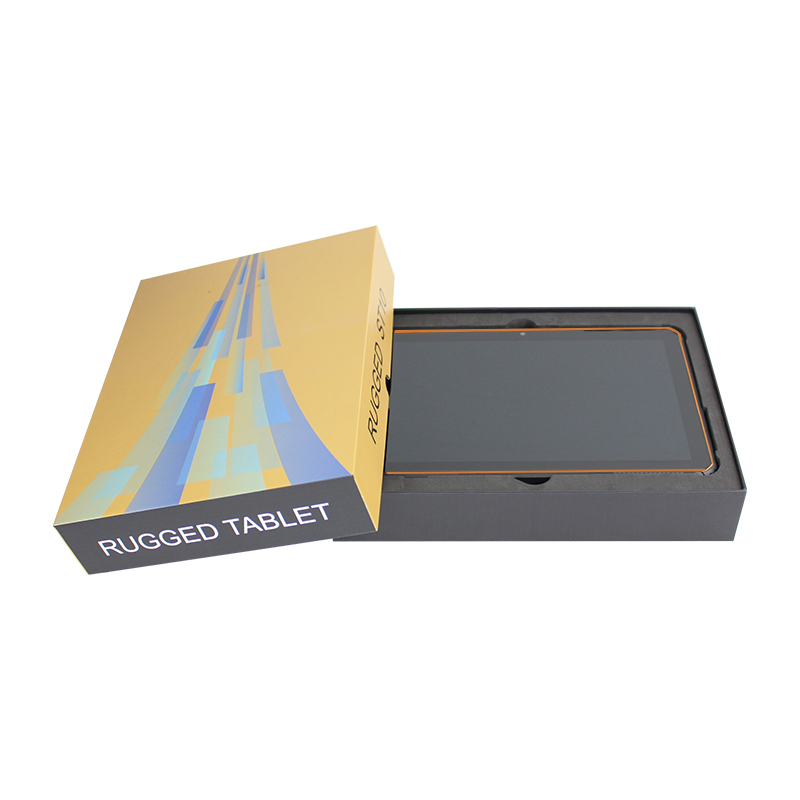

| Accessories |
1.
Packaging box 2. DC Charger (5V 3A) |
|
|
Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree |
Anti-dust
& Waterproof IP65 Dropping Resistance 1.2 meters |
|
| Temperature |
Storage
Temperature: -30 °C to 60 °C Operation Temperature: -20 °C to 55 °C |
