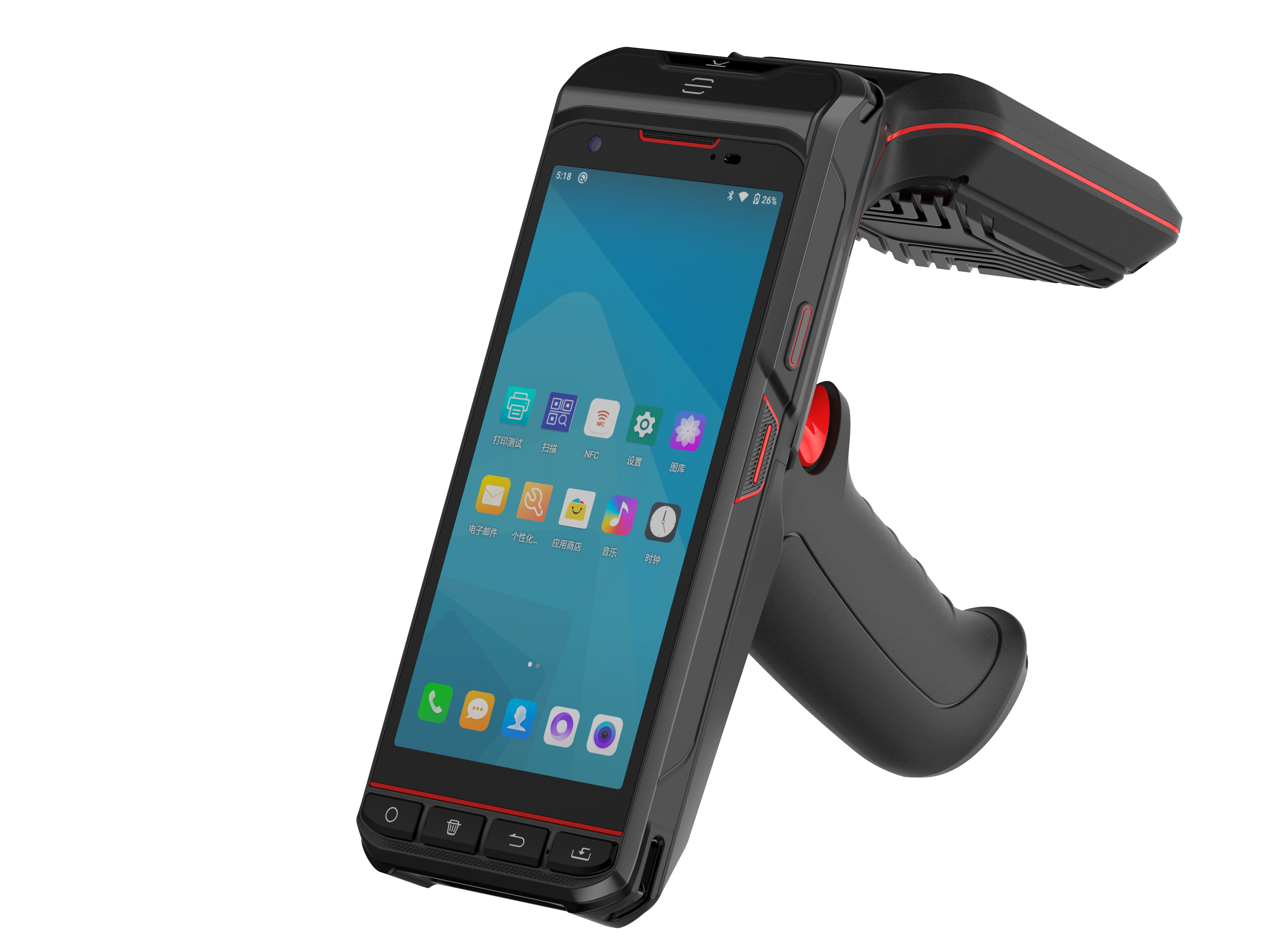

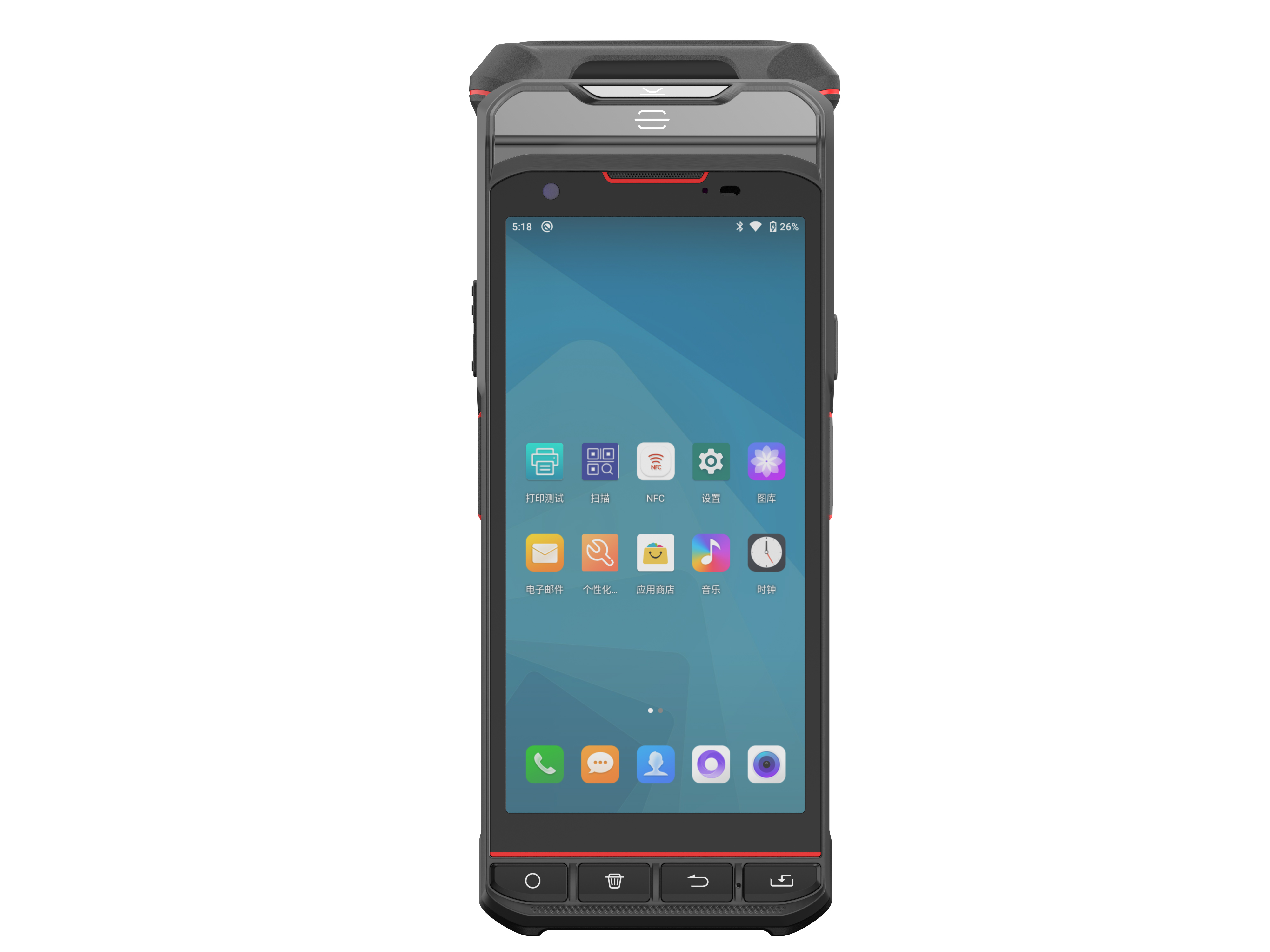

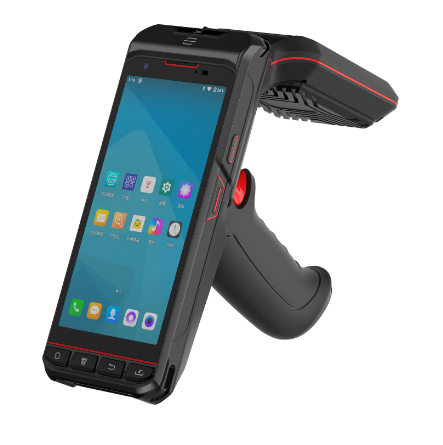

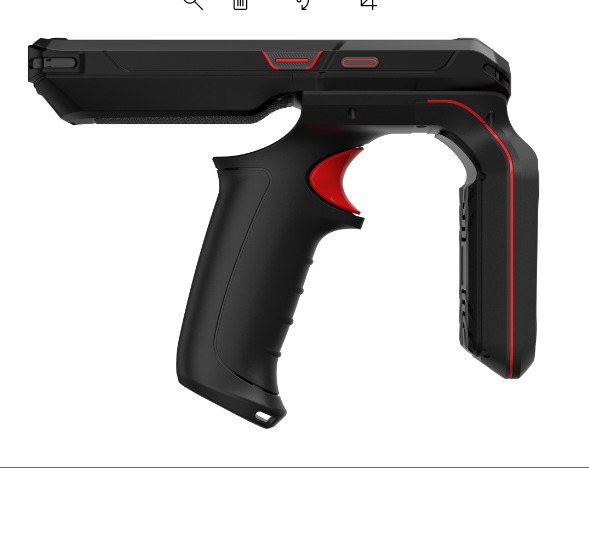

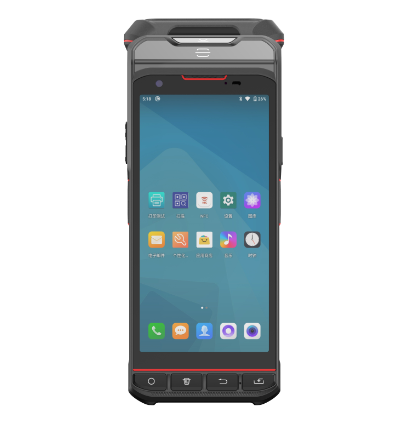

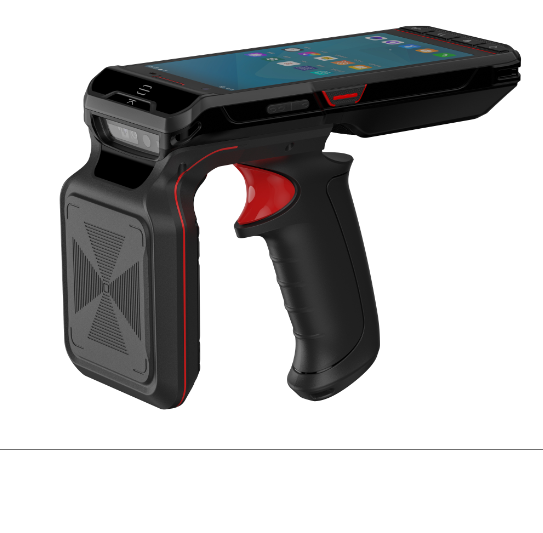

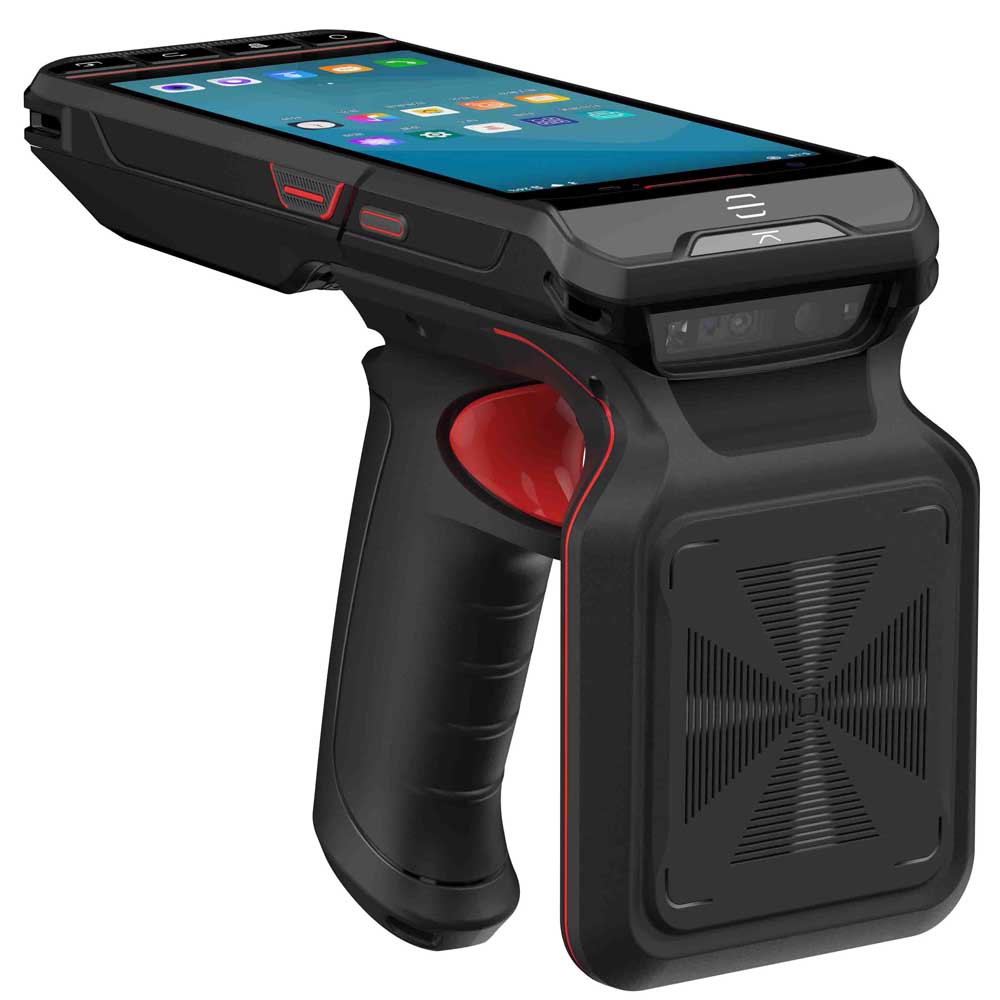

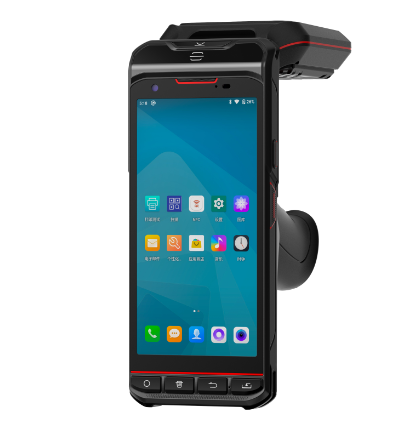

Product Introduction
-------------------------------------------------------------------------------------------------------------------------------------------------
Product parameters
Performance
Octa core
CPU Cortex-A53 Octa-core 64-bit 2.0GHz
high-performance processor
RAM+ROM 3GB+32GB
Expand memory Micro SD(TF) Supports up to 128GB
System Android 9.0
Data communication
-------------------------------------------------------------------------------------------------------------------------------------------
WLAN Dual-band 2.4GHz / 5GHz,
Supporting IEEE 802 a/b/g/n/ac protocol
WWAN 2G：GSM（850/900/1800/1900mhz）
3G：WCDMA（850/900/1900/2100mhz）
4G：FDD:B1/B3/B4/B7/B8/B12/B20
TDD:B38/B39/B40/B41
Bluetooth Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS
Transmission distance 5-10 meters
GNSS Support Gps, Galileo, Glonass, Beidou
-------------------------------------------------------------------------------------------------------------------------------------------
Physical parameter
Dimensions 159mm×75mm×124mm
Weight ＜500g
(Depends on device function configuration）
Display 5.7 inch IPS color display with resolution 720*1440
TP Corning gorilla glass, Supports multi-touch
Supported gloves and wet hands
Battery capacity Rechargeable polymer battery (3.8V 5000MAh) removable
Standby time >350 hours
Working time > 12 hours
Charging time 3-4H, Using standard power
adapter and data cable
Expansion
Card slot PSAM x 2, Nano SIM card x 1 , TF card × 1
Communication interface Type-C USB x 1, OTG
Audio Speaker (mono), Microphone, Earpiece
Keypad Power button, Volume +/- button,Scan button × 2
Handle scan button ×1
Sensors Gravity sensor, Light sensor, Proximity sensor,
Vibration motor
-------------------------------------------------------------------------------------------------------------------------------------------
Data collection
Barcode scanning (Optional)
2D Imager scanner Honeywell N3603
2D
Symbologies PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,
Maxicode,Hanxin Code,etc.
UHF (Optional)
Engine Engine CM2000-1, based on Impinj Indy R2000
Frequency(CHN) 920-925MHz
Frequency(USA) 902-928MHz
Frequency(EHR) 865-868MHz（ETSI EN 302 208）
Frequency(Other) Other multinational frequency standards (can be customized)
Protocol EPC C1 GEN2 / ISO18000-6C/6B
Antenna Circularly polarized antenna (3dBi)
Power 30dBm, support +5dBm ~ +30dBm adjustment
Distance 0-13m
Reading speed >200 tags per second (circular polarization)
Note:*Card reading distance and group reading rate are related to the actual environment
Camera
Rear camera 13MP HD camera,Support auto focus,
Flash, Anti-shake, Macro shooting
Front camera 2MP color camera
NFC
Frequency 13.56MHz
Protocol Support ISO14443A/B, 15693 agreement
Distance 2cm-5cm
Language/input method
Input English, Pinyin, Five strokes, Handwriting input, Support soft keypad
Language Language packs in Simplified Chinese,
Traditional Chinese, English, Korean, Japanese, Malaysian,etc.
-------------------------------------------------------------------------------------------------------------------------------------------
User environment
Operating temperature -20℃ - 55℃
Storage temperature -40℃ - 70℃
Environment humidity 5%RH--95%RH(no condensation)
Drop specification 6 sides Supports 1.2 meters drops and 30 times
to the concrete within the operating temperature
Rolling test 500×0.5m rolling for 6 sides
Sealing IP66
Accessories
Standard Adapter, Data cable, Protective film,
Instruction manual
