category

parameter

operating system

Android 13

processor

Qualcomm QCM2290, Quad core 2.0G 64 bit 11nm process

memory size

4GB+64GB

size

158.2mm * 67.2mm * 21.5mm

weight

Less than 282 grams (including battery)

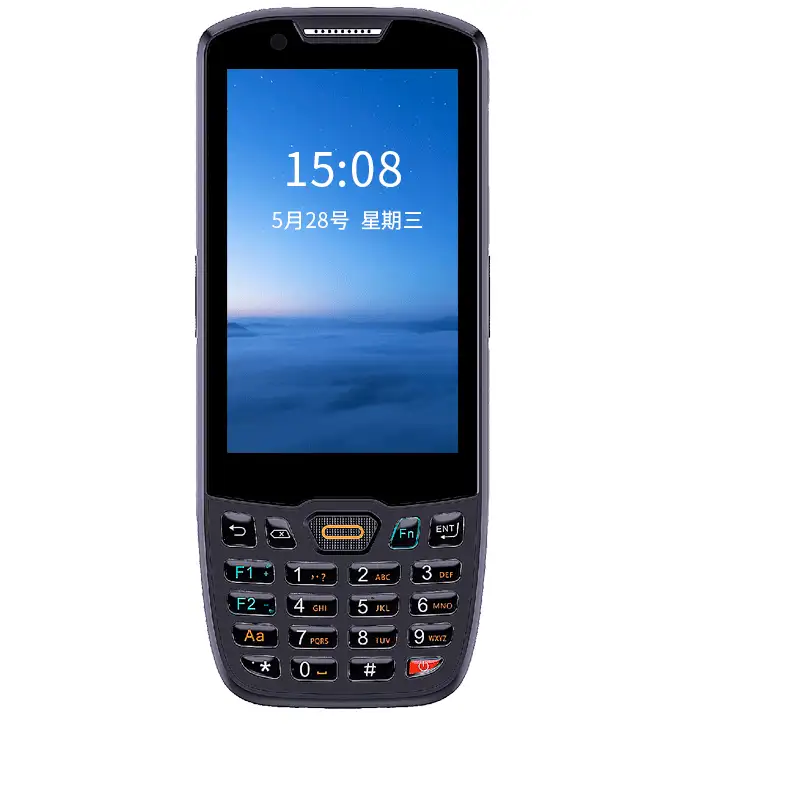

screen

4-inch, 480 * 800 HD, G+F+F, capacitive screen, Multi-touch

expanded storage

Up to 128G

Network format

2G, 3G, and 4G networks are fully connected.

2G: GSM:GSM850/EGSM900/PCS1900/DCS1800

3G: WCDMA:B1/ 2/ 4/ 5/8

4G: FDD:B1/ 2/ 3/ 4/ 5/ 7/ 8/20/ 28

TDD:B38/ 40/ 41

WIFI

IEEE 802.11 a/b/g/n 2.4G和5G双频

Bluetooth

BT5.0

Camera

Rear 8 million pixels, flash, autofocus/optional 16 million pixels

Front 8 million (optional)

positioning

GPS/Beidou/Glonass/Galileo

prompt

Three color breathing light, vibration

Sensor (optional)

Gravity sensor, gyroscope sensor, magnetic sensor, distance sensor

battery

3.8V, 4500mAh, detachable high-performance lithium polymer battery

Charging power supply

5V 3A

microphone

microphone

Horn and earpiece

Speaker, earpiece

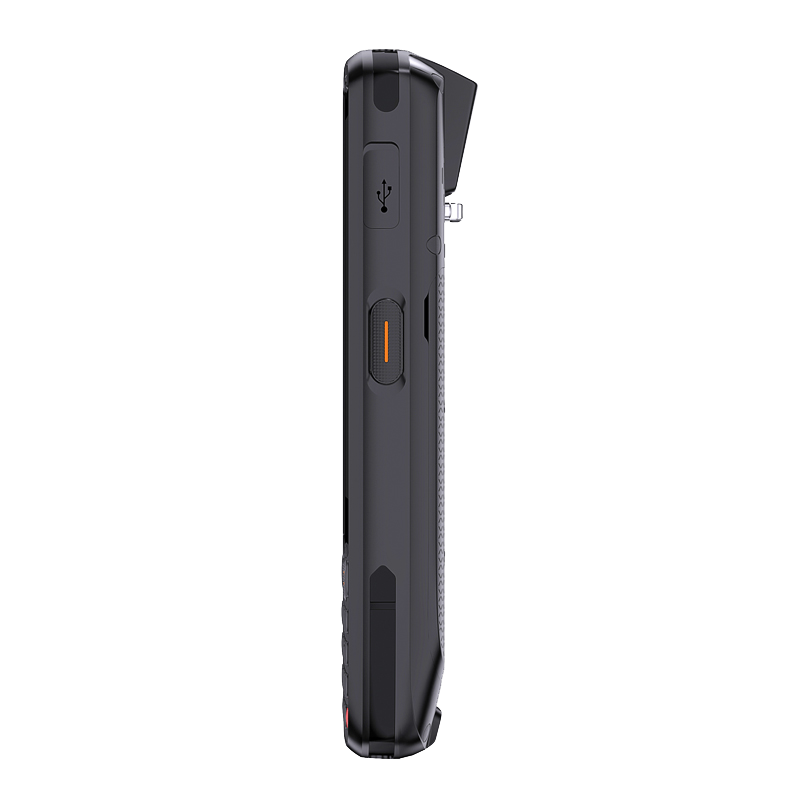

interface

TYPE-C USB 2.0

Memory card interface

One TF card

SIM card interface

Two Nano SIM cards

ON/OFF

Power button

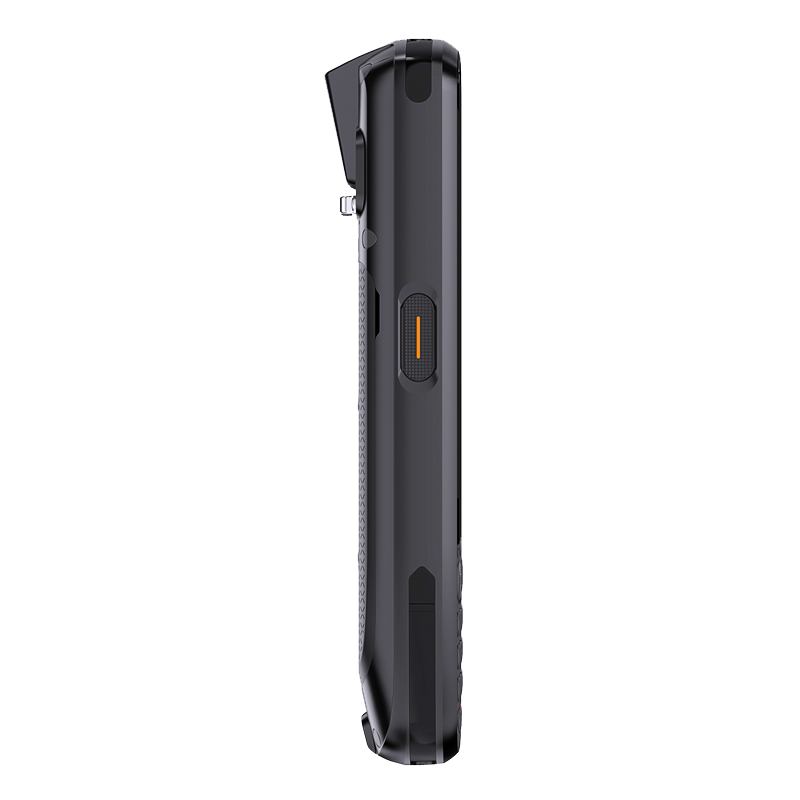

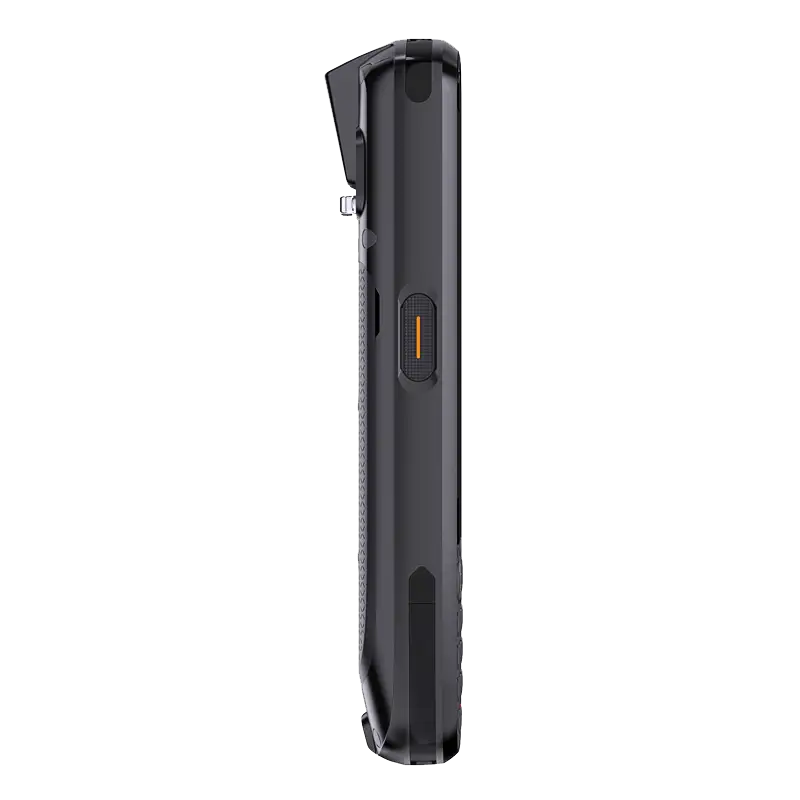

Scan key

Left and right barcode scanning shortcut keys

Main button

21 main buttons: 0-9, return, confirm, delete, scan, *, #, Fn crystal lossless buttons.

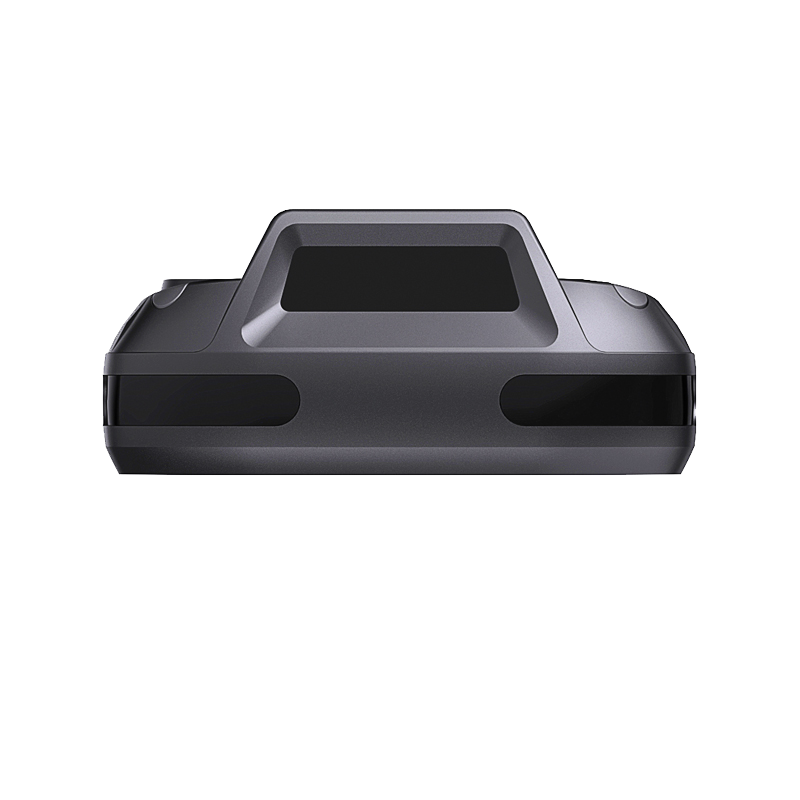

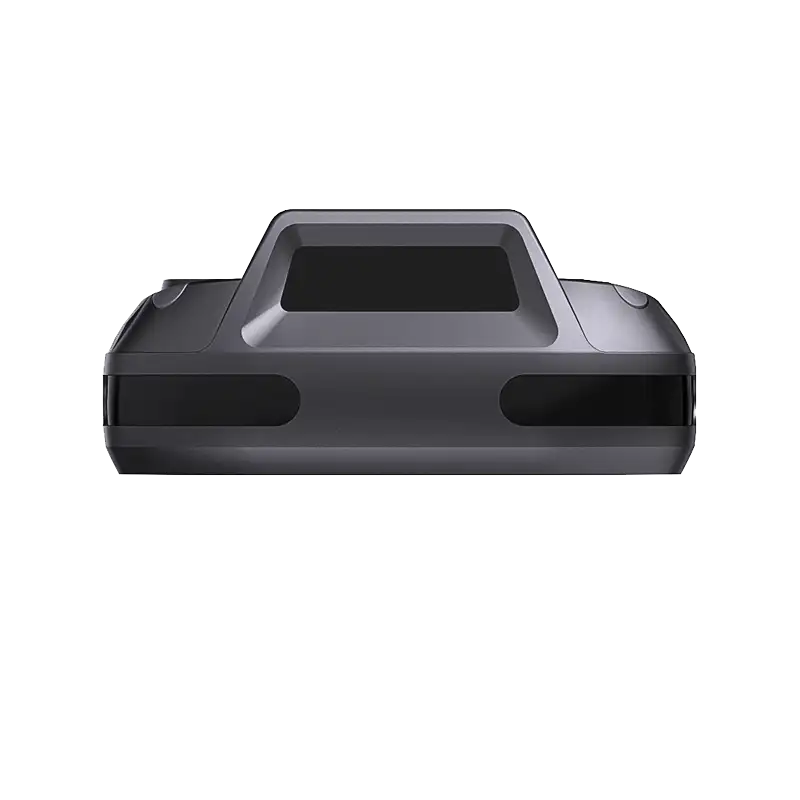

2D scanning head

Self-research K2,Honeywell 5703,Honeywell 6703, Honeywell(Long range scanning) 6803(Up to 12 m)

Barcode QR code type

PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,

NFC function (optional)

13.56MHz ，ISO14443A/B,ISO15693，NFC，M1卡、CPU卡、NFC Labels, etc., reading distance: 0-5cm (depending on card and on-site environment)

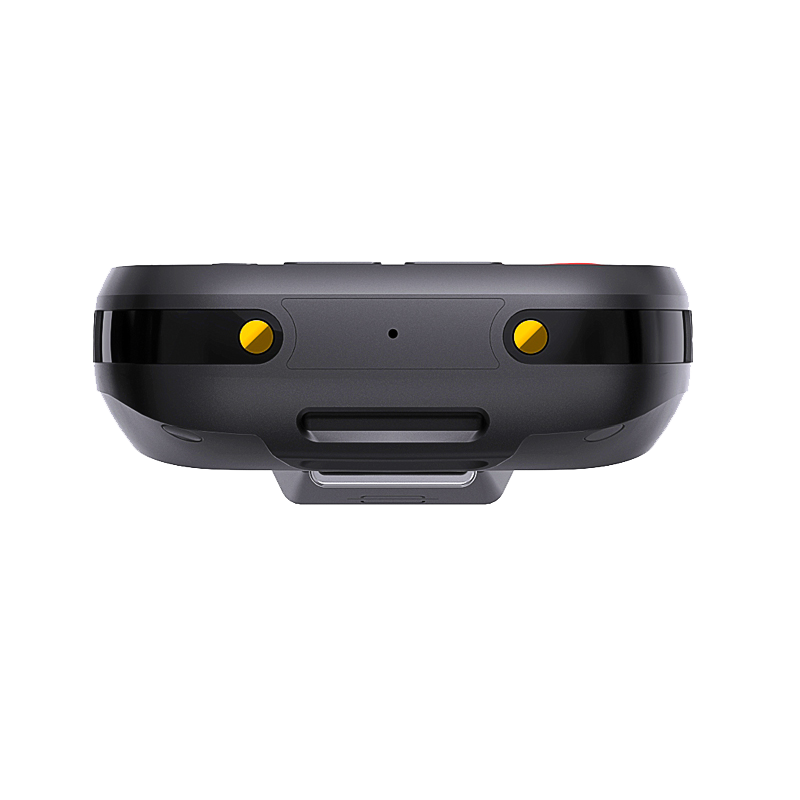

Base charging (optional)

2PIN point base charging, GND, 5V

operation temperature

-25℃to55℃

storage temperature

-45℃to72℃

ambient humidity

5% RH-95% RH (without condensation)

electrostatic protection

± 8KV air discharge, ± 4KV contact discharge

accessory

Power adapter, USB data cable, and strap
