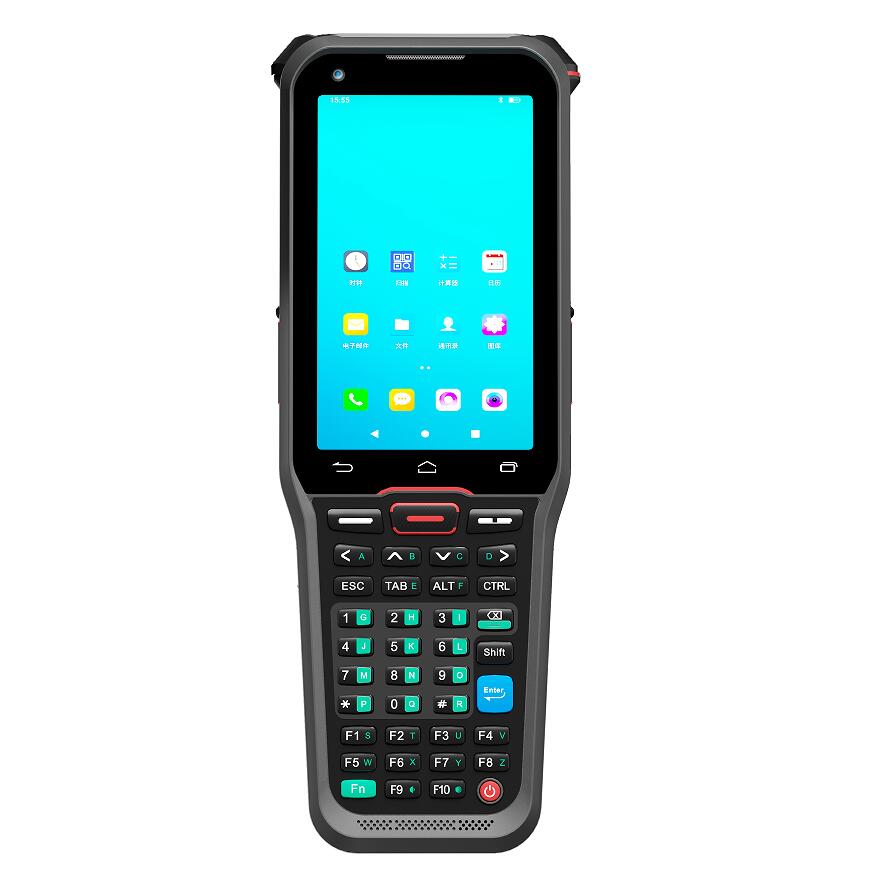

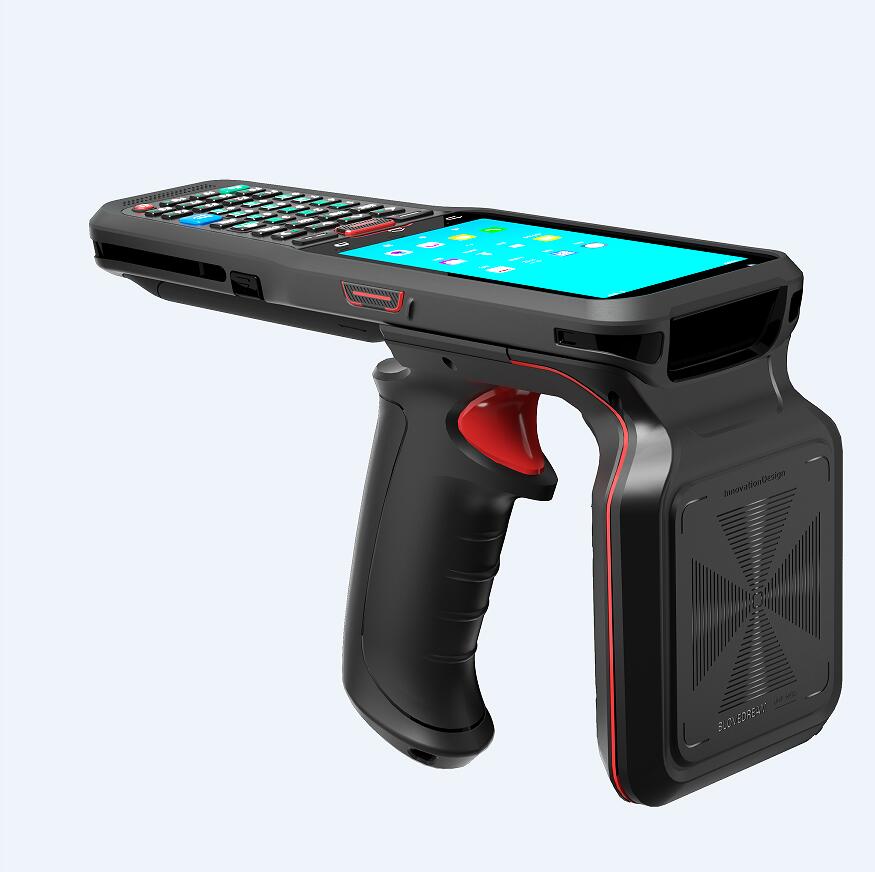

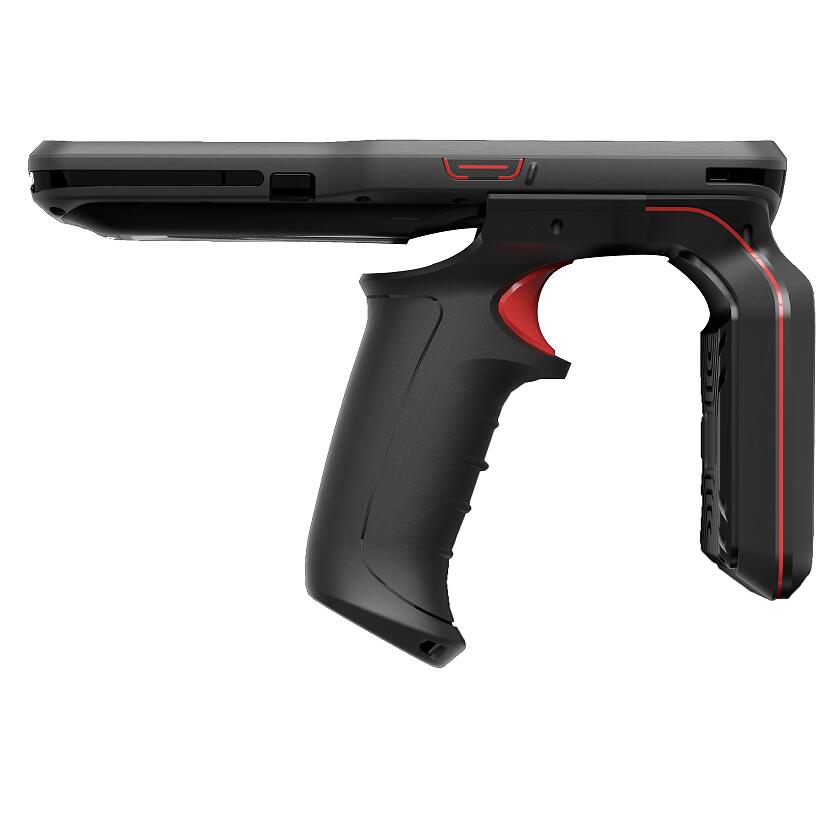

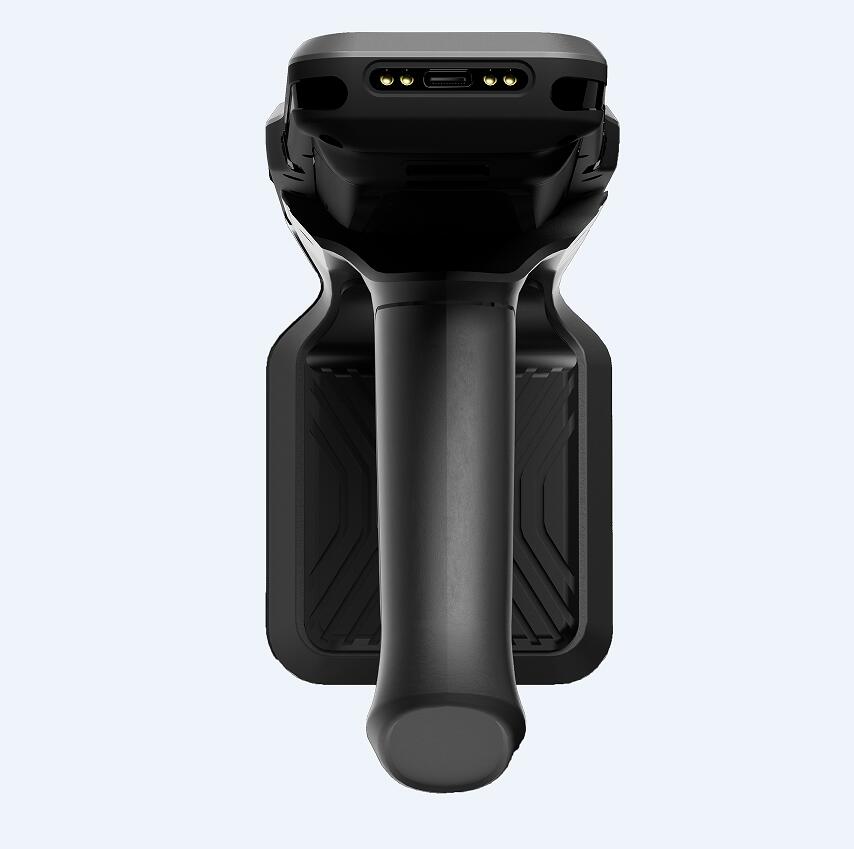

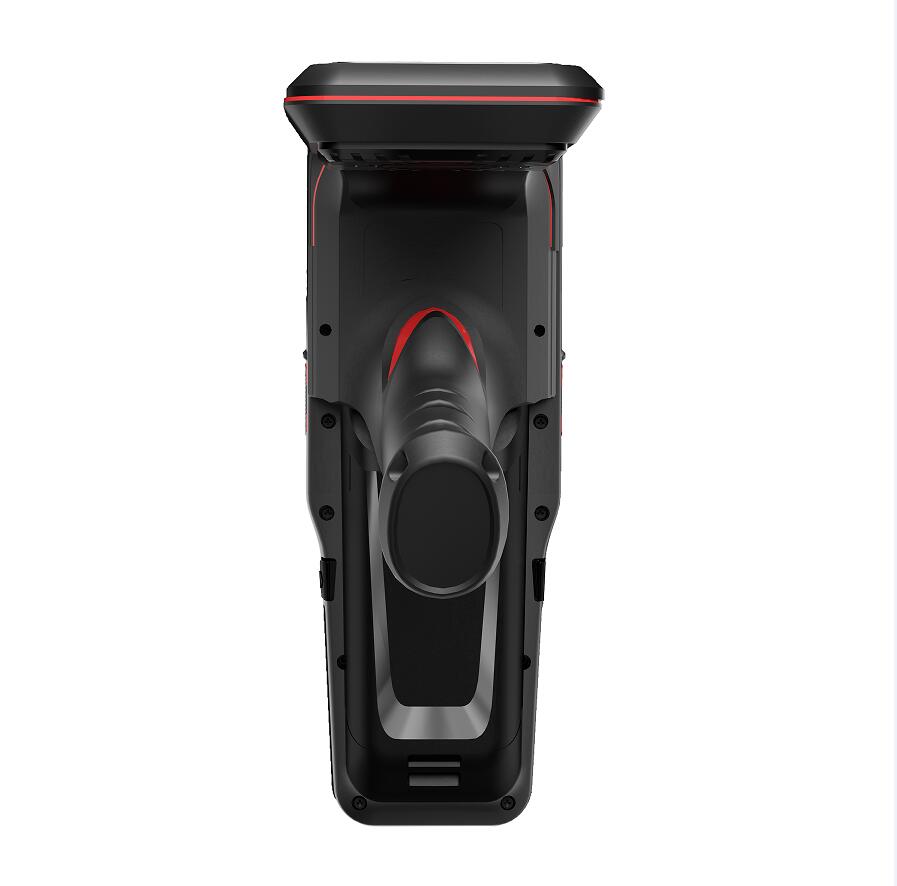

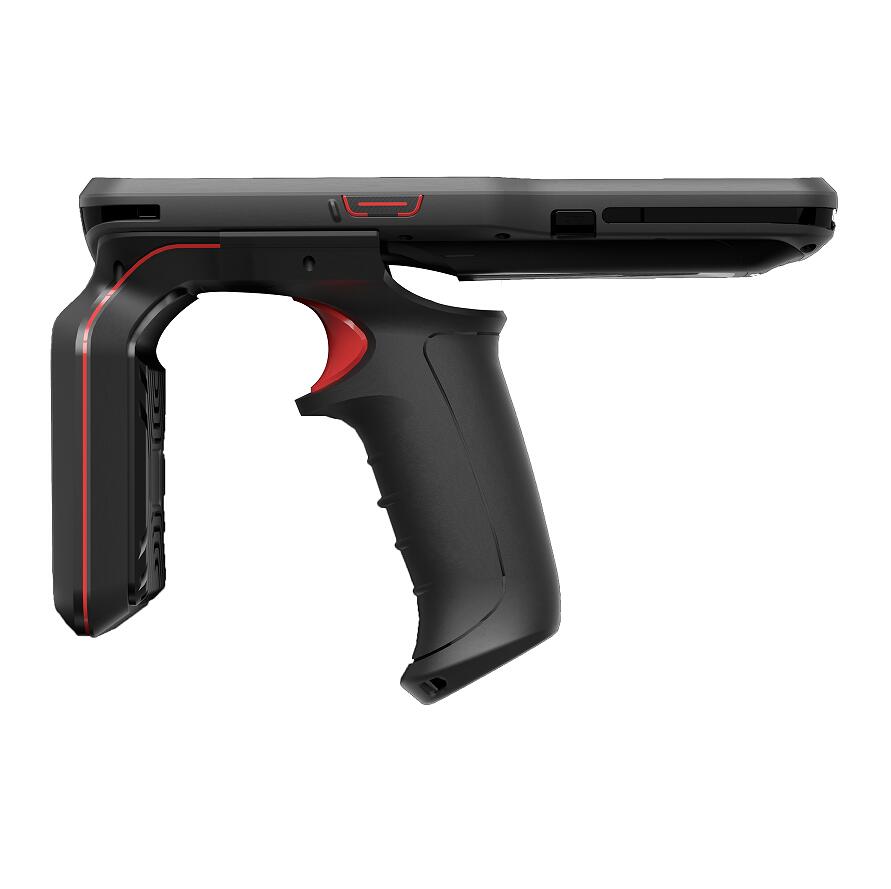

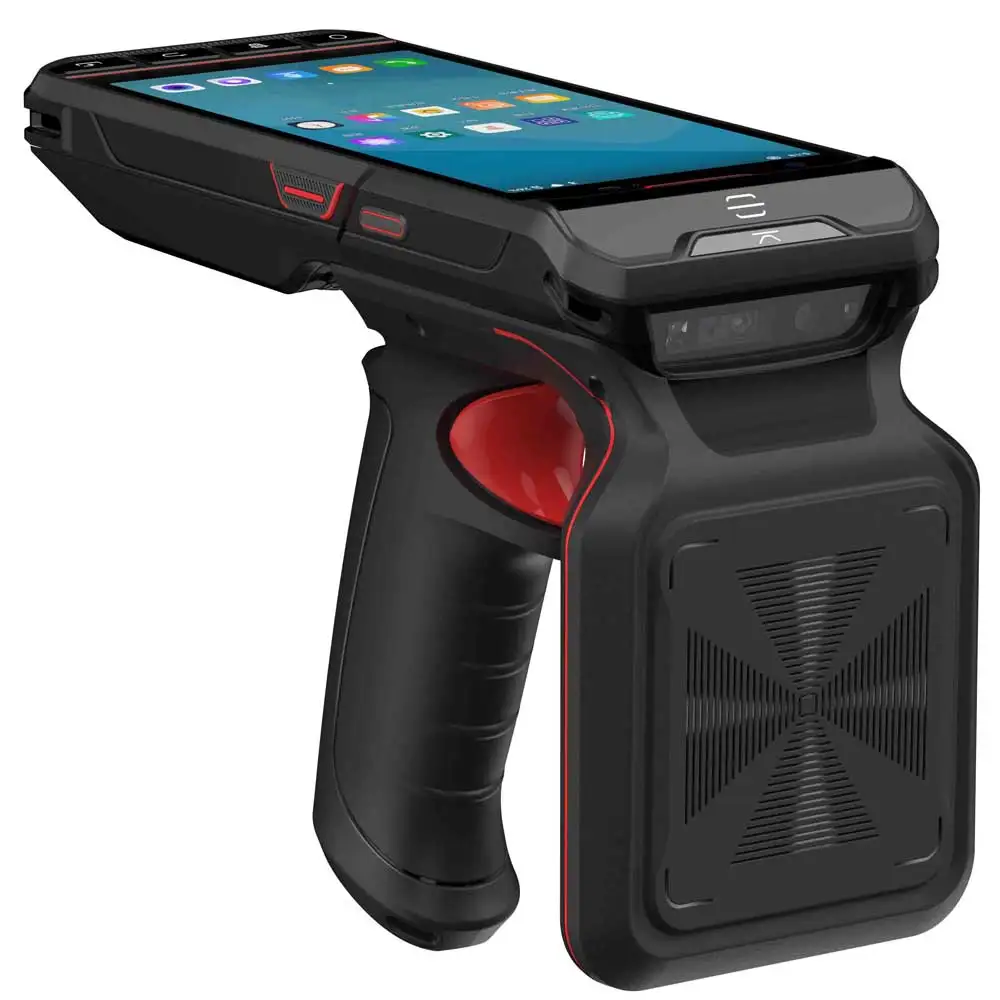

Product Introduction
Product parameters
Performance
Quad core
CPU Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor
RAM+ROM 2GB+16GB Supports up to 4GB+64GB
Expand memory Micro SD(TF) Supports up to 128GB
System Android 10.0
Data communication
WLAN Dual-band 2.4GHz / 5GHz,
Supporting IEEE 802 a/b/g/n/ac protocol
WWAN 2G：GSM（850/900/1800/1900MHz）
3G：WCDMA（850/900/1900/2100MHz）
4G：FDD:B1/B3/B4/B7/B8/B12/B20
TDD:B38/B39/B40/B41
Bluetooth Support Bluetooth 5.0+BLE
Transmission distance 5-10 meters
GNSS Support Gps, Galileo, Glonass, Beidou
----------------------------------------------------------------------------------------------------------------------------------------------
Physical parameter
Dimensions 201.8mm×72mm×140mm（Including the handle）
Weight ＜750g
(Depends on device function configuration）
Display 4.0 "color display with resolution 480×800
TP support multi-touch
Battery capacity Rechargeable polymer battery (7.6V 3750mah) removable
Standby time >350 hours
Working time > 12 hours
Charging time ＜3H, using standard power
adapter and data cable
Expansion Card slot Nano SIM card x 2, TF card × 1
Communication interface Type-C 2.0 USB x 1, supporting OTG function
POGO Pin x 1
Audio Speaker (mono), Microphone,Receiver
Keypad 38 soft and hard rubber buttons, left button x1, right button x1
Sensors Gravity sensor, light sensor, distance sensor, vibration motor
----------------------------------------------------------------------------------------------------------------------------------------------
Data collection
Barcode scanning (Optional)
1D Scanning engine Honeywell N5703
1D Symbologies Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar,Interleaved 2 of 5,China post 25,ISBN/ISSN,
Code93,UCC/EAN-128,GS1 Databar,HIBC,etc.
2D Symbologies PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc.
Camera（Standard）
Rear camera 800W pixel HD camera
Support auto focus, Flash, Anti-shake, Macro shooting
Front camera 200W pixel color camera
NFC (Optional)
Frequency 13.56MHz
Protocol Support ISO14443A/B, 15693 agreement
Distance 2cm-5cm
UHF (Optional)
Distance 0-13m
Reading speed >200 tags per second (circular polarization)
Language/input method
Input English, Pinyin, Five strokes, Handwriting input, Support soft keypad
Language Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese,Malaysian,etc.
User environment
Operating temperature -20℃ - 55℃
Storage temperature -40℃ - 70℃
Environment humidity 5%RH--95%RH(no condensation)
Drop specification 6 sides supports 1.2 meters drops on the marble within the operating temperature
Rolling test 0.5m rolling for 6 sides, can still work steadily
Sealing IP65
Accessories
Standard Adapter, Data cable, Protective film,
Instruction manual
