Product Introduction

CPU MT6771, 8 core ARM® Cortex-A73 MPCoreTM 2.0GHz
OS Android 13
RAM/ROM EMCP:6GB+128GB/4GB+64GB/8GB+256GB
language multi language
Siz 8
Resolutoin 800*1280
brightness Mini   classic    Max

               800nit 1000nit 1100nit

--------------------------------------------------------------------------------------------------------

Visual Angle Full View
AA 107.64(H)*172.224(V)
type capacity touch panel
Mode 10 point G+G
Transimitance 90%+

Camera Front5.0M+back 21M PDAF/OTP

--------------------------------------------------------------------------------------------------------

GPS Support Beidou+GPS+glonass；Capture sensitivity:-163 dBm
NFC ISO/IEC14443，ISO/IEC15693，MIFARE，Felica，Range：3-5cm，Front
SPEAKER 8Ω，1.5Wx1
Mic Sensitivity：-32±2d，Impedence 2.2kΩx1
TF card TF card x1. Max 256GB
button Power, V+，V-，P, F, H
weight 630g

dimension 234*144*16.8

--------------------------------------------------------------------------------------------------------

WIFI 802.11a/b/g/n/ac, Wireless AP ( Mobile AP )2.4G, 5G
blue tooth   BT4.2,
Band TDD-LTE：B34/B38/B39/B40/B41/B66
             FDD-LTE：B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
                              WCDMA：B1/B2/B4/B5/B8
                              CDMA2000：BC0
                              TD-SCDMA：B34/B39

                              GSM：B2/B3/B5/B8

--------------------------------------------------------------------------------------------------------

Type-A USB2.0 x2
Type-C charger/ data transfer x1
3.5mm ∮3.5mm x1
RS232 RS232 x1 (mini USB type)

DC DC 5V 3A ∮3.5mm x1

--------------------------------------------------------------------------------------------------------

Light sensor Support
distence sensor Support
G-SENSOR Support
Gyroscope sensor Support
Acceleration sensor Support

Air pressure sensor Support

--------------------------------------------------------------------------------------------------------

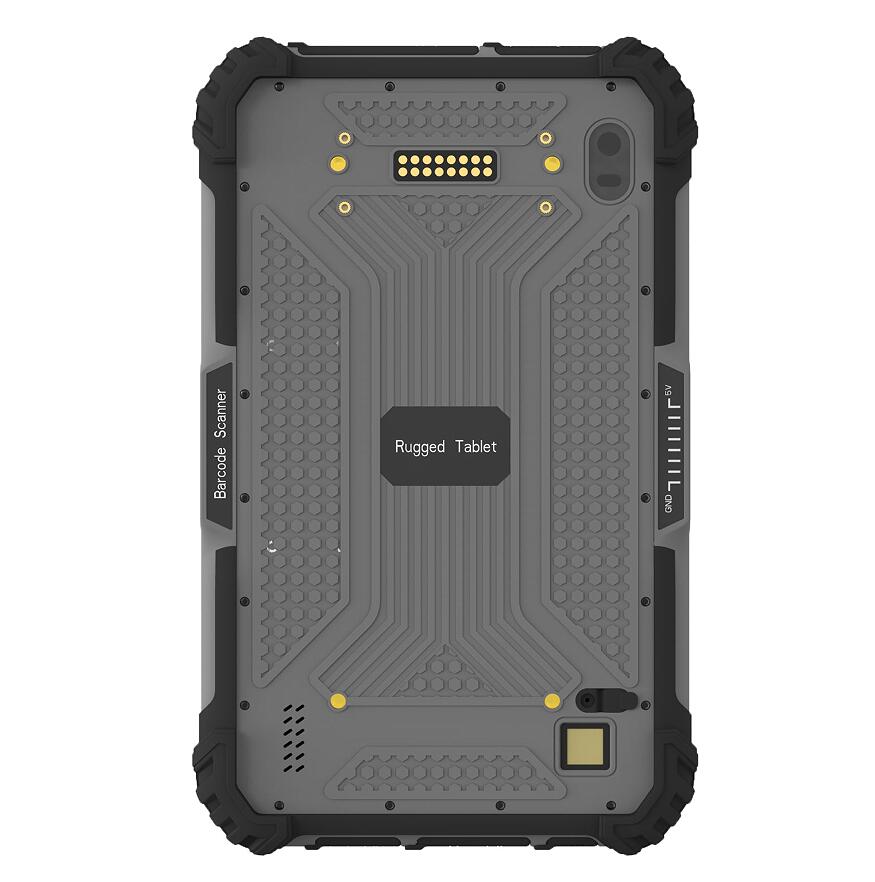

back 16PIN USB2.0x1+UART RS232x1

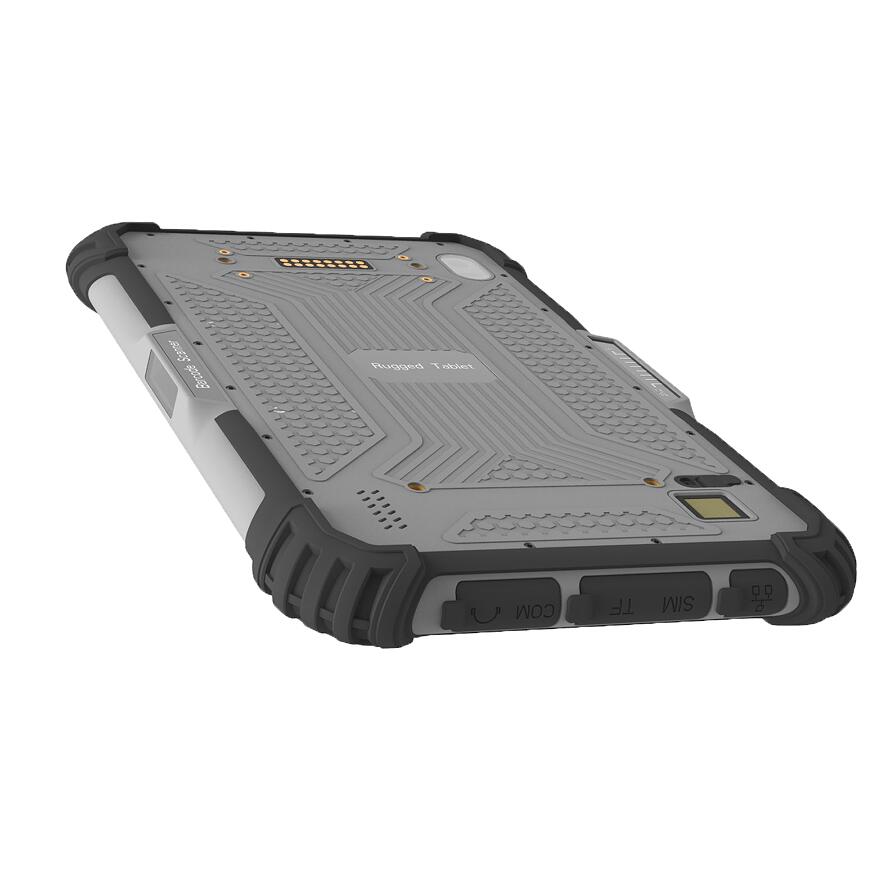

Bottom 8PIN USB2.0x1+UART RS232x1x1+charger
Picture BMP, JPG, GIF, PNG
video MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)

Audio MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)

--------------------------------------------------------------------------------------------------------

Protestion 1. production with IP65，designing with IP67
2. dropping testing 1.2 meter，six side
certification 1. 810G testing report
2. CE, FCC
working temperature ’－20℃～60℃

Storage temperature ’－25℃～80℃

--------------------------------------------------------------------------------------------------------

battery inner lithium Bttery
capacity 3.85V / 10000mah
Endurance Play video 18 hours
Standby 240 hours
"Fingerprint
1020A" fingerprint capactiy 150pcs
Response Time <1S
Identification 1:N or  1:1
"2D barcode
NLS-N1" Code 2D：PDF417、QR Code、Data Matrix
1D：Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey

--------------------------------------------------------------------------------------------------------

"high precision GPS
ZED-F9P" 10 CM  Beidou、GPS、GLONASS、Galileo

UHF EU/US standard "Power:18-26 dBm；sensitivity < -70dBm；Range：4-5
"
