Product Introduction
Model: G7-8265U
CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i5-8265U Four Cores Eight Threads 1.6GHz up to 3.9GHz(Turbo boost Technology) 6MB cache TDP 15W Intel® UHD Graphics.Product Highlight:
- Brushed Full Aluminum Alloy Black/Silver color shell, fanless system without cooling fan, no any noise, work as long as 24 hours.
- 1 x SO-DIMM DDR4 slot max 32GB RAM.
- 6 x RJ45 Intel 2.5G LANs and 2 x RS232 COM ports.
- Can install MSATA SSD+2.5” SATA HDD together.
- One embedded SIM card slot onboard for 3G/4G Wi-Fi.
- Low consumption can save much energy and eco-friendly.
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
|
Basic Information: |
Input/output port： |
||
|
CPU |
Onboard Intel Core i3-8140U / Intel Core i5-8265U |
Switch |
1 x Power On/Off Switch |
|
TDP |
15W |
Power |
1 x 12V DC In |
|

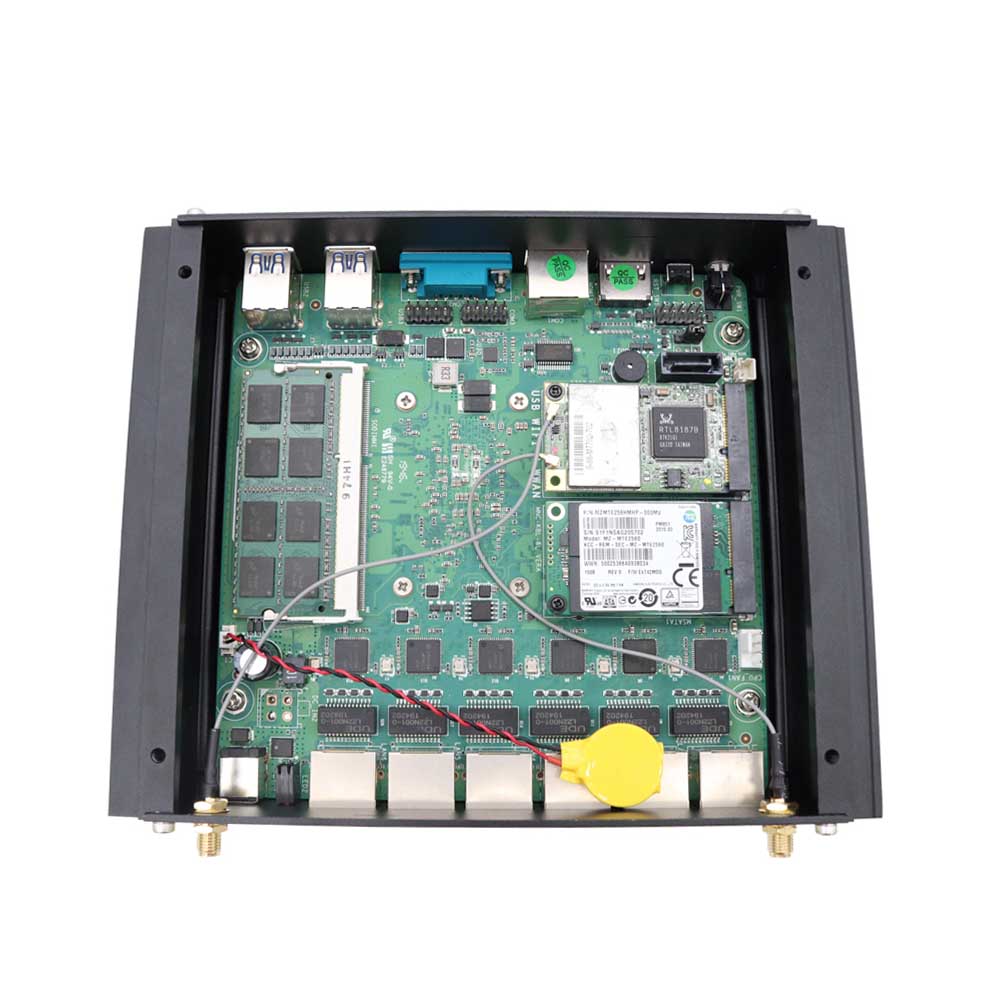

Motherboard |
150 x 150mm customized size |
LED |
1 x Power LED, 1 x HDD LED |
|
BIOS |
American Megatrends Inc.5.12 |
USB |
4 x USB3.0 |
|
Chipset |
Intel Sunrise Point-LP, Intel Kaby Lake-U |
Display |
1 x HDMI 1.4 |
|
Memory |
1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB DDR4-2400, LPDDR3-2133 |
LAN |

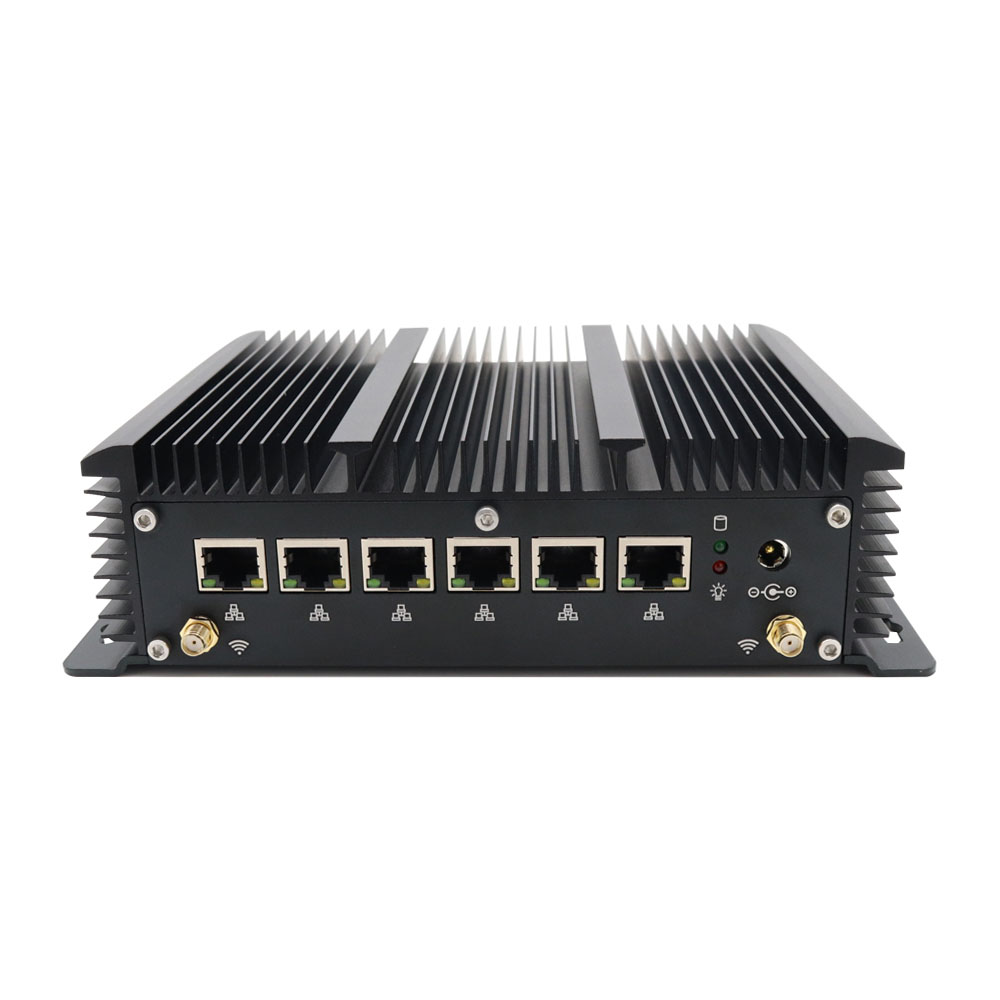

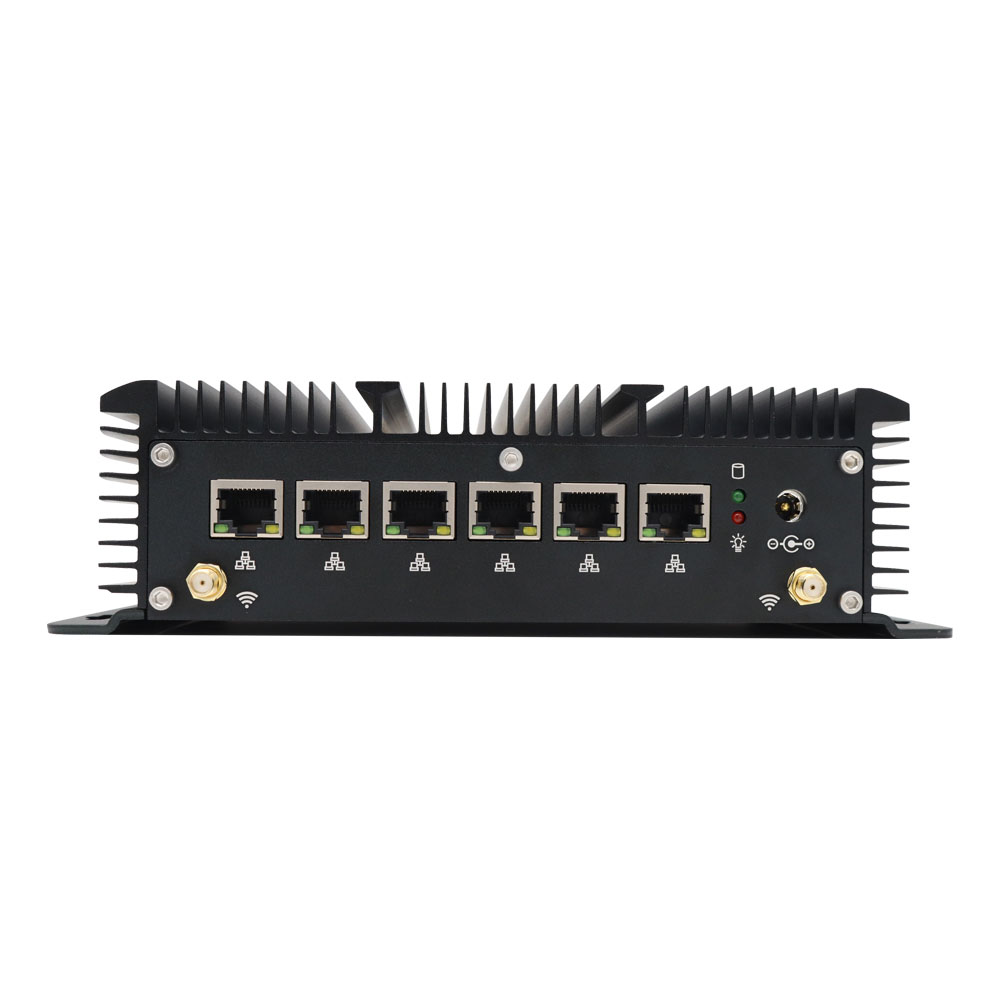

6 x RJ45 Intel 2.5G LANs |
|
OS |
Windows® 7/8/10, WES 7/10, LINUX |
COM |
1 x DB9 RS232 COM, 1 x RJ45 RS232 COM |
|
PXE |
YES |
SIM |
1 x embedded SIM card slot onboard |
|
Audio |
Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller |
Storage: |
|
|
Network |
Onboard Intel i225-V 2.5G Network Connection |
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
|
Video |
Refer to the above CPU |
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
|
Wi-Fi: |
Product Dimension & Details: |
||
|
Module |
1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol) |
Size |
209*150*57mm
|
|
Antenna |

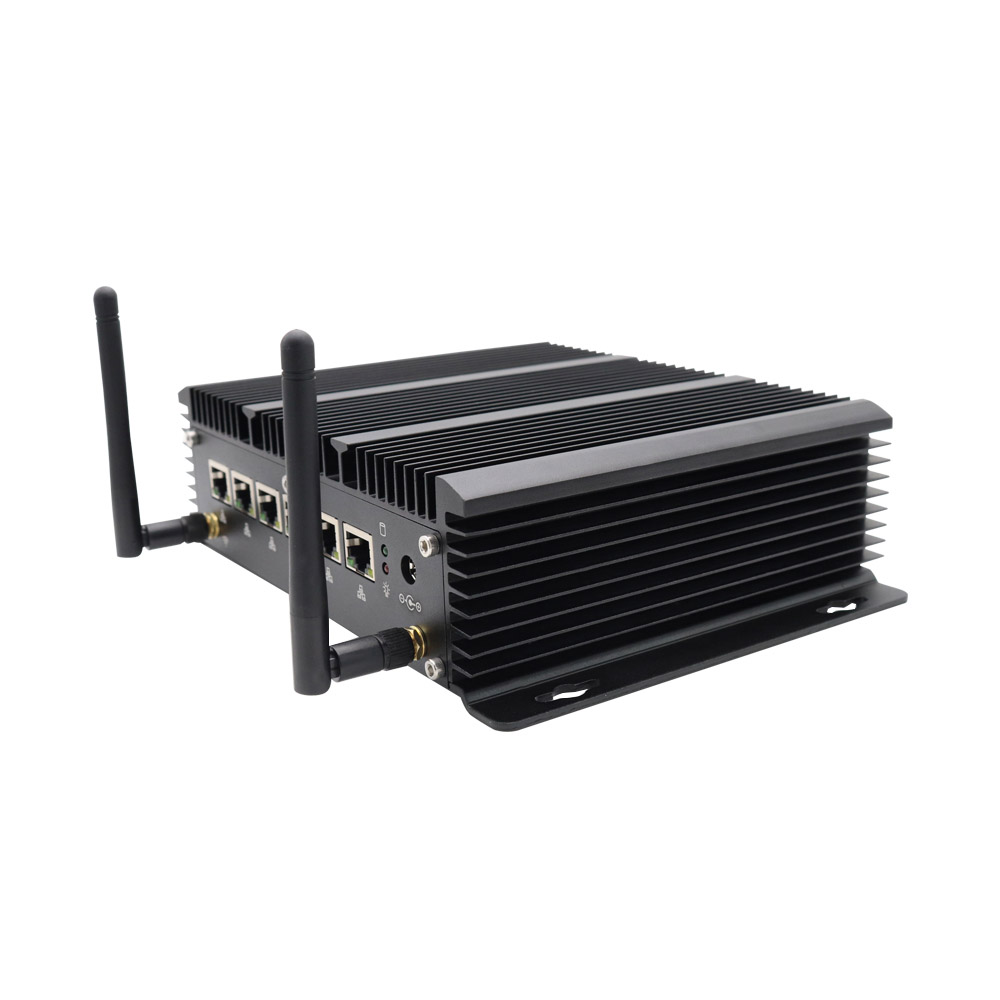

2 x inner RF cables and 2 x external antennas |
Weight |
Net 1.35kg, Gross 2.5kg |
|
Power and Working Environment: |
Shell |
Black/Silver color aluminum alloy(anycustomized color for bulk order) |
|
|
Input |
100-240V AC/50-60Hz |
Mounting |

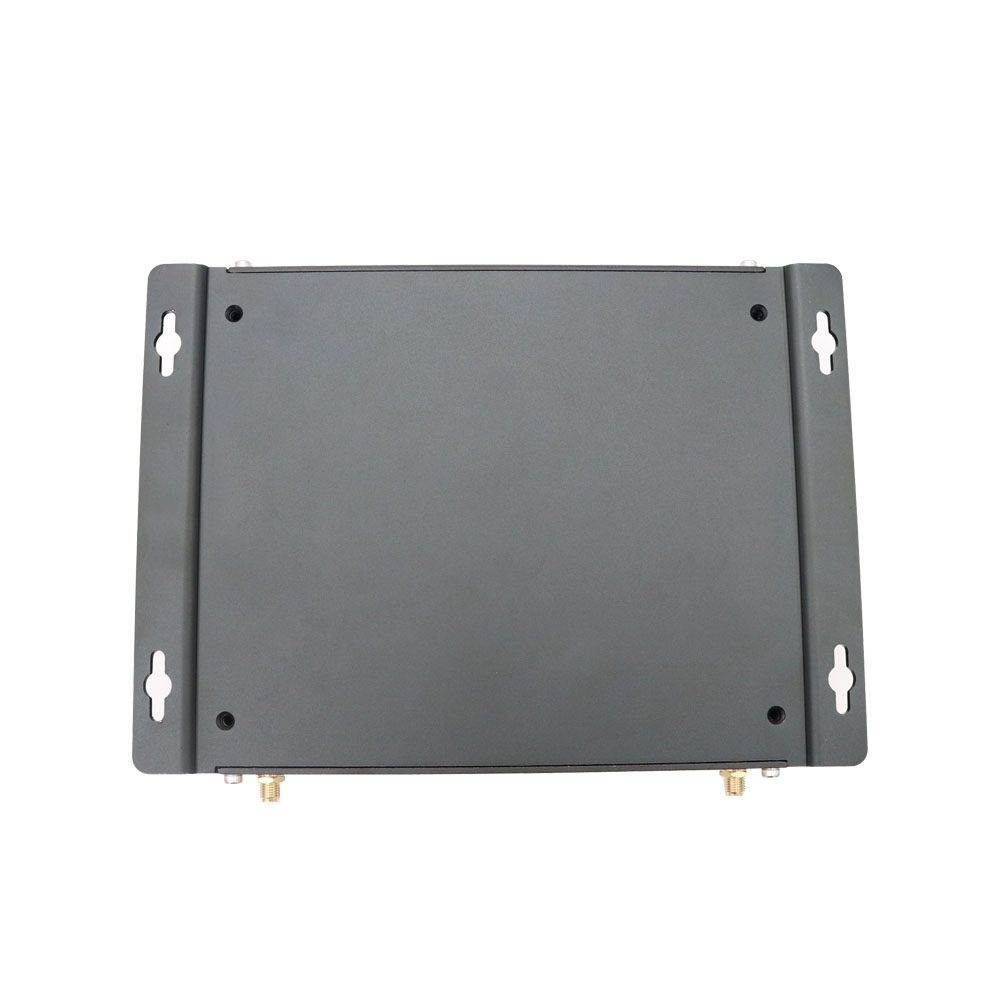

4 mounting holes on case |
|
Output |
12V~+19V, recommend 12V/5A |
Cooling Mode |
Fanless |
|
Operating Temperature |
-20°C/+60°C |
Functions |
Watchdog, AWAL, RTC, WOL |
|
Storage Temperature |
-30°C/+70°C |
Package Content： |
|
|
Relative Humidity |
0%~90%@30°C(non-condensing) |
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
|
|
|
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
