Product Introduction

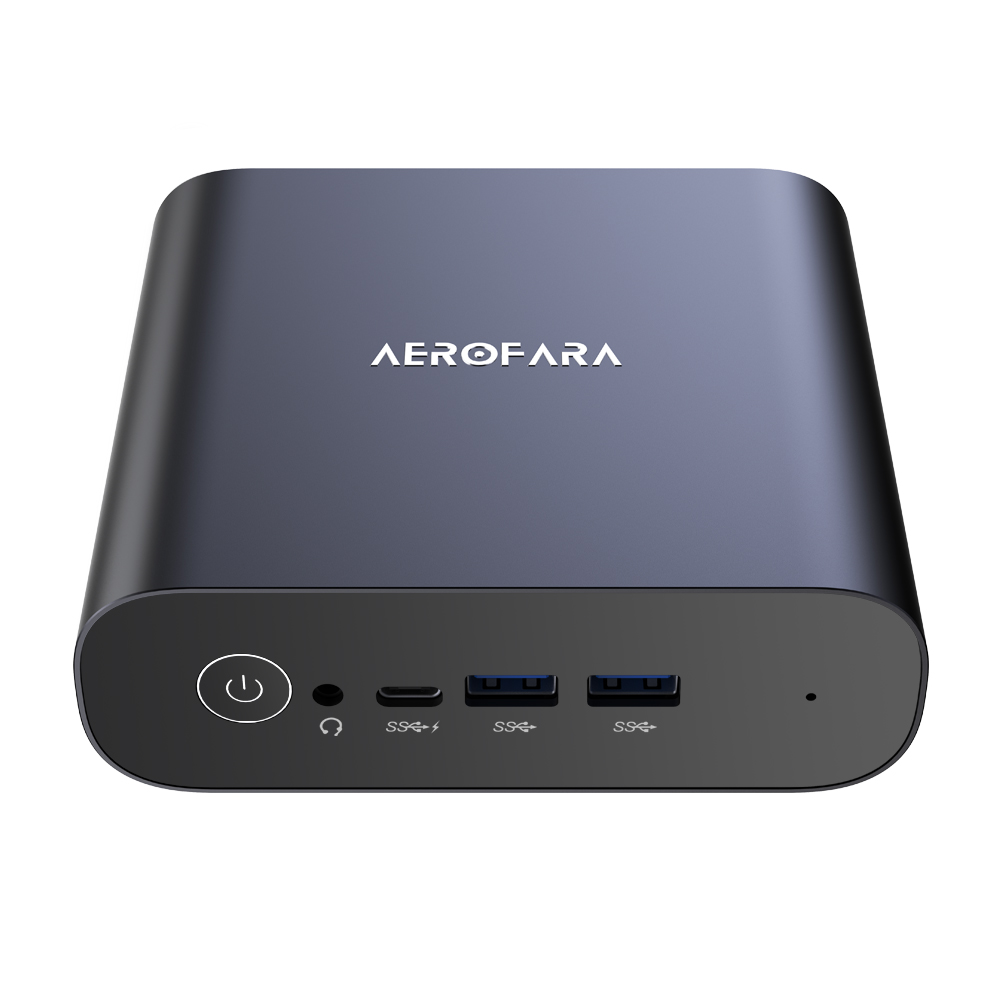

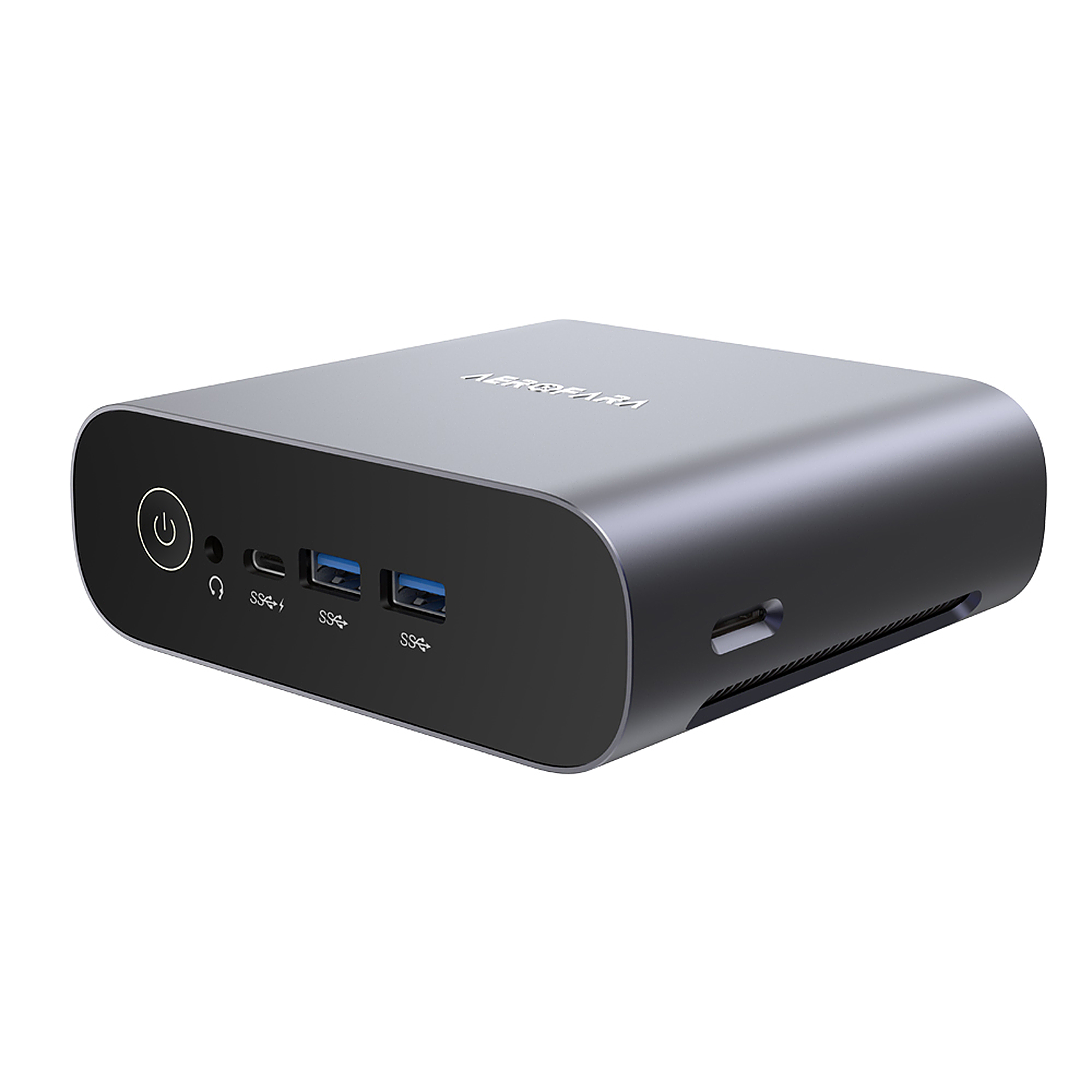

i5 mini box PC fashion design, factory source
| i5-8279U-8+256 |
| i5-8279U-16+512 |
| i5-1135G7-8+256 |
| i5-1135G7-16+512 |
| AMD-R5-5600U-8+256 |
| AMD-R5-5600U-16+512 |
| Dimension | 120*110*40mm | |
| Weight | Only Device 0.48 kg | |
| With Accessories 1 kg | ||
| CPU | 8th Intel® Core Coffee Lake i5-8279U 2.4 GHz,Turbo 4.1Ghz (4C/4T) Supports 4MB Smart Cache 28W | |
| TDP | 28W | |

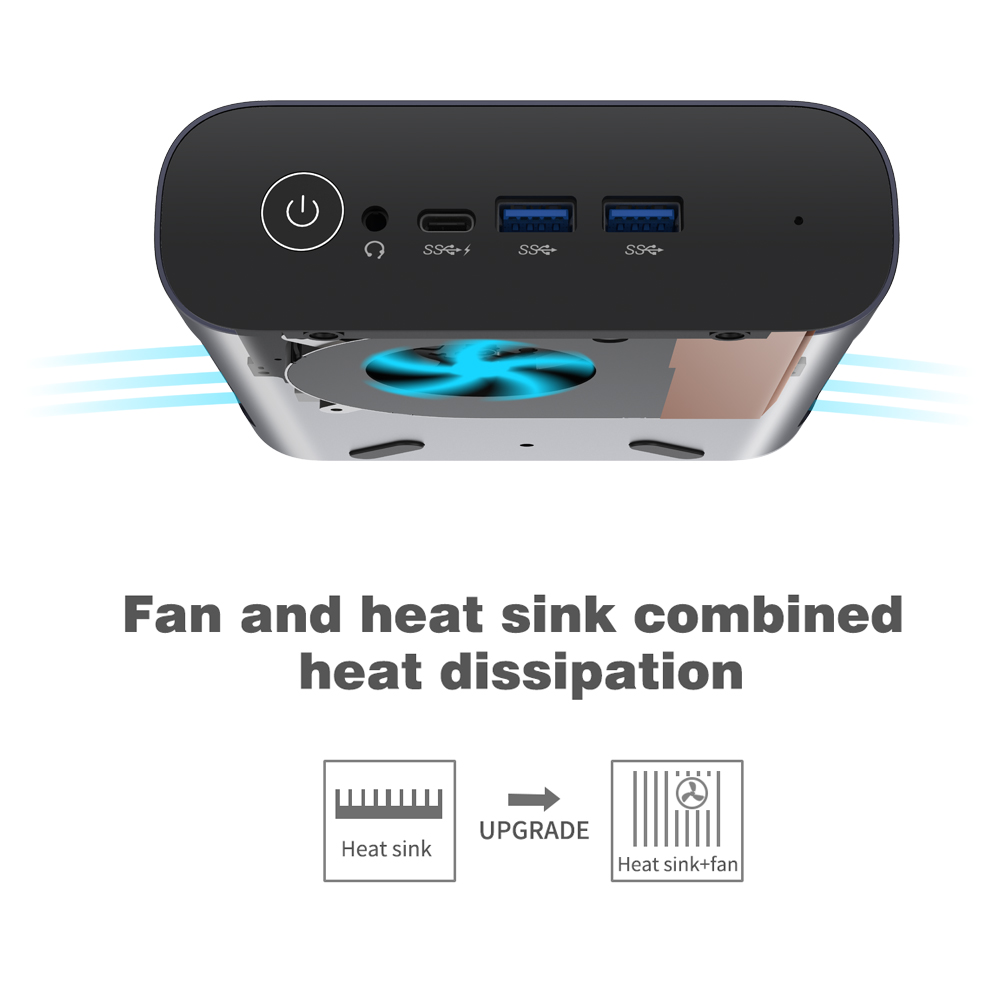

| heat sink | copper pipe and fins | |
| Fan | Large fan size 70mm*5mm | |
| SO-DIMM DDR4 | 8G/16GB | |
| SSD | 256GB/512GB | |
| Wireless LAN | AC 7265 Dual band wifi | |

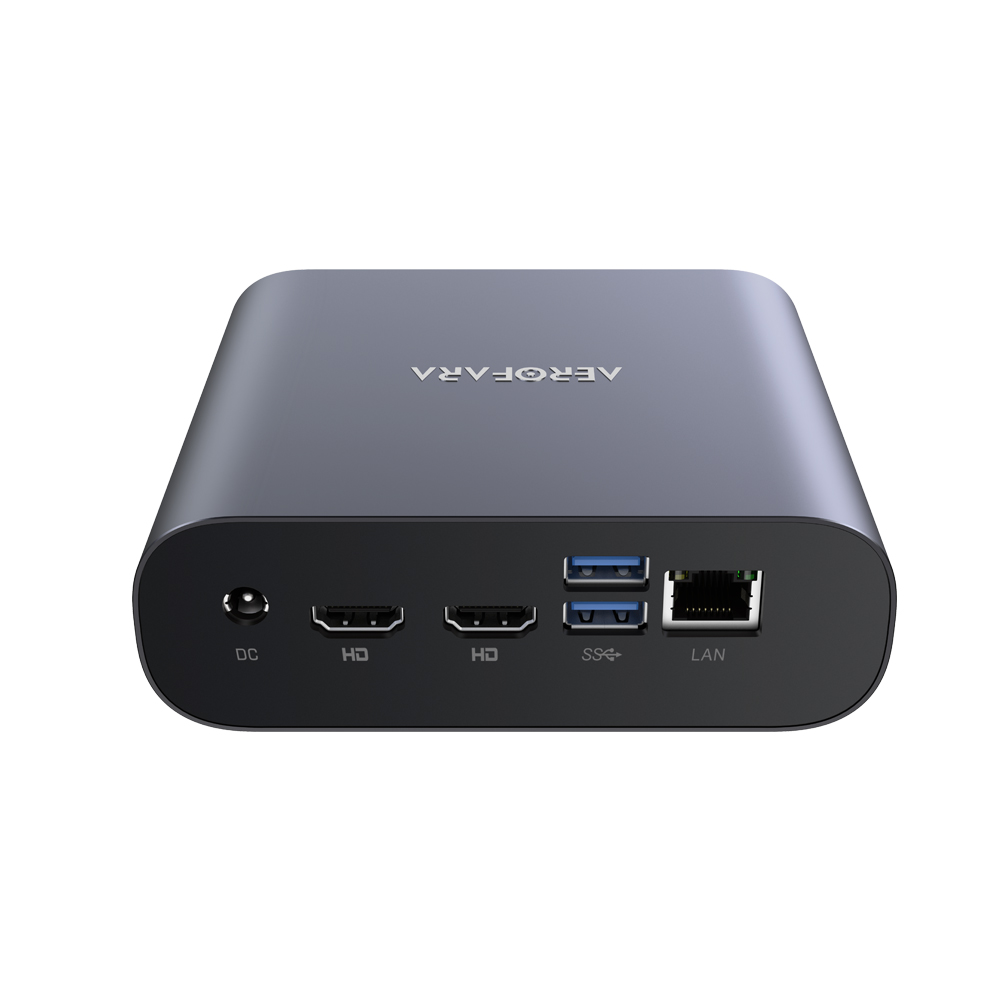

| Interface | DC Jack | 1 |
| USB3.0 | 4 | |
| RJ45 1000M | 1 | |
| HDMI | 2 | |
| Audio Jack (HP&MIC) | 1 | |
| RESET | 1 | |
| TYPE C | 1 | |
| Inside Interface | SSD M.2 2280 Slot | 1 |
| DDR4 Slot | 2 | |
| M.2 Wifi Slot | 1 | |
| Power Button&LED | 1 | |
| CLR CMOS Button | 1 | |
| Adapter | 19V-3A 57W Certification | |
| Input: 100-240V AC, 50/60Hz , Output: 19V 3A | ||
| Work Environment | -10°C--45°C，30%--85% Humidity | |
| Storage Environment | -20°C--60°C，10%--90% Humidity | |
| Accessories | Wall-Mounted bracket | |
| HDMI 100CM 1.4 | ||
| Adapter 19V/3A | ||
| Additional function | WOL | |
| Remark | ||
