Product Introduction

Model: M3-J4125

CPU: Onboard 14nm Gemini Lake Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max

2.7GHz(Turbo boost Technology) TDP 10W 4MB Cache Intel® UHD Graphics 600.

Product Highlight:

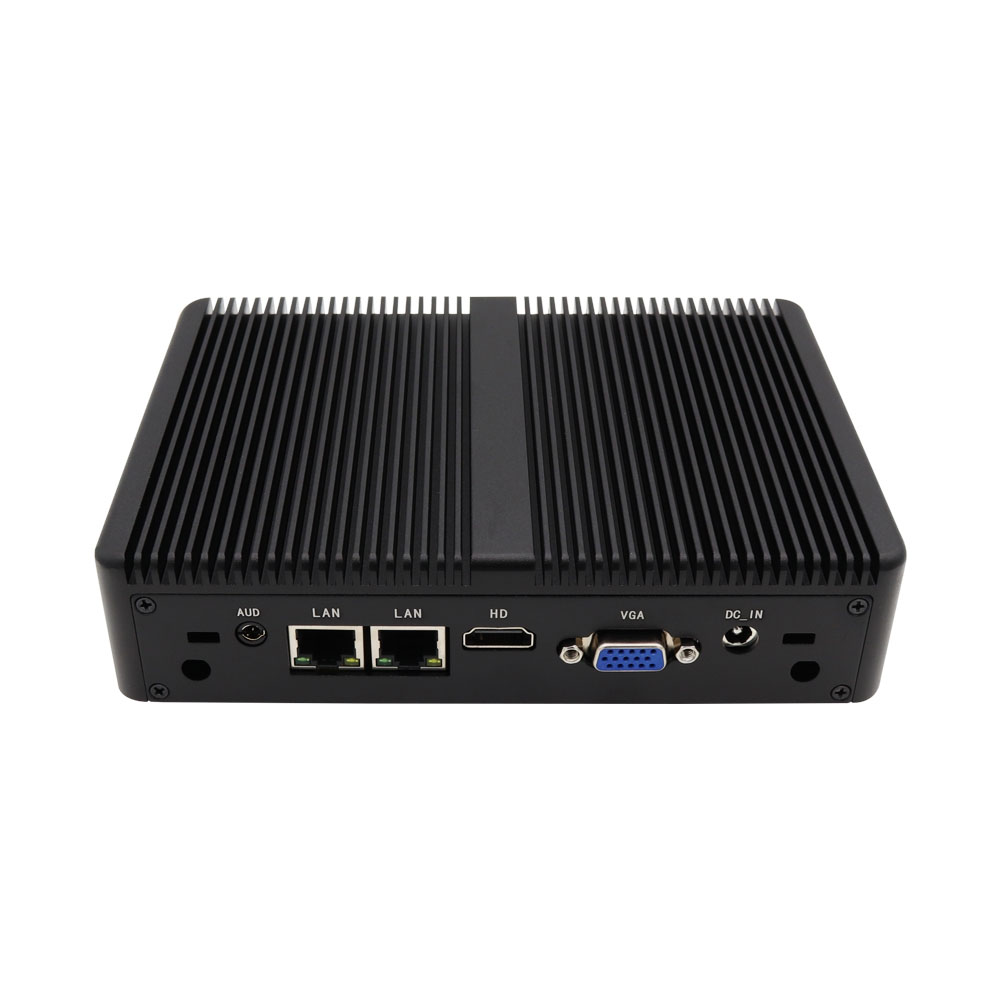

- Full Aluminum Alloy Silver/Black/Blue color shell, Exquisite production craft on outside design with high quality and stable performance, slim  dimension 173* 127*39MM.

- Fanless system without cooling fan, no any noise, work as long as 24 hours.

- Low consumption TDP only 10W, save much energy and eco-friendly.

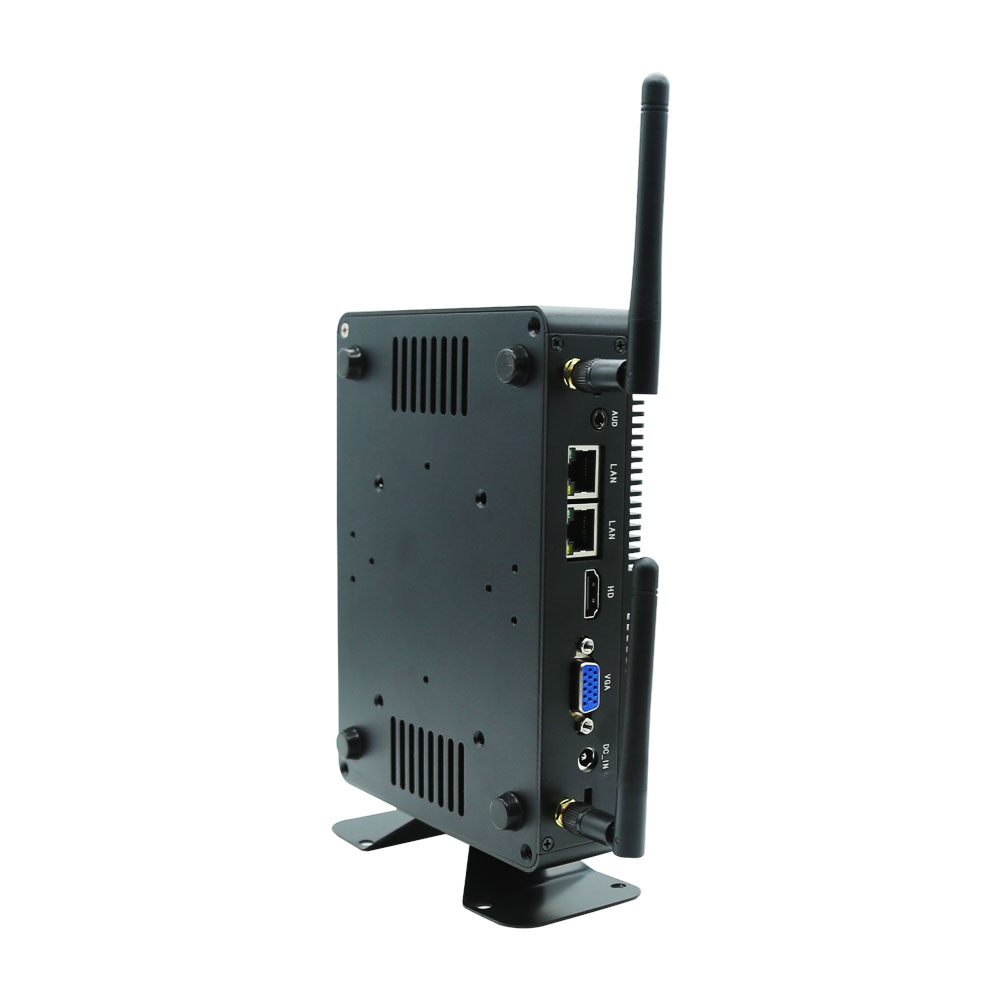

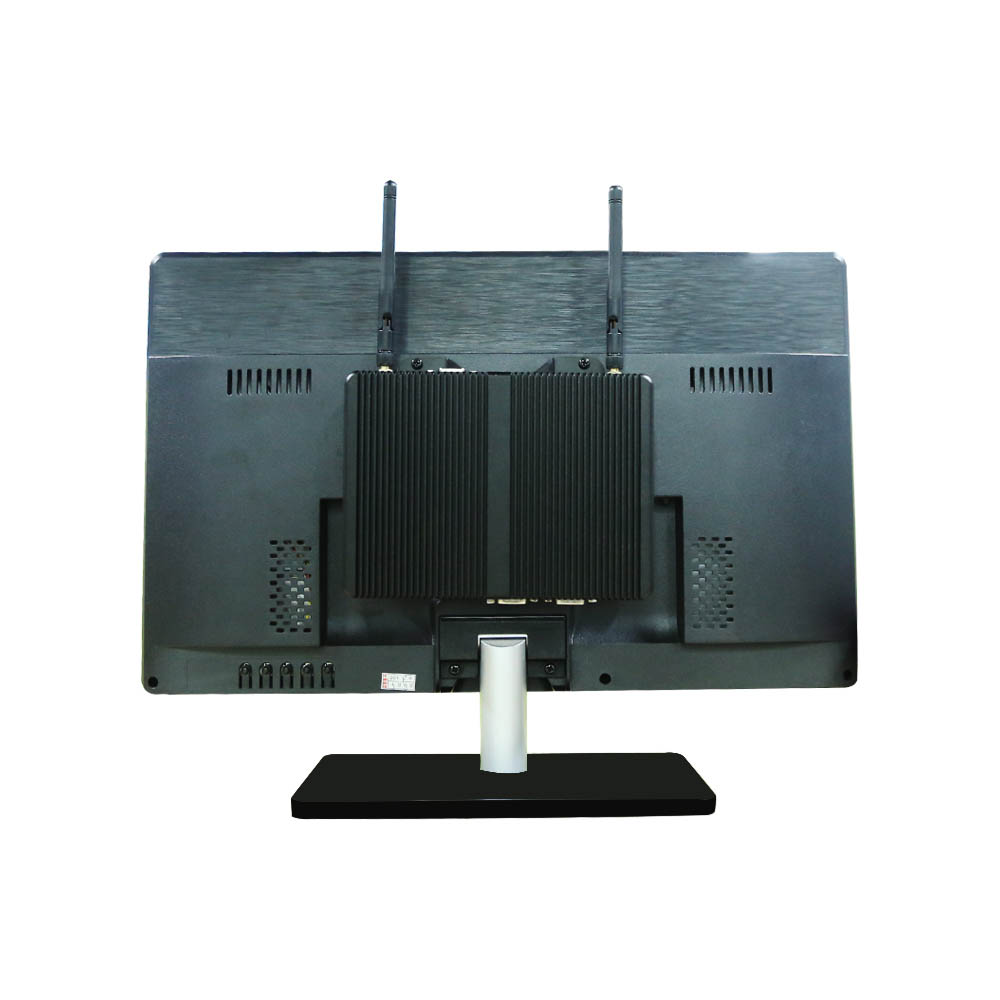

- Can stand up by free bracket or can be mounted back of monitor or wall.

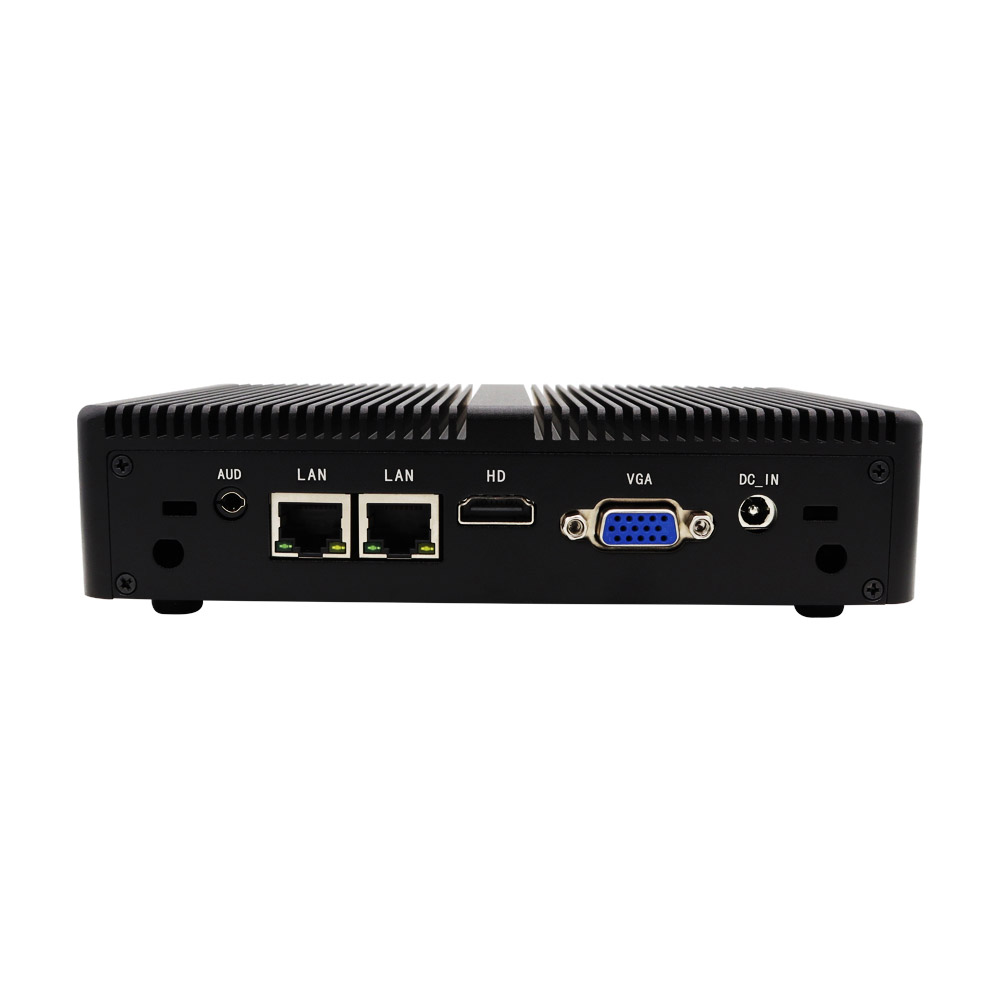

- Support HDMI 1.4 and VGA dual display output synchronously.

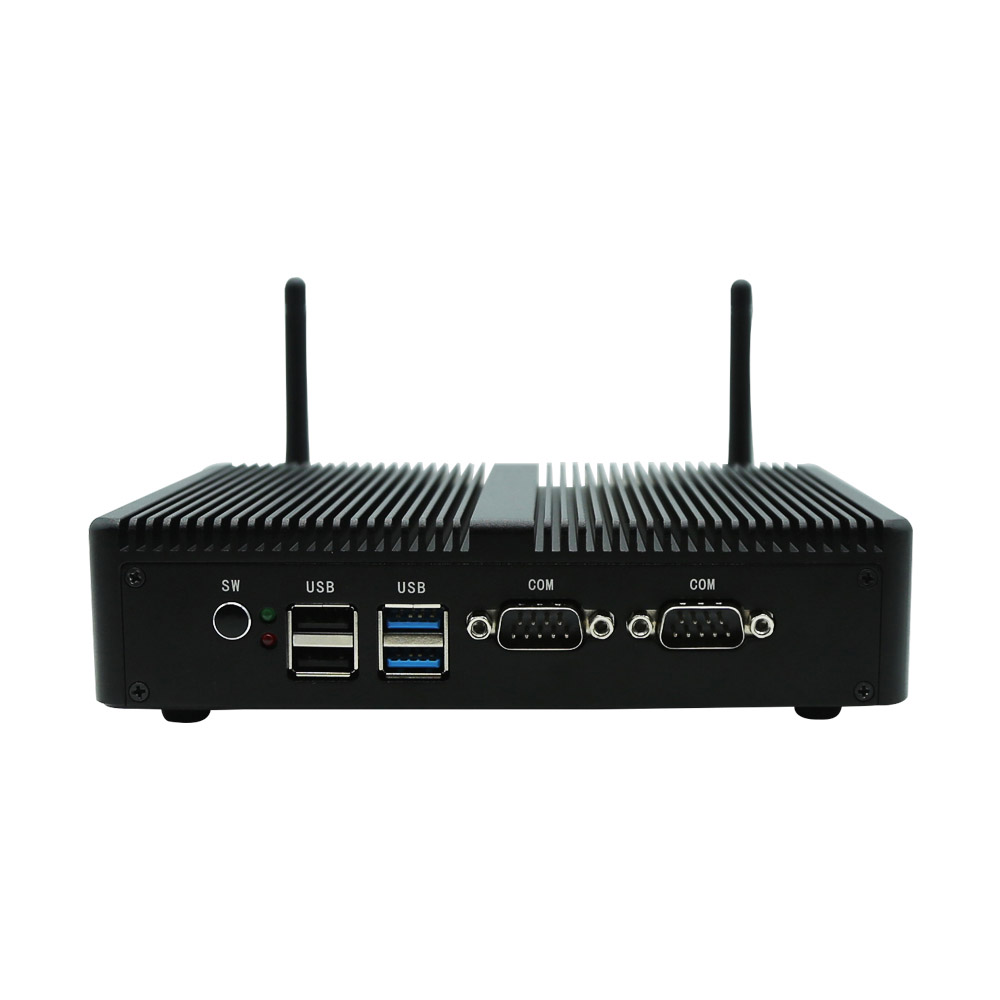

- Dual Gigabit Ethernet ports and 2 x RS232 COM.

- Two Kensington Lock holes let the device more safe in school, office, hotel, etc.



Basic Information:

Input/output port

CPU

 Onboard Intel Celeron J4125

Switch

1 x Power On/Off Switch

TDP

10W

Power

1 x 12V DC In

Motherboard

120 x 120mm customized size

LED

2 x LED

Chipset

Intel Gemini Lake

USB

2 x USB2.0, 4 x USB3.0

BIOS

American Megatrends Inc

Display

1 x VGA, 1 x HDMI 1.4

Memory

1 x SO-DIMM DDR4 Slot Support 4GB/8GB

DDR4/LPDDR4 up to 2400 MT/s

LAN

2 x RJ45 Giga LAN

OS

Windows 7/Windows 8/Windows 10/Linux

COM

2 x RS232 COM

PXE

YES

Audio

1 x Audio(MIC&SPK)

Audio

Intel High Denition Audio Controller

Others

2 x Kensington Lock holes, 1 x embedded SIM card slot onboard

Network

2 x RTL8168/8111/8112 Gigabit Ethernet Controller

10/100M/1000Mbps BaseT LAN



Video

Intel® UHD Graphics 600


Storage:

MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi:

Product Dimension & Details:

Module

1 x mini PCIE-full port for WiFi/3G/4G module

Size

173*127*39mm

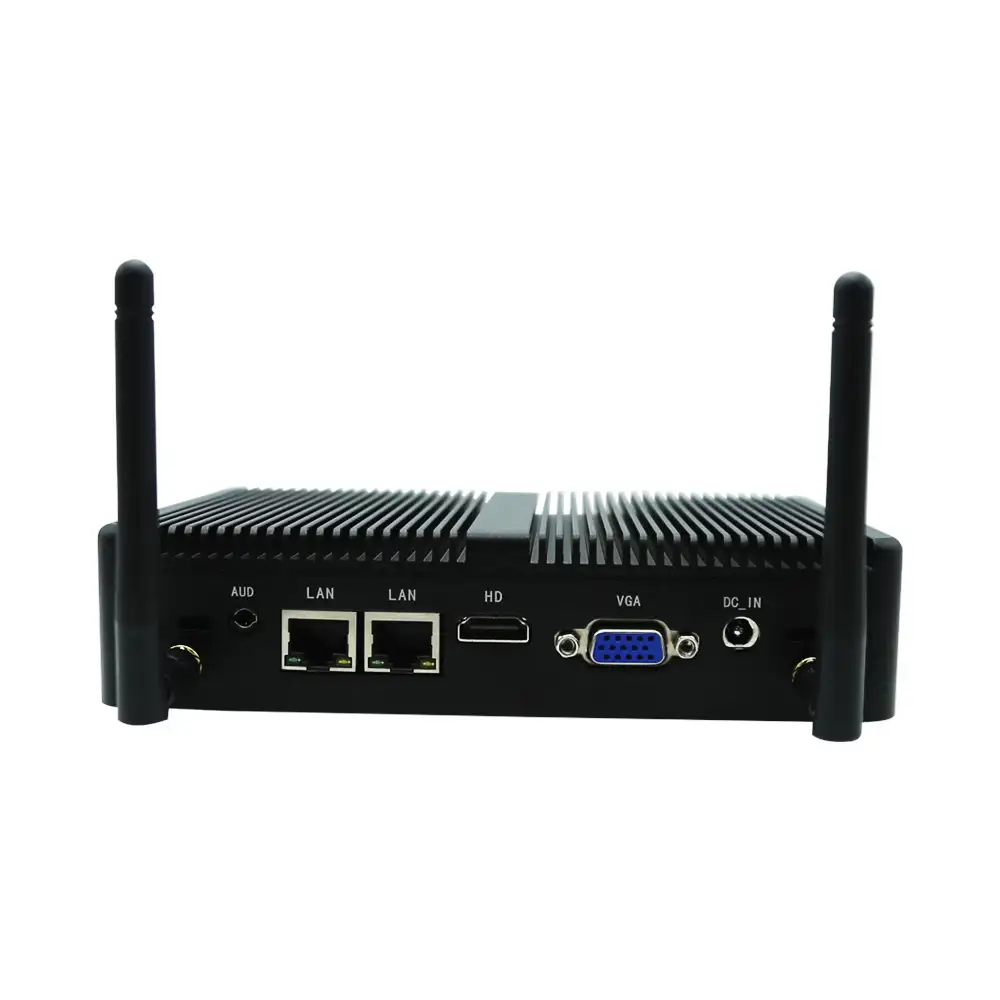

Antenna

2 x inner RF cables and 2 x external antennas

Weight

Net 0.8kg, Gross 1.2kg

Power and Working Environment:

Shell

Silver/Blue/Black color aluminum alloy(any customized color for bulk order)

Input

100-240V AC/50-60Hz

Cooling Mode

Fanless, without a cooling fan

Output

12V~+19V, recommend 12V/5A

Functions

Calls on function automatically, Wake-On-LAN, Kensington Lock

Operating Temperature

0/+70 Centigrade



Storage Temperature

-20/+85 Centigrade

Package Content

Relative Humidity

0%~90% (non-condensing)

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket

Optional

Wi-Fi Antennas, 1xHDMI Cable, 1xUser Manual, 1xVESA mount
