Product Introduction

Model: GK1-4578U

CPU:   Onboard Intel Haswell 22nm CPU Intel Core i7-4578U

3.0GHz Max 3.5GHz (Turbo boost Technology) Dual Cores

Four Threads 4MB cache TDP 28W Intel® Iris® Graphics 5100.

Product Highlight:

- 2 x RJ45 2.5GB i225-V Intel Giga LAN and 6 x RS232 COM(COM1/COM2 can change to RS485/422 from BIOS).

- Support VGA + HDMI 1.4 dual display output synchronously.

- One embedded SIM card slot onboard for 3G/4G Wi-Fi.

- Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on outside design.

- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.

- Low consumption TDP only 28W and can be mounted on the wall.

- Support AWAL, Wake On LAN, Watchdog, RTC functions.

Basic Information:

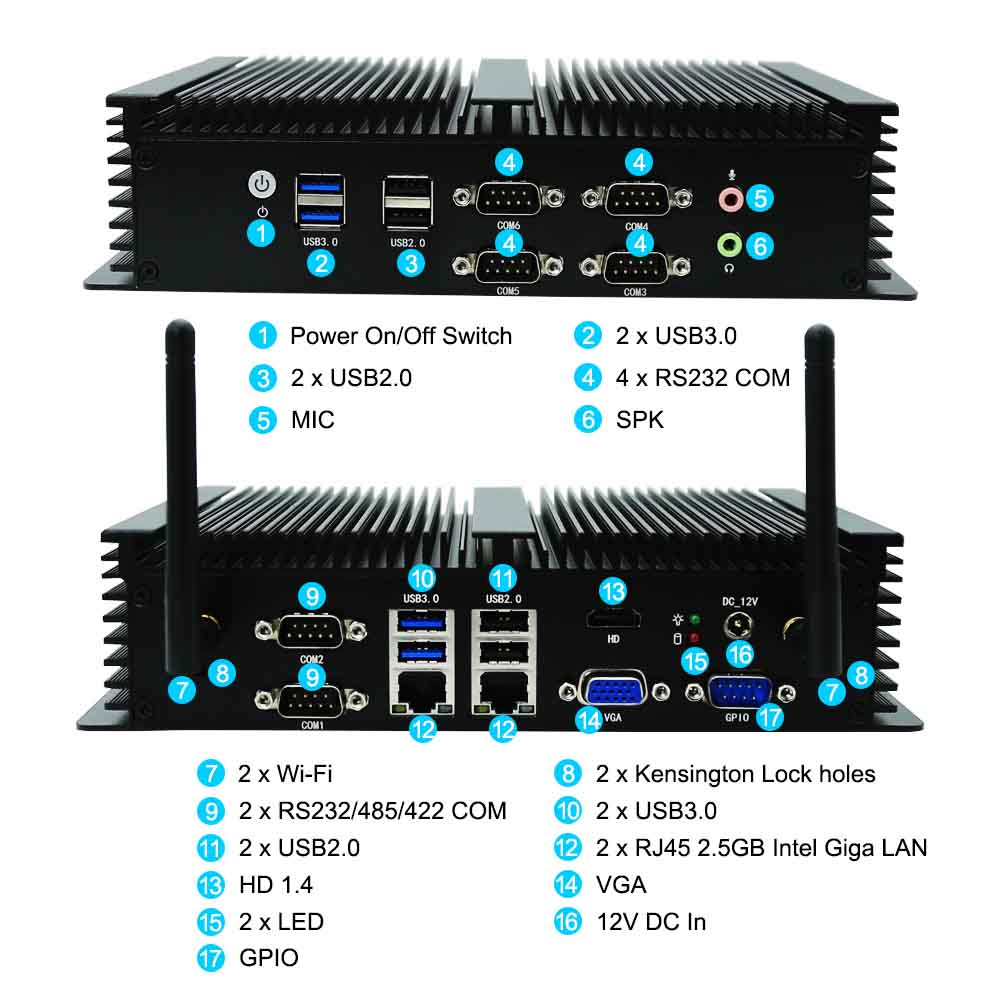

Input/output port

CPU

Onboard Intel Core i5-4278U / Onboard Intel Core i7-4578U

Switch

1 x Power On/Off Switch

TDP

28W

Power

1 x 12V DC In

Motherboard

14.5 x 14.7 cm

LED

2 x LED

Chipset

ntel Sunrise Point-LP, Intel Skylake-U

USB

x USB2.0, 4 x USB3.0

Display

1 x VGA, 1 x HDMI 1.4

Memory

x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB

DDR3L 1333/1600, LPDDR3 1333/1600

LAN

2 x RJ45 2.5GB Intel Giga LAN

OS

Windows 7/Windows 8/Windows 10/Linux

COM

6 x RS232 COM, COM1 COM2 can change to RS485/422 from BIOS

PXE

YES

GPIO

1 x GPIO

Audio

Intel High Definition Audio and USB Audio and HID

Audio

1 x MIC, 1 x SPK

Network

Onboard Intel 2.5G i225-V Gigabit Network Connection

10/100Mbps/1000Mbps BaseT LAN

Others

1x embedded SIM card slot onboard,

2 x Kensington Lock holes

Video

Intel® Iris® Graphics 5100

SATA

x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s


Storage:

MSATA

1 x M-SATA3.0 slot for MSATA SSD

SATA

1 x SATA3.0 slot for SATA HDD or SSD

Wi-Fi:

Product Dimension & Details:

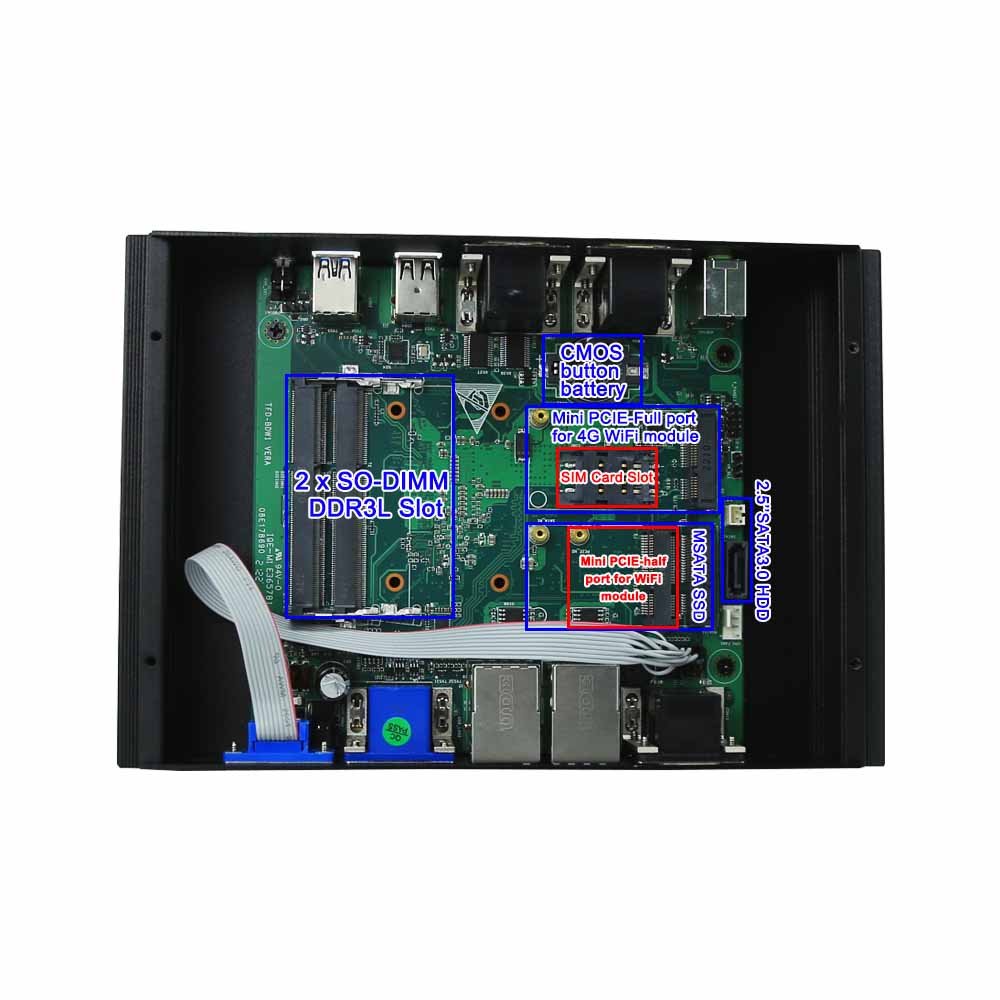

Module

1 x mini PCIE-half port for Wi-Fi/Bluetooth module

1 x mini PCIE-full port for 3G/4G module

Size

 235*148*60mm

Antenna

x inner RF cables and 2 x external antennas

Weight

Net 1.6kg, Gross 2.5kg

Power and Working Environment:

Shell

Black color aluminum alloy(any customized color for bulk order)

Input

100-240V AC/50-60Hz

Mounting

4 Mounting holes on case

Output

Only 12V

Cooling Mode

Fanless

Operating Temperature

-10°C/+60°C

Functions

AWALWake On LAN, RTC, Watchdog

Storage Temperature

-20°C/+80°C

Package Content

Relative Humidity

0%~90%@30°C(non-condensing)

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag



Optional

Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
