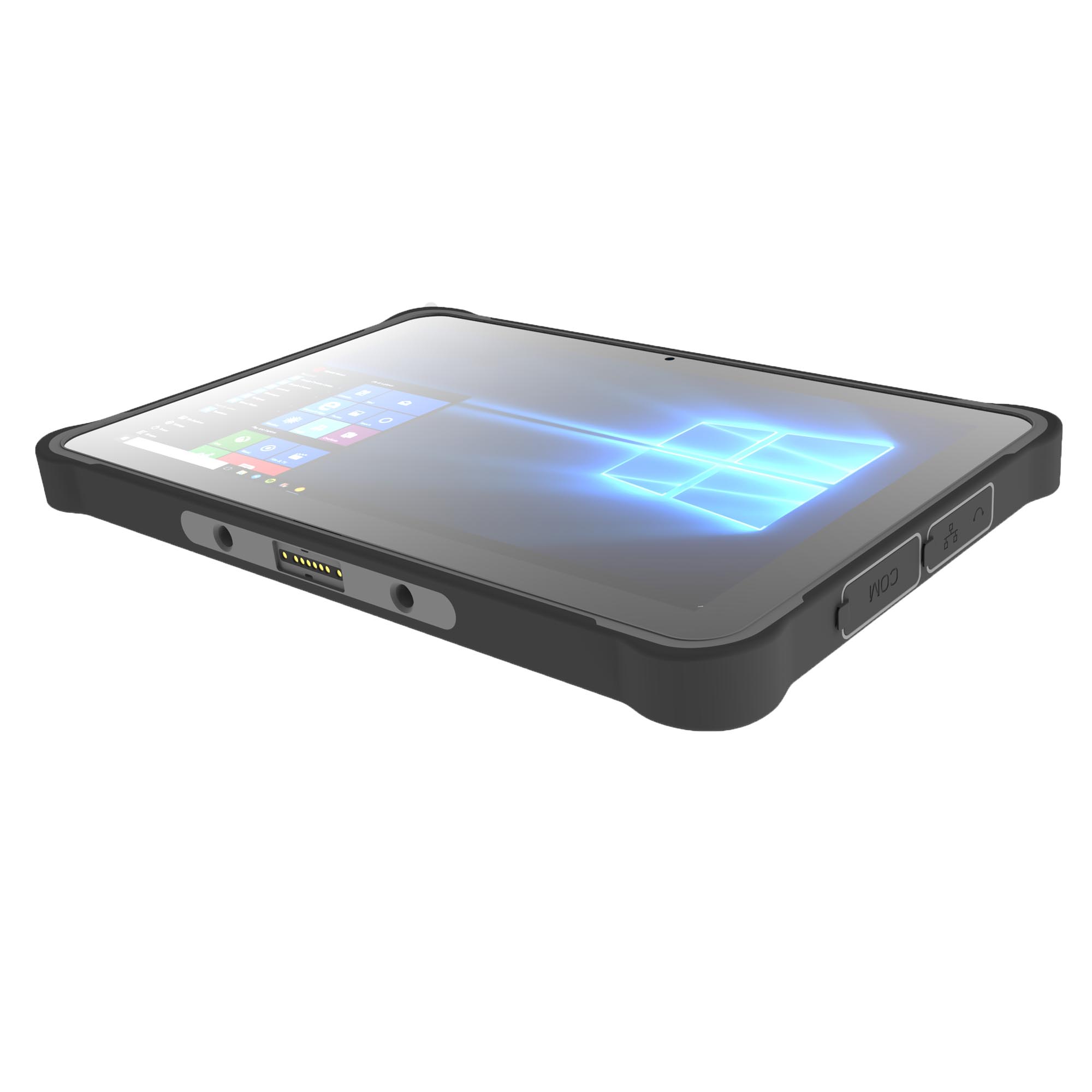

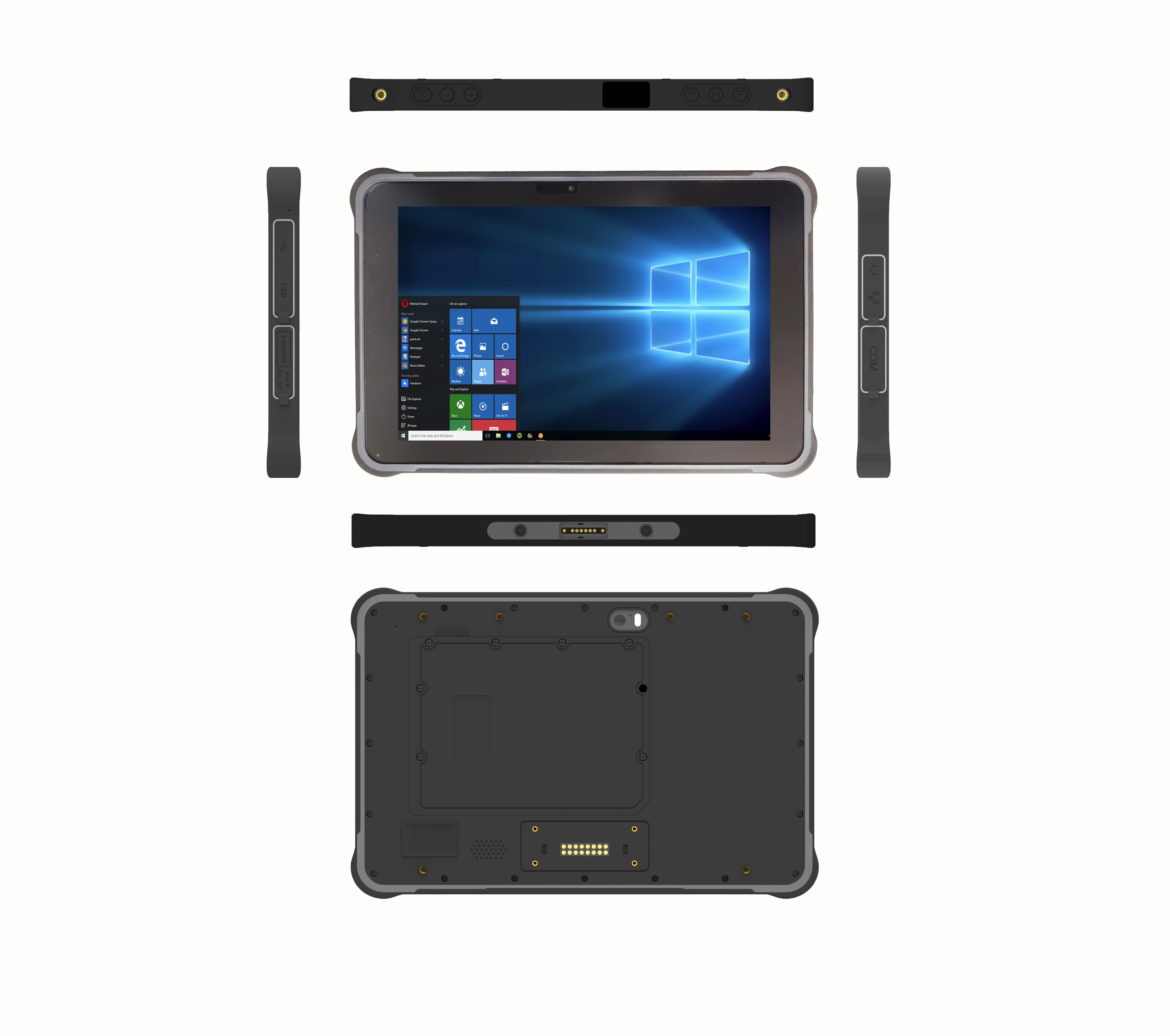

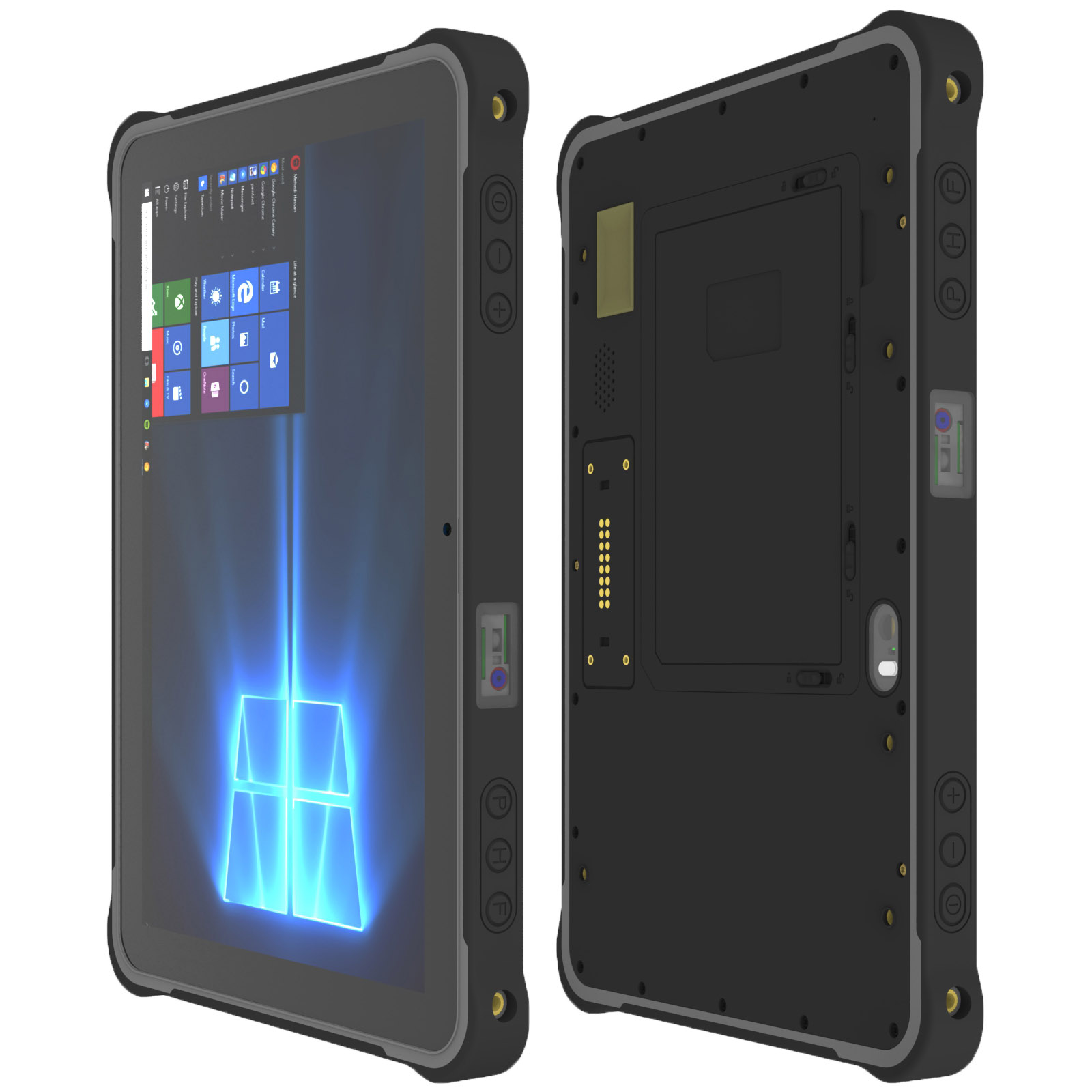

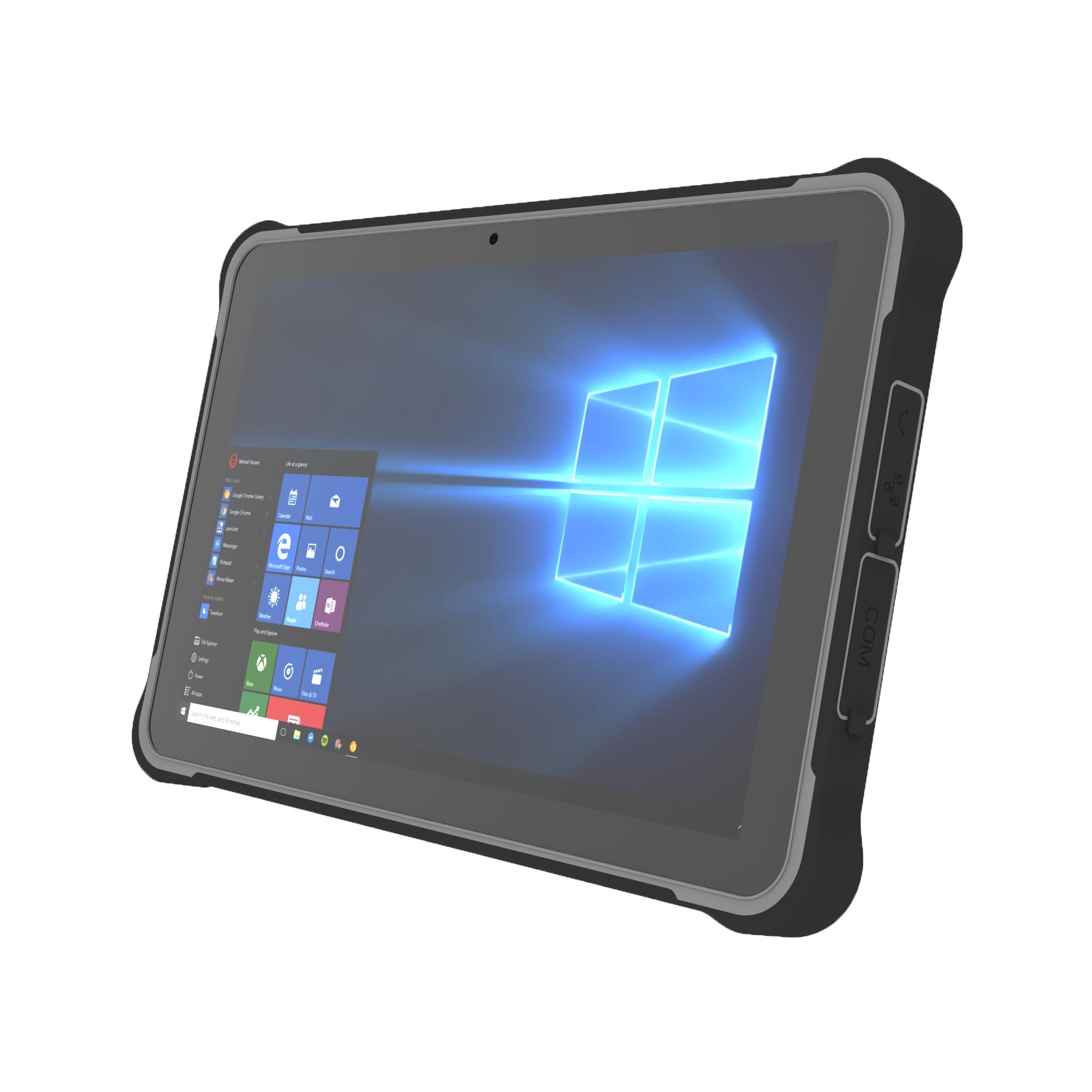

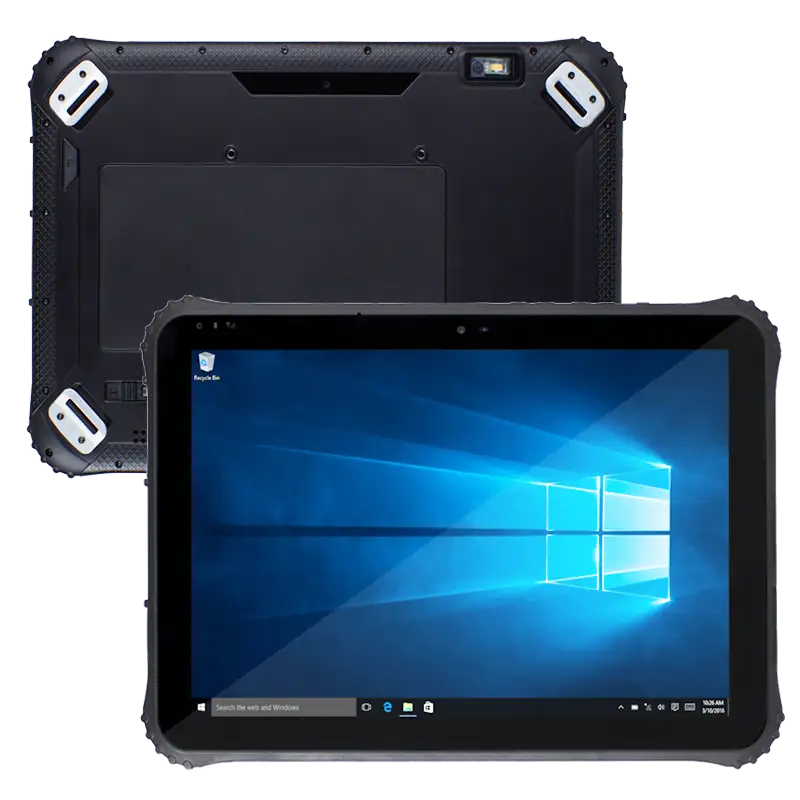

Product Introduction

OS windows 10 home/pro/iot
CPU intel Jasper Lake, N4500(2 core)/N5100 (4 core) 1GHZ to 2.8GHz standard one is N5100
RAM/ROM 8GB/256GB 4GB/64GB， 4GB/128GB  optional
LCD 10.1 inch1920*1200； max 500 nits sunshine readable
Touch screen "10 point touch
support tylus
support thin glove touch"
Camera 2M/5M， 5M/13M optional
Power and battery 6000mAh, 7.6V lithium battery

DC4.0*1.7mm, 12V 3A DC in put

------------------------------------------------------------------------------------------------------------------------------------------------

WWAN 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS baidou,GPS, glonass
wifi 802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5G intel 3165
BLUETOOTH 4.2 version

NFC 13.56 MHz, distance 5cm or above

------------------------------------------------------------------------------------------------------------------------------------------------

SPEAKER 1.5 watt
Sensor "1. light sensor
2. acceleration/gravity
"
size 275*178*18mm

weight 1.1kg

------------------------------------------------------------------------------------------------------------------------------------------------

"Multi-media
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)

language 语言 multi language

------------------------------------------------------------------------------------------------------------------------------------------------

"interface
in/out port" "1.USB 3.0 *2
2. RJ45*1
3. bottom pogopin*1, USB and serial
4. back pogopin*1
5. DC*1 3.5*1.35
6. microphone+earphone
7. HDMI
8.RS232*1"
Pogopin definition "1.16pin back of cover, include （1USB, 1 RS232， 1 UART， 3.3V, 5V)
2. 8pin in bottom； （1USB, 1 RS232， 1 UART， 5V)
VESA hole 75*75mm or 90*90mm"
casing material ABS/PC/rubber TPU/aluminum

button V+ -, Power, P, F, H

------------------------------------------------------------------------------------------------------------------------------------------------

2D barcode module honeywell N3680 optional
UHF 900MHz optional
fingerprint support optional
Front NFC under the screen, the distance is 3-5cm, mifare one is optional optional
high precision GPS 0.25-1 meter high precision GPS, support GPS, beidou, glonass optional
accessories "1. USB cable
2. charger
3. handstrap
4. car holder
5. docking station
6. car charger
7. white box, no logo"
proof rate "1. water proof IP65
2. Drapping proof 1.2 meter"
Certification "1. 810G
2. CE,FCC"
Temperature "1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
"
