Product Introduction

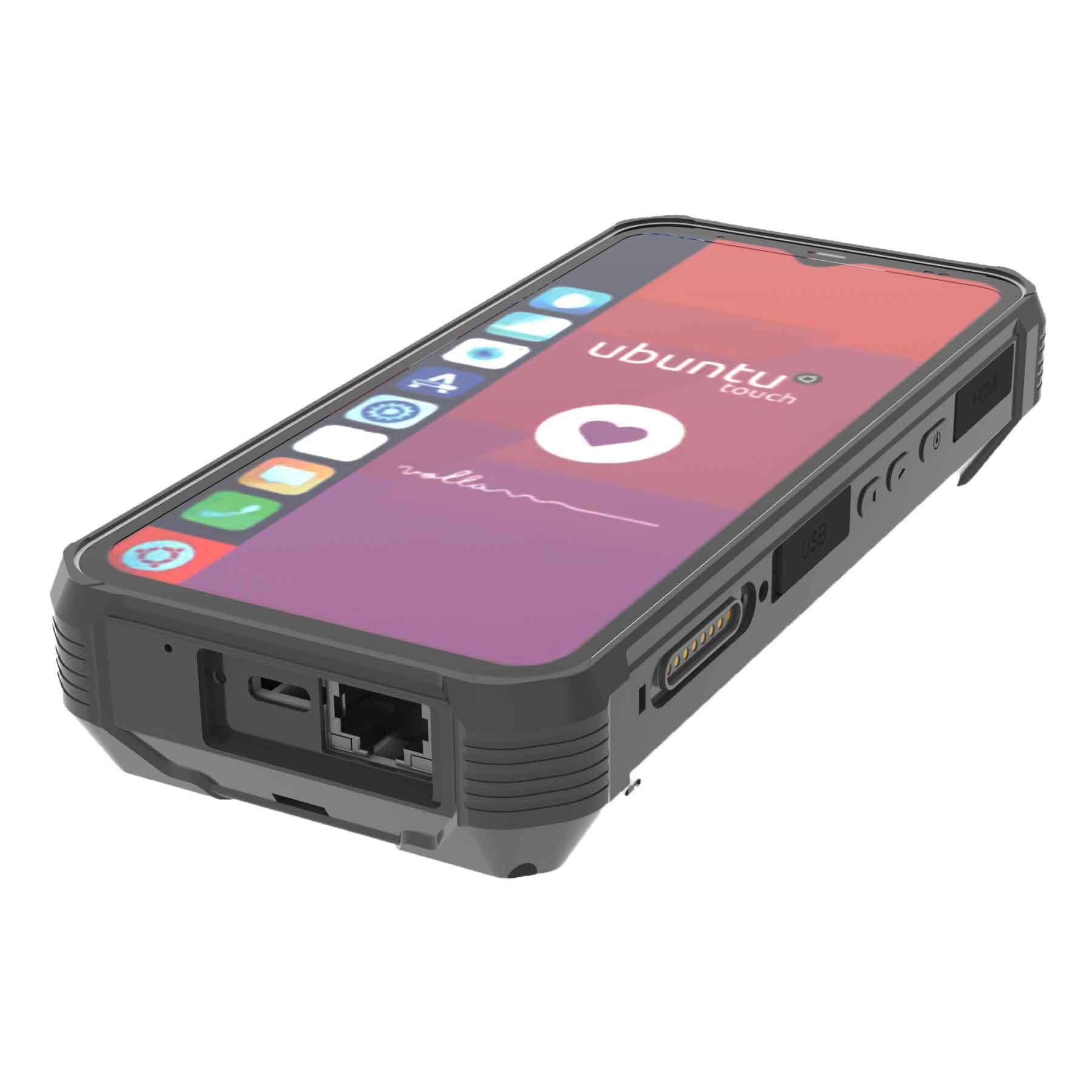

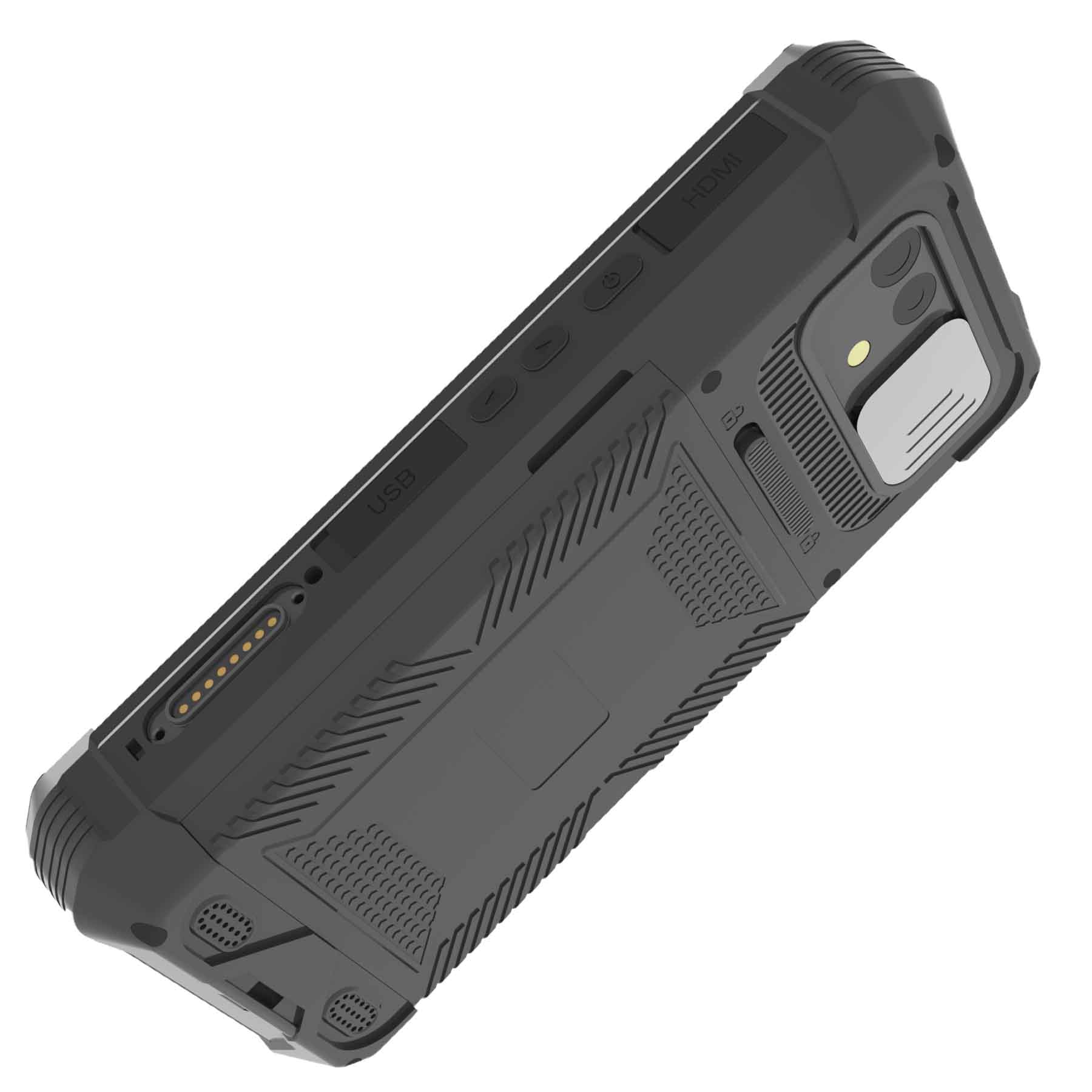

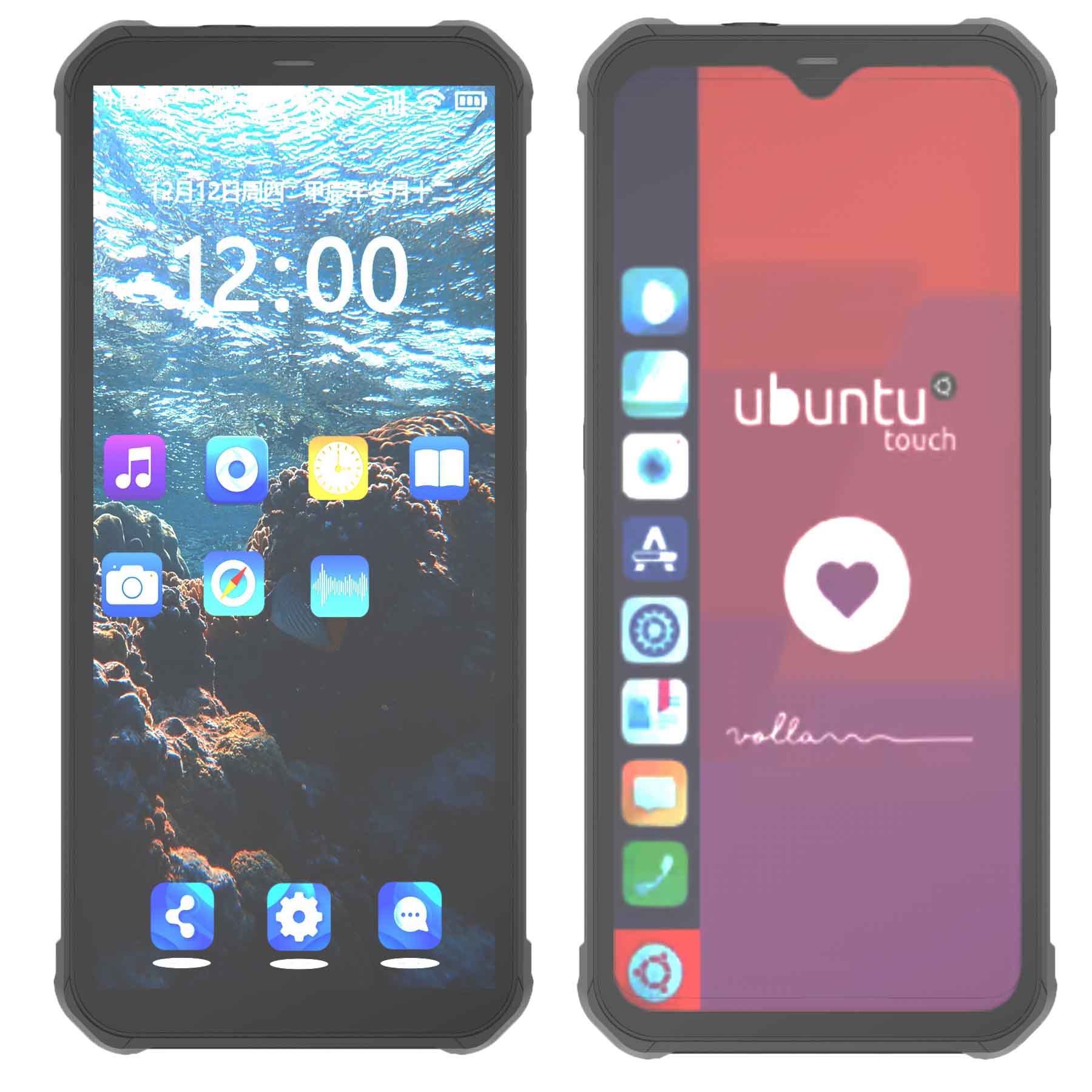

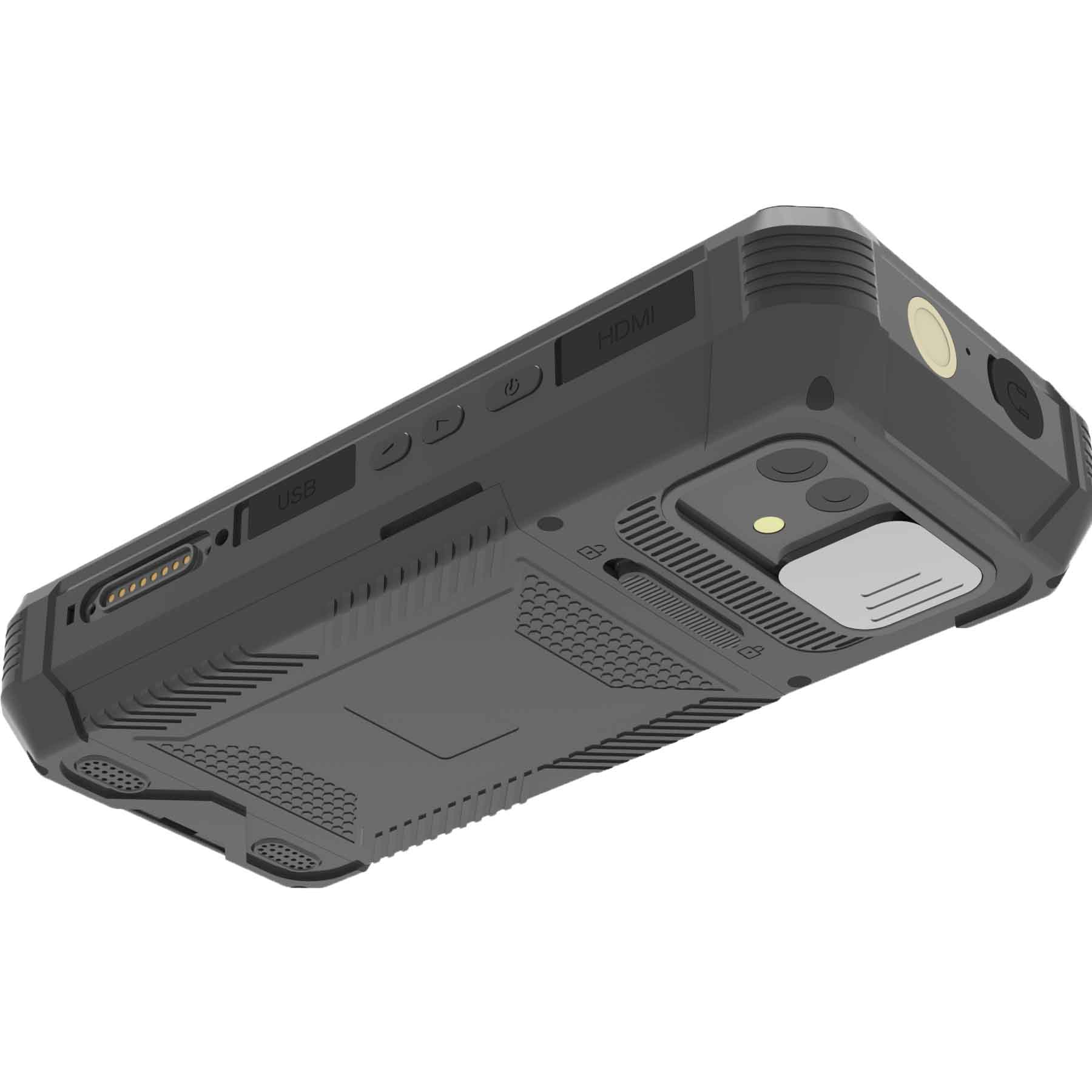

6.5 inch Linux Ubantu and android 14 rugged phone, handheld terminal
Linux phone, ubantu phone, linux handheld terminal, ubantu handheld terminal
| Item | Description | remark |
| OS |
Linux/Ubuntu
20.04 Android 14 OS |
OS hardware switch |
| CPU | RK3588 (8 cores: 4 Cortex-A76 cores at 2400 MHz and 4 Cortex-A55 cores at 2200 MHz) | |
| Size | 175*81*28mm， | |
| weight | <500g， | |
| Nor Flash | 256MB | |
| RAM | 16GB | |
| ROM (EMMC) | 128GB | |
| Storage | 512GB SSD | |
| TF Card | max 256GB*2 | |
| LCD |
6.5
inch, resolution: 720*1600， >800 lights brightness |
|
| touch panel |
10
point touch Panda MN228 glass |
|
| Camera |
Front
8M/back 20M auto focus Low-light camera flashlight Curtain for dusty proof |
|

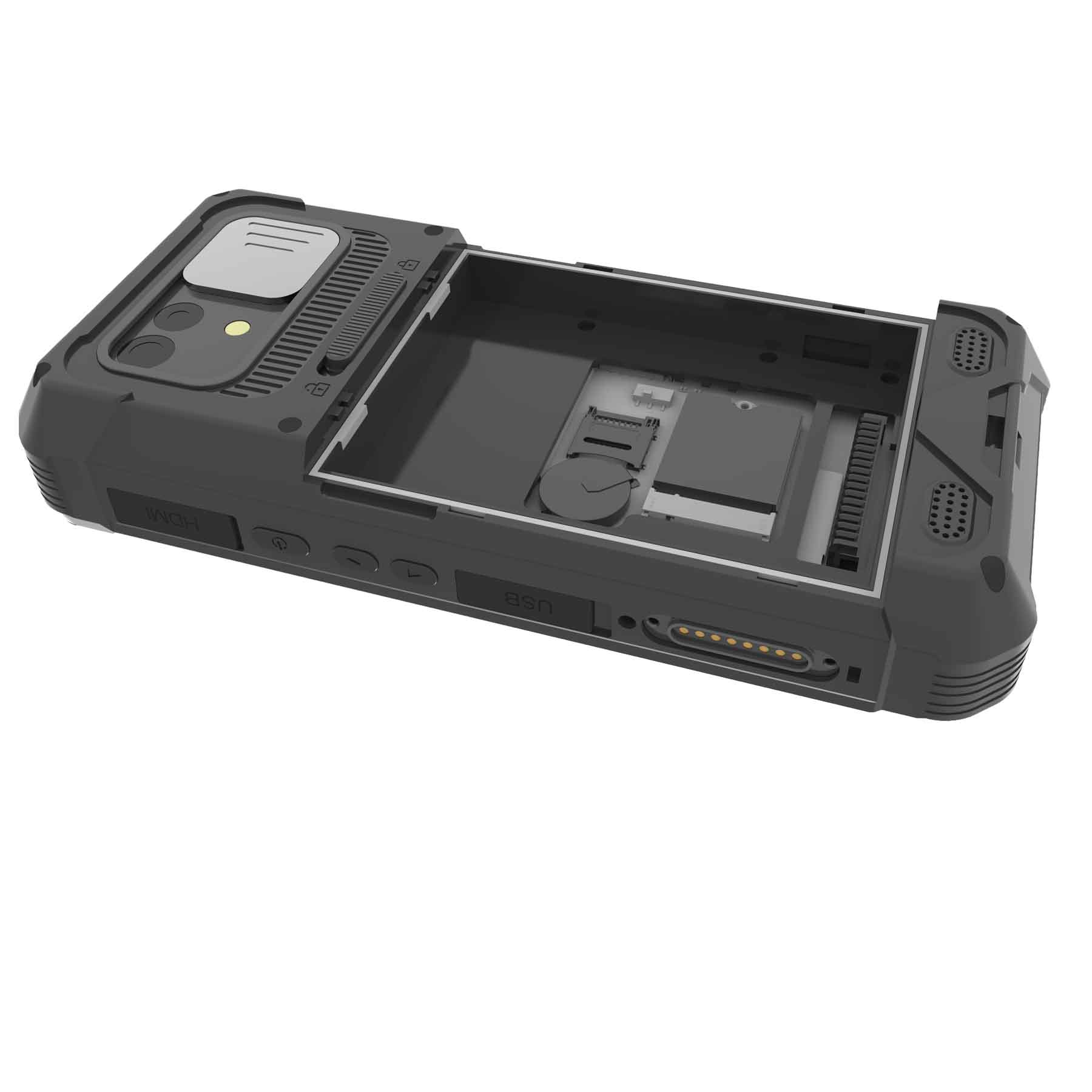

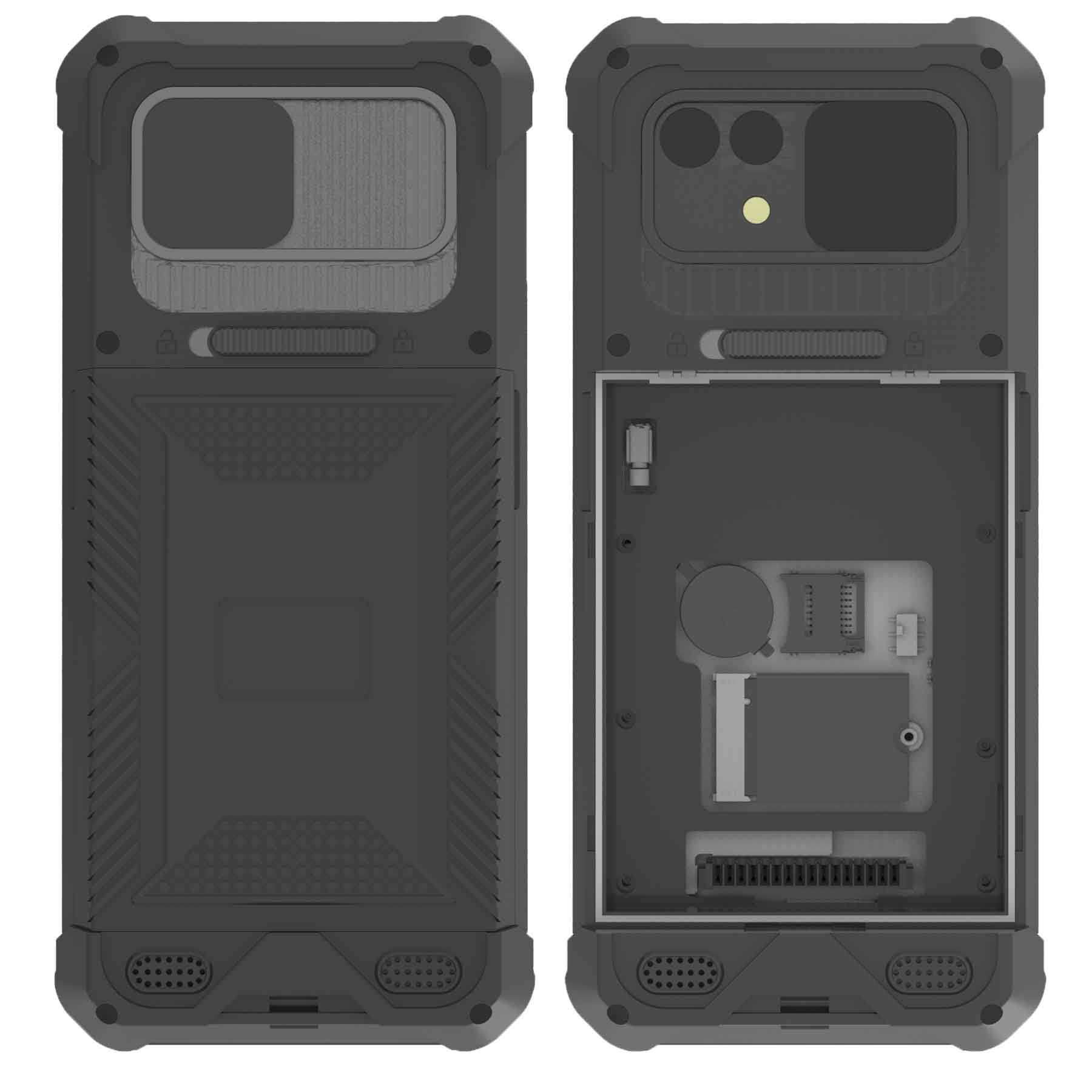

| Main battery |
10000mAh*3.8V
smart battery removeable |
|
| RTC battery | support, (for time saving) | |
| charging |
65W
full function TYPE-C charge LED icon |
|
| wireless charging | support, it in big battery | |
| 4G |
Meige-770A
module included calling function and message |
|
| wifi |
IEEE
802.ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.g, IEEE 802.n Support WIFI 2.4GHz, 5GHz 支持WiFi 6.0 |
|
| GPS | Beidou/GPS/GLONASS | |
| BT | BT5.0 | |
| NFC | Support | |
| Speaker | 2*1W | |
| handphone/set | support | |

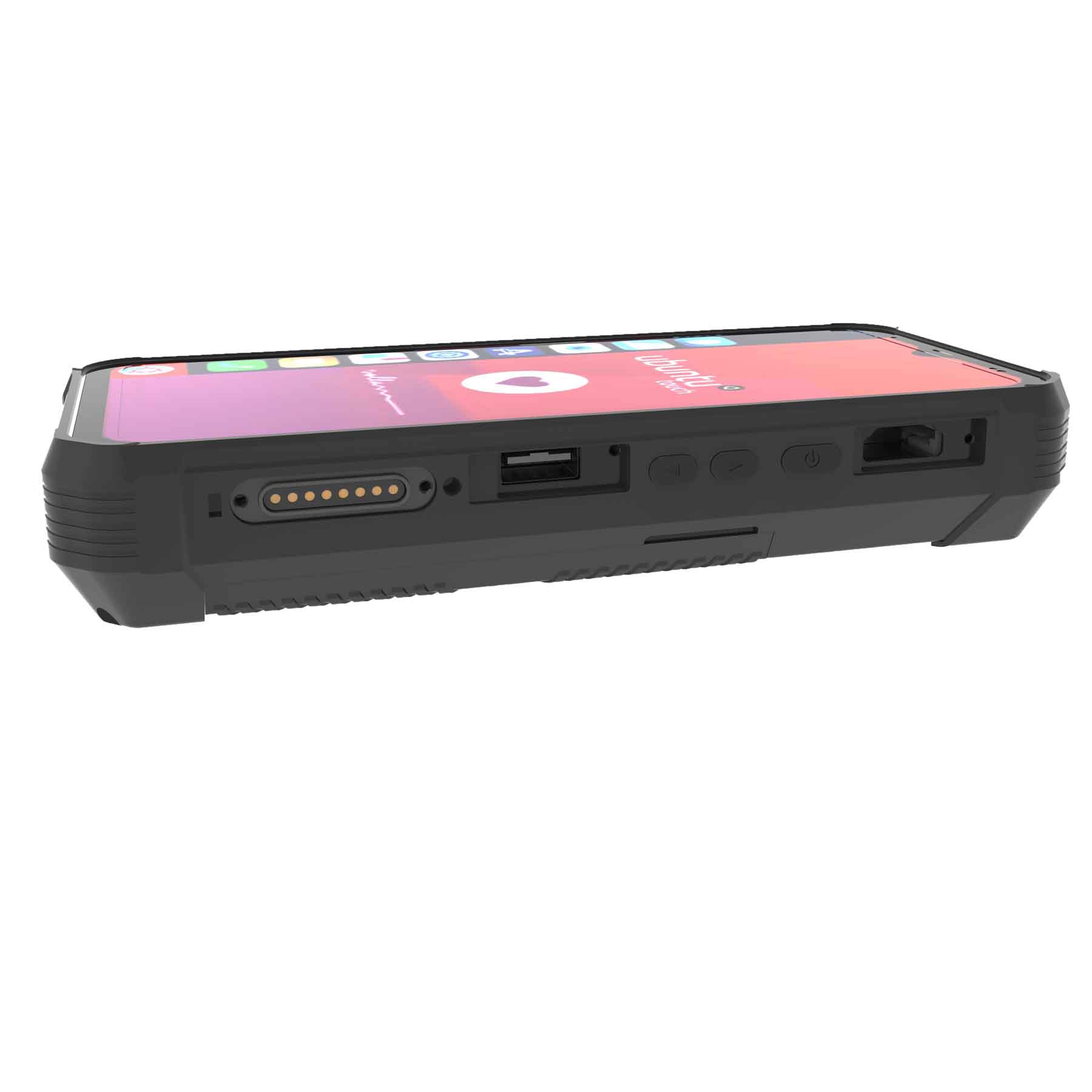

| interface(I/O) | 1. USB Type_c (USB 3.0) with USB OTG support (specify) full function | |
| 2. USB-A 3.0 * 2 | ||
| 3. Headphones jack 3.5 mm, America standard | ||
| 4. HDMI（±14*4.6mm full-size）port | ||
| 5. 1*SIM, support Dual card | ||
| 6. 1*TF card slot | ||
| 7. 1*RJ45,1000Mbps | ||
| Sensor | Microphone | |
| Light sensor | ||
| Accelerometer | ||
| Compass | ||
| G-sensor | ||
| pogopin/pogopin cable |
8*pogopin，connection cable USB2.0 male usb 2.0, rs232) (gnd, d+, d-, 5V, rs232-rx, rs232-tx)， support, uart-debug |
|
| flash light/torch | 5V*1A | |
| water proof | IP66 | |
| temperature |
working
temperature; -20degree to 55 degree storage temperature, -25 degree to 70 degree |
|
| dropping proof | 1.2 meter | |
| accessories |
1.
pogopin cable, optional 2. battery charger, optional 3. package; included |
